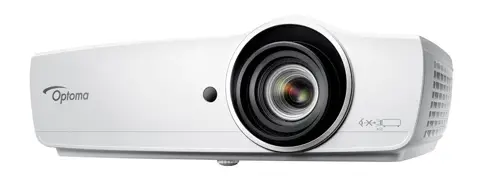

Optoma WU470 Full HD WUXGA Projector Instructions
Bright Full HD WUXGA projector – 5000 ANSI Lumen
Installation flexibility –1.5x zoom
Ultimate Control – Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
Easy connectivity – 2x HDMI + MHL, RJ45, USB Power, 12V Trigger
Give hassle free and cable free presentations from a USB stick using the built-in photo and document viewer. You can even give presentations wirelessly from a mobile device using the optional wireless dongle.

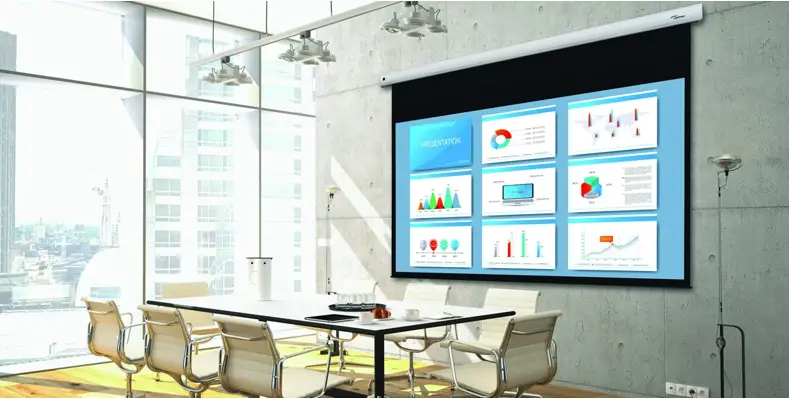

This Full HD WUXGA projector is ideal for meetings and classroom. Boasting ultra-bright images for optimum visibility and a wide range of inputs allow you to effortlessly connect to devices such as computers and tablets. Additionally a built-in 10W speaker enables clear and loud audio.
Specifications
Display/image
Display technology DLP™
Resolution WUXGA (1920×1200)
Brightness 5.000 lumens
Contrast ratio 20.000:1
Native aspect ratio 16:10
Aspect ratio – compatible 4:3
Keystone correction – horizontal +/-20°
Keystone correction – vertical +/-30°
Horizontal scan rate 15.375 ~ 91.146Khz
Vertical scan rate 24 ~ 85(120 for 3D)Hz
Uniformity 75%
Screen size 0.68m ~ 8.48m (26.6″ ~ 334″) diagonal
Lamp info
Light source type Lamp
Lamp watts 285
Lamp life hours (up to) 2500 (Bright), 4500 (Dynamic), 3500 (Eco), 4500 (Eco+)
Optical
Throw ratio 1.39:1 ~ 2.09:1
Projection distance (m) 1.2m – 10m
Zoom 1.5
Zoom type Manual
Focal length (mm) 20.7mm~31.05mm/0.815″~1.222″
Native offset 108%

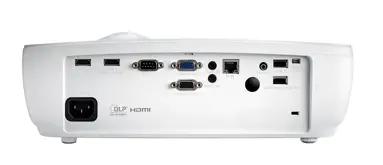

Connectivity
Connections Inputs 1 x HDMI 1.4a 3D support, 1 x HDMI 1.4a 3D support + MHL, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm, 1 x USB-A reader
Outputs 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm
Control 1 x USB-A wireless, 1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x mini USB mouse/service
General
Noise level (typical) 29dB
Noise level (max) 31dB
PC compatibility FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D Full 3D
Security Security bar, Kensington Lock, Password protected interface
OSD / display languages 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
Operating conditions 5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Remote control Data remote with laser and mouse function
Speaker count 1
Watts per speaker 10W
In the box AC power cord, remote control, 2x AA batteries, basic user manual
Operating system compatibility
Windows 7 / 8 / 8.1 / 10, MacOSX 10.9 +, Android 4.0+, iOS 8+
Optional wireless models QuickCast Bundle, QuickCast starter kit, WHD200, WUSB
Networking
LAN – control Yes
LAN – display Yes
LAN – wireless networking Yes – optional
Power
Power supply 100 ~ 240V, 50 ~ 60Hz
Power consumption (standby) 0.5W
Power consumption (min) 290W
Power consumption (max) 350W
Weight and dimensions
Dimensions (W x D x H) mm 345 x 216 x 109
Gross weight 4.13 kg
Net weight 2.95 kg
