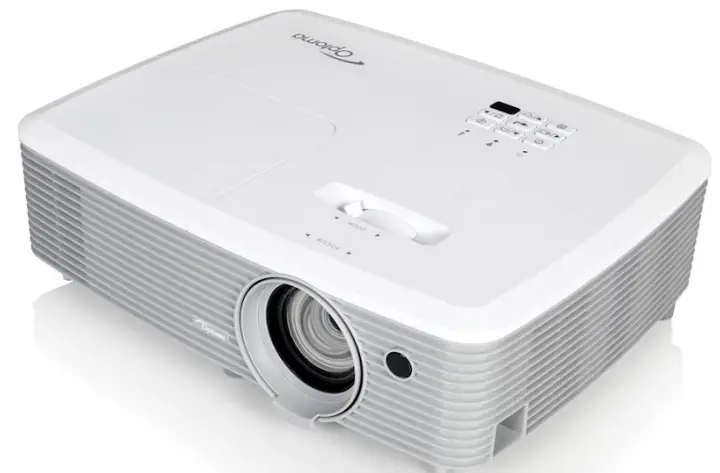

EH400+ Full HD 1080p Projector
Instructions
optomaeurope.com
EH400+
Full HD 1080p, bright and powerful
EH400+ Full HD 1080p Projector
- Bright Full HD 1080p projector – 4000 ANSI lumens
- Installation flexibility – 1.3x zoom
- Ultimate Control – Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
- Easy connectivity – HDMI, VGA, USB Power, 10W speaker, RJ45
Experience excellence with the first ever 4,000 lumens, small, lightweight EH00+ projector. This model is designed to be used at any time for multiple purposes including professional use- from classrooms to business meetings. Designed to replace legacy LCD projectors with a similar throw, it off ers It off ers top quality projected colors, long lamp life with a low overall cost of ownership.
Specifications
https://www.optomaeurope.com/product/EH400plus
| Display/image | |
| Display technology | DLP™ |
| Resolution | 1080p Full HD (1920×1080) |
| Brightness | 4,000 lumens |
| Contrast ratio | 22,000:1 |
| Native aspect ratio | 16:09 |
| Aspect ratio – compatible | 4:03 |
| Keystone correction – vertical | +/-40° |
| Horizontal scan rate | 15.3 ~ 91.1Khz |
| Vertical scan rate | 24 ~ 85(120 for 3D)Hz |
| Uniformity | 75% |
| Screen size | 0.94m ~ 7.66m (36.9″ ~ 301.4″) diagonal |
| Lamp info | |
| Light source type | Lamp |
| Lamp watts | 220 |
| Lamp life hours (up to) | 5000 (Bright), 6500 (Dynamic), 6000 (Eco), 7000 (Eco+), |
| Lamp life (education) | 10,000 hours |
| Optical | |
| Throw ratio | 1.13:1 ~ 1.47:1 |
| Projection distance (m) | 1.2m – 7.5m |
| Zoom | 1.3 |
| Zoom type | Manual |
| Focal length (mm) | 16.91mm~21.6mm/0.666″~0.85″ |
| Native offset | 115% |
| Connectivity | |

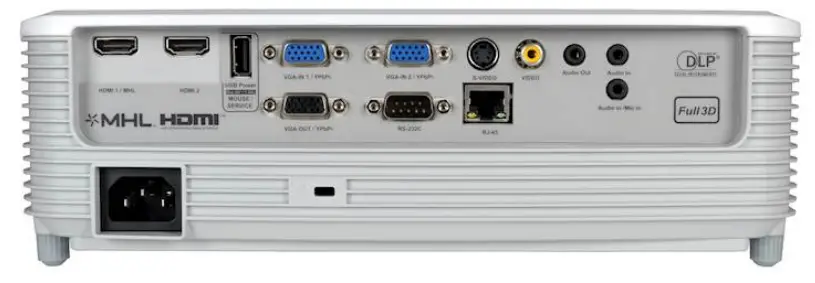

| Connections | Inputs 1 x HDMI 1.4a 3D support + MHL, 1 x HDMI 1.4a 3D support, 2 x VGA (YPbPr/RGB), 1 x Composite video, 1 x SVideo, 2x Audio 3.5mm Outputs 1 x VGA (YPbPr/RGB), 1 x USB-A power 1A, 1 x Audio 3.5mm Control 1 x RS232, 1 x RJ45 |
General
| Noise level (typical) | 29dB |
| Noise level (max) | 31dB |
| PC compatibility | FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 1+I98:J120 | NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, |
| 3D compatibility | Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Password protected interface |
| OSD / display languages | 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplifi ed), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| Operating conditions | 5° C~40° C/41° F~104° F, max altitude 3000M/9843ft, max humidity 85% |

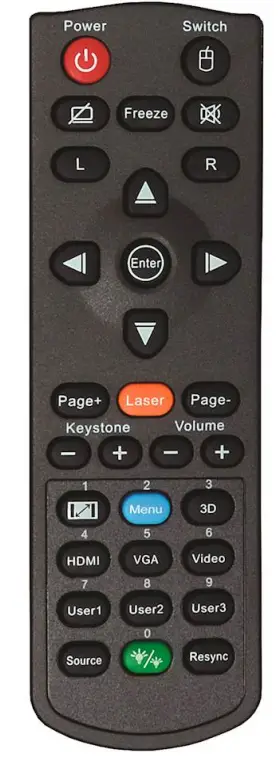

| Remote control | Data remote with laser and mouse function |
| Speaker count | 1 |
| Watts per speaker | 10W |
| In the box | AC power cord Remote control 2x AAA batteries Basic user manual |
| Optional wireless models | HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200 |
| Power | |
| Power supply | 100 ~ 240V, 50 ~ 60Hz |
| Power consumption (standby) | 0.5W |
| Power consumption (min) | 204W |
| Power consumption (max) | 266W |
| Weight and dimensions | |
| Dimensions (W x D x H) mm | 298 x 230 x 96 |
| Gross weight | 3.5 kg |
| Net weight | 2.98 kg |
