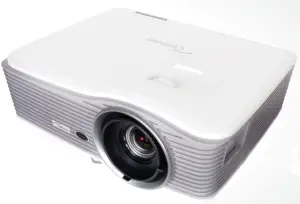

Optoma EH515 1080p Full 3D Projector
4 corner Geometric Correction for easy installation of basic stacking solutions or on uneven walls
1.8x Zoom – excellent image from a short or long distance
Vertical/ Horizontal keystone and lens shift for various applications
Bright Projection at 5500 ANSI lumens for large installations
Full Control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link, and Telnet
Two 10-Watt speakers for excellent sound

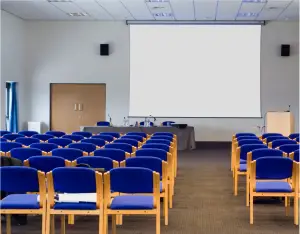

The Optoma EH515 is a Full HD professional Installation projector, ideal for corporate environments, house of worship and Pro-AV installs. EH515 DLP technology provides accurate colors and great contrast for dark and white images. This great projector is furnished with advanced features to facilitate a quick installation.
Features include: Four corner correction (ideal for image stacking or uneven walls), Horizontal and Vertical Lens shift and Keystone together with x1.8 zoom ratio, permit a quick setup and easy usability from any angle.

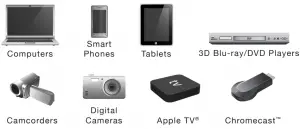

Equipped with a variety of inputs, including HDMI built in MHL technology, allows you to connect to a wide variety of HD devices to easily display your content. In addition, the environmentally friendly EH515 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money by prolonging your lamp life.
CONNECTIVITY (May require optional accessories)
Technology/Features
EH515 — 1080p: Perfect for Corporate Presentations and Detailed Images
- Kensington™ Lock Port
- Power
- LAN
- micro USB (service)
- HDMI1-In (MHL)
- HDMI2-In
- Display Port
- VGA1-In (YPbPr)
- VGA-Out
- S-Video
- Audio3-In (RCA)
- Audio1-In (3.5 mm)
- Audio-Out (3.5 mm)
- USB (Power 1.5a)
- 3D Vesa
- 12V Trigger
- VGA2-In (YPbPr)
- RS-232C
- Composite Video
- Audio2-In (3.5 mm)
- Wired Remote
- MIC-In (3.5 mm)
- Key Pad
- Power On Button
- Menu
- Information
OPTICAL/TECHNICAL SPECIFICATIONS
| Display Technology | Single 0.65″ 1080p chip, DLP® Technology by Texas Instruments™ |
| Native Resolution | 1080p (1920 x 1080) |
| Maximum Resolution | 1080p (1920 x 1080) |
| Brightness | 5500 ANSI lumens |
| Contrast Ratio | 10,000:1 (full on/full off) |
| Displayable Colors | 1.07 billion |
| Lamp Life | 3000/4000 hrs (Bright/ECO) |
| Lamp Type* | 365W |
| Projection Method | Front, rear, ceiling mount, table top |
| Keystone Correction | ±30° Vertical; ±30° Horizontal |
| Uniformity | 80% |
| Offset | Vertical: 105% (±5% Variance) |
| Lens Shift | Vertical: + 25% Horizontal: ±10% (constraints apply see user manual for details) |
| Aspect Ratio | 16:9 (Native), 4:3, Auto |
| Throw Ratio | 1.2:1~2.16:1 |
| Projection Distance | 4.27’–26.24′ (1.3–8.0 m) |
| Image Size | 27.2″~301.1″ (0.69~7.64 m) diagonal 16:9 |
| Projection Lens | F=17.63~31.36 mm; manual focus |
| Optical Zoom | 1.8x Manual zoom |
| Digital Zoom | 0.8–2.0 |
| Audio | 20-Watt |
| Noise Level | 28dB |
| Remote Control | IR and wired control |
| Operating Temperature | 41–113°F (5~45°C), 85% max humidity |
| Power Supply | AC input 100–240V, 50–60 Hz, auto-switching |
| Power Consumption | 445W (Bright), 335W Max (ECO), |
| High Altitude | Operating Temperature at sea level 10,000 feet = 73.4°F (23°C) max; must manually switch to high altitude mode at 5,000 feet |
PHYSICAL SPECIFICATIONS
| Security | Kensington® lock port, security bar and password protection |
| Weight | 13 lb (5.9 kg) |

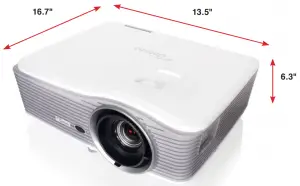

| Dimensions (W x H x D) | 16.7” x 6.3” x 13.5” (424 x 160 x 344 mm) |
COMPATIBILITY SPECIFICATIONS
| Computer Compatibility | UXGA, SXGA, XGA, SVGA, VGA, WXGA, HD, Mac |
| Video Input Compatibility | PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz) |
| 3D Compatibility | Side-by-Side:1080i(50/60Hz) Frame-pack: 1080p(24Hz), 720p(50/60Hz) Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz) 3D glasses are needed and are sold separately. Refer to user manual for details |
| Vertical Scan Rate | 24– 85 Hz (120 Hz for 3D feature projector) |
| Horizontal Scan Rate | 15.375–91.146 KHz |
| I/O Connection Ports | 1x Display port, 2x HDMI 1.4a + MHL, 2x VGA-In, 1x VGA out, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm and RCA), 1x Audio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3D Sync Vesa port, RS232C, mini-USB (service/control), RJ45, AC power (3 pin) |
Warranty
3 Year parts and labor limited warranty on the projector, 1-year lamp warranty or 1000 hours (whichever comes first)
In the Box (Standard Accessories)
EH515 projector, AC power cord, VGA cable, remote control, batteries, multilingual CDROM user’s manual, basic user manual, and warranty card
Optional Accessories
Universal ceiling mount, Optoma screen, DLP®Link “‘ 30 glasses, wireless HDMI system
Accessory Part Numbers
Lamp: SP.72109GC01
Remote: SP.72101GC01
RF 30 Glasses: ZF2300Glasses
RF 30 Emitter: BC300
OLP® Link™ 30 glasses: ZD302
Universal ceiling mount: OCM815B, OCM815W, OCM8188-RU, OCM818W RU
Wireless accessories: WHD200, WPS-PRO, BI-EXTBG03
UPC 796435 41 958 5
*Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
† 3D content can be viewed with RF of DLP® Link active shutter 3D glasses when projector is used with a compatible 3D player. RF 3D glasses require the use of an RF 3D emitter and a projector with a 3D VESA Sync port. Please visit www.OptomaUSA.com for more information
Copyright © 2015 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of Texas Instruments™. All other trademarks are the property of their respective owners. All specifications subject to change at any time. 05262020
