Bright short throw 1080p projection
EH460ST
Wireless presentation and multimedia
Project an extraordinary 152-inch 4,200-lumen 1080p image from 5.5-feet away
Extensive I/O connectivity with HDMI, VGA, audio, RJ45, USB, and RS-232C
PC-free USB image viewer and office document reader
Wireless presentations and images with HDCast Pro (optional USB Wi-Fi adapter required)
Four corner correction for robust installations in any environmentUSB display screen mirroring with iOS and Android devices
LAN display via Ethernet with Windows and Mac OS X

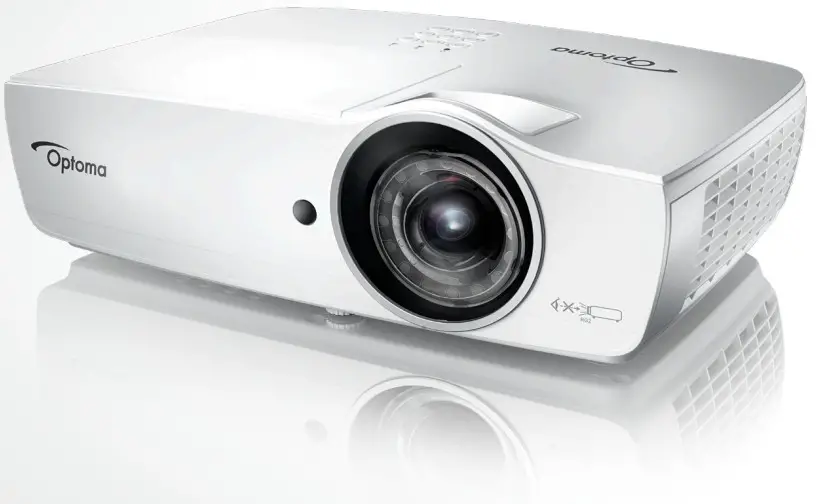

The Optoma EH460ST is the ultimate short throw 4,200-lumen 1080p projector for classrooms, corporate boardrooms, and offices. Its 0.5 throw ratio, 20,000:1 contrast ratio, sRGB, and REC.709 color profile support produces vivid and large 152-inch images from 5.5-feet away with accurate colors.
A PC-free image viewer and document reader display office documents, PDFs, and images from USB storage devices. OptionalQuickCast Pro 4K Kit provides wireless screen mirroring with Android, iOS, Mac, and Windows devices.
LAN display supports up to 4 simultaneous computers while USB display mirrors Android and iOS devices. Four corner geometry correction allows flexible
installations while robust input options include HDMI, VGA, and RJ-45 for connectivity to a wide range of devices.
CONNECTIVITY (May require optional accessories)
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology
Single 0.65” DMD S600, DC3 chip DLP® Technology by Texas Instruments
| Display Technology | Single 0.65″ DMD S600. DC3 chip DLP® Technology by Texas Instruments |
| Color Wheel | RUGBY |
| Native Resolution | 1080p (1920×1080) |
| Maximum Resolution | WUXGA (1920×1200) |
| Brightness | 4.200 ANSI lumens |
| Contrast Ratio | 20,000:1 |
| Displayable Colors | 1.07 billion |
| Lamp Life and Type’ | 4500/3500/2500 (EDU/ECO/Bright) – 285W |
| Projection Method | Front, rear, ceiling mount, tabletop |
| Keystone Correction | t 30° vertical / t 25° horizontal |
| Keystone Distortion | ±0.5% max |
| Uniformity | 75% |
| Offset | 115.3%±5% |
| Aspect Ratio | 16:9 (native), 16:10, 4:3 and LBX compatible |
| Throw Ratio | 0.5 (±5% with no optical zoom) |
| Projection Distance | 2.48′ – 5.5′ |
| Image Size | 59.6 ” – 152.7″ |
| Projection Lens | F=2.87, f=7.28mm |
| Digital Zoom | 0.8 – 2.0 |
| Audio | 10W |
| Noise Level | 31dB/37dB (ECO/Bright) |

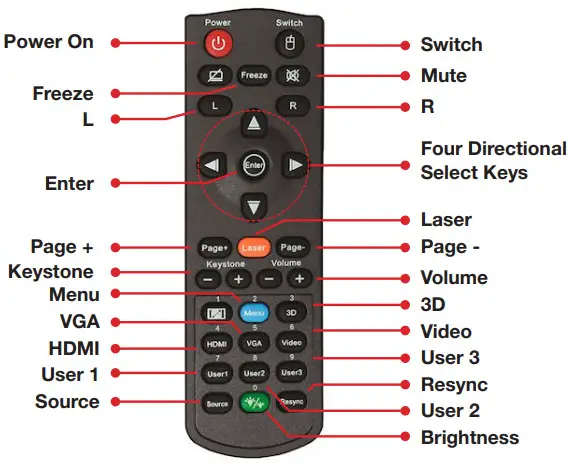

| Remote Control | Full size remote |
| Operating Temperature | 41-104°F (5-40°C), 85% max humidity |
| Power Supply | AC input 100-240V, 50-60Hz, auto-switching |
| Power Consumption | 370W typical (Bright mode), 390W max (Bright mode). 300W typical (Eco+ mode), 320W max (Eco+ mode) |
| High Attitude | Operating temp 6 sea level up to 10000 feet = 23F (max); must manually switch to high altitude mode @ 5000 feet & above (using OSD) |
MULTIMEDIA AND PRESENTATION FEATURES
| Wireless Screen Mirroring | Windows, Mac and Android devices (requires HD Cast Pro app) |
| LAN Display (Ethernet) | Screen mirroring with Windows and Mac systems, up to 4 simultaneous users (requires HD Cast Pro app) |
| USB Display | Screen mirror with Android and iOS devices over USB cable (requires HD Cast Pro app) |
| PC-free Image Viewer and and Document Viewer | Supports viewing of office documents (Word, Excel & Powerpoint [animations not supported]), PDFs and images via USB storage devices |
| PC-free Image Format Support | JPEG |
COMPATIBILITY SPECIFICATIONS
| Computer Compatibility | I-HD, HD, WXGA, UXGA, SXGA, XGA. SVGA. VGA. Mac |
| Video-Input Compatibility | PAL (B, D. G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p) |
| 3D Compatibility | Side-by-side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-under: 1080p24, 720p50 / 60 |
| Vertical Scan Rate | 15 – 91kHz |
| Horizontal Scan Rate | 25 – 85Hz (120Hz for 3D) |
| User Controls | Complete on-screen menu adjustment in 26 languages |
| I/O Connection Ports | 2xHDMI (with MHL), VGA-In, VGA-out, audio-in (3.5mm), audio-out (3.5mm), RJ-45, lx USB (Wi-Fi adapter), lx USB (USB reader and USB power) USB-B mini (service), 12V trigger (3.5mm), RS-232C |
| Loop Through (Audio) | Yes |
*Light source life is dependent upon many factors, including brightness mode, display mode, usage, environmental conditions, and more. Light source brightness can decrease over time.
†3D content can be viewed with DLP Link active shutter 3D glasses when the projector is used with a compatible 3D player. Please visit Optoma.com for more information.

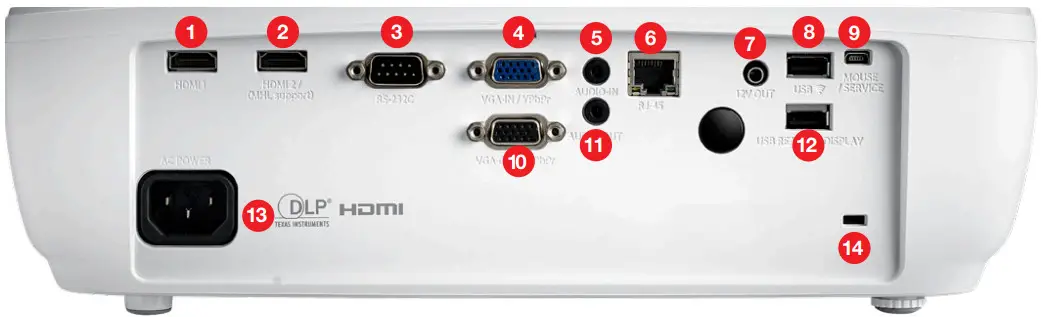

| 1. HDMI1-In 2. HDMI2-In (MHL) 3. RS-232C 4. VGA-In/YPbPr 5. Audio-In | 6. RJ-45 7. 12V-Out 8. USB Wi-Fi Adapter 9. Mouse service 10. VGA-Out/YPbPr | 11. Audio-Out 12. USB Reader/ Display 13. AC Power 14. Kensington TM Lock |
PHYSICAL SPECIFICATIONS
| Security protection | Security bar, Kensington lock, password |
| Weight | 6.75 lbs. |
| Dimensions (W x H x D) | 13.50” x 4.75” x 9.12” (includes lens) |
Warranty
2 Year parts and labor limited warranty on the projector, 90 days lamp warranty
What’s in the Box
EH460ST projector, AC power cord, remote control, batteries for remote, quick start user manual
Accessories
Lamp (replacement): BL-FP285A Remote (replacement): BR-5011L
Wi-Fi adapter (required for HDCast Pro functions): WUSB Universal ceiling mount: OCM818W-RU Universal ceiling mount: BM-5001U Universal ceiling mount (with extensional pole): OCM815W
Mounting Plate: BM-4002p
QuickCast Pro 4K HDMI starter kit: QCP-SK-4K-HDMI (1 TX and 1 RX)
QuickCast Pro 4K HDMI starter kit: QCP-4K-KIT (2 TX, 1 RX, 1 Cradle) Carrying case: BK-4028
UPC 796435 44 106 7
