ZU2200 Ultra Bright Professional WUXGA Laser Projector
Owner’s Manual
optomaeurope.com
ZU2200
Ultra bright professional WUXGA laser projector

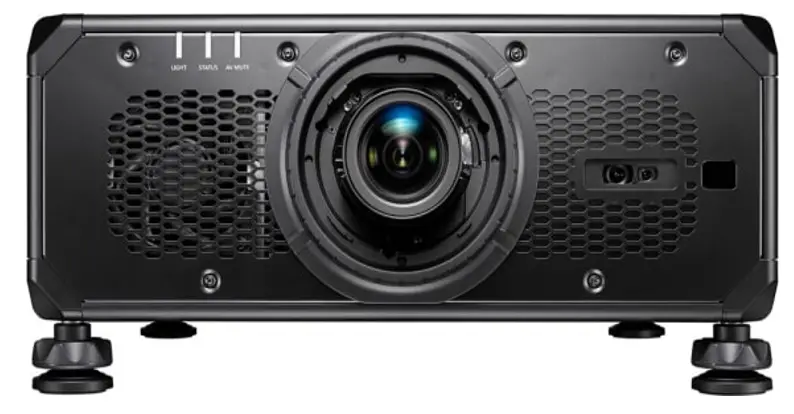

ZU2200 Ultra Bright Professional WUXGA Laser Projector
- High brightness WUXGA DLP laser projector – 22,000 lumens
- Extreme installation flexibility – Eight interchangeable lenses
- Ultimate reliability – Built-in redundancy mode
- Striking lifelike images – Pure engine video processing and color matching

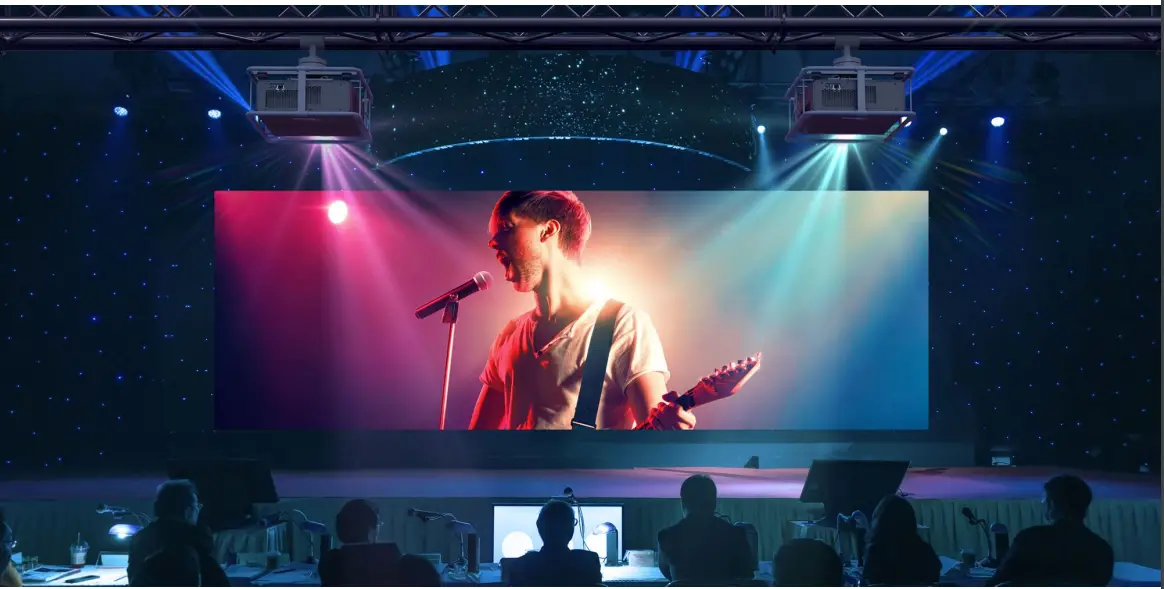

The high-brightness ZU2200 professional laser projector lls a need for high-end installations, including the entertainment, exhibition, and ‘ ff digital signage markets. Part of Optoma s Ultra Bright Series, this projector o ers an incredibly high brightness of 22,000 lumens as well as flextime flexibility with eight interchangeable lenses to meet the needs of even the most complex installations.
As part of the Optoma DuraCore laser lineup, the Ultra Bright Series high-performance projectors feature 4K HDR compatibility, pure engine video processing, and color matching to produce visually striking, lifelike images with exceptional detail and high color accuracy. Additionally, the ZU2200 achieves superior color rendition through MultiColor Laser (MCL) technology. Strong reliability is at the core of the Ultra Bright Series projectors, with 24/7 operation capabilities, up to 30,000 hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122 degrees Fahrenheit / 50 degrees Celsius. With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and failsafe
ff redundancy mode for instant source switching, the Ultra Bright Series projectors o er a solution for intricate installations, including multi-
projector and dome projection applications.
Specifications
Display/image
| Display technology | DLP |
| Resolution | WUXGA (1920×1200) |
| Brightness | 22,000 lumens |
| ANSI brightness | 18,500 |
| Contrast ratio | 2,000,000:1 |
| Native aspect ratio | 16:10 |
| Aspect ratio – compatible | 16:9,16:10 |
| Screen size | Dependent on lens |
Lamp info
| Light source type | DuraCore MultiColor Laser |
| LASER life | 30,000 hours |
https://www.optomaeurope.com/product/ZU2200
Optical
| Throw ratio | Dependent on lens |
| Projection distance (m) | Dependent on lens |
| Lens options | BX-CTA11, 0.65~0.75:1 BX-CTA18, 0.84~1.02:1 BX-CTA19, 1.02~1.36:1 BX-CTA20, 1.2~1.5:1 BX-CTA21, 1.5~2.0:1 BX-CTA22, 2.0~4.0:1 BX-CTA23, 4.0~7.2:1 BX-CTA27, 7.2~10.8:1 |
Connectivity

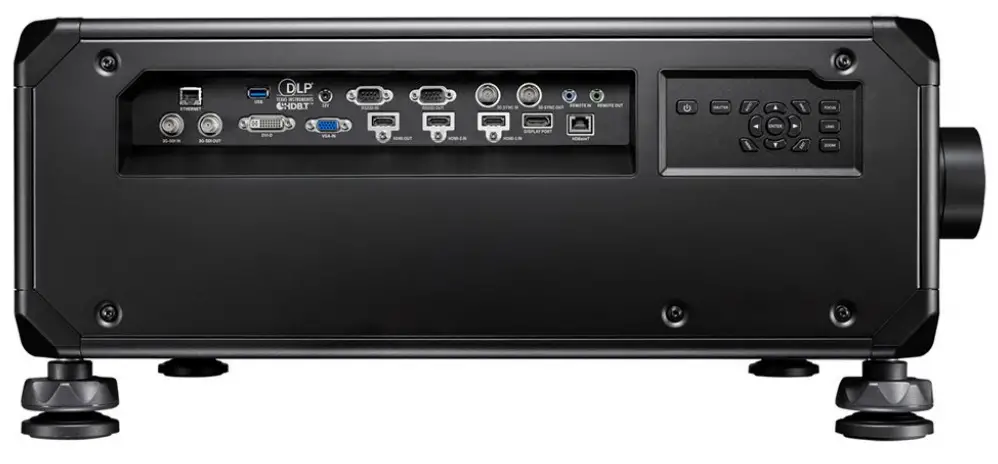

| Connections | Inputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI Outputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI, 1 x 3G-SDI Control 1 x RJ45, 1 x USB-A service, 1 x 12V trigger |
General
| Noise level (typical) | 38dB |
| Noise level (max) | 40dB |
| 3D | Full 3D |
| IP rating | TBC |
| OSD / display languages | 12 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish |
| 24/7 operation | Yes |
| 360° operation | Yes |
| Operating conditions | Operating: 10~85%RH, non-condensing. Storage: 5~90%RH,non-condensing |
| Remote control | Backlit ProAV remote |
Networking
| LAN – display | Yes |
| LAN – wireless networking | No |
| LAN | Yes |
Power
| Power supply | AC 100– |
| Power consumption (standby) | 0.5W |
| Power consumption (min) | 590W |
| Power consumption (max) | 1,200W |
Weight and dimensions
| Dimensions (W x D x H) mm | 650 x 710 x 250 |
| Gross weight | 66.5 kg |
| Net weight | 54 kg |
© Copyright 2021, Optoma and its logo is a registered trademarks of Optoma Corporation. Optoma Europe Ltd is the licensee of the registered trademark. All other product names and company names used fifi herein are for identi cation purposes only and may be trademarks or registered trademarks of their respective owners. Errors and omissions excepted, all specifications are subject to change without notice. All images are for representation purposes only and may be simulated. 19102021034054
