ZU1700
Ultra bright professional WUXGA laser projector
ZU1700 Ultra Bright Professional WUXGA Laser Projector
- High brightness WUXGA DLP laser projector – 17,000 lumens
- Extreme installation flexibility – Eight interchangeable lenses
- Ultimate reliability – Built-in redundancy mode
- Striking lifelike images – Pure engine video processing and colour matching
The high brightness ZU1700 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. Part of Optoma’s Ultra Bright Series, this projector offers incredibly high brightness of 17,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations.
As part of the Optoma DuraCore laser line up, the Ultra Bright Series high-performance projectors feature 4K HDR compatibility, pure engine video processing and colour matching to produce visually striking, lifelike images with exceptional detail and high colour accuracy.
Strong reliability is at the core of the Ultra Bright Series projectors, with 24/7 operation capabilities, up to 30,000 hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122 degrees Fahrenheit / 50 degrees Celsius. With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and failsafe redundancy mode for instant source switching, the Ultra Bright Series projectors offer a solution for intricate installations, including multiprojector and dome projection applications.
Specifications
https://www.optomaeurope.com/product/ZU1700
EAN: 5055387665743, Colour: Black
| Display/image Display technology Resolution Brightness ANSI brightness Contrast ratio Native aspect ratio Aspect ratio – compatible Screen size | DLP WUXGA (1920×1200) 17,000 lumens 14,500 2,000,000:1 16:10 16:9,16:10 Dependent on lens |
| Lamp info Light source type LASER life | DuraCore Laser 30,000 hours |
| Optical Throw ratio Projection distance (m) Lens options Lens shift | Dependent on lens Dependent on lens BX-CTA11, 0.65~0.75:1 BX-CTA18, 0.84~1.02:1 BX-CTA19, 1.02~1.36:1 BX-CTA20, 1.2~1.5:1 BX-CTA21, 1.5~2.0:1 BX-CTA22, 2.0~4.0:1 BX-CTA23, 4.0~7.2:1 BX-CTA27, 7.2~10.8:1 Yes – {{downloads_link}} |

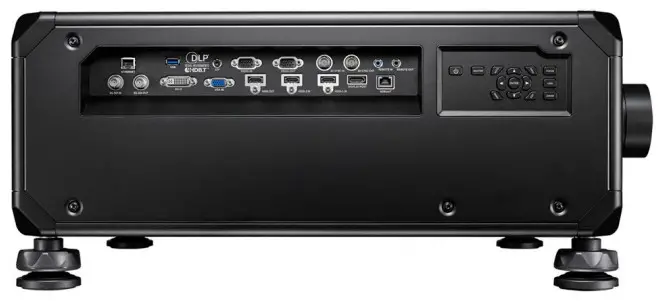

| Connectivity Connections LAN – wireless networking | Inputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI Outputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI, 1 x 3G-SDI Control 1 x RJ45, 1 x USB-A service, 1 x 12V trigger No |
| General Noise level (typical) Noise level (max) 3D IP rating OSD / display languages 24/7 operation 360° operation Operating conditions Remote control | 36dB 38dB Full 3D TBC 12 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish Yes Yes Operating: 10~85%RH, non-condensing. Storage: 5~90%RH, non-condensing Backlit ProAV remote |
| Networking LAN – display LAN – wireless networking LAN | Yes No Yes |
| Power Power supply Power consumption (standby) Power consumption (min) Power consumption (max) | AC 100– 240 V @ 50/60 Hz 0.5W 460W 1,000W |
| Weight and dimensions Dimensions (W x D x H) mm Gross weight Net weight | 650 x 682 x 300.86 62.5 kg 50 kg |
