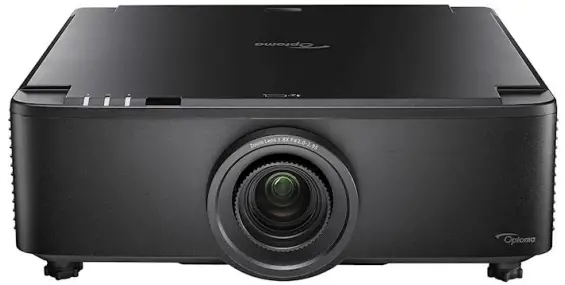

Optoma ZU720T Fixed Lens 7500 Lumen WUXGA Laser Projector User Manual
optoma.nl
- 7500 lumen fixed lens – Ultra bright for installations where high brightness is required
- Full lens shift – Motorised lens shift for simple set up
- Large zoom range – 1.8x zoom expands placement opportunities
- 30,000 hours laser light source – Little to no maintenance for up to 30,000 hours
The ZU720T is the world’s first fixed lens 7500 lumen WUXGA laser projector. Delivering high brightness along with 4K and HDR compatibility, the ZU720T offers low maintenance and extremely long-life DuraCore laser projection technology.
This high-spec projector features a large 1.8x zoom and 1.4~2.5:1 throw ratio, full lens shift and built-in dual 10W speakers for unrivalled flexibility.
Suitable for a wide variety of applications, the ZU720T is perfect for large venues, classrooms, lecture theatres, museums and houses of worship.
The added flexibility of HDBaseT and LAN make this projector an affordable fit and forget solution.
Specifications
Display/imageDisplay technology DLP™ Resolution WUXGA (1920×1200) Brightness 7.500 lumens Contrast ratio – dynamic 1.000.000:1 Contrast ratio – full on/of 2.000:1 Native aspect ratio 16:10 Aspect ratio – compatible 4:3,16:9 Keystone correction – horizontal +/-30° Keystone correction – vertical +/-30° Screen size 1.02m ~ 7.62m (40″ ~ 300″) diagonal
Lamp info
| Light source type | DuraCore Laser |
| LASER life | 30.000 hours |
Optical
| Throw ratio | 1.4:1 ~ 2.5:1 |
| Projection distance (m) | 1.2m – 16.5m |
| Zoom | 1.8 |
| Zoom type | Manual |
| Focal length (mm) | 20.68mm~37.23mm/0.814″~1.466″ |
| Lens shift | Vertical: +/-55%, Horizontal: +/-25% |
| Lens shift | Yes – {{downloads_link}} |
Connectivity
| Connections | Inputs 1 x HDMI 1.4a 3D support, 1 x HDMI 2.0, 1 x VGA, 1 x Audio 3.5mm, 1 x HDBaseT, 1 x 3D sync Outputs 1 x HDMI 1.4a 3D support, 1 x Audio 3.5mm, 1 x 3D sync, 2 x USB-A power 1.5A Control 1 x 12V trigger, 1 x USB-B service, 1 x RJ45, 1 x Wired remote, 1 x RS232 |
GeneralNoise level (typical) 27dB Noise level (max) 31dB 3D Full 3D Security Security bar, Kensington Lock, Password protected interface IP rating IP5x OSD / display languages 23 languages: Arabic, Czech, Danish, Dutch, English, Farsi,
French, German, Greek, Indonesian, Italian, Japanese,
Norwegian, Polish, Portuguese, Romanian, Russian, Chinese
(simplified), Spanish, Swedish, Chinese (traditional), Turkish,
Vietnamese24/7 operation Yes 360° operation Yes Operating conditions 5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max

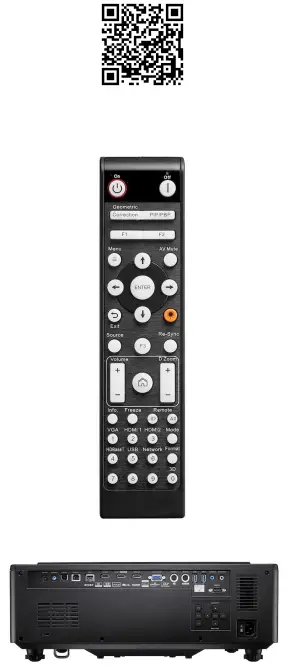

humidity 85%Remote control Backlit ProAV remote Heat dissipation 2.013BTU/hour Speaker count 2 Watts per speaker 10W
Networking
| LAN | Yes |
PowerPower consumption (standby) 0.5W Power consumption (min) 370W Power consumption (max) 590W
Weight and dimensions
| Dimensions (W x D x H) mm | 484 x 376 x 178.5 |
| Gross weight | 16.5 kg |
| Net weight | 12.9 kg |
Copyright © 2022, Optoma and its logo is a registered trademark of Optoma Corporation. Optoma Europe Ltd is the licensee of the registered trademark. All other product names and company names used herein are for identification purposes only and may be trademarks or registered trademarks of their respective owners.Errors and omissions excepted, all specifications are subject to change without notice.All images are for representation purposes only and may be simulated. 18032022103004
