SOLIGHT WO796 Ceiling Lamp Instruction Manual
Installation Instructions
Thank you for purchasing our product. Please read this manual carefully and heed the safety warnings and instructions before installing, using or repairing the equipment. This will ensure not only the protection of persons, but also the long life of the equipment.
| Mark | Operating voltage | Consumption | Angle of illumination | Chromaticity | Cover age |

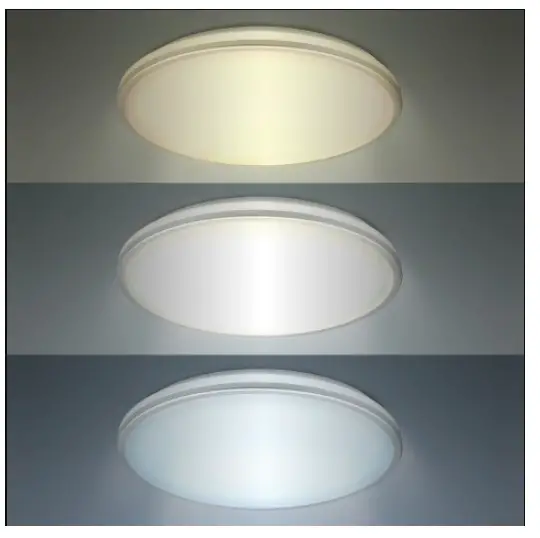

| WO796 | 220-240V AC | 18W | 120° | 3000K, 4000K, 6500K I | IP54 |
| WO797 | 220-240V AC | 24W | 120° | 3000K, 4000K, 6500K I | IP54 |
The light source of this luminaire is non-replaceable, at the end of its service life the entire luminaire must be replaced and disposed of in a designated place. This product contains a light source that for design reasons cannot be removed for verification and therefore the entire product is considered alight source. The power cord cannot be replaced if damaged, the unit must no longer be used
WARNING
- Installation may only be carried out by a qualified worker with a qualification according to Decree No. 50/1978 Coll., as amended, at least a knowledgeable worker according to § 5 of Decree No. 50/1978 Coll., as amended.
- Do not cover the luminaire with anything or hang anything on it
- Do not repair or modify the equipment in any way
INSTALLATION
- Switch off the power supply

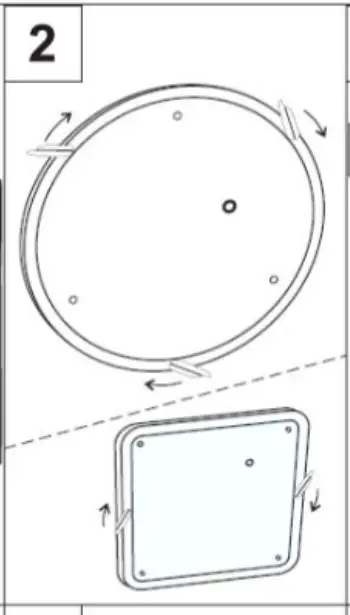

- Open the luminaire cover by turning the three levers on the back

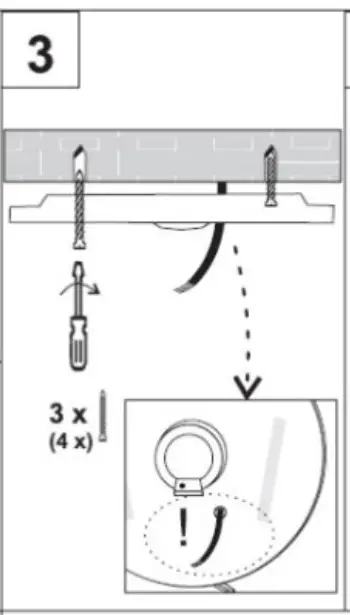

- Push the supply cable through the hole and screw the back cover to the wall into the pre-drilled holes with dowels
- Plug in the power cable

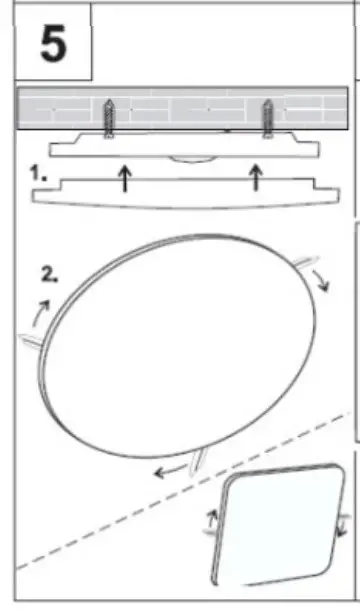

- Attach the cover and turn the levers holding the luminaire together

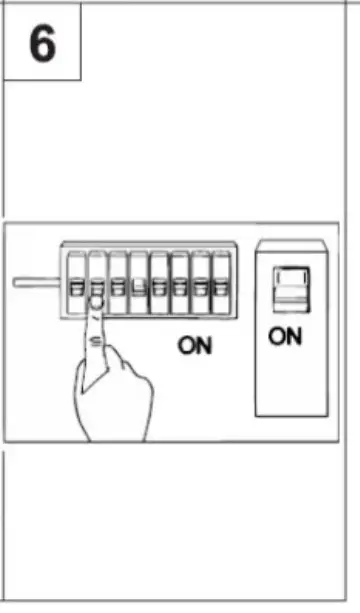

- Switch on the power supply
Solight Holding, s.r.o., Na Brně 1972, Hradec Králové 500 06, Czech Republic.
