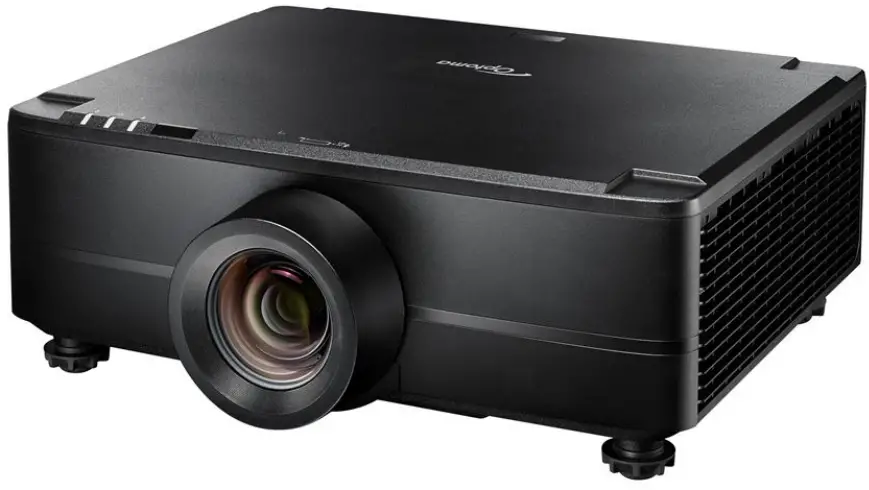

Optoma ZU725T Ultra Bright Professional Installation Laser Projector Owner’s Manual
Features
- 7800 lumen Dura Core laser projector: Ultra bright for immersive installations
- Full motorized lens shift: Ideal for a simple set-up
- Large zoom range: Motorized zoom expands placement opportunities
- Long life: Delivers 30,000 hours of virtually maintenance-free operation
At 7800 lumens with 4K and HDR compatibility, the ZU725T features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode.
Other features include motorized zoom and focus, full motorized lens shift and built-in dual 10W speakers.
High brightness, color precision and quiet operation, alongside a 1.6x zoom make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as simulation, edge-blending and projection mapping, and immersive installations.
Specifications
| Display/image | |
| Display technology | DLP |
| Resolution | WUXGA (1920×1200) |
| Brightness | 7.800 lumens |
| Contrast ratio | 3.000.000:1 |
| Contrast ratio – full on/off | 1.100:1 |
| Native aspect ratio | 16:10 |
| Aspect ratio – compatible | 4:3,16:9,16:10 |
| Keystone correction – | 30° |
| horizontal | |
| Keystone correction – vertical | 30° |
| Uniformity | 95% |
| Screen size | 1.52m ~ 7.62m (60″ ~ 300″) diagonal |
| Lamp info | |
| Light source type | Dura Core Laser |
| life ‘LASER | 30.000 hours |
| Optical | |
| Throw ratio | 1.25:1 ~ 2:1 |
| Projection distance (m) | 0.8m – 21.5m |
| Zoom | 1.6 |
| Zoom type | Motorized |
| Focal length (mm) | 18.72~29.59 |
| Lens shift | Vertical: +/-55%, Horizontal: +/-25% |
| Lens shift | Yes – {{downloads link}} |
| Connectivity | |

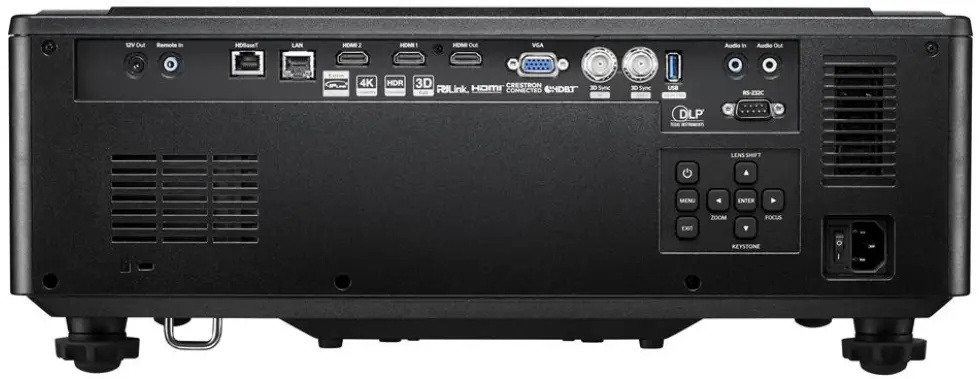

| Connections |
|
| LAN – wireless networking | No |
| General | |
| Noise level (typical) | 34dB |
| Noise level (max) | 36dB |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock |
| OSD / display languages | 10 languages: English, French, German, Italian, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional) |
| 24/7 operation | Yes |
| 360° operation | Yes |

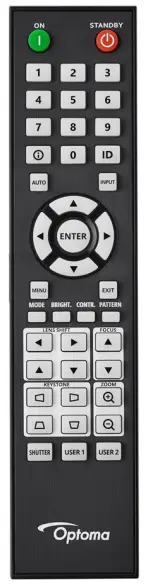

| Remote control | Backlit Pro AV remote |
| Speaker count | 2 |
| Watts per speaker | 10W |
| Networking | |
| LAN – wireless networking | No |
| LAN | Yes |
| Power | |
| Power supply | AC 90 – 264V 50/60 Hz with PFC input |
| Power consumption (standby) | 0.5W |
| Power consumption (min) | 260W |
| Power consumption (max) | 520W |
| Weight and dimensions | |
| Dimensions (W x D x H) mm | 486 x 432.5 x 176 |
| Gross weight | 17.5 kg |
| Net weight | 14 kg |
