Owner’s Manual
ZU720TST Short-throw Laser Installation Projector
ZU720TST
World’s first short throw 7000 lumen fixed lens laser projector
- 7000 lumen short throw fixed lens – Ultra bright 0.75~0.95:1 throw ratio for immersive installations
- Full motorised lens shift – Ideal for a simple set up
- Large zoom range – Motorised zoom expands placement opportunities
- Laser light source – Delivers 30,000 hours of virtually maintenance-free operation
The ZU720TST is the world’s first fixed lens 7000 lumen WUXGA short throw laser projector.
At 7000 lumens with 4K and HDR compatibility, the ZU720TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, off ering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorised zoom and 0.75~0.95 throw ratio, full motorised lens shift and built-in dual 10W speakers.

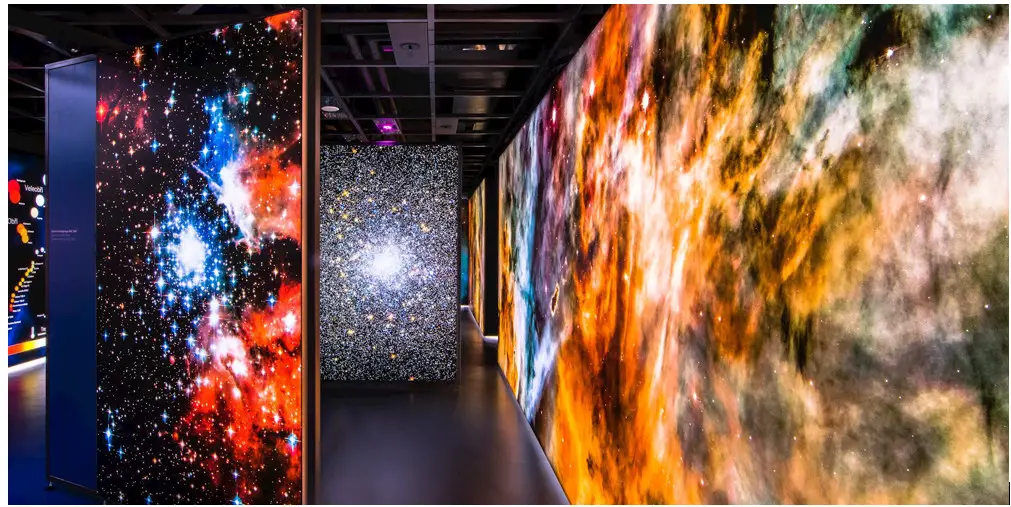

High brightness, colour precision and quiet operation, along with a short throw lens make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as short throw digital signage, edge-blending and projection mapping,simulation, and immersive installations.
The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.
Specifications
EAN: 5055387664654, Colour: Black
EAN: 5055387665699, Colour: RAL
https://www.optoma.com.mx/product/ZU720TST
| Display/image | |
| visualization technology | DLP™ |
| resolution | WUXGA (1920×1200) |
| glitter | 7,000 lumens |
| Contrast ratio – dynamic | 1,000,000:1 |
| Contrast ratio – on/off | 1,100:1 |
| native aspect ratio | 16:10 |
| Aspect ratio – compatible | 4:3,16:9 |
| Horizontal Keystone Correction | +/-30° |
| Keystone Correction- Vertical | +/-30° |
| pantalla size | 50″ ~ 300″ diagonal |
| Info Lamp | |
| Light source | Dead bodies in the distance |
| LASER life | 30,000 reduction |

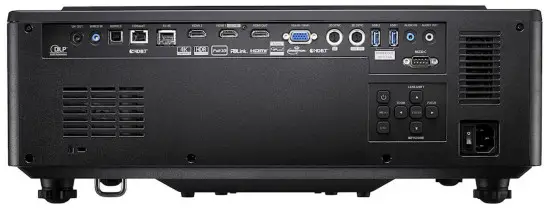

connectivity connections
Entradas 1 x HDMI 1.4a / 3D , 1 x HDMI 2.0, 1 x VGA, 1 x Audio 3.5mm, 1 x HDBaseT, 1 x 3D sync
Salidas 1 x HDMI 1.4a / 3D , 1 x Audio 3.5mm, 1 x 3D sync,2 x USB-A power 1.5A
Control 1 x 12V trigger, 1 x USB-B servicio, 1 x RJ45, 1 x Remoto por cable, 1 x RS232
| General | |
| Sound level (typical) | 27dB |
| Sound level (max) | 29dB |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Interface protected by |
| IP Classification | password |
| OSD / display languages | IP5x |
| 24/7 operation | Yes |
| 360º operability | Yes |
| Conditions of functioning | 10% to 85% Humidity, non-condensing |
| Remote control | Backlit ProAV remote |
| Heat dissipation | 1,790BTU/hour |
| Speakers | two |
| Watts per speaker | 10W |
Networking
| LAN | Yes |
| Stream | |
| Power consumption (standby) | 0.5W |
| Power consumption (min.) | 320W |
| Power consumption (max.) | 510W |
| Weight and measurements | |
| Dimensions (W x D x H) | 19.06″ x 14.8″ x 7.03″ |
| gross weight | 36.38 lbs |
| net weight | 28.44 lbs |
Copyright ©
2022 Optoma Technology, Inc. DLP®
and the DLP logo are registered trademarks of Texas Instruments™
. All other trademarks are the property of their respective owners. All specifications
subject to change at any time. 18102022021838
