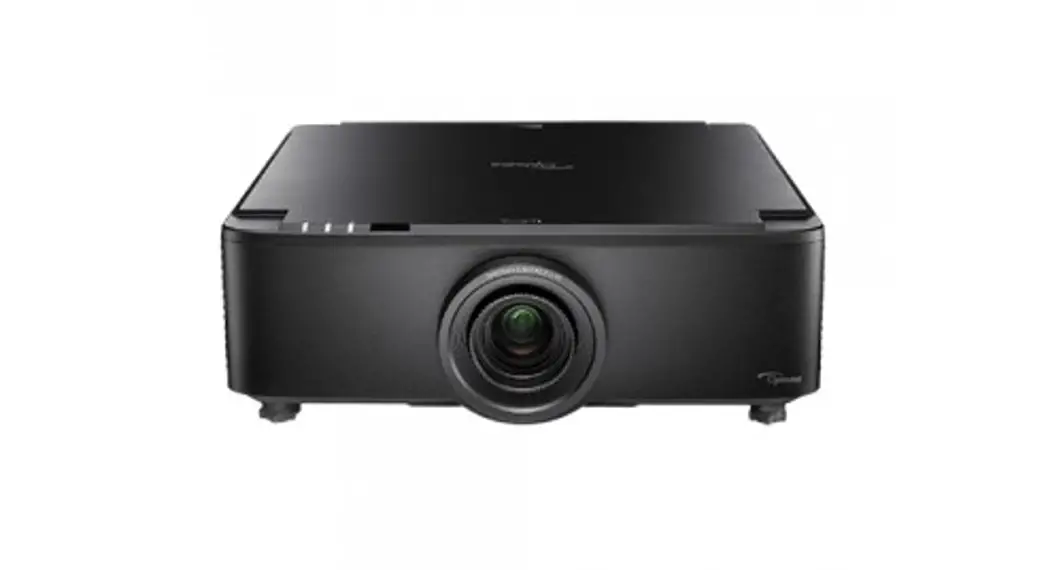

Optoma ZU720TST Short-Throw Laser Projector
Introduction
- 7000 lumen short throw fixed lens – Ultra bright 0.75~0.95:1 throw ratio for immersive installations
- Full motorized lens shift – Ideal for a simple set up
- Large zoom range – Motorized zoom expands placement opportunities
- Laser light source – Delivers 30,000 hours of virtually maintenance-free operation
The ZU720TST is the world’s first fixed lens 7000 lumen WUXGA short throw laser projector.
At 7000 lumens with 4K and HDR compatibility, the ZU720TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorized zoom and 0.75~0.95 throw ratio, full motorized lens shift and built-in dual 10W speakers.
High brightness, cooler precision and quiet operation, along with a short throw lens make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as short throw digital signage, edge-blending and projection mapping, simulation, and immersive installations.
The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.
Specifications
| EAN: 5055387664654, Colour: Black | |
| EAN: 5055387665699, Colour: RAL | |
| Display/image | |
| Display technology | DLP™ |
| Resolution | WUXGA (1920×1200) |
| Brightness | 7.000 lumens |
| Contrast ratio – dynamic | 1.000.000:1 |
| Contrast ratio – full on/of | 1.100:1 |
| Native aspect ratio | 16:10 |
| Aspect ratio – compatible | 4:3,16:9 |
| Keystone correction – horizontal | +/-30 |
| Keystone correction – vertical | +/-30° |
| Screen size | 1.27m ~ 7.62m (50″ ~ 300″) diagonal |
| Lamp info | |
| Light source type | Dura Core Laser |
| LASER life | 30.000 hours |
| Optical | |
| Throw ratio | 0.75:1 ~ 0.95:1 |
| Projection distance (m) | 0.81m – 6.13m |
| Zoom | 1.26 |
| Zoom type | Motorised |
| Focal length (mm) | 11.11~14.16 |
| Lens shift | Vertical: +/-50%, Horizontal: +/-15% |
| Lens shift | Yes – {{downloads_ link}} |
| Connectivity | |

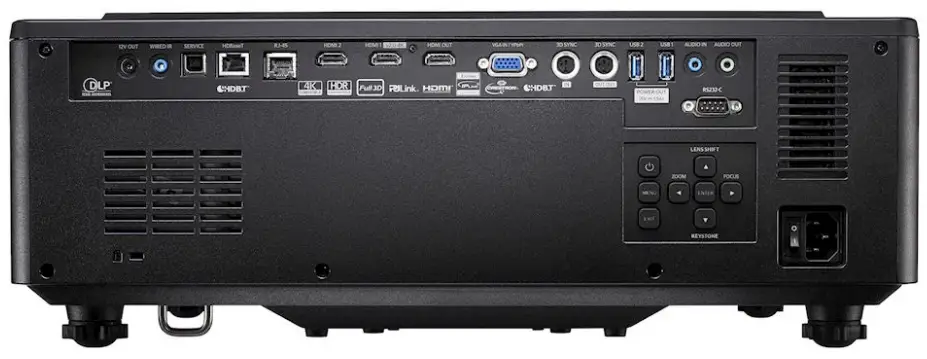

| Connections | Inputs 1 x HDMI 1.4a 3D support, 1 x HDMI 2.0, 1 x VGA, 1 x Audio 3.5mm, 1 x HDBaseT, 1 x 3D sync Outputs 1 x HDMI 1.4a 3D support, 1 x Audio 3.5mm, 1 x 3D sync, 2 x USB-A power 1.5A Control 1 x 12V trigger, 1 x USB-B service, 1 x RJ45, 1 x Wired remote, 1 x RS232 |
| General | |
| Noise level (typical) | 27dB |
| Noise level (max) | 29dB |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Password protected interface |
| IP rating | P5x |
| OSD / display languages | 23 languages: Arabic, Czech, Danish, Dutch, English, Farsi, French, German, Greek, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| 24/7 operation | Yes |
| 360° operation | Yes |
| Operating conditions | 10% to 85% Humidity, non-condensing |

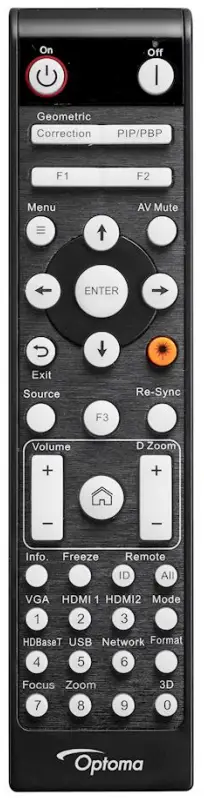

| Remote control | Backlit ProAV remote |
| Heat dissipation | 1.790BTU/hour |
| Speaker count | 2 |
| Watts per speaker | 10W |
| Networking | |
| LAN | Yes |
| Power | |
| Power consumption (standby) | 0.5W |
| Power consumption (min) | 320W |
| Power consumption (max) | 510W |
| Weight and dimensions | |
| Dimensions (W x D x H) mm | 484 x 376 x 178.5 |
| Gross weight | 16.5 kg |
| Net weight | 12.9 kg |
