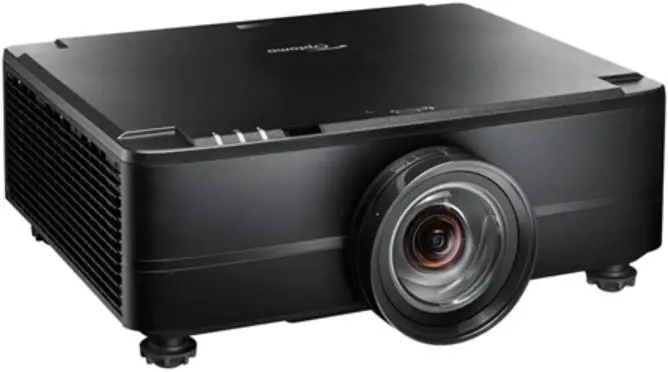

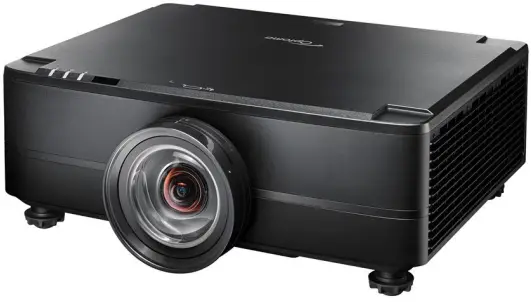

Optoma ZU920TST Ultra Bright Professional Installation Laser Projector Instructions
Introduction
- 9800 lumen DuraCore laser projector – Ultra bright for immersive installations
- Full motorized lens shift – Ideal for a simple set up
- Large zoom range – Motorized zoom expands placement opportunities
- Long life – Delivers 30,000 hours of virtually maintenance-free operation
At 9800 lumens with 4K and HDR compatibility, the ZU920TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorized zoom and focus, full motorized lens shift, and built-in dual 10W speakers.
High brightness, color precision and quiet operation, along with a short throw lens make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as short throw digital signage, edge-blending and projection mapping, simulation and immersive installations.
Specifications
UPC: 796435 44 590 4, EAN: 5055387666047, Colour: black
Display/image
| Display technology | DLP |
| Resolution | WUXGA (1920×1200 |
| Brightness | 9,800 lumens |
| ANSI brightness | 8,200 |
| Contrast ratio | 3,000,000:1 |
| Contrast ratio – full on/off | 1,100:1 |
| Native aspect ratio | 16:10 |
| Aspect ratio – compatible | 4:3,16:9,16:10 |
| Keystone correction – horizontal | 30° |
| Keystone correction – vertical | 30° |
| Uniformity | 95% |
| Screen size | 1.27m ~ 7.62m (50″ ~ 300″) diagonal |
Lamp info
| Light source type | DuraCore Laser |
| LASER life | 30,000 hours |
Optical
| Throw ratio | 0.65:1 ~ 0.75:1 |
| Projection distance (m) | 0.7m – 16.6m |
| Zoom | 1.15 |
| Zoom type | Motorised |
| Focal length (mm) | 9.69~11.19 |
| Lens shift | Vertical: +/-55%, Horizontal: +/-25% |
| Native offset | 50% |
| Lens shift | Yes – {{downloads_link}} |
Connectivity

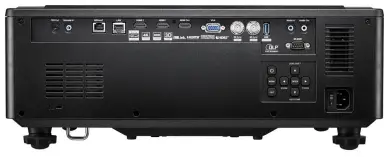

| Connections | Inputs 1 x HDBaseT, 1 x HDMI 2.0, 1 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm Outputs 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm Control 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232 |
| LAN – wireless networking | No |
General
| Noise level (typical) | 36dB |
| Noise level (max) | 38dB |
| Security | Security bar, Kensington Lock |
| OSD / display languages | 10 languages: English, French, German, Italian, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional) |
| 24/7 operation | Yes |
| 360° operation | Yes |

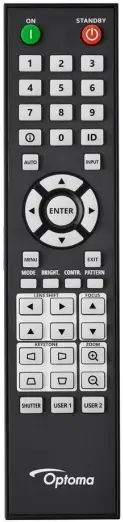

| Remote contro | Backlit ProAV remote |
| Speaker count | 2 |
| Watts per speaker | 10W |
Networking
| LAN – wireless networking | No |
| LAN | Yes |
Power
| Power supply | AC 90 – 264V 50/60 Hz |
| Power consumption (min) | 260W |
| Power consumption (max) | 505W |
Weight and dimensions
| Dimensions (W x D x H) mm | 486 x 417.4 x 176 |
| Gross weight | 17.5 kg |
| Net weight | 14 kg |
