ZU820T Ultra Bright fixed Lens Laser Projector
Owner’s Manual
ZU820T
Ultra-Bright fixed lens laser projector

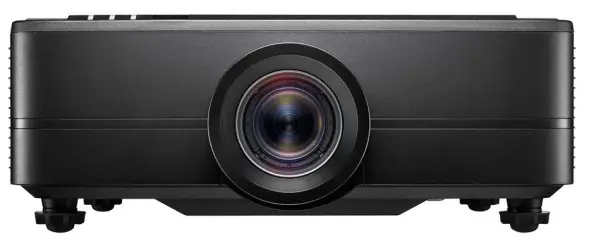

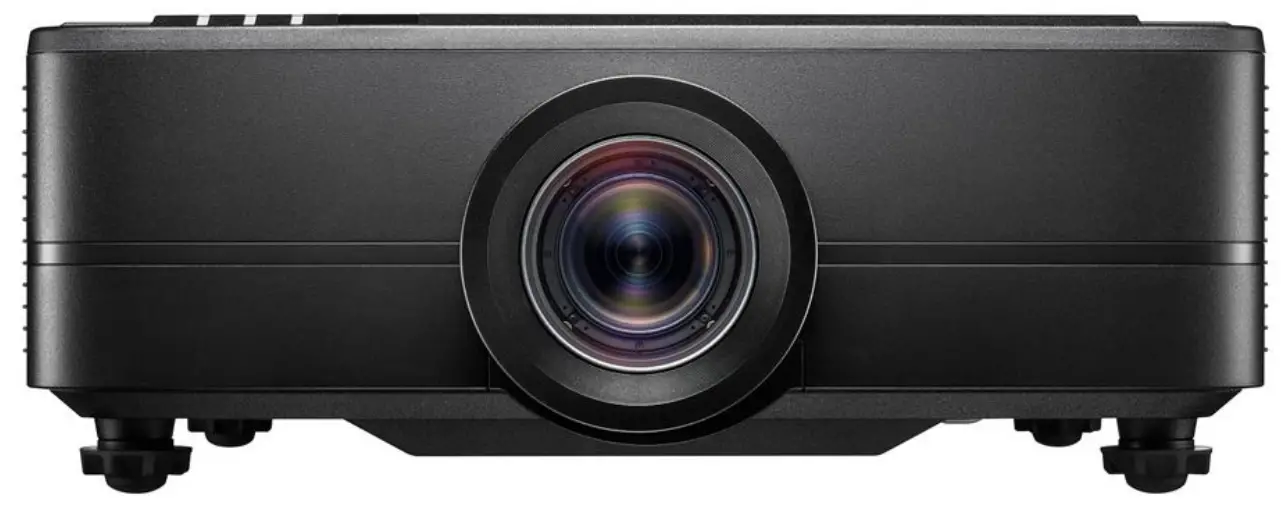

ZU820T Ultra Bright fixed Lens Laser Projector
- 8,800 Lumens Dracone laser projector – Ultra bright for immersive installations
- Full motorised lens shift – Ideal for a simple set up
- Large zoom range – Motorised zoom expands placement opportunities
- Long life – Delivers 30,000 hours of virtually maintenance-free operation
At 8,800 lumens with 4K and HDR compatibility, the ZU820T features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorised zoom, full motorised lens shift and built-in dual 10W speakers.
High brightness, colour precision and quiet operation, alongside a 1.6x zoom make this projector the ideal solution for a variety of end- user scenarios and professional environments, such as simulation, edge-blending and projection mapping, and immersive installations.
Specifications
| Display/image | |
| Display technology | DLP |
| Resolution | WUXGA (1920×1200) |
| Brightness | 8,800 lumens |
| ANSI brightness | 7,400 |
| Contrast ratio | 3,000,000:1 |
| Contrast ratio – full on/off | 1,100:1 |
| Native aspect ratio | 16:10 |
| Aspect ratio – compatible | 4:3,16:9,16:10 |
| Keystone correction | 30° |
| Keystone correction – vertical | 30° |
| Uniformity | 95% |
| Screen size | 1.27m ~ 7.62m (50″ ~ 300″) diagonal |
https://www.optoma.asia/product/ZU820T
| Lamp info | |
| Light source type | Dura Core Laser |
| LASER life | 30,000 hours |
| Optical | |
| Throw ratio | 1.25:1 ~ 2:1 |
| Projection distance | 0.8m – 21.5m |
| Zoom | 1.6 |
| Zoom type | Motorised |
| Focal length | 18.72~29.59 |
| Lens shift | Vertical: +/-110%, Horizontal: +/-50% |
| Lens shift | Yes – {{downloads_link}} |

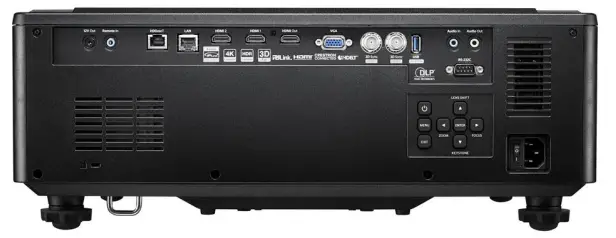

| Connectivity Connections | Inputs 1 x HDBaseT, 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm Outputs 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm Control 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232 |
| LAN – wireless networking | No |
| General | |
| Noise level (typical) | 34dB |
| Noise level (max) | 36dB |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock |
| IP rating | IP5X |
| OSD / display languages | 1 languages: |

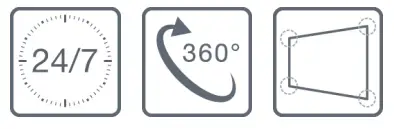

| 24/7 operation | Yes |
| 360° operation | Yes |

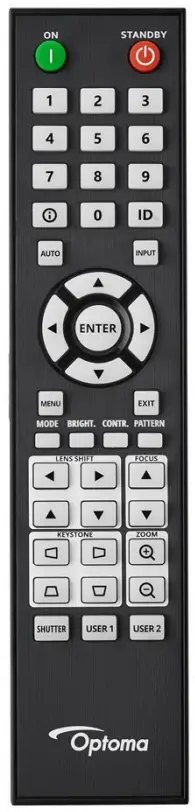

| Remote control | Backlit Pranav remote |
| Speaker count | 2 |
| Watts per speaker | 10W |
| Networking | |
| LAN – control | Yes |
| LAN – wireless networking | No |
| LAN | Yes |
| Power | |
| Power supply | AC 90 –– 264V 50/60 Hz with PFC input |
| Power consumption (standby) | 0.5W |
| Power consumption (min) | 265W |
| Power consumption (max) | 520W |
| Weight and dimensions | |
| Dimensions (W x D x H) | 486 x 432.5 x 185.5 |
| Gross weight | 17.5 kg |
| Net weight | 14 kg |
