BrackIT® L | Art.-Nr.: 1985
Installation manual

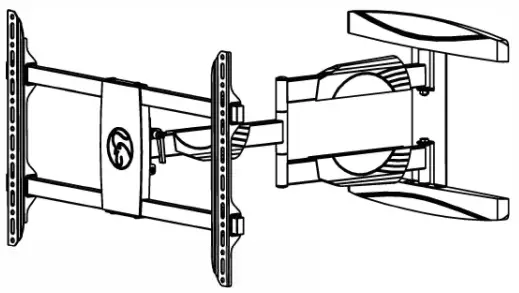

BrackIT L Pivoting Wall Mount
Caution!
Technical devices are of considerable value. You should therefore handle the components carefully during installation and protect them if necessary.
If necessary, the installation area should also be secured. Falling parts can cause injuries and material damage.
The materials included in the scope of delivery may not be suitable for the special conditions at the installation site. Please check this in advance and replace it with suitable materials if necessary.
If you are unsure about the installation of the product or have any questions, please contact us or other trained specialists.

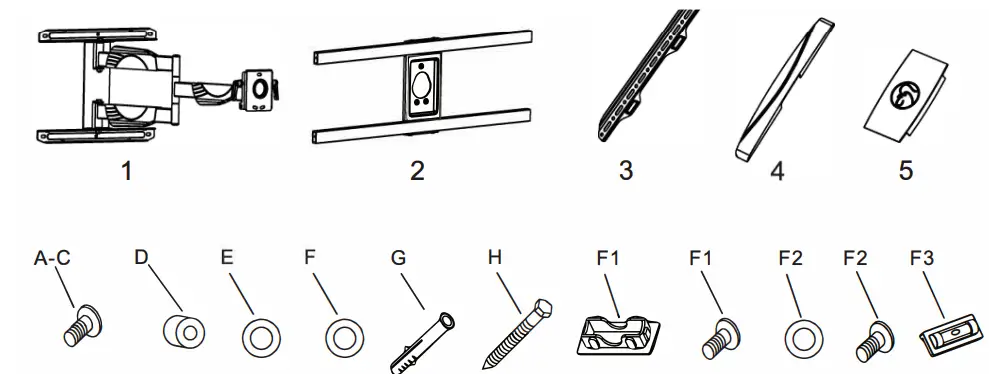

Scope of delivery
| 1D | Qty | Description |
| 1 | 1 | Wall mount |
| 2 | 1 | Bracket |
| 3 | 2 | TV Hangs |
| 4 | 2 | Decorative covers |
| 5 | 1 | Plastic cover |
| A | 4 | M4*20mm bolt |
| B | 4 | M6*25mm bolt |
| C | 4 | M8*25mm bolt |
| D | 4 | Ø 18X Ø 8.5X10 spacer |
| E | 4 | M6 washer |
| F | 6 | M8 washer |
| G | 6 | Ø 10 X 50 Wall anchor |
| H | 6 | St8X65 bolt |
| F1 | 4 | Plastic cover |
| F1 | 4 | M6x8 bolt |
| F2 | 3 | M6 washer |
| F2 | 3 | M6x10 bolt |
| F3 | 1 | Bubble level |

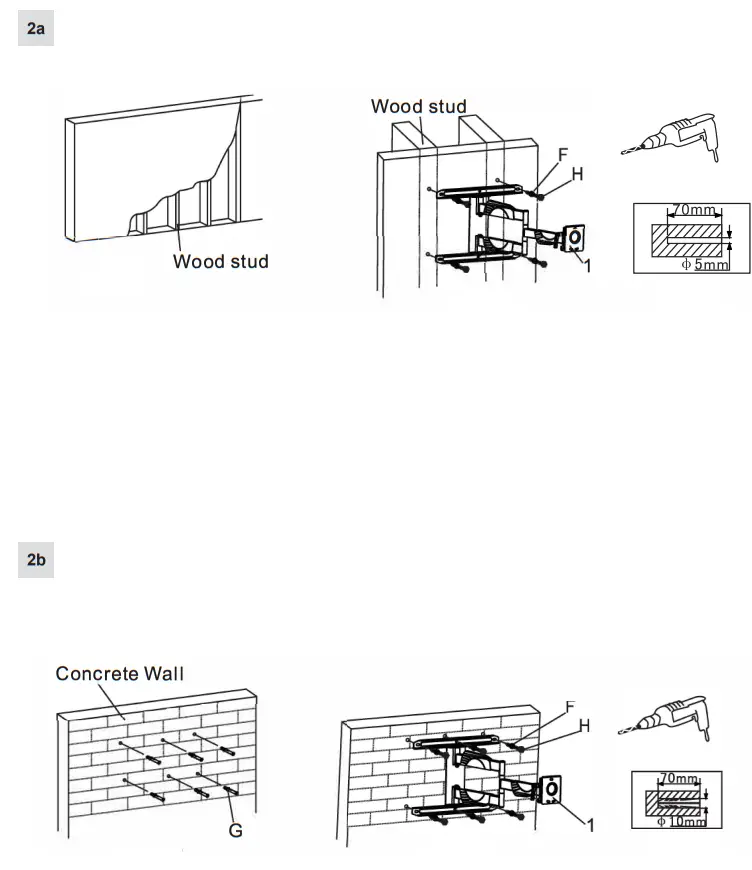

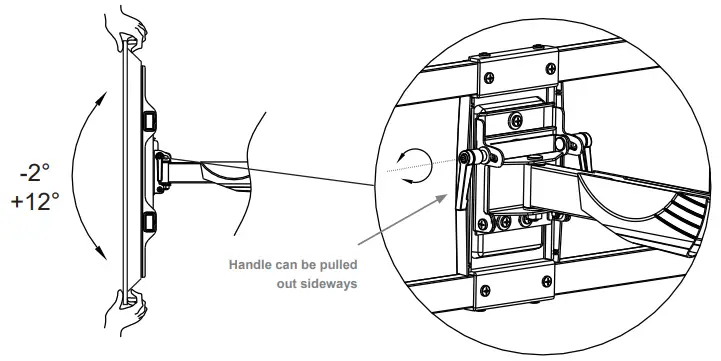

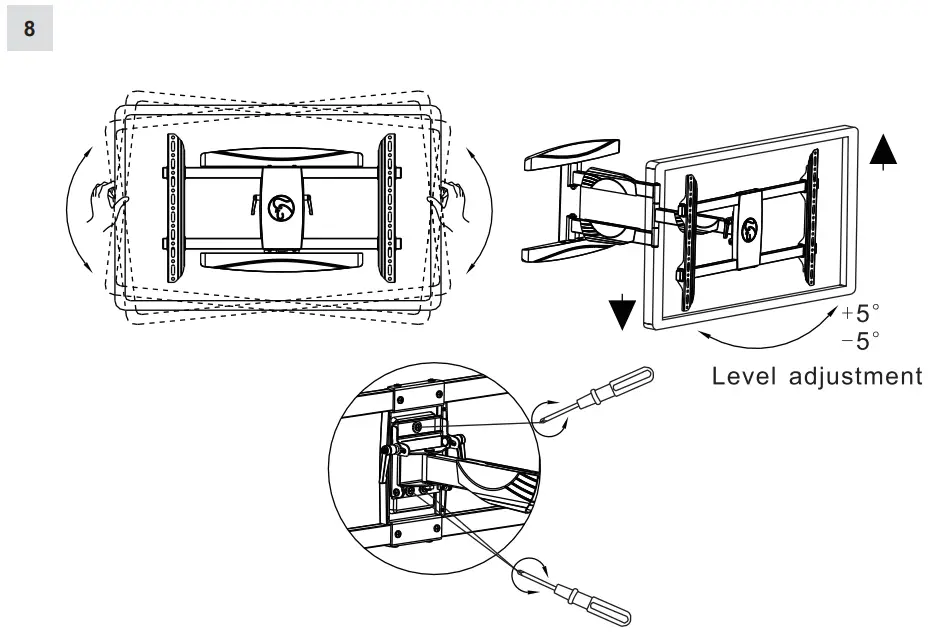

Tilt adjustment
By pulling the handle sideways, the function can be used similar to a ratchet and thus the desired strength can be achieved.

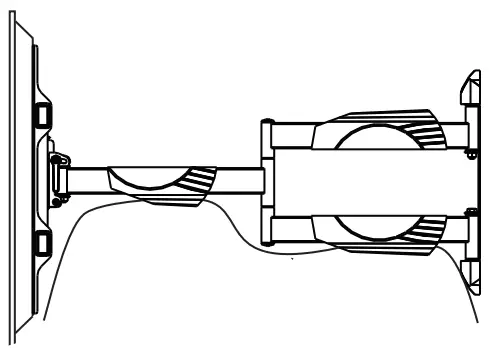

Cable management

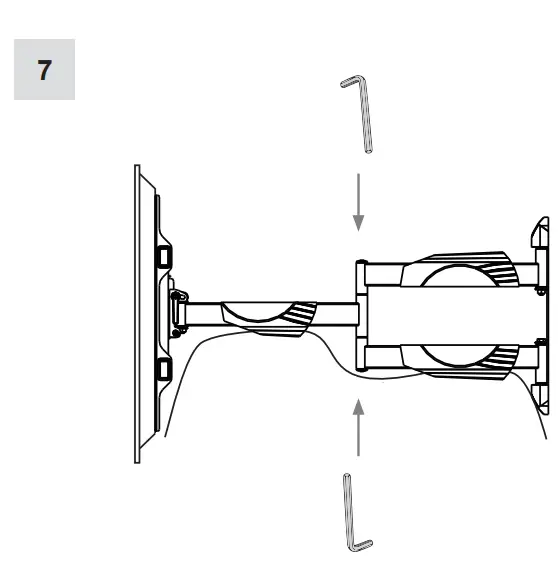

Attention! By default the stiffness of the tilt function is deliberately set high. If a lighter setting is desired, loose the screws by using an allen key at the marked position.

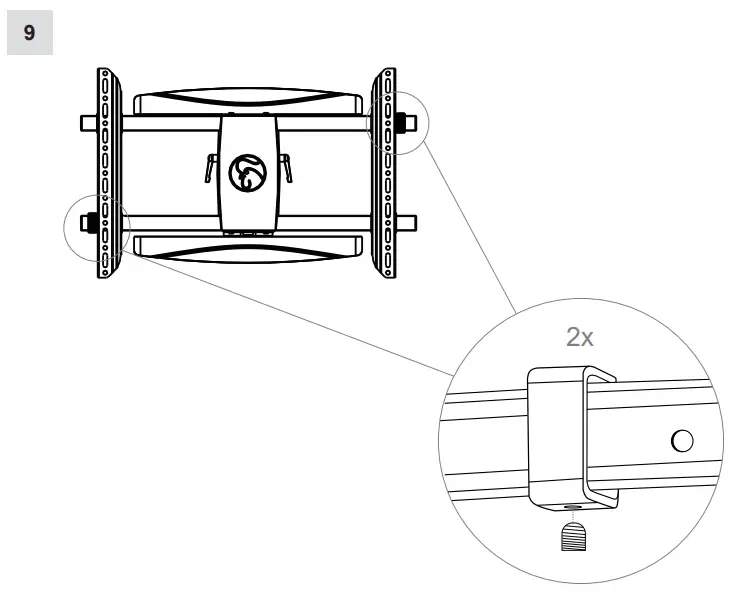

optionally usable fixation for the VESA-Arms
HAGOR Products GmbH | Oberbecksener Straße 97 | D-32547 Bad Oeynhausen
Telefon: +49(0)57 31-7 55 07-0 | Mail: [email protected]
