ASSEMBLY INSTRUCTION
MODEL #DEL-90802-MK
DEL-90802-MK Delilah 2 Light Wall Mount Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 2- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE The fixture is Damp rated
HOW TO INSTALL:
Place the fixture parts on a soft cloth-covered platform before installation of fixture.
- Install the mounting plate onto the outlet box.
- Place the backplate over the mounting plate and secure with the screws.
- Place the candle sleeve and crystal bobeche over the socket.

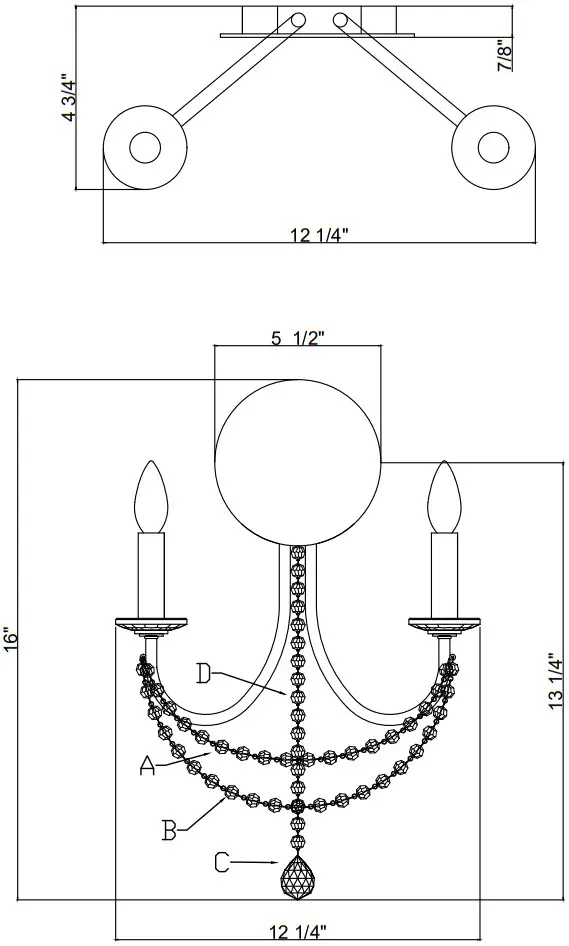

- Dress the crystals as illustrated.
Crystal Sets
A. 1 Piece. 280mm long bead string–(10mm bead*18pcs)
B. 1 Piece. 330mm long bead string–(10mm bead*21pcs)
C. 1 Piece. (1) AS8-30mm Ball
D. 1 Piece. 220mm long bead string–(10mm bead*15pcs)
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.For more information go to www.p65warnings.ca.gov

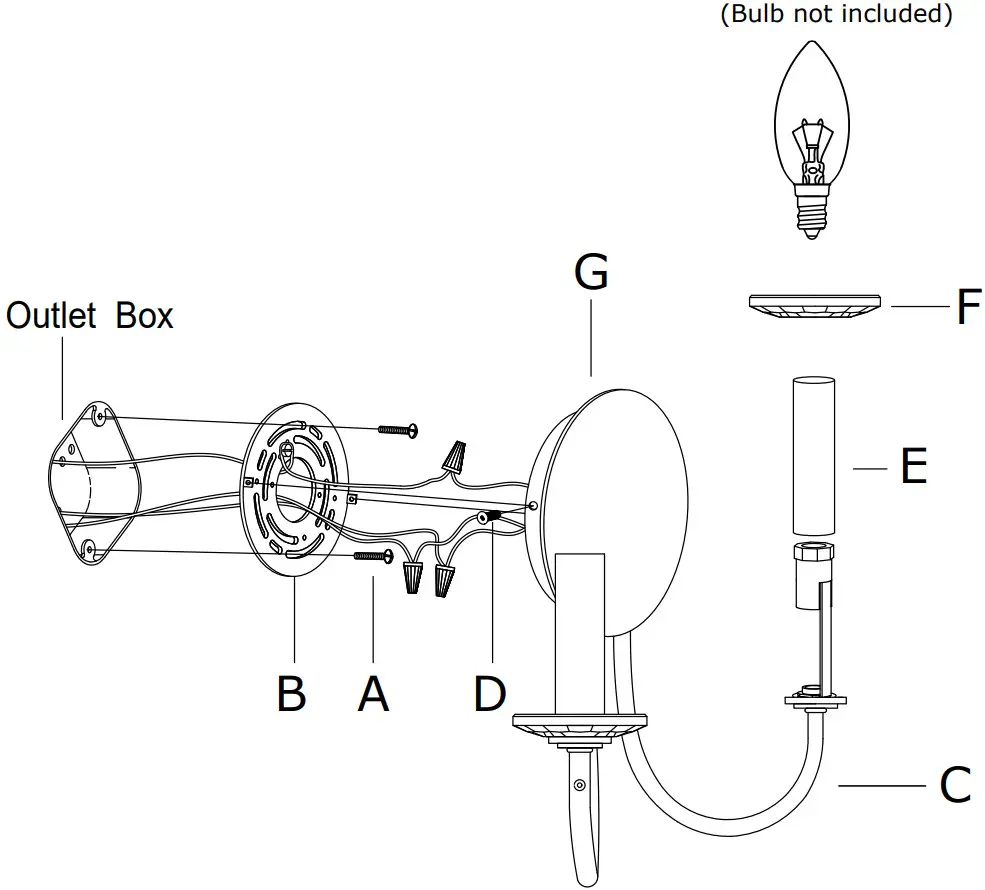

Part Number
Part Numbers
A. (2)-Machine screwv
B. (1)-Mounting Plate
C. (1)-Frame
D. (2)-Screw
E. (2)-Candle Sleeve;H3″,W 7/8″ -XSN90802MKCDL3.23IN
F. (2)-Crystal Bobeche;Ø2 3/8″,H3/8″; 23mm center hole. -XSN90802BOB2.4IN
G. (1)-Backplate ; Ø5.5″xD7/8″ -XSN90802MKBKP5.5IN
