DEL-90803-AG Delilah Three Light Mini Chandelier
Instruction Manual

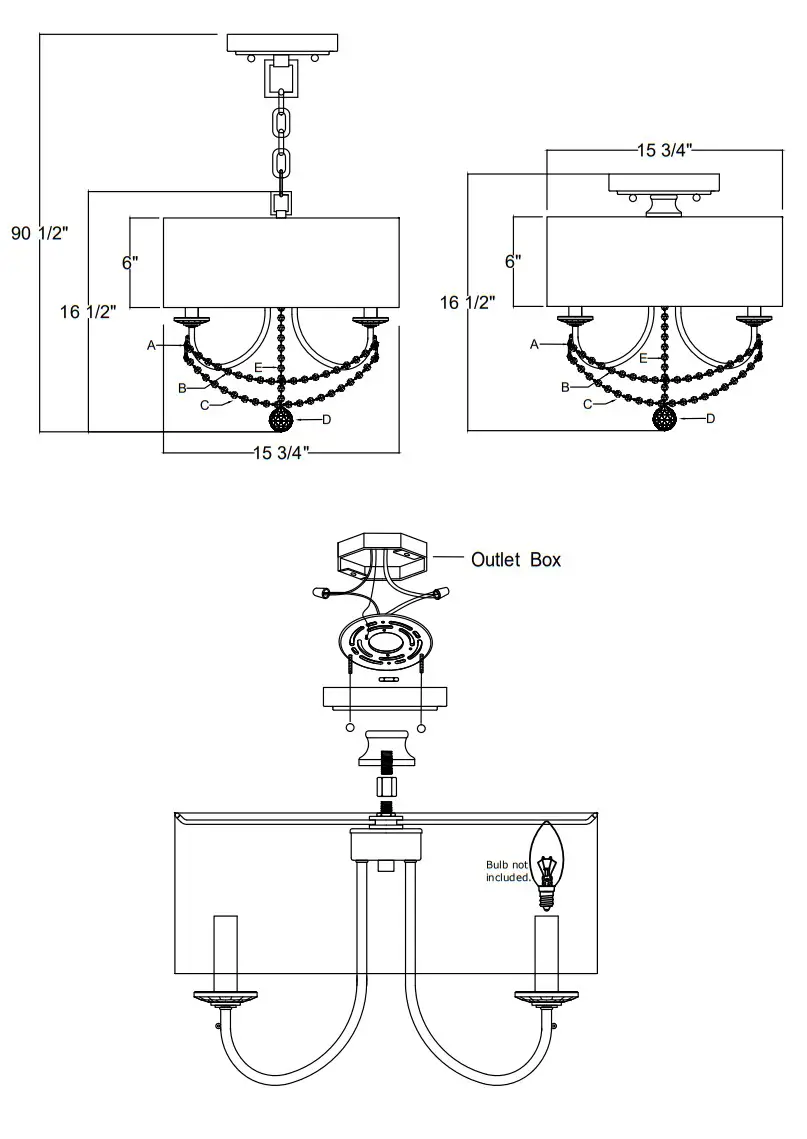

DEL-90803-AG Delilah Three Light Mini Chandelier

Crystal Sets
A. 3 Sets. (2)14mm
B. 3 Sets. 280mm long bead string–(10mm bead*18pcs)
C. 3 Sets. 330mm long bead string–(10mm bead*21pcs)
D. 1 Piece. (1)AS8-40mm Ball
E. 1 Piece. 260mm long bead string–(10mm bead*17pcs)All electrical components must be installed by a licensed electrician in accordance with the National
Electric Code and the appropriate local electrical codesYou will need 3- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE The fixture is Dry rated

HOW TO INSTALL:

Place the fixture parts on a soft cloth-covered platform before installation of fixture.
For Hanging:

1. Screw the loop onto the top of shade. Install the mounting plate onto the outlet box.
2.  Decide the desired hanging height and adjust the chain to the correct length.
3.  Raise the fixture up and do the wire connection. Attach the canopy over the mounting plate and secure with ball nuts.
4.  Dress the crystals as illustrated.

For Ceiling:

1. Install the mounting plate onto the outlet box.
2.  Remove the loop from the ceiling canopy.
3.  Screw the coupling onto the top of shade. place the spacer over the shade by aligning the slots on it with the shade spoke. Place the canopy over the top of the spacer and and secure with the hex nut.
4.  Dress the crystals as illustrated.

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.p65warnings.ca.gov

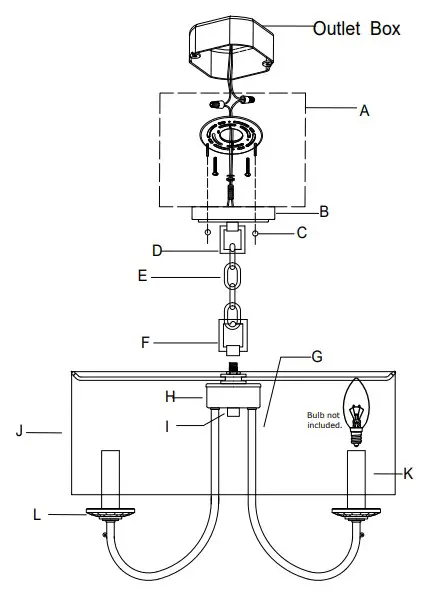

Part Number

A. (1)Mounting hardware

• Wire Connector x 2.
• Mounting plate x 1.
• Machine screw x 2.
• Mounting screw x 2.
• Lock washer x 1.
• Hex nut x 1.
• Nipple x 1.

B. (1)-Canopy (W5″xH1 1/4″)
-XSN9083AGCAN5.11IN
C. (2)-Ball Nut
D. (1)-Loop
E. (1)-Chain (4mmx72″)
-XSN90803AGCHA4MM
F. (1)-Fixture Loop
G. (1)-Frame
H. (1)-Distributor Box
I. (1)-Center Finial
J. (1)-Fabric Shade; W15.75″,H6″
-XSN90803AGSHA15.75IN
K. (3)-Candle Sleeve; W7/8″,H3 1/4″
-XSN90802AGCDL3.23IN
L. (3)-Crystal Babiche; Ø2 3/8″,H3/8″; 23mm center hole.
-XSN90802BOB2.4INPart Number

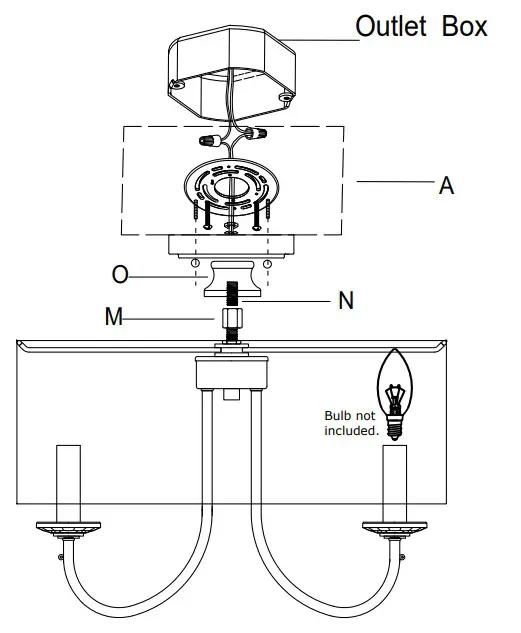

Part Numbers-Conversion kit For Ceiling
M. (1)-Coupling
N. (1)-Thread nipple
O. (1)-Metal spacer ; H2″,with 3 slots

Crystorama.com
