LIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION MODEL#2254-PN
2254-PN Westwood Four Light Mini Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 4- Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
This fixture is Dry rated
How to install
- Slip the loop along wire and thread onto the nipple located on the top of the light cluster.

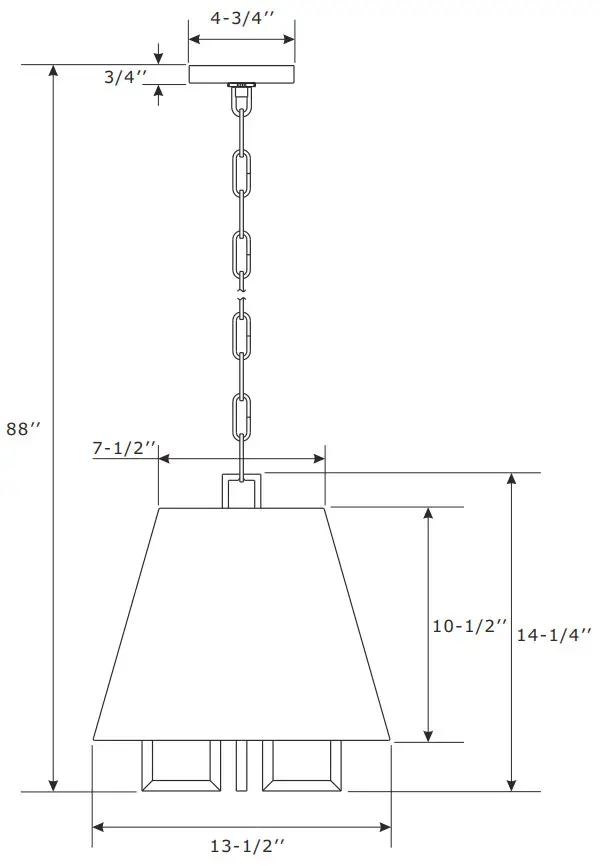

- Determine the preferred hanging height and adjust the chain to the length required.
- Install the fixture onto the outlet box.
- Install the bulbs(not included) into the socket.
WARNING: This product can expose you to Lead which is known to the state of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

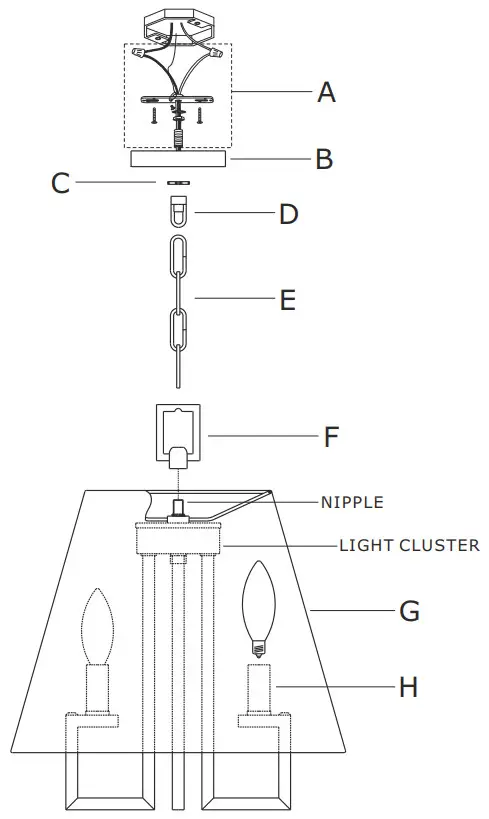

Part Number
Part Numbers
A. (1)-Mounting hardware
B. (1)-Canopy W4-3/4’’xH3/4’’ #XRF2254PNCAN4.75IN
C. (1)-Collar ring
D. (1)-Collar loop
E. (1)-Chain -72’’, 4mm thick #XRF2254PNCHA4MM
F. (1)-Loop
G. (1)-Fabric shade W13-1/2’’xH10-1/2’’ #XRF2254SHA13.5IN
H. (4)-Candle sleeve W7/8’’xL2’’ #XRF2254PNCDL2IN
