Cgr-5lmsb Case Cougar Cratus Owner's Manual (+ PDF)

3D CONSTRUCTED TUBE FRAME
The design concept of Cratus originates from the innovative character C stroke as the mechanism to express the Creative image of COUGAR.
The precise combination of steel tubes and tempered glass is the creation of aesthetics and high accuracy workmanship.

3D Constructed Tube Frame
Forward-Dynamic Design
Showcase PC with Curved Tempered Glass
Support for E-ATX Motherboard
Up to 460mm Graphics Cards
Superior Cooling Up to 360mm Water Cooling

SPECIFICATIONS

Model Name		Cratus
Model No.		CGR-5LMSB
Case Form Factor		Mid Tower
Motherboard Type		Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD)		283(W) x 636(H) x 635(D) mm
		11.1(W) x 25(H) x 25(D) in
I/O Panel		Type C 3.1 x 1, USB 3.0 x 4 , 4 Pole Headset Audio Jack x 1, RGB Button
3.5″ Drive Bay		2
2.5″ Drive Bay		3 + 2 ( converted from 3.5″ drive bays , 3 SSD trays included
Expansion Slots		Horizontal : 7 / Vertical : 4 (install with a vertical bracket in the accessory kit)
Cooling Fan Support	Front	120mm x 2 / 140mm x 2
	Top	120mm x 3 /140 mm x 2
	M/B Side	120mm x 3
	Rear	120mm x 1
Maximum Number of Fans		9 Max.
Water Cooling Support	Front	* 280mm / 240mm / 140mm / 120mm
	Top	360mm / 280mm / 240mm / 140mm / 120mm
	M/B Side	360mm / 240mm / 120mm
Transparent Panel		Tempered Glass x 4
Onboard Lighting System		Yes
RGB Sync with M/B		Yes
Max. Graphics Card Length		460mm / 18.1in (without fans and radiator at M/B side)
		325mm / 12.8in (with fans and radiator at M/B side)
Max. CPU Cooler Height		190mm / 7.5in
Max. PSU Length		200 mm / 7.9 in

* When installing a radiator at the front, please put the hoses downward.
* Speciﬁcations might vary depending on the country or region of sale.

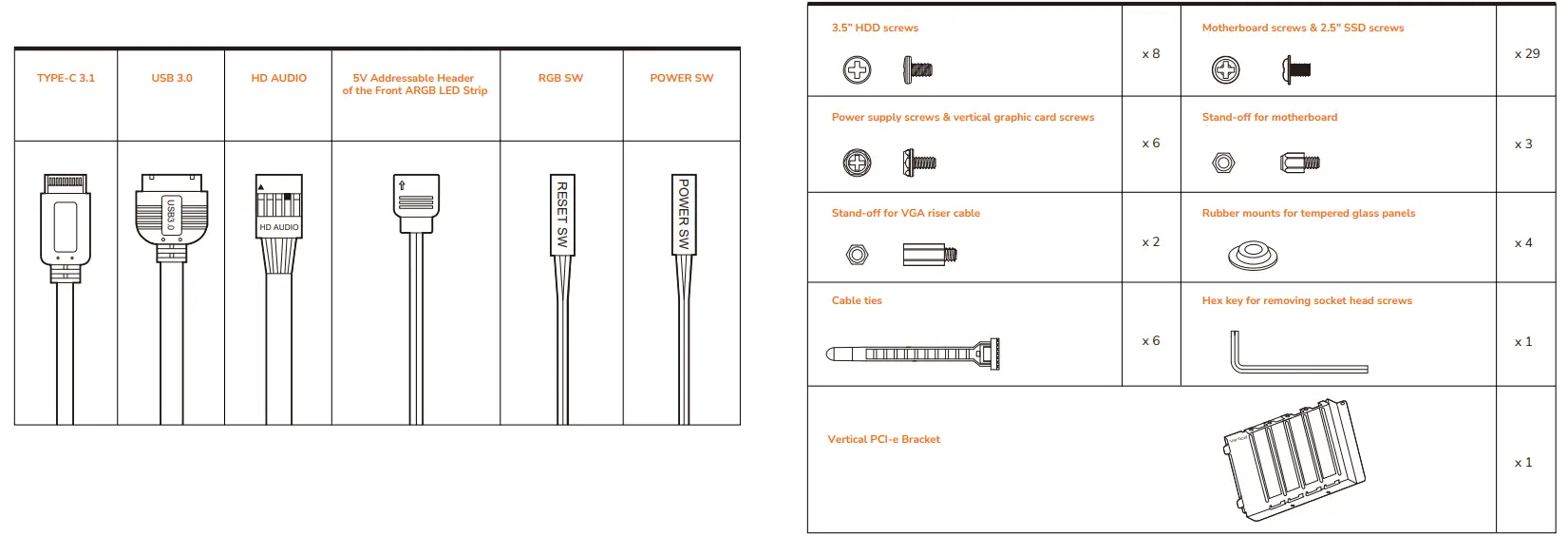

I/O CONNECTORS

ACCESSORY KIT

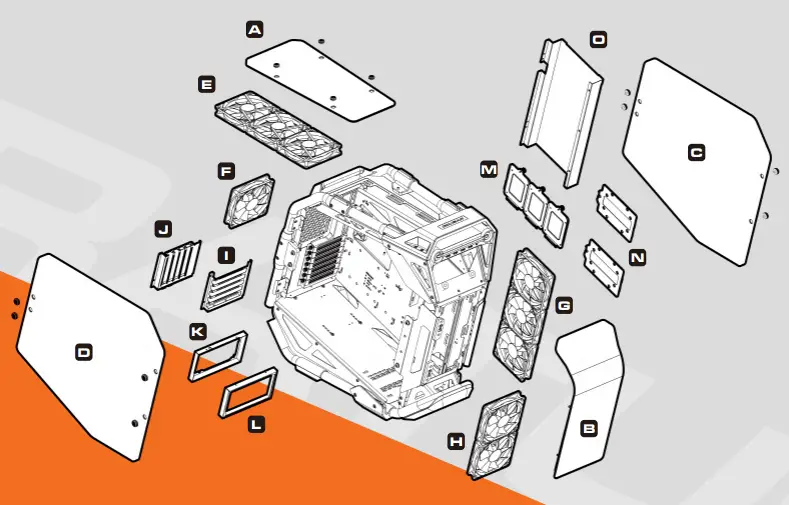

ASSEMBLY DRAWING

A Tempered glass top panel
B Curved tempered glass front panel
C Tempered glass right panel
D Tempered glass left panel
E 120mm x 3 / 140mm x 2 fans for top panel
F 120mm x 1 fan for rear panel
G 120mm x 3 fans for M/B side
H 120mm x 2 / 140mm x 2 fans for front panel
I Horizontal PCI-e bracket (pre-installed)
J Vertical PCI-e bracket (packed in accessory kit)
K Rear PSU bracket
L Front PSU bracket
M 2.5” SSD trays
N 3.5” HDD trays
O Cable management cover

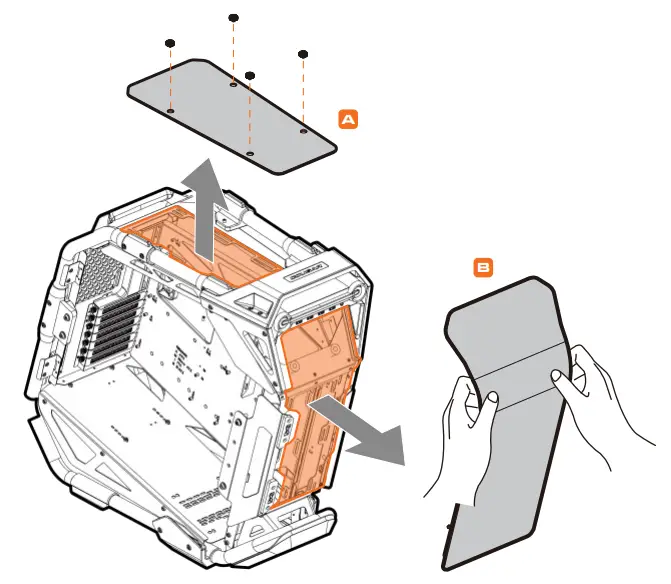

REMOVING THE FRONT PANEL AND THE TOP PANEL

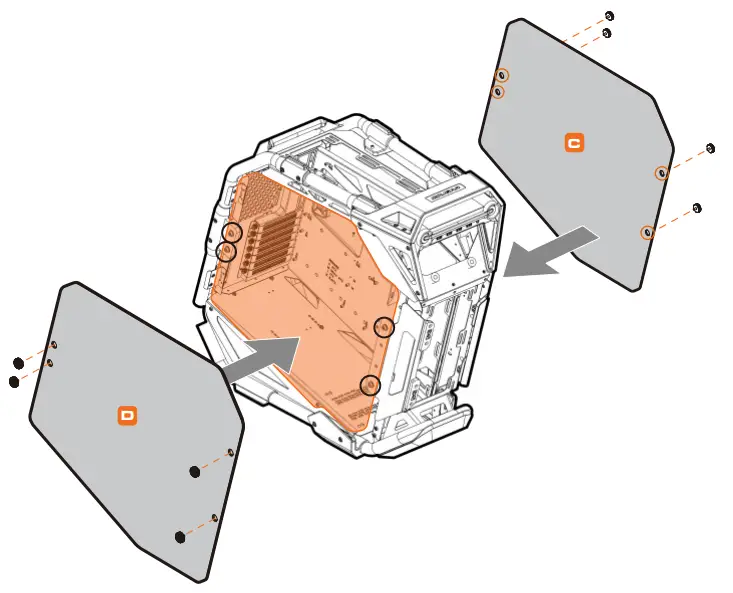

INSTALLING THE SIDE PANELS

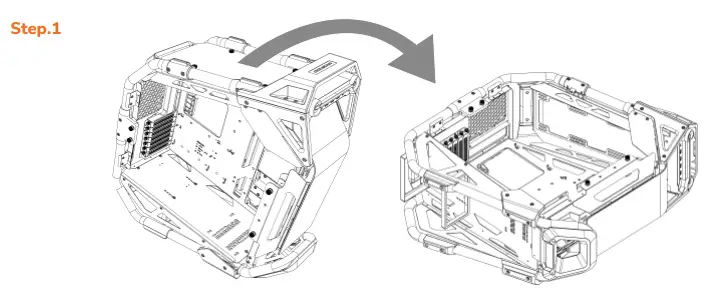

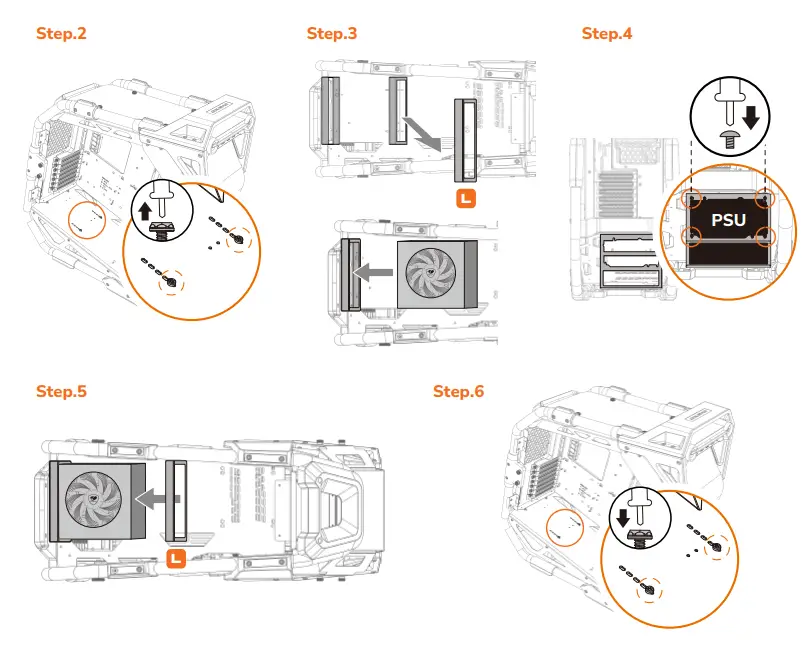

POWER SUPPLY INSTALLATION INSTRUCTIONS

For a better installation experience, we suggest installing the power supply ﬁrst.
Please check the length of your PSU ﬁrst and the front PSU bracket needs to be ﬁxed at the corresponding location.

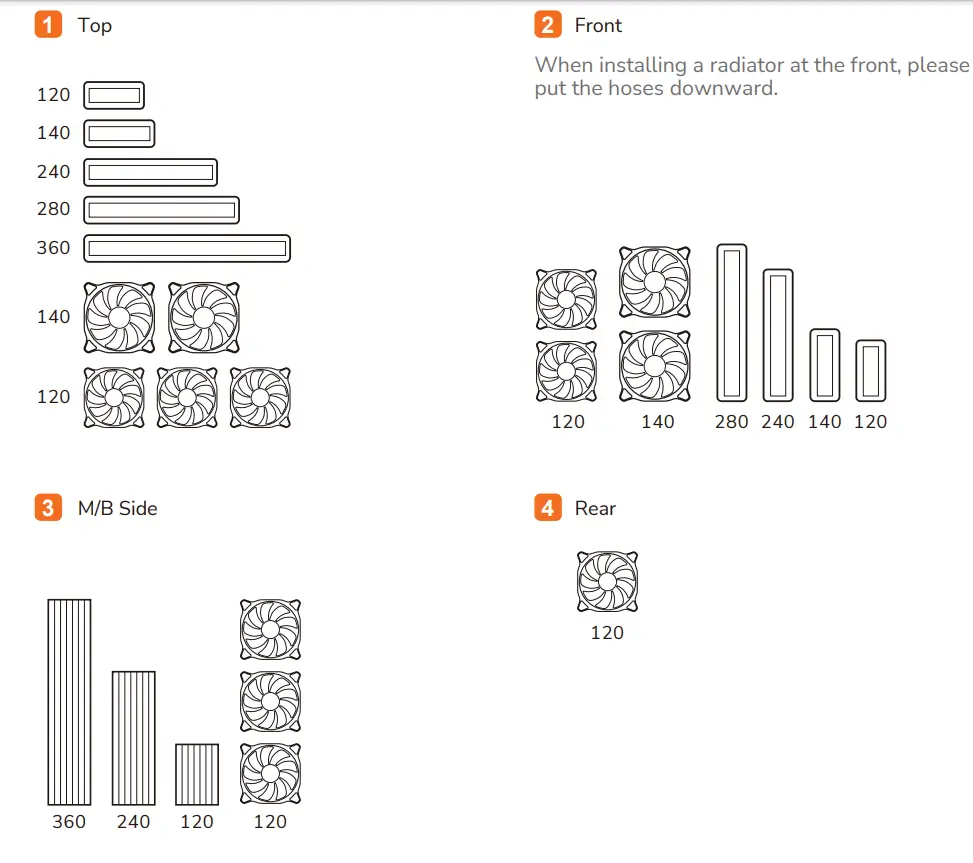

INSTALLING WATER COOLING RADIATORS & COOLING FANS

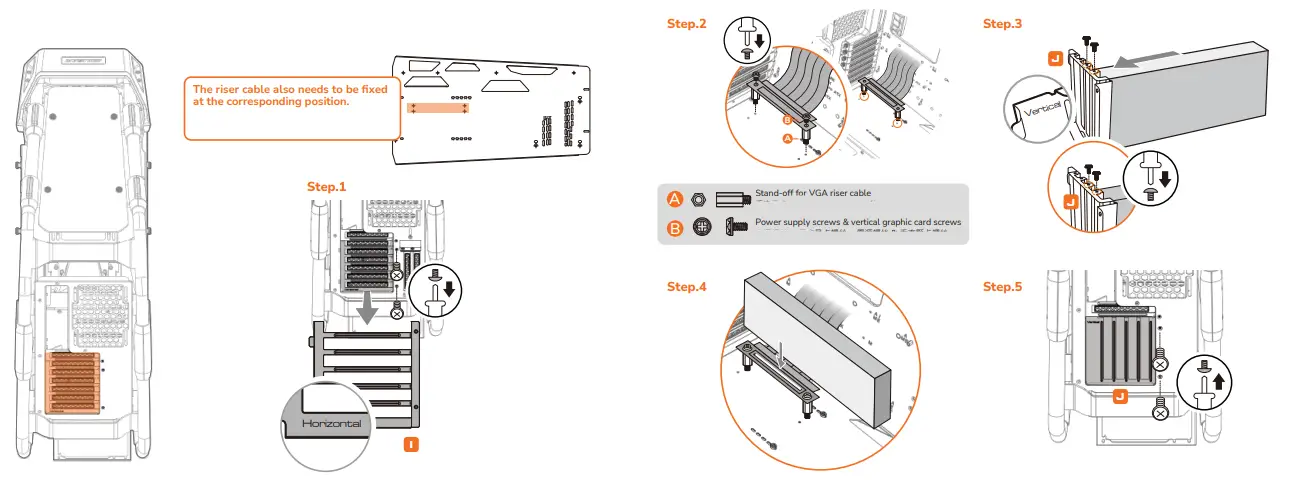

VERTICAL GRAPHIC CARD INSTALLATION METHOD

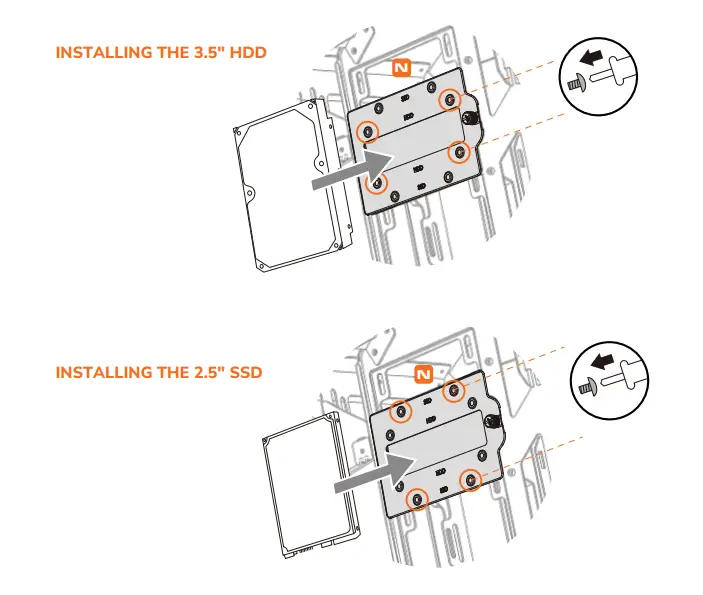

INSTALLING THE 3.5″ HDDS / 2.5″ SSDS

The 3.5” HDD trays are placed inside the cable management cover.

CABLE MANAGEMENT COVER DISASSEMBLY INSTRUCTIONS

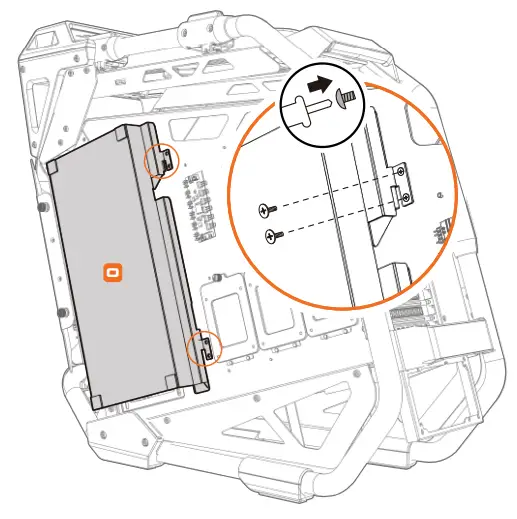

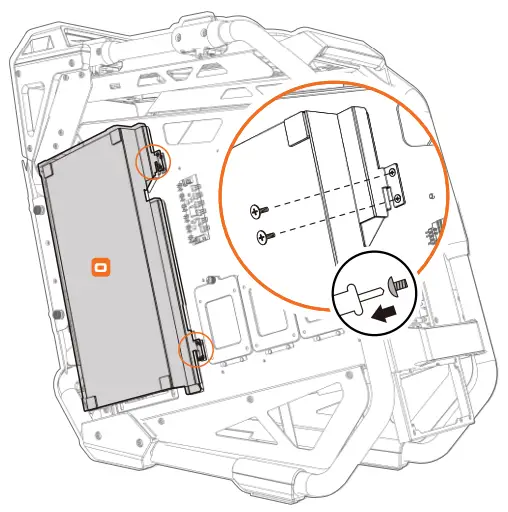

CABLE MANAGEMENT COVER INSTALLATION INSTRUCTIONS

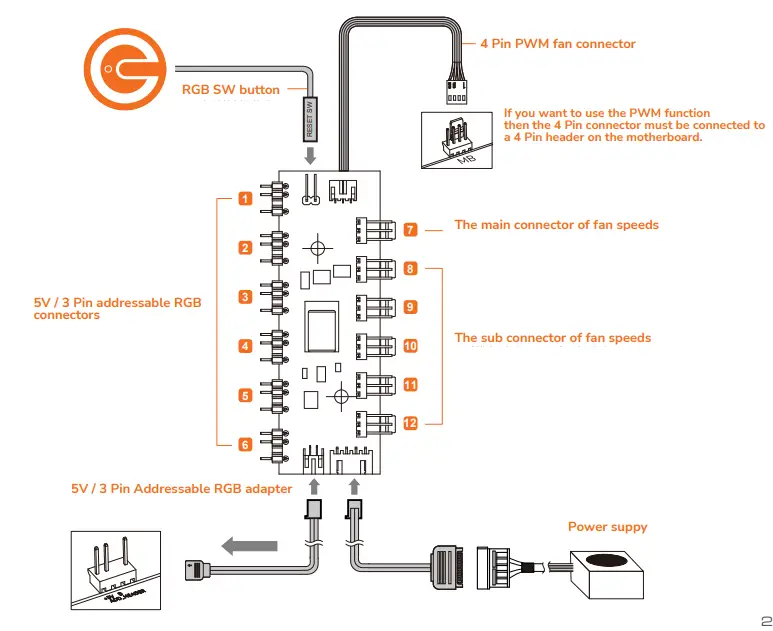

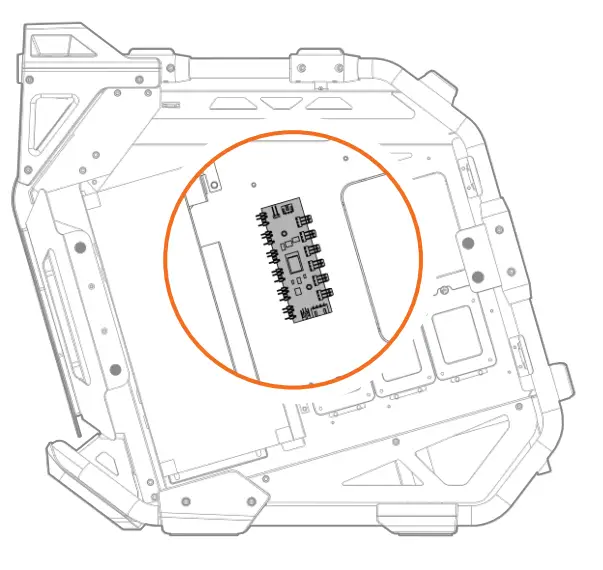

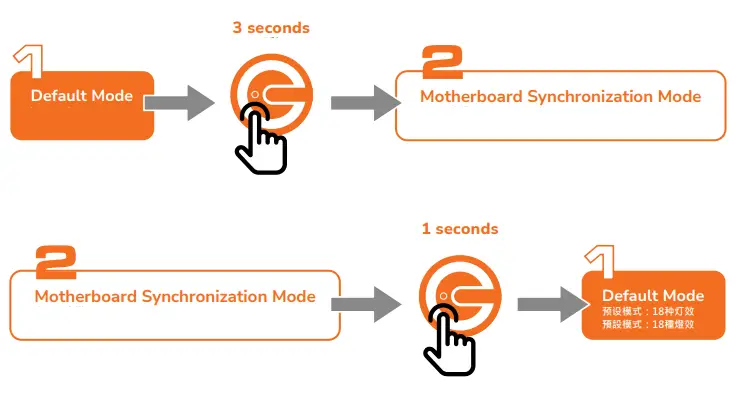

CONTROLLING LIGHTING MODES

First Mode: 18 Default Lighting Effects
Please connect the power connector to the PSU and you can short press the RGB SW button to switch the 18 beautiful lighting effects we have preset for you.
Second Mode: Motherboard Synchronization
Please use the included adapter to connect to a compatible motherboard’s 3-pin 5V Addressable RGB header. The light will be automatically controlled by the motherboard synchronization software.
As long as the 3-pin 5V Addressable RGB header is still plugged, every time you restart the PC, it will stay on motherboard synchronization mode.

CONTROLLING LIGHTING MODES

If you press and hold the RGB button for over 6 seconds, the lights will ﬂash in white for twice, and the lights will be turned off.
The lighting controller has memory function after REBOOTING.
However, if you press and hold for over 6 seconds and return on the light again, it will only return to the ﬁrst light mode of default, and it cannot memorize the light effect before it was turned off.

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR CRATUS
Warranty : Please refer to our ofﬁcial website. (https://cougargaming.com/us/support/warranty/)
Only for electrical components.
This warranty gives you speciﬁc legal rights. You may also have other rights granted under local law.
