COUGAR MHP120 Tower Air Cooler
METALLIC-REINFORCED MOTOR HUB & SHELL
Excellent rotational stability that takes enhanced performance and durability to a whole new level
EXTREME COOLING FAN WITH 2000 RPM
Delivering 82.48 CFM/ 143.53 m3/h high airflow and 4.24mmH2O high static pressure, providing outstanding performance.
HDB BEARING & PWM CONTROL
Hydro-Dynamic Bearings extends the fan’s life span, and PMW control technology allows for total control on fan speed to reach that perfect balance between machine performance and cooling.
FAN SPECIFICATIONS
| Fan Model: MHP120 |
| Dimensions (WxDxH): 120 x 120 x 25 mm |
| Fan Speed: 600-2000 RPM±200RPM |
| Air Flow: 82.48 CFM / 143.53 m3/h (± 10%) |
| Air Pressure: 4.24 mm H2O±10% |
| Acous�c Noise: 31.68 dB(A) (Max.) |
| Rated Voltage: 12 VDC |
| Rated Current: 0.23 A |
| Power Consump�on: 2.76 W ± 10% |
| Bearing Type: HDB Hydro Dynamic Bearing |
| Cable Length: 200 mm |
| Connector & Control: 4 Pin PWM |
| Weight: 198g |
PACKAGE CONTAINS
| SINGLE PACKING |
| MHP120 x 1 |
| 300mm Extension Cable x 1 |
| 100mm Low-Noise Adaptor x 1 |
| Fan Screw Kit |
| User Manual |
TRIPLE FAN KIT
| TRIPLE FAN KIT |
| MHP120 x 3 |
| 300mm Extension Cable x 3 |
| 100mm Low-Noise Adaptor x 3 |
| Fan Screw Kit |
| User Manual |
FEATURES
- EXTREMELY HYPER FAN WITH 2000 RPM(MAX)
- METAL REINFORCED MOTOR HUB & SHELL
- HDB BEARING EQUIPPED & PWM CONTROL
- ANTI-VIBRATION DAMPER
- MORE SUITABLE FOR RADIATOR / HEATSINK
- USEFUL COMPONENTS ATTACHED
INSTALL CONTENTS

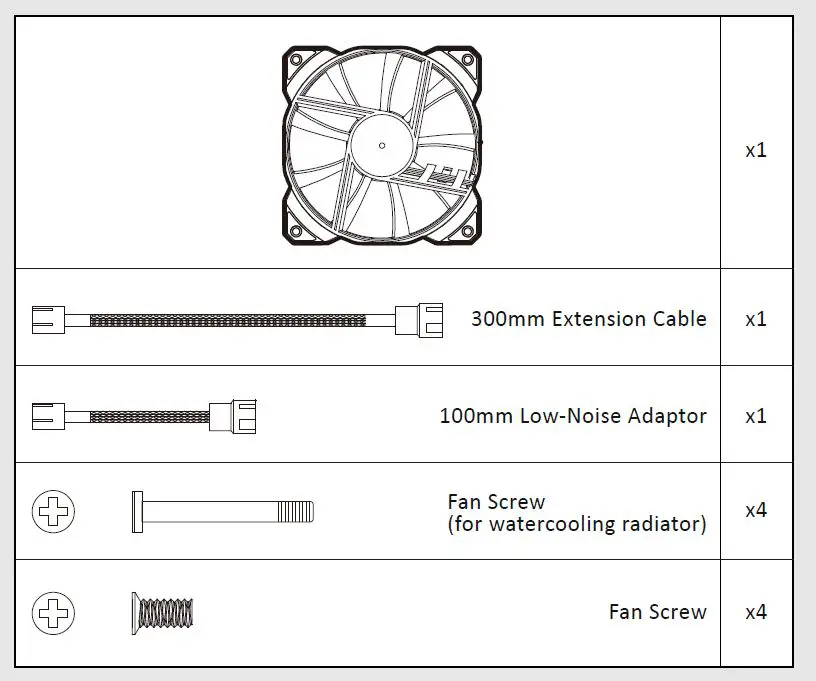

SINGLE PACKING

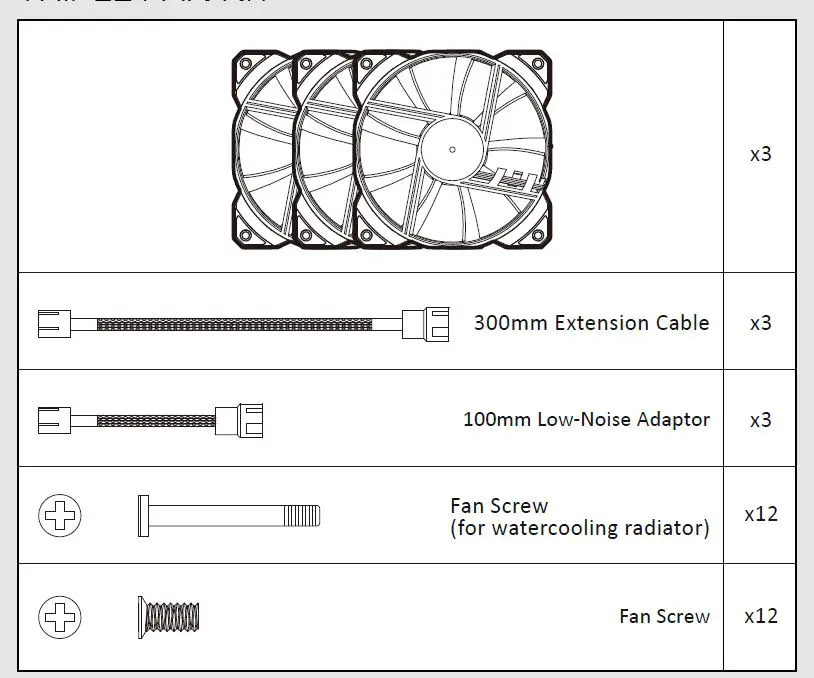

TRIPLE FAN KIT
HOW TO INSTALL

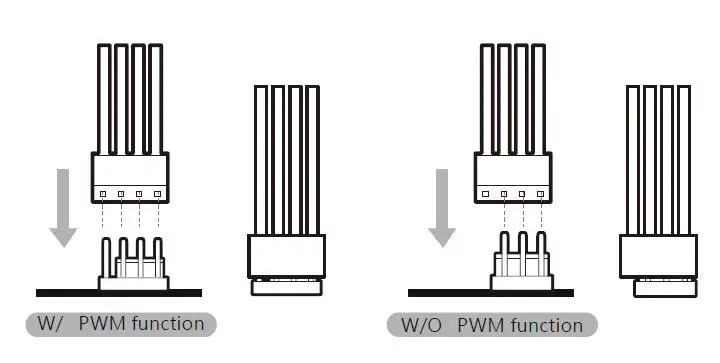

Connect the 4-pin cable into an available 4-pin or 3-pin fan header on your motherboard or fan controller.
CAUTION

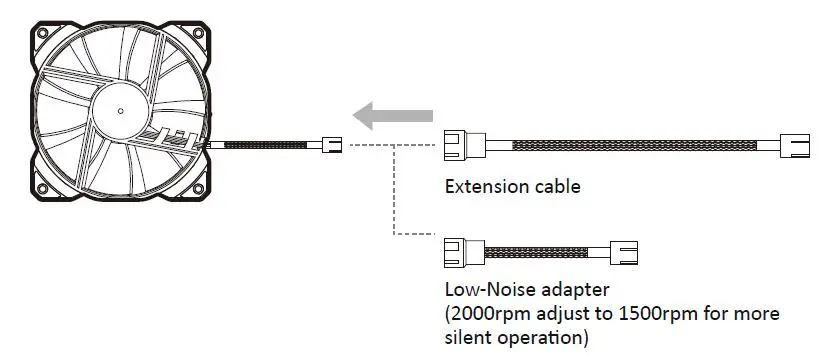

When using the Low-Noise adapter, check the temperature of your CPU using appropriate software (e.g. the respective applications of your motherboard manufacturer), in order to evade automatic throwing of the CPU due to the increased temperature. If the cooling performance is insufficient, please increase case venlaon or remove the Low-Noise adapter.
COUGAR USA Technical Service Tel: (833) 256-3778
Mail: [email protected] https://cougargaming.com/support/contact/upload/
Compucase Enterprise Co., Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C
Tel:+886-6-356-0606
Service E-Mail:[email protected]
