COUGAR logoFORZA 135
SUPERIOR DUAL TOWER AIR COOLER

SPECIFICATIONS

SPECIFICATIONSFORZA 135
CPU SocketIntel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Core i3 / i5 / i7 / i9 CPU) AMD AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU

Heatsink

CPU touched baseCopper base with nickel plated
Heat pipe diameter6 mm
Heat pipe number7 units
Heat pipe finishCopper with nickel plated
CraftsmanshipReflow
Dimension (WxDxH)128 x 140 x 160mm
Weight1041 g
Weight Incl. Fan1391 g

Fans

Fan ModelMHP120MHP140-A
Dimensions (WxDxH)120 x 120 x 25 mm140 x 140 x 25 mm
Fan Speed600-2000 RPM ± 200 RPM500-1500 RPM ± 150 RPM
Air Flow82.48 CFM / 143.53 m3/h (± 10%)72.93 CFM / 123.9 m3/h (± 10%)
Air Pressure4.24 mm H20±10%2.11 mm H20±10%
Acoustic Noise31.68 dB(A) (Max.)38.5 dB(A) (Max.)
Rated Voltage12 VDC12 VDC
Rated Current0.23 A0.18 A
Power Consumption2.76 W ± 10%2.16 W ± 10%
Bearing TypeHDB Hydro Dynamic Bearing HDBHDB Hydro Dynamic Bearing HDB
Cable Length Egm..200 mm200 mm
Connector & Control I4 Pin PWM4 PA PWM

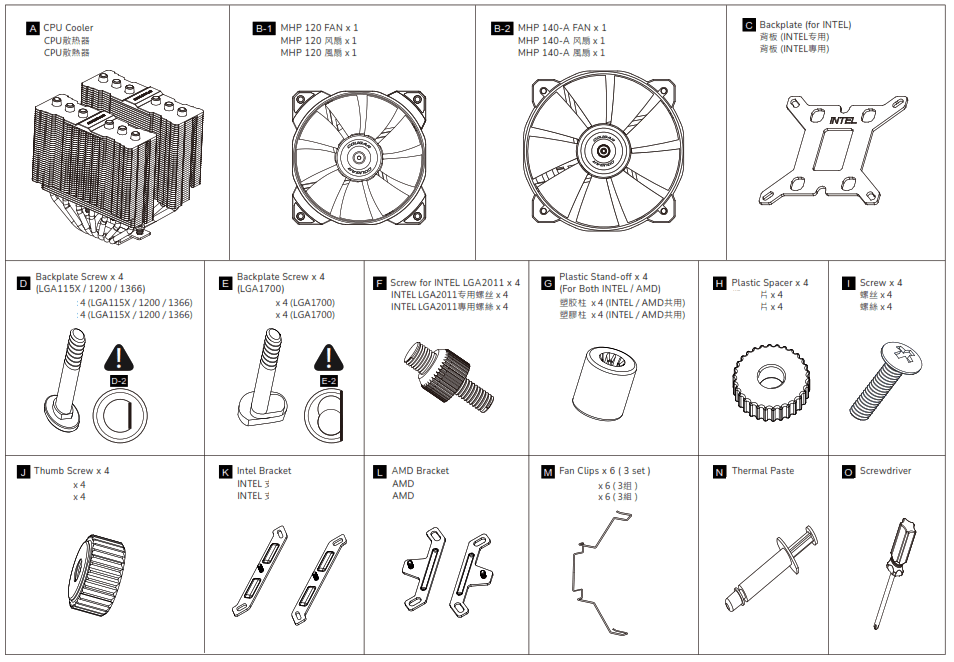

ACCESSORY KIT
COUGAR Forza 135 Superior Dual Tower Air Cooler - qr4Intel
LGA1700 / 1200 / 115X / 1366

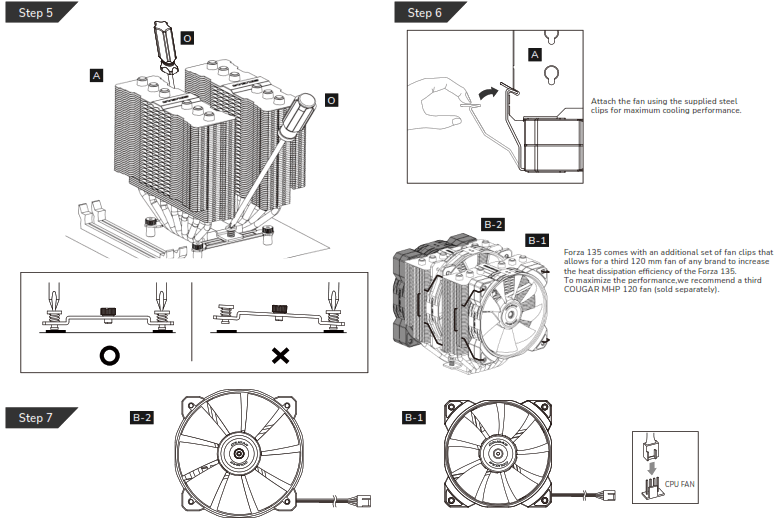

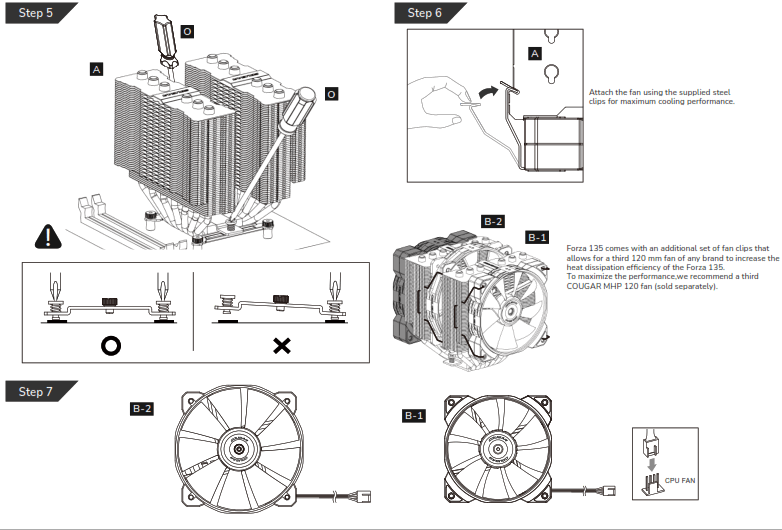

COUGAR Forza 135 Superior Dual Tower Air Cooler - figdsfCOUGAR Forza 135 Superior Dual Tower Air Cooler - fig 2COUGAR Forza 135 Superior Dual Tower Air Cooler - fig 4COUGAR Forza 135 Superior Dual Tower Air Cooler - fig 8

AMD
AMD AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPUCOUGAR Forza 135 Superior Dual Tower Air Cooler - fig

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR Forza 135 single tower air cooler
Warranty : 2 Years
This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.

WARRANTY AGREEMENT

  • If the product has defects in material or manufacture, COUGAR will provide product repair and replacement service within the warranty period.
  • Our warranty service is based on the date of the invoice or warranty card (must be affixed with the store stamp).
  • If you lose the aforementioned evidence, we will apply the original shipping date of the product as the beginning date of warranty period. The shipping date will be identified by the product serial number(S/N).

CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED

  • Any fault or damage caused by natural disasters (including storm, fire, flood, thunder, earthquake, etc).
  • Any fault or damage caused by accidental factors and man-made reasons (including hit, scrape, crash, moving, compression, stain, corrosion, use of incurred on unsuitable voltage, computer virus, riot, misuse, malicious damage, etc).
  • Use in an improper operating environment (including high temperature, high humidity, water inflow, etc).
  • Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still within the warranty period and the shipping date of the product is out of warranty.
  • The warranty card or product serial number has been altered or its number is hard to identify.
  • The warranty period has expired.
  • Any fault or damage caused by non-compliance with regulations stated on the user manual or improper, rough and careless treatment.
  • Any fault or damage caused by use of parts not certified by COUGAR original manufacturer.
  • The problem is caused by improper repair or adjustment by the buyer or any manufacturer without authorization from COUGAR.
  • The product is not acquired from an authorized distributor of the company or is acquired from illicit sources.
    Paper carton, instruction and other accessories are not warranted.

DISCLAIMERS

  • COUGAR product is not authorized for use as critical components in life support device or for incorrect application software or malfunction of the product.
  • COUGAR is not liable for the death or damage of person or loss of property when product is using as, including but not limited to, medical equipment, military equipment, traffic equipment and disaster prevention system.
  • COUGAR is not liable for any damages, expenses, lost data, lost revenues, lost savings, lost profits, or any incidental or consequential damages due to using defect product of COUGAR.
    LEGAL NOTICES
    This manual was created by Compucase Enterprise and may not be completely or partially copied, passed on, distributed or stored without written consent by Compucase Enterprise. COUGAR® is a registered brand of Compucase Enterprise Other product and company names mentioned in this documentation may be brands or trademarks of their respective owners. Compucase Enterprise reserves the right to make changes concerning the contents of the manual and the technical data of the product without previous announcement.

MANUFACTURER CONTACT
COUGAR Forza 135 Superior Dual Tower Air Cooler - qr4
www.cougargaming.com
COUGAR USA Technical Service
Tel: (833) 256-3778
Mail:[email protected]
Compucase Enterprise Co.,Ltd. All rights reserved.
CE SYMBOLMade in China
