FORZA 50
Specifications
| Product Name | FORZA 50 |
| CPU Socket | Intel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Core i3 / i5 / i7 / i9 CPU) AMD AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU |
Heatsink
| CPU touched base | Copper with HDT technology |
| Heat pipe diameter | 6 mm |
| Heat pipe number | 4 units |
| Heat pipe finish | Copper with nickel-plated |
| Craftsmanship | Zipper fin |
| Dimension (WxDxH) | 50 x 135 x 155mm |
| Weight | 596 g |
| Weight Incl. Fan | 792 g |
Fans
| Fan Model | MHP120 |
| Dimensions (WxDxH) | 120 x 120 x 25 mm |
| Fan Speed | 600-2000 RPM±200RPM |
| Air Flow | 82.48 CFM / 143.53 m3/h (± 10%) |
| Air Pressure | 4.24 mm H2O±10% |
| Acoustic Noise | 31.68 dB(A) (Max.) |
| Rated Voltage | 12 VDC |
| Rated Current | 0.23 A |
| Power Consumption | 2.76 W ± 10% |
| Bearing Type | HDB Hydro Dynamic Bearing |
| Cable Length | 200 mm |
| Connector & Control | 4 Pin PWM |

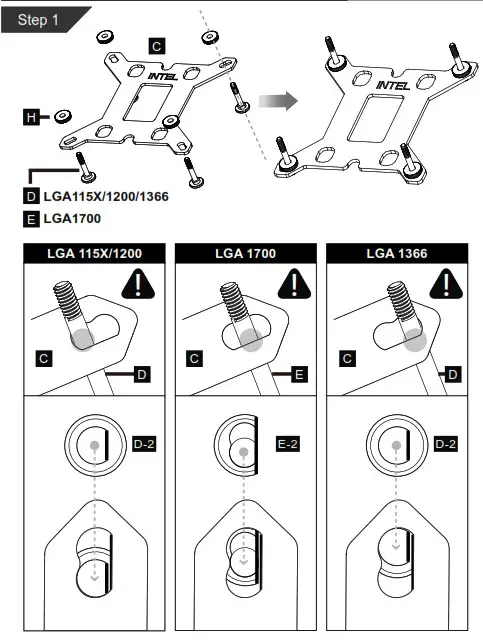

Intel LGA1700/1200/115X/1366
Caution: The supplied backplate will install over the motherboard’s stock backplate, so the motherboard’s stock backplate must not be taken off.

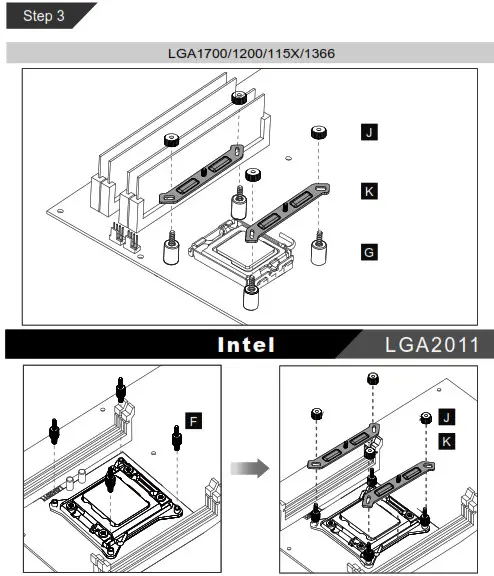

For LGA2011, screw the “Screw F” on the motherboard directly without the “Back Plate C”

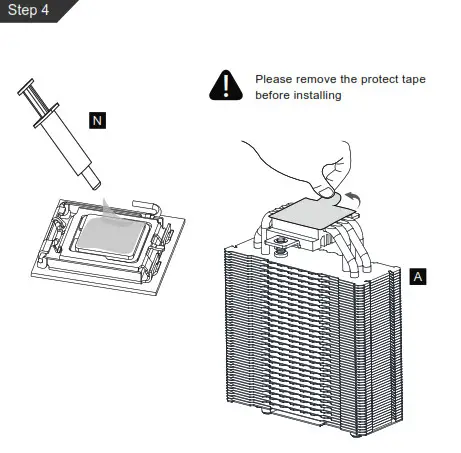

Caution: Applying too much thermal paste will lower heat conductivity and cooling performance!
Intel LGA1700/1200/115X/1366/2011

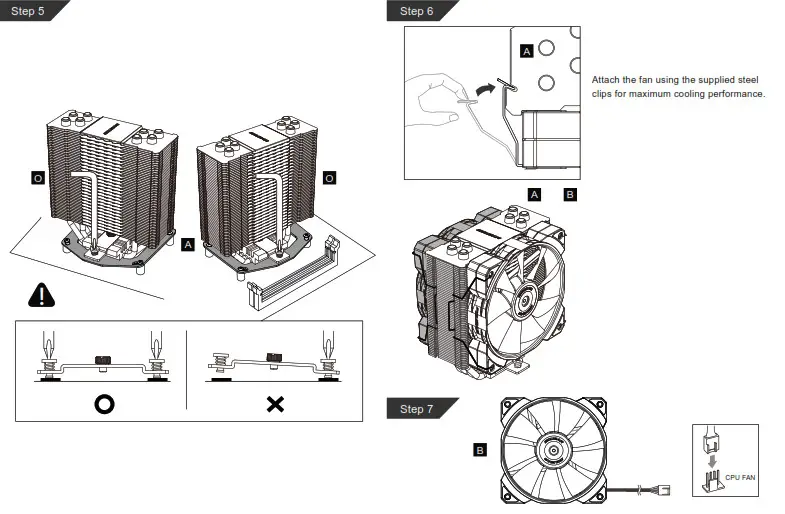

Forza 50 comes with an additional set of fan clips that allows for a second 120 mm fan of any brand to increase the heat dissipation efficiency of the Forza 50.
To maximize the performance,we recommend a second COUGAR MHP 120 fan (sold separately).

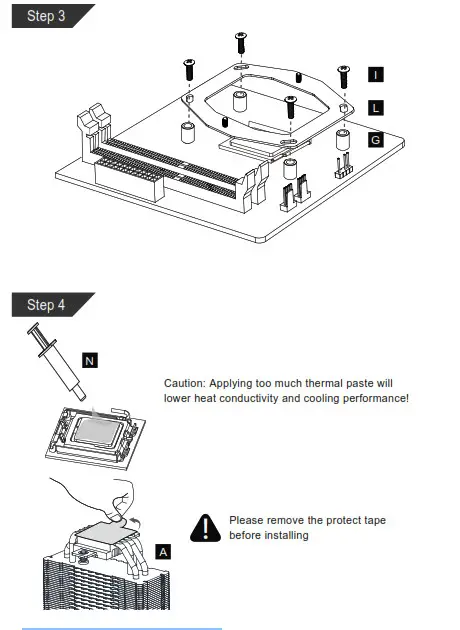

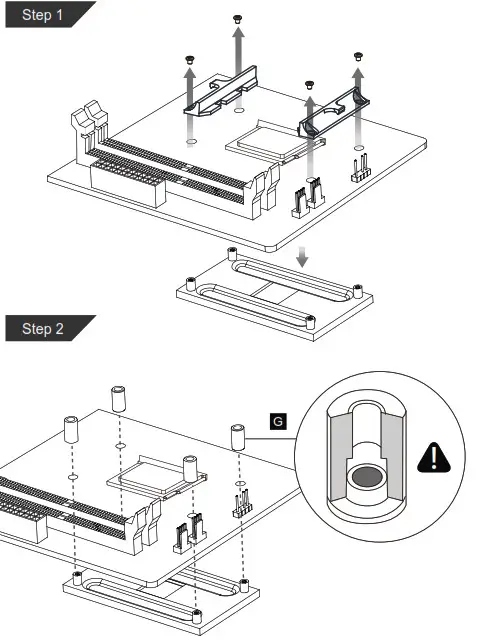

AMD AMD AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ /AM2 CPU
Forza 50 comes with an additional set of fan clips that allows for a second 120 mm fan of any brand to increase the heat dissipation efficiency of the Forza 50. To maximize the performance,we recommend a second COUGAR MHP 120 fan (sold separately).
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product: COUGAR FORZA 50 single tower air cooler
Warranty: 2 Years
This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.
WARRANTY AGREEMENT
- If the product has defects in material or manufacture, COUGAR will provide product repair and replacement service within the warranty period.
- Our warranty service is based on the date of the invoice or warranty card (must be affixed with the store stamp).
If you lose the aforementioned evidence, we will apply the original shipping date of the product as the beginning date of the warranty period. The shipping date will be identified by the product serial number(S/N).
CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED
- Any fault or damage caused by natural disasters (including storms, fires, floods, thunder, earthquake, etc).
- Any fault or damage caused by accidental factors and man-made reasons (including hit, scrape, crash, moving, compression, stain, corrosion, use of incurred on unsuitable voltage, computer virus, riot, misuse, malicious damage, etc).
- Use in an improper operating environment (including high temperature, high humidity, water inflow, etc).
- Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still within the warranty period and the shipping date of the product is out of warranty.
- The warranty card or product serial number has been altered or its number is hard to identify.
- The warranty period has expired.
- Any fault or damage caused by non-compliance with regulations stated on the user manual or improper, rough, and careless treatment.
- Any fault or damage caused by the use of parts not certified by COUGAR original manufacturer.
- The problem is caused by improper repair or adjustment by the buyer or any manufacturer without authorization from COUGAR.
- The product is not acquired from an authorized distributor of the company or is acquired from illicit sources. Paper cartons, instructions,s, and other accessories are not warranted.
DISCLAIMERS
- COUGAR product is not authorized for use as critical components in life support device or for incorrect application software or malfunction of the product.
- COUGAR is not liable for the death or damage of a person or loss of property when the product is used as, including but not limited to, medical equipment, military equipment, traffic equipment and disaster prevention system.
- COUGAR is not liable for any damages, expenses, lost data, lost revenues, lost savings, lost profits, or any incidental or consequential damages due to using the defective product of COUGAR.
