Hytronik Hed1009-bt Bluetooth Dimmable Led Drivers User Manual (+ PDF)

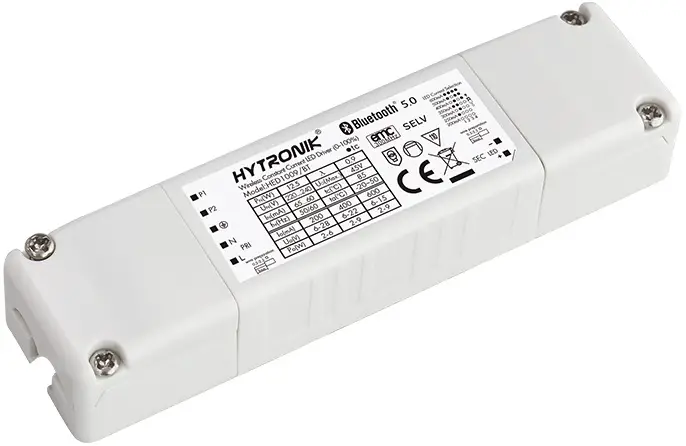

This series of LED drivers are Bluetooth dimmable LED drivers, with maximum power output ranging from 9W to 40W. They all come with Switch-Diminterface by using Push switch (retractive switch) and of course Bluetooth dimming interface. It is ideal for direct projects or new luminaires design for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects. Meanwhile, simple device setup and commissioning can be done via app.

App Features

Quick setup mode & advanced sefup mode

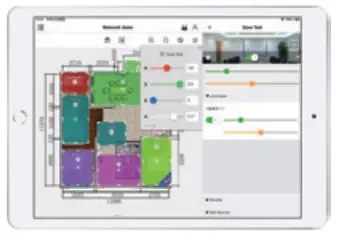

Floorplan feature to simplify project planning

Web app/plform for dedicated project management

Koolmesh Pro iPad version for onsite configuration

Grouping luminaires via mesh network

Scenes

Detailed motion sensor seffings

Push switch configuration

Schedule to run scenes based on time and date

siro fimer (sunrise and sunse)

Stircase funciion [primary & secondary)

Internetof Things (IoT) featured

Device firmware update overthexair [OTA]

Device socidl relations check

Bulk commissioning (copy and paste setiings)

Poweron status [memory against power loss)

Offline commissioning

Different permission levels via auhority management

Network sharing via QR code or keycode

Remote control via gateway support HBGWOT1

Interoperability with Hytronik Bluetooth product portfolio

Compatible with EnOcean switch EWSSB/EWSDB

Continuous development in progress

Hardware Features

Switch Dim
PWM 1KHz (1-100%] (Except for HED6010/BT)
Bluetooth dimmable control
Insulated terminal cover with cord resiraint
Active PFC design

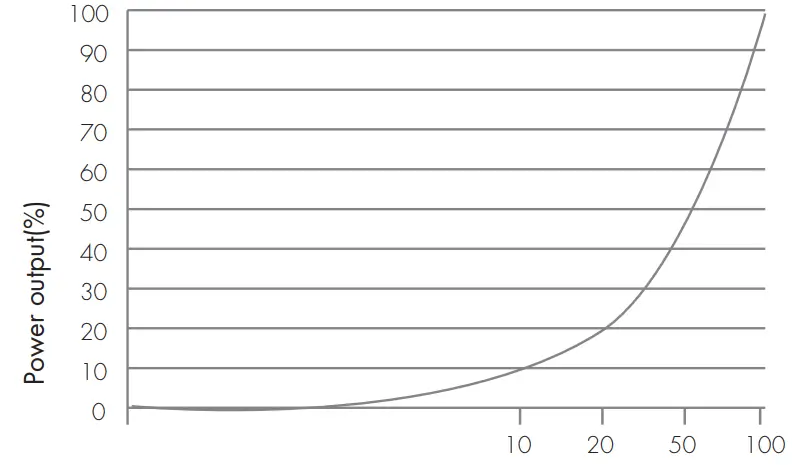

Logarithmic Dimming

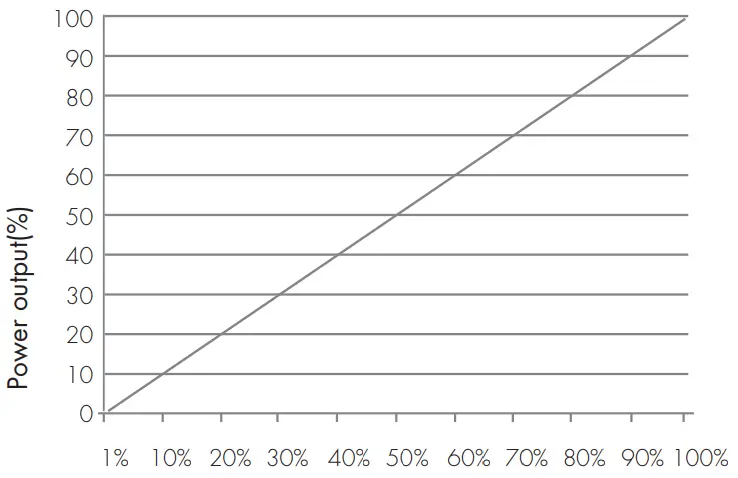

Linear Dimming
Configurable constant current (CC) output via DIP switch
looprin and loop-out terminals for efficient installat”
Openrcircit Protection
Shortcircuit Protection
Overload Protection
Syear waranty, designed for long lifetime up to 50,000 hours

Certain scenes which require exiernal photocell can be achieved by using together with Hytronik Bluetooth sensors,such as HBIR29, HCDO38/BT + sensor head efc

APPS

Smartphones app for both iOS & Android platform

Koolmesh pro app for Ipad

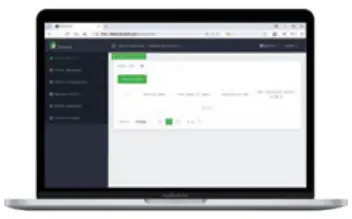

Web app/platform: www.iot.koolmesh.com

Output Configuration

HED1009/BT, YW

600mA
500mA
400mA
350mA
300mA
250mA
200mA

HED6010/BT, 12.

500mA
400mA
350mA
300mA
250mA
230mA
195mA

HED1025/8BT, 25W

700mA
650mA
600mA
550mA
500mA
450mA
400mA
350mA
300mA

Warning: Please make sure the correct current is selected before starting the driver!

Technical Specifications

Bluetooth Transceiver
Operation frequency	2.4 GHz-2.483 GHz
Transmission power	4.dBm
Range (Typical indoor]	10~30m
Protocol	Bluetooth 5.0 SIG Mesh

	Model No.	HED1009/BT	HED6010/BT	HED1025/BT	HED1040/BT
Input	Mains Voltage	220~240VAC 50/60Hz
	Mains Current	0.065~0.06A	0.071~0.065A	0.140~0.125A	0.210~0.200A
	Power Factor	0.9
	Max. Efficiency	80%	82%	85%	85%
Output	Ripple Current	<3%	<3%	<3%	<3%
	Uout Max.	45V	52V	60V	65V
	Turn-on Time	<0.5s	<0.5s	<0.5s	<0.5s
	Dimming Interface	Switch-Dim
Environment	Operation Temp.	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃
	Case Temp. (Max.)	85℃	75℃	85℃	85℃
	IP Rating	IP20	IP20	IP20	IP20
Safetyand EMC	EMC Standard	EN55015, EN61547, EN61000-3-2/-3-3, EN300328, EN301489-1/-17, EN62479
	Safety Standard	EN61347-1, EN61347-2-13
	Dielectric strength	Input→output: 3000VAC / 5mA /1min
	Abnormal protection	Output short-circuit protection, Overload Protection, Open-circuit Protection

Model No.	Max. output power/current/voltage range
HED1009/BT	2-6W/ 200mA /6-28V	2-9W/ 400mA /6-22V	2-9W/ 600mA /6-15V
HED6010/BT	1.5-8W/ 195mA /6-41V2.5- 12.8W/ 350mA /6-36V	1.5-9W/ 230mA /6-41V2.5-12.8W/ 400mA /6-32V	1.5-10W/ 250mA /6-41V3-12.5W/ 500mA /6-25V	2-12W/ 300mA /6-41V
HED1025/BT	2-15W/300mA /6-48V3-24W/500mA /6-46V4-25W/700mA /6-36V	2-17W/350mA /6-48V3-24W/550mA /6-44V	2-20W/400mA /6-48V4-25W/600mA /6-42V	3-22W/450mA /6-48V4-25W/650mA /6-38V

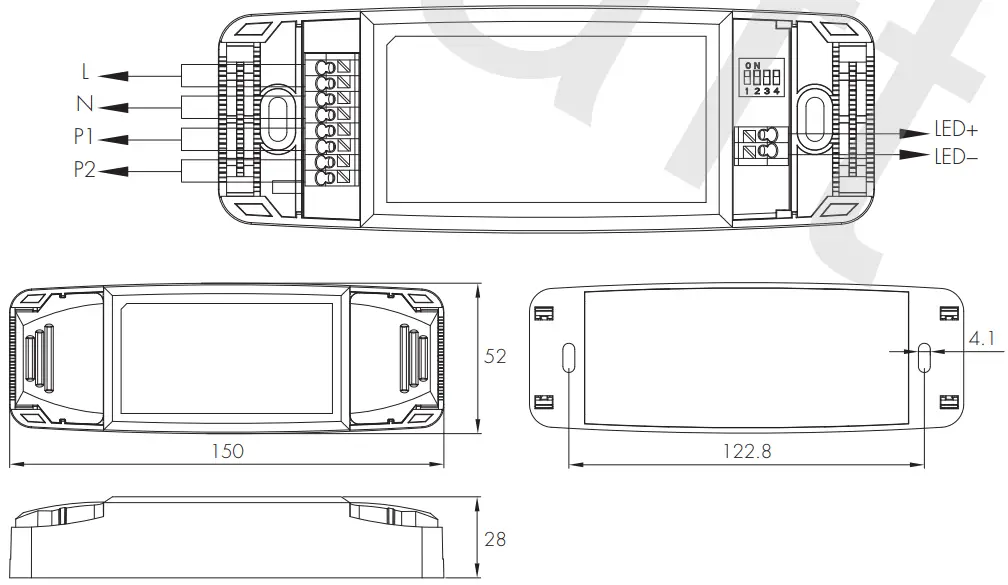

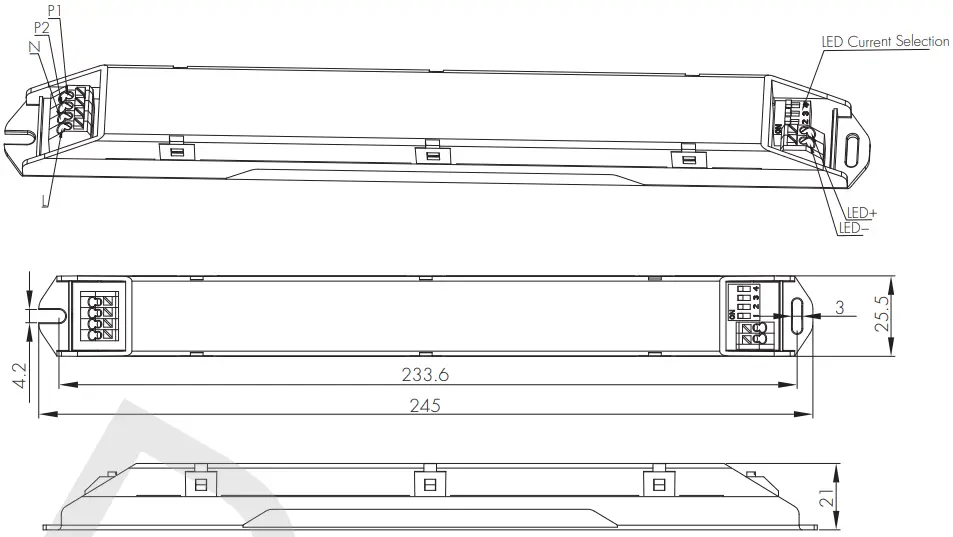

Mechanical Structure & Dimensions

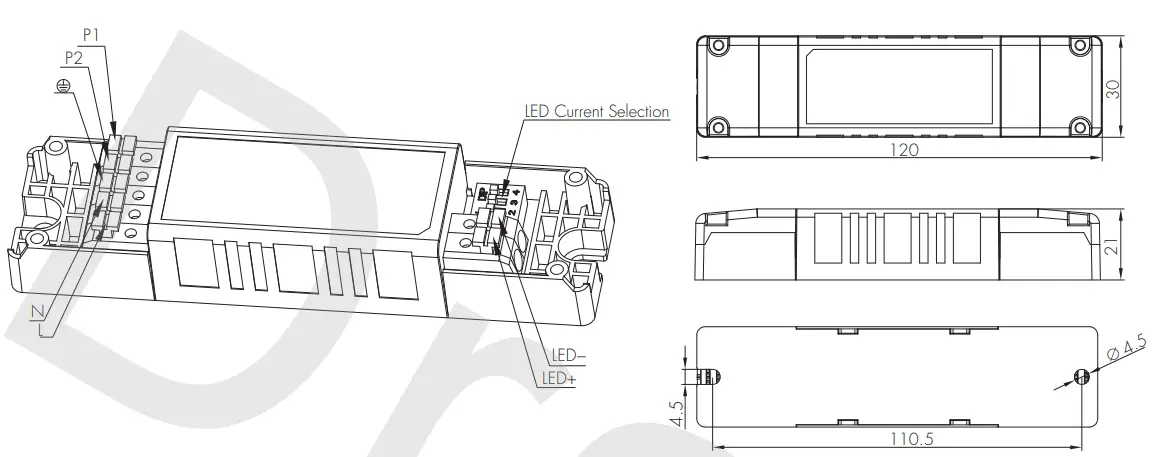

HED1009/8T, 1x9W

HED6010/BT, 1x10W

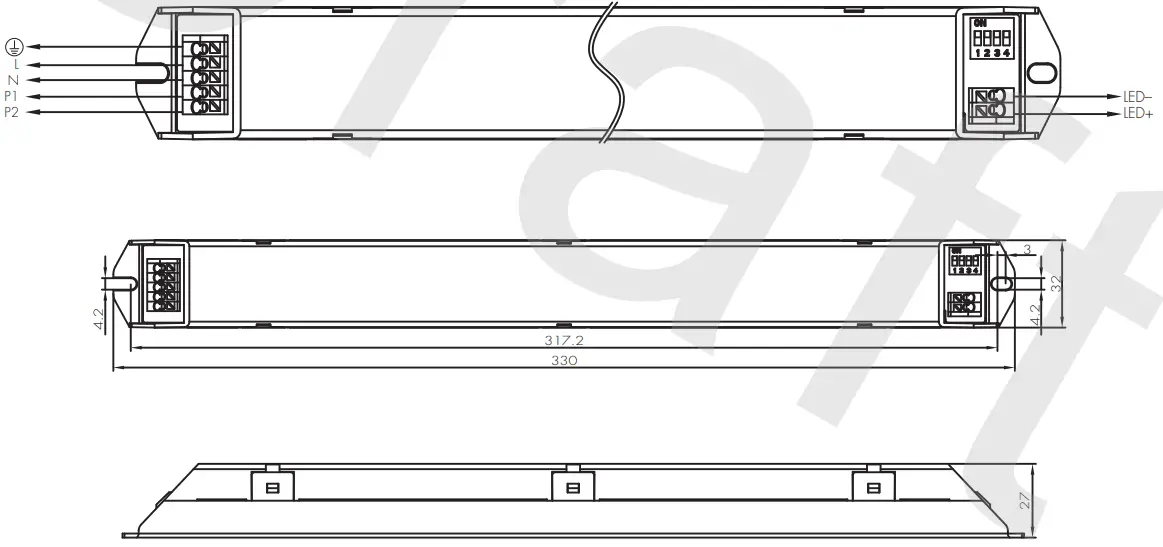

HED1025/BT, 1x30W

HED1040/BT, 1x40W

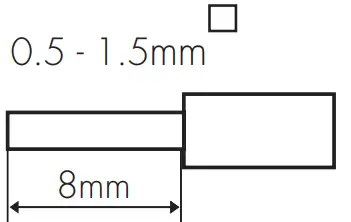

Wire Preparation

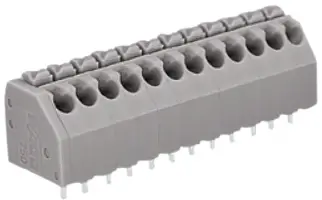

To make or release the wire from the ferminal, use a ‘/ screwdriver to push down the button

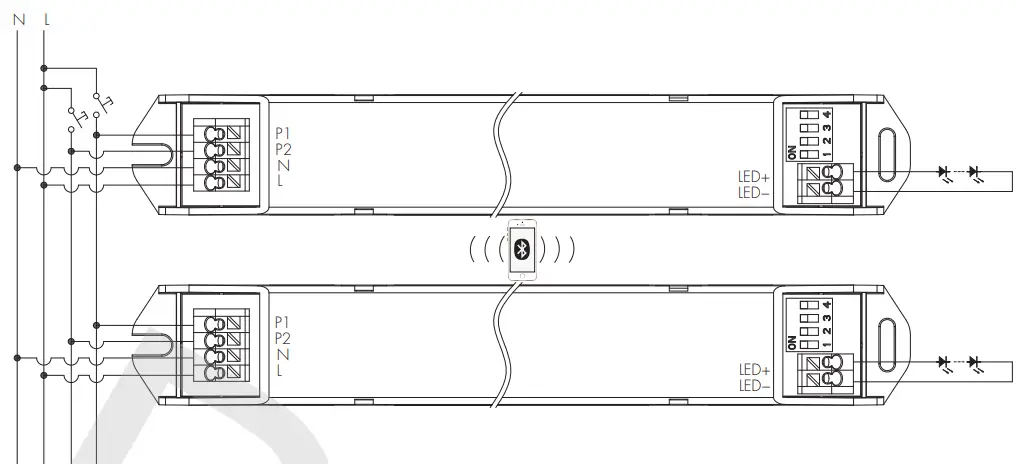

Wiring Diagram

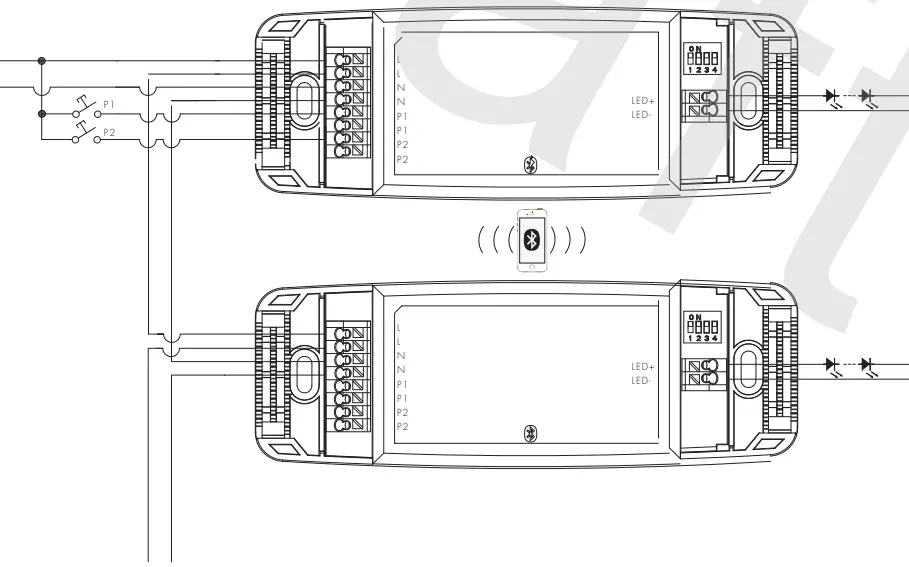

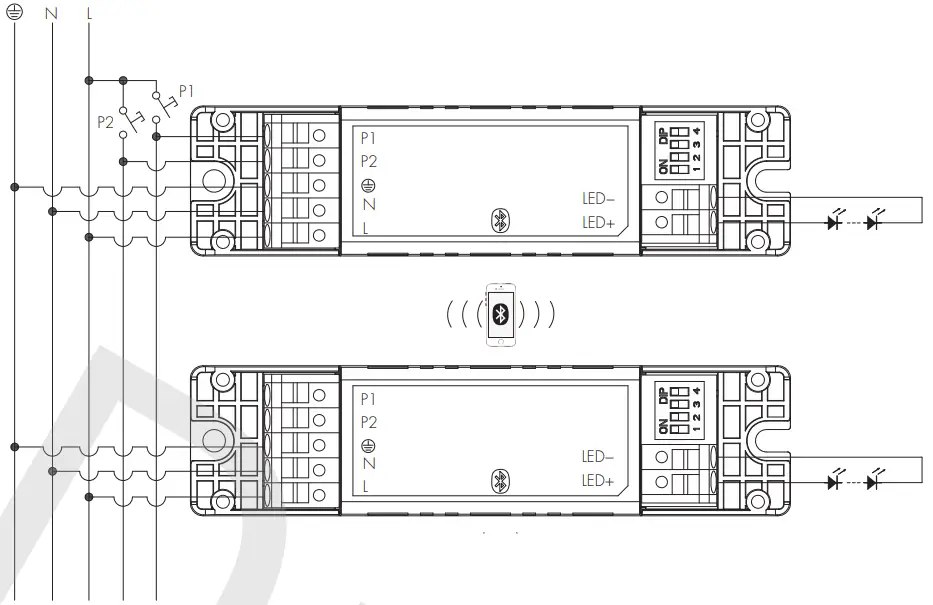

Model: HED1009/BT

Note: There is no need for any hardwirings on “push” ferminal befween one driver fo another. The installer only needs to connect the push switches to the nearest driver to save labor and cost. The push switches can be assigned to control any Bluetooth driver through the app commissioning.

Model: HED6010/BT

Note: There is no need for any hardwirings on “push” terminal between one driver fo another. The installer only needs fo connect the push switches to the nearest driver fo save labor and cost. The push switches can be assigned to control any Bluetooth driver through the app commissioning.

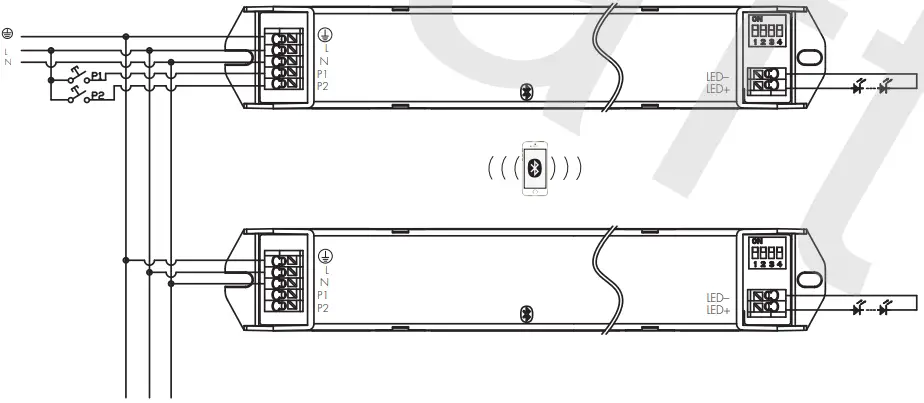

Model: HED1025/BT

Note: There is no need for any hardwirings on “push” terminal between one driver to another. The installer only needs to connect the push switches to the nearest driver to save labor and cost. The push switches can be assigned o control any Bluetooth driver through the app commissioning

Model: HED1040/BT

Note: CH1 & CH2 are working independently, meaning that they cannot be used with luminaires that share “+”. There is no need for any hardwirings on “push” terminal between one driver fo another. The installer only needs to connect the push switches to the nearest driver to save labor and cost. The push switches can be assigned to control any Bluetooth driver through the app commissioning.

Loading and In-rush Current

Model	HEC6010/BT	HEC1025/BT	HED1040/BT
In-rush Current (Imax.)	23A	22A	25A
Pulse Time	30 µs	18 µs	15 µs

Circuit Breaker Information

Automatic circuit breaker type	B16A	B10A	B13A	B20A	B25A
HED1009/BT	176	110	143	220	276
HED6010/BT	142	89	115	178	222
HED1025/BT	73	46	59	92	115
HED1040/BT	41	26	3	52	65

The data above is calculated according to the formula: Maximum Amount = 16/(Pn/230). In order to provide a more reliable reference in real application, the data have been revised to take 0% of the number calculated, i.e. 6/(Pn/230) x 60%. Please kindly take note that the calculation is based on ABB circuit breaker series $200. Actual values may differ due to different types of circuit breaker used and installation environment.

Performance Characteristics

HED1009/8T

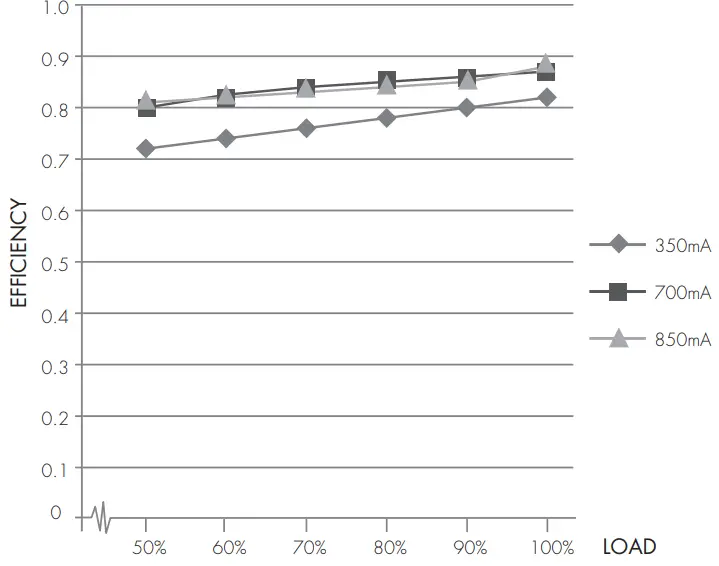

Typical Efficiency vs Load

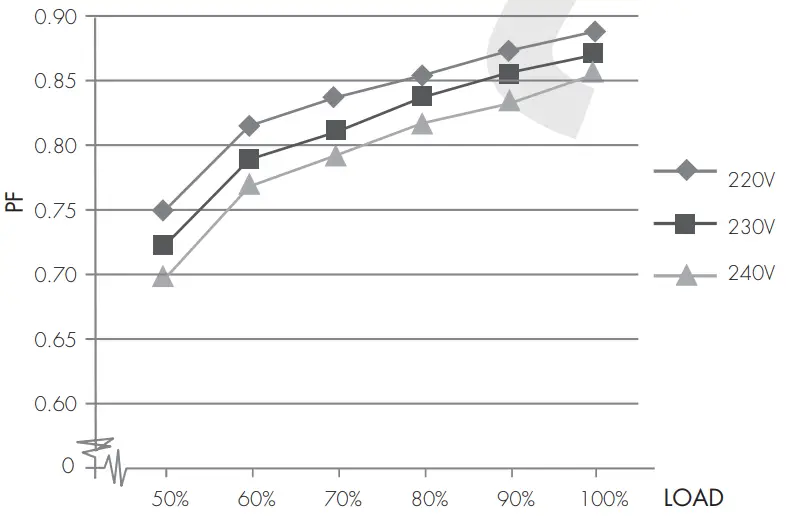

Typical Power Factor vs Load

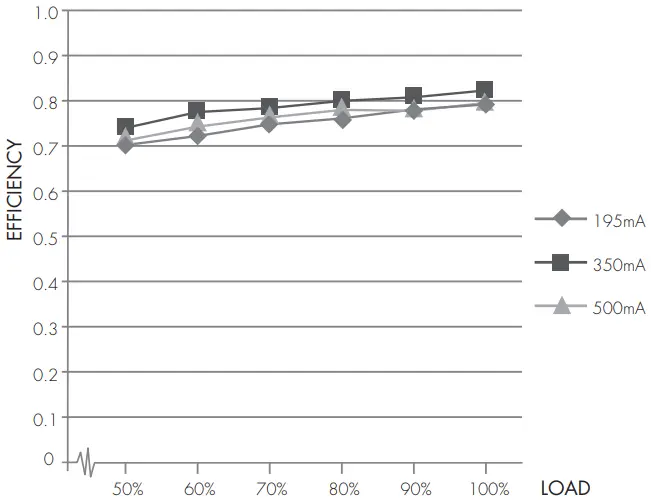

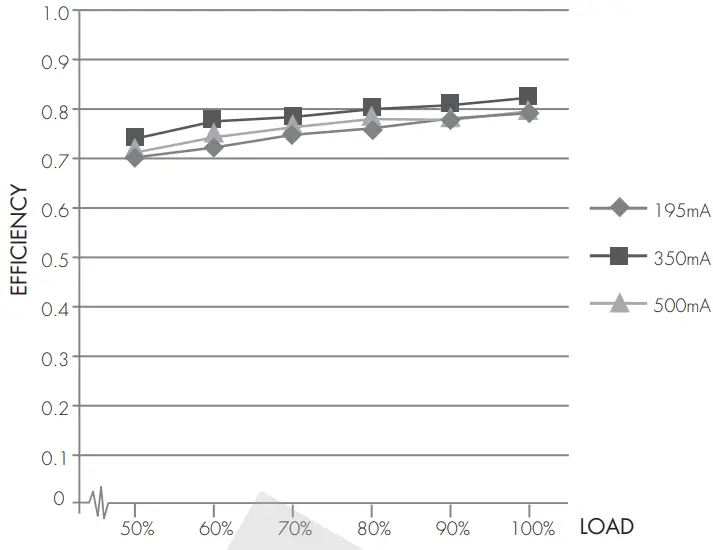

Typical Efficiency vs Load

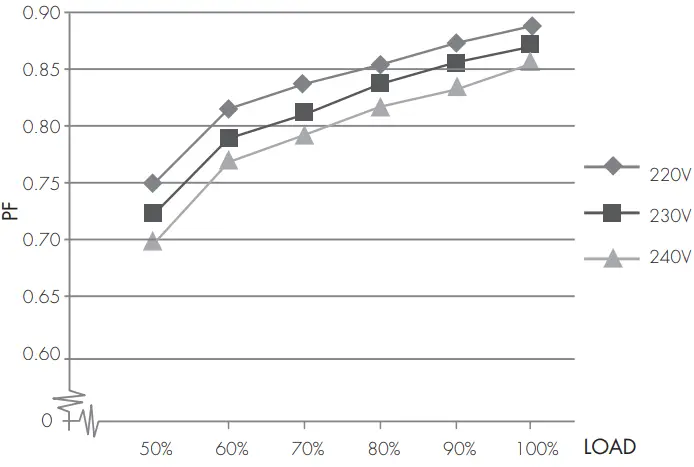

Typical Power Factor vs Load

ypical Efficiency vs Load

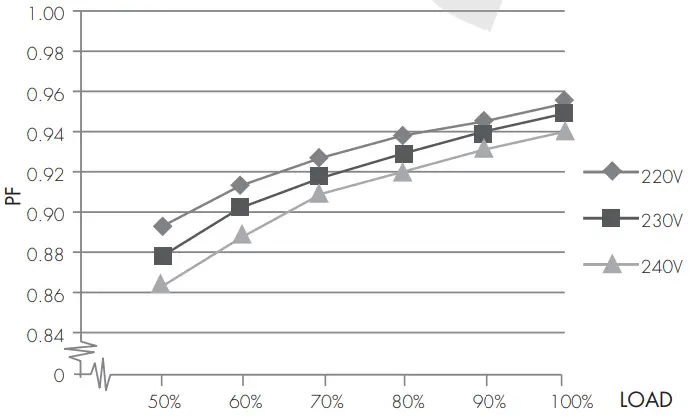

Typical Power Factor vs Load

Typical Power Factor vs Load

Dimming Characteristics

Dim level

Dim Level

Dimming Profile

Dimming range	Dimming technique
0-1%	OFF
1-10%	PWM
10-100%	Analogue

Dimming Interface Operation Notes

Switch-Dim
The provided SwitchDim interface allows for a simple dimming method using commercially available norlatching [momentary) wall switches. Up to 64 LED drivers maybe connected to one switch. Defailed Push switch configurations can be set on Koolmesh app.

Switch Function	Action	Descriptions
Push switch	Short press (<1 second)* Short press has to be longer than 0.1s, or it will be invalid.	Turn on/off Recall a scene Turn on only Exit manual mode Turn off only Do nothing
	Double push	Turn on only Exit manual mode Turn off only Do nothing Recall a scene
	Long press (≥1 second)	Dimming- Do nothing
Simulate sensor	/	Upgrade a normal on/off motion sensor to a Bluetooth controlled motion sensor

Additional Information / Documents

Regarding precautions for LED driver installation and operation, please kindly refer to
www.hytronik.com/download ->knowledge ->LED Drivers – Precautions for Product Installation and Operation
To leam more about detailed product features/functions, please refer to
www.hytronik.com/download>knowledge ->Introduction of App Scenes and Product Functions
Regarding precautions for Bluetooth product installation and operation, please kindly refer to
www.hytronik.com/download ->knowledge ->Bluetooth Producs – Precautions for Product Installation and Operation
Data sheet is subject to change without notice. Please always refer o the most recent release on
www.hytronik.com /products/bluetooth technology ->Bluetooth Drivers
Regarding Hytronik standard guarantee policy, please refer to wwew hytronk com,/download ~>knowdedge >Hytronik Standard Guarantee Policy.
