ASSEMBLY INSTRUCTIONS
SAFETY INSTRUCTIONS
| Cover the shower tray completely | Wear safety goggles |
 |  |
| Wear safety shoes | Assembly recommended with 2 persons |
 |  |
| get information about the location of the power line | get information about the location of the water pipe |
 |  |
| Protect glass | wear gloves with pulse protection |
 |  |
INFORMATION
Check the condition of the masonry before installation. The fixing material included in the scope of delivery may not be suitable for fixing.
The installation surface of the shower enclosure must be level.

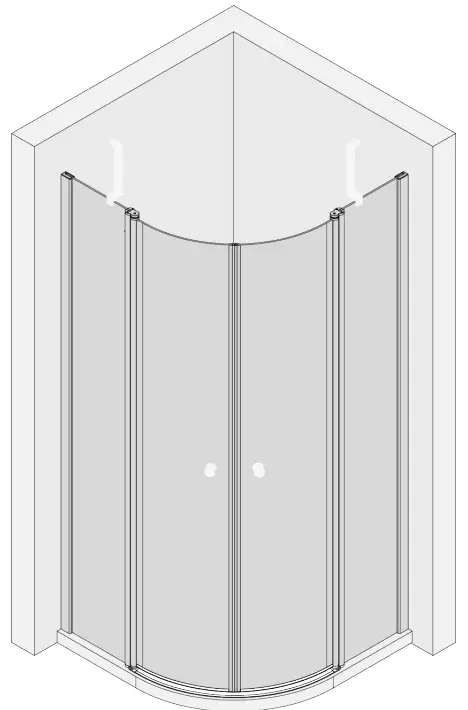

DIMENSIONS
! check wether measured dimensions correspond to the table values (X,Y)

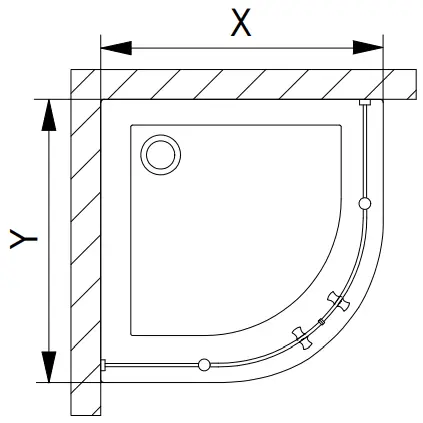

Mounting on shower tray
| X | Y | |
| 800 mm | 775 – 800 mm | 775 – 800 mm |
| 900 mm | 875 – 900 mm | 875 – 900 mm |
| 1000 mm | 975 – 1000 mm | 975 – 1000 mm |

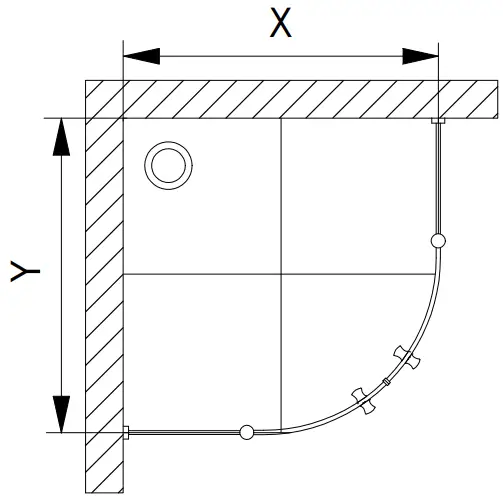

Mounting on tile (middle of the glass)

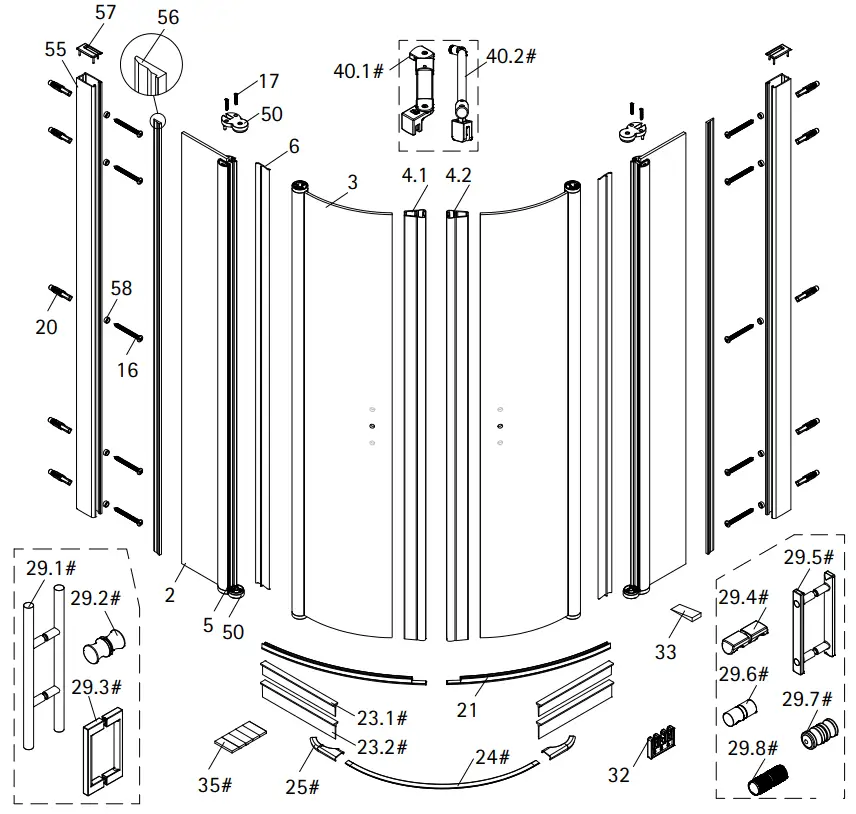

| X | Y | |
| 800 mm | 739 – 764 mm | 739 – 764 mm |
| 900 mm | 839 – 864 mm | 839 – 864 mm |
| 1000 mm | 939 – 964 mm | 939 – 964 mm |
Please state the colour code for coloured spare parts: 01 – aluminium | 04 – white | 41 – chro | 68 – black | 90 – stainless steel

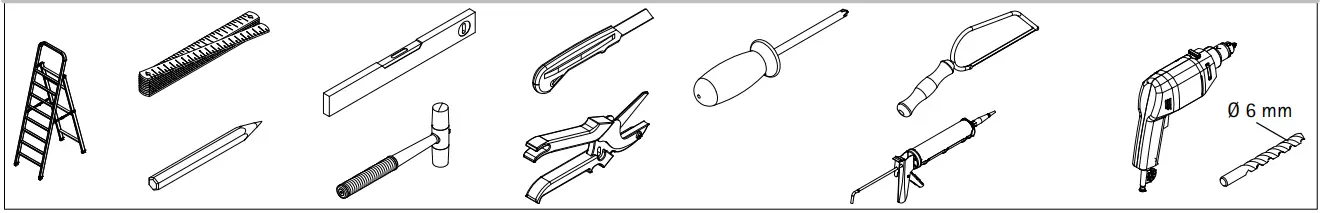

TOOL NEEDED

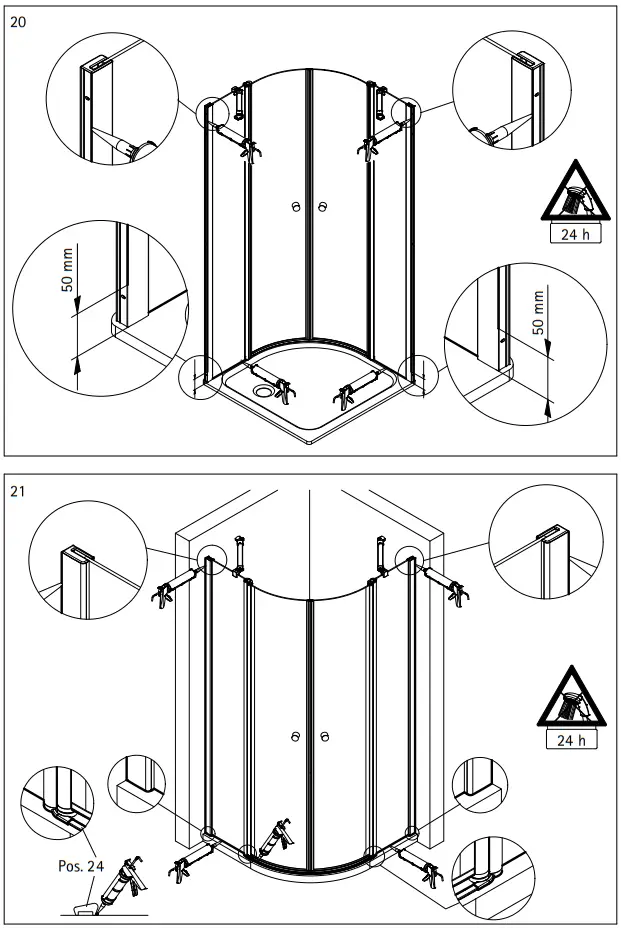

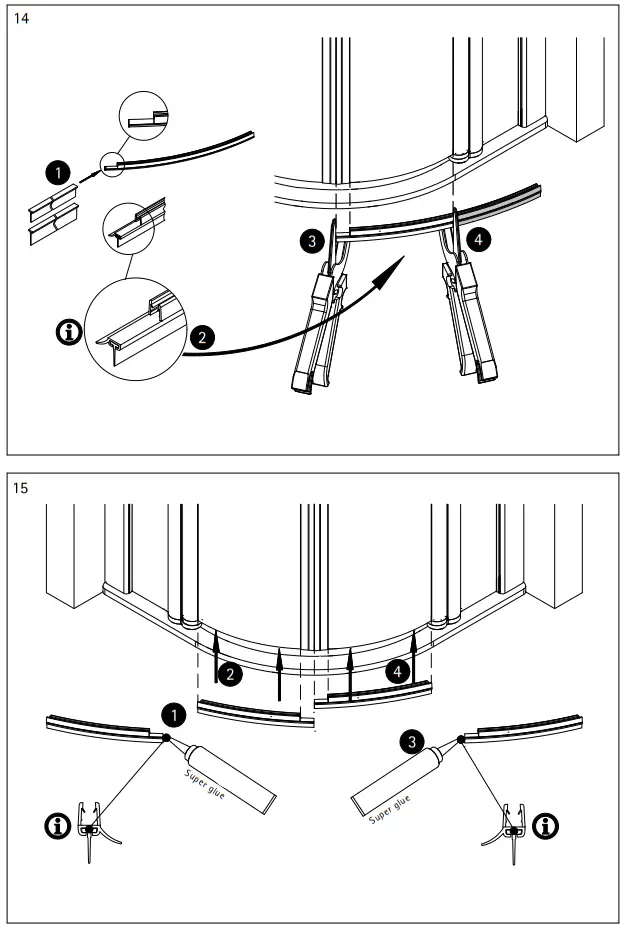

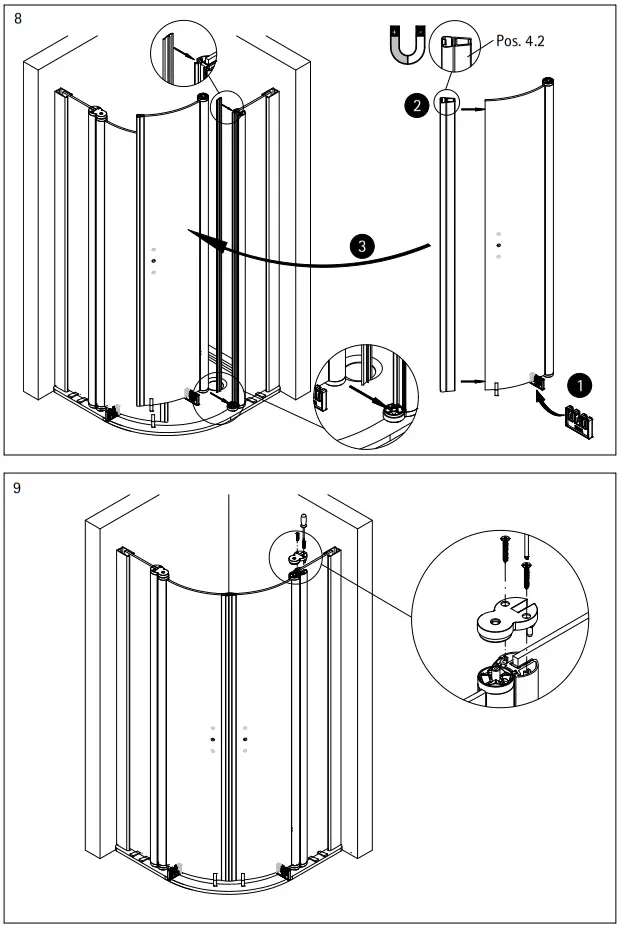

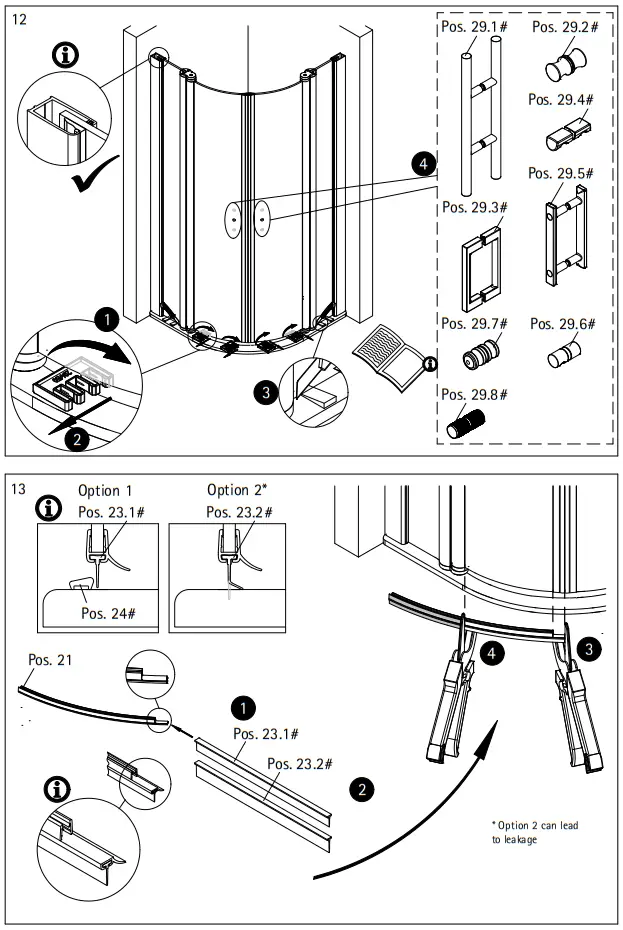

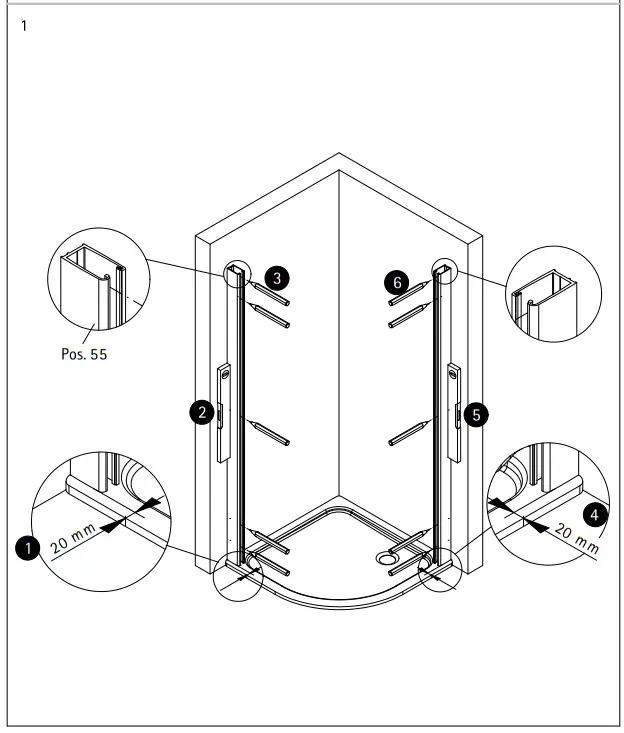

ASSEMBLY
