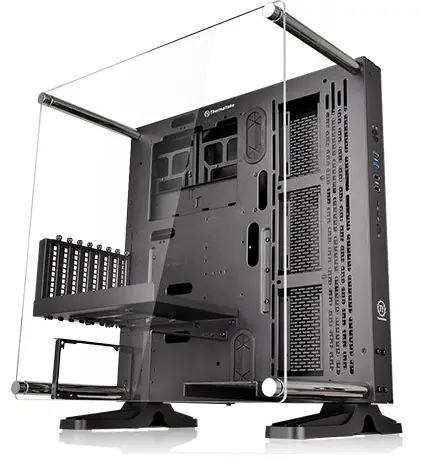

Thermaltake Core P3tg Pro Case User Manual (+ PDF)

Case Type	Mid Tower

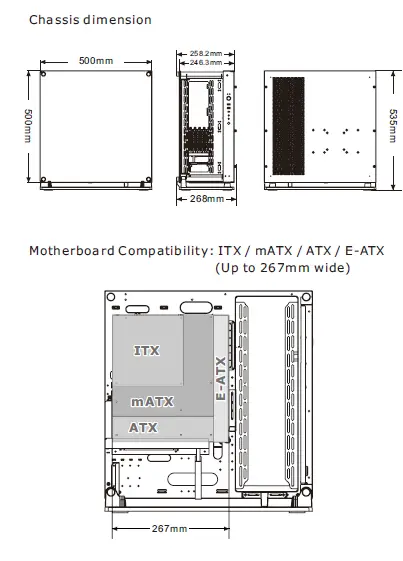

Dimension (HWD)	535 x 268 x 500 mm (21.06 x 10.55 x 19.69 inch)
Side Panel	Tempered Glass x 1
Material	SPCC
Cooling System	–
Drive Bays	2 x 3.5” or 3 x 2.5” 4 x 3.5” or 5 x 2.5” (With HDD bracket)
Expansion Slots	8 (Rotatable Patented Design)
Motherboards	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 2” x 9.6” (ATX), 12” x 10.5” (E-ATX)

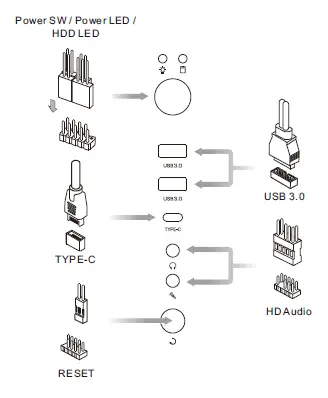

I/O Port	USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1

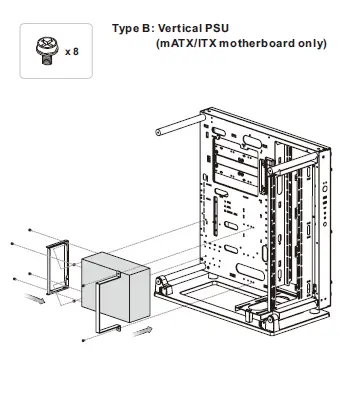

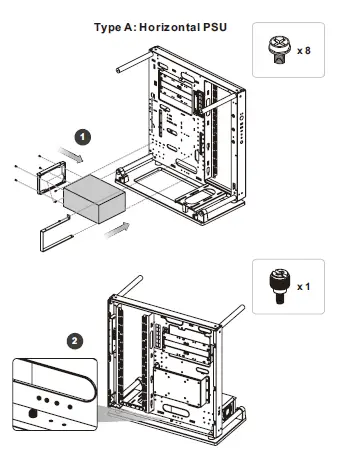

PSU	Standard PS2 PSU (optional)

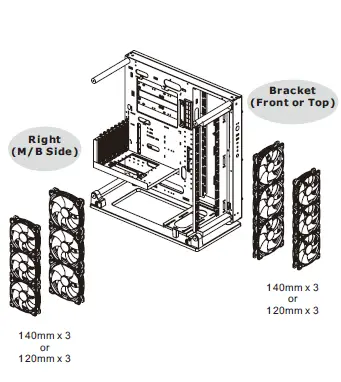

Fan Support	Right (M/B Side): 3 x 120 mm, 2 x 120 mm, 1 x 120 mm 3 x 140 mm, 2 x 140 mm, 1 x 140 mm Bracket (Front or Top): 3 x 120 mm, 2 x 120 mm, 1 x 120 mm 3 x 140 mm, 2 x 140 mm, 1 x 140 mm

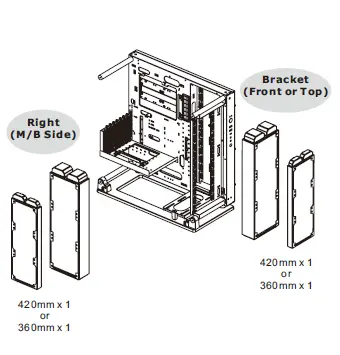

Radiator Support	Right (M/B Side): 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 420 mm, 1 x 280 mm, 1 x 140 mmBracket (Front or Top): 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 420 mm, 1 x 280 mm, 1 x 140 mm

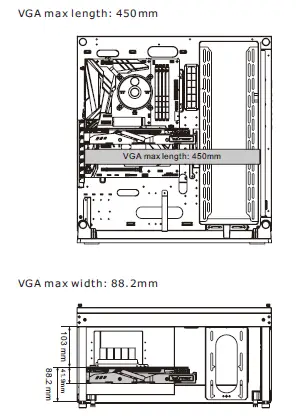

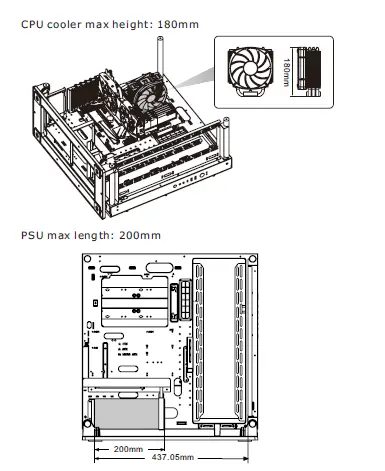

Clearance	CPU cooler height limitation: 180mm VGA length limitation: 330mm (With Reservoir) 450mm (Without Reservoir) PSU length limitation: 200mm

Figure	Part Name	Q`ty	Use For

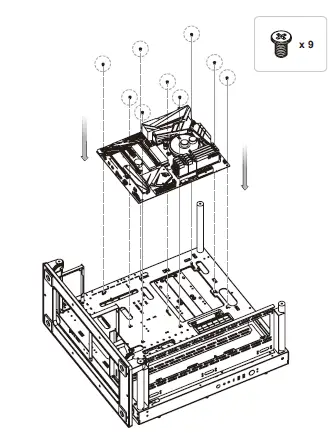

	Screw-off #6-32 x 6 mm	11	Motherboard

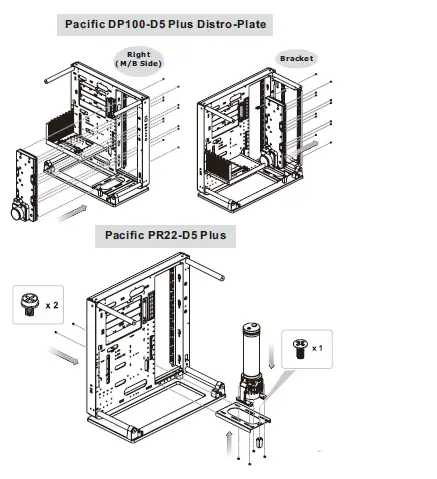

	Screw #6-32 x 6 mm	32	PSU / PSU Brackets / HDD Bracket / Vertical VGA Bracket / PCI-e Bracket / Pump Bracket
	Screw #6-32 x 6 mm	2	Stand-off Pole #6-32
	Net setter		Motherboard Stand-off
	Cable Ties	10	Cable Management
	Buzzer	1	Motherboard Alarm

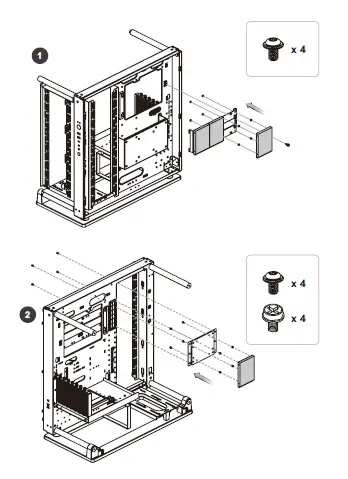

	Screw M3 x 6.5 mm	20	2.5” SSD

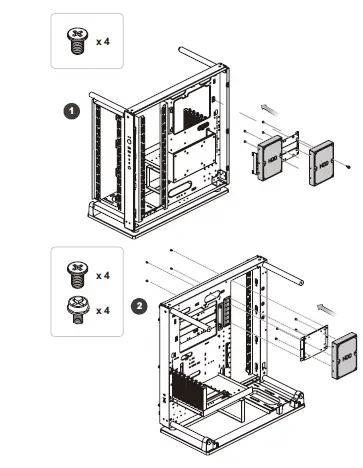

	HDD Rubber	16	3.5”/ 2.5” HDD/SSD
	Rubber M5	4	Tempered Glass Panel
	Rubber M5 x 1.5	4	Tempered Glass Panel

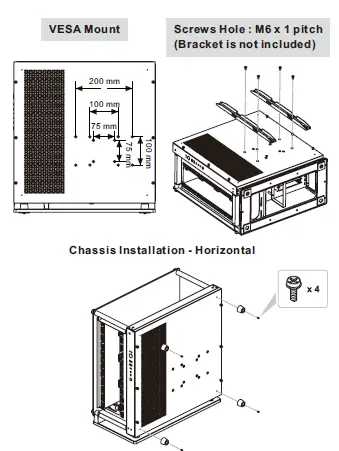

	Rubber Foot	4	Horizontal Case Placement

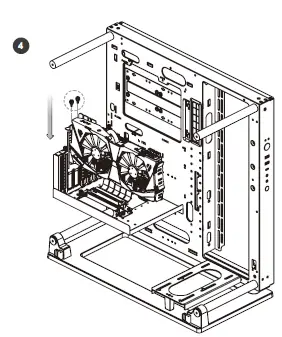

	Stand–off Pole #6–32	1	Vertical VGA Bracket
	Screw #5 x 10 mm	12	Fans
	Screw #6-32 x 6 mm	30	Motherboard/ 3.5” HDD/ Riser Cable

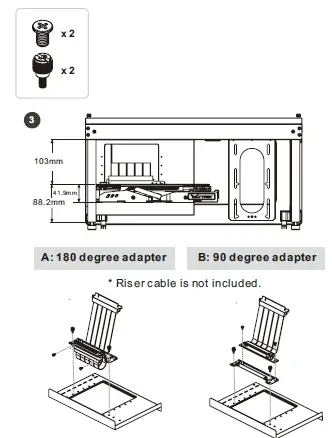

	Thumb Screw #6-32 x 6 mm	5	Riser Cable Bracket/ VGA Holder

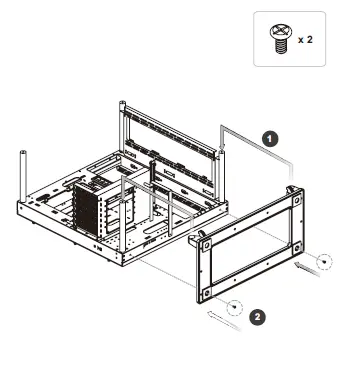

	Screw M4 x 10 mm	2	Foot for Vertical Case Placement
	Screw #6-32 x 10 mm	4	Rubber Feet for Horizontal Case Placement
