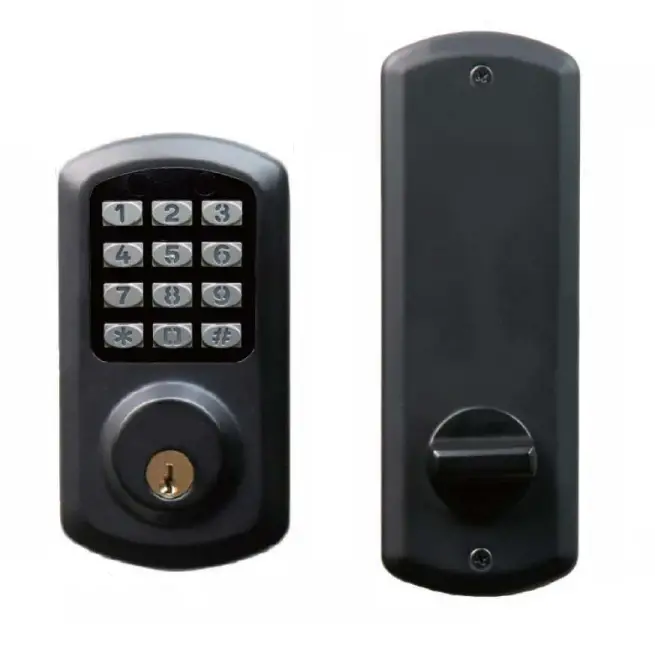

TownSteel e-Smart 2000 Standalone Deadbolt
Features
- Offline deadbolt, programmable at the lock – easy installation and programming
- For single residential homes or multi-housing facilities
- Offers 12-key illuminated keypad and mechanical key override
- Robust and unique motor design provides stronger, faster and more reliable gear drive
- Patent pending hybrid gearing design provides quieter operation
- Complies with the ANSI/BHMA Grade 1
- UL 10C 3 Hour Rated

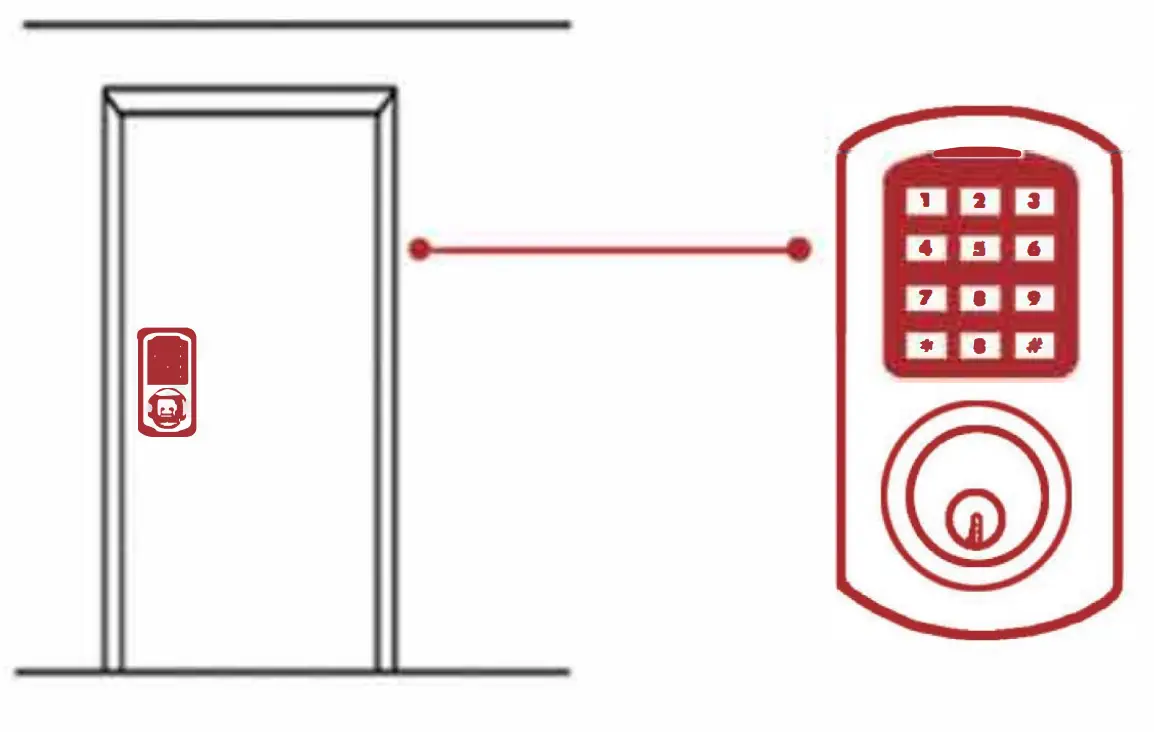

Electronic Specifications
- Offline motorized deadbolt lock, programmable at the lock
- Powered with 4 AA alkaline batteries, 1-year battery life in normal conditions
- Standard 12-key illuminated keypad
- 100 user codes and 5 service codes capacity per lock
- Low battery warning
Mechanical Specifications
- Single cylinder motorized deadbolt lock
- Standard 161 door prep
- For door thickness 1-3/8″ to 1-3/4″
- 5 or 6 pin Schlage C keyway
- 6 or 7 pin Small or Large format IC(SFIC/LFIC) with or without core High security optional
- 1″ x 2-1 /4″ faceplate, plated finish
- 2-3/4″ x 1-1/8″ strike
- 1″ throw deadbolt, anti-saw pins, drive-in deadbolt available
- 2-3/8″ and 2-3/4″ backset adjustable
- Dummy trim available for inactive leaf of paired door
Warranty
- 1-year limited for electronic
- 5-year limited for finish
- 10-year limited for mechanical

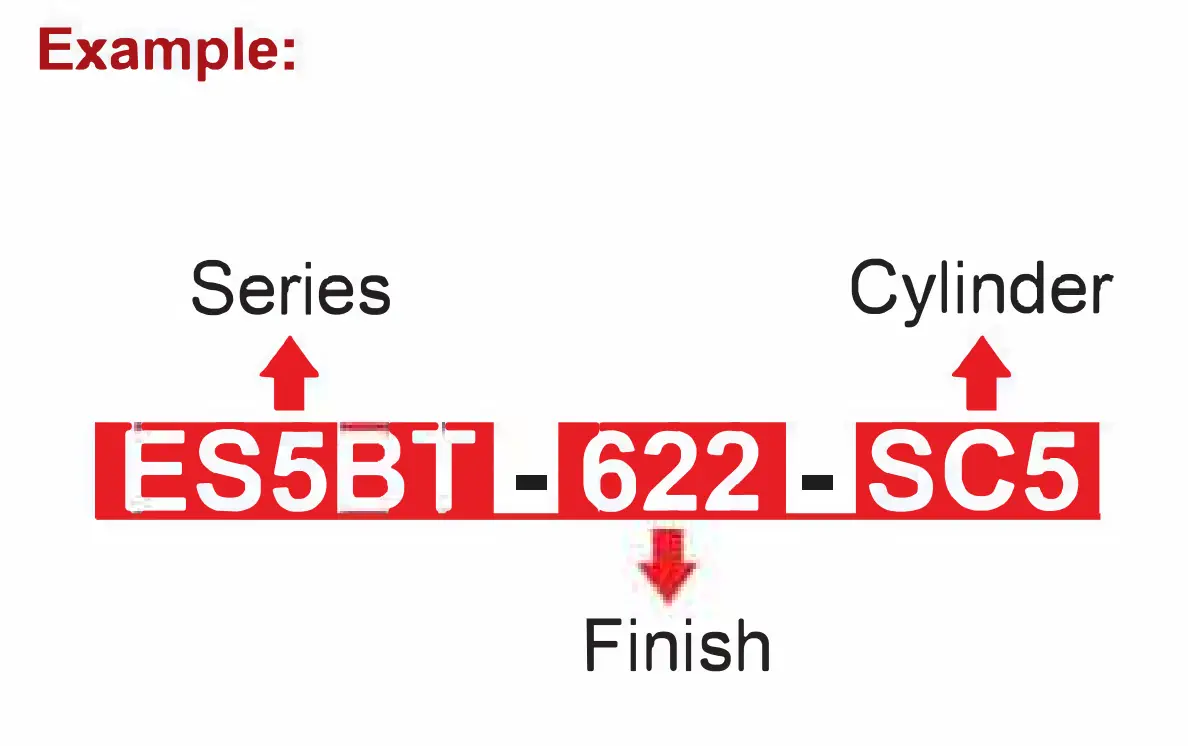

How To Order
| Series | ES2T: e-Smart 2000 TownSteel ES4T: e-Smart 4000 TownSteel ES5BT: e-Smart 5000 BLE(Bluetooth) TownSteel ES5RT: e-Smart 5000 RF(WIFI) TownSteel ESDT: e-Smart Dummy TownSteel |  |
| Finish | 622 / US 19 / Flat Black 630 /US32D / Satin Stainless Steel Others finish upon request | |
| Cylinder | D: Dummy SC(KIK): 5 or 6 pin SFIC/LFIC: Small/Large form at IC Core with or without core, 6 or 7 pin HS: High Security |
Features
- Programmable at the lock
- For single residential homes or multi-housing facilities
- Illuminated touch keypad, RFID card, and mechanical key override
- Robust and unique motor design provides stronger, faster and more reliable gear drive
- Patent pending hybrid gearing design provides quieter operation
- Certified ANSI/BHMA A156.36, Grade 1 listed
- 3 hour UL fire rated and NFPA 80 fire code certified
Electronic Specifications
- Powered with 4 AA alkaline batteries, 1 year battery life in normal conditions
- 12-key touch keypad
- Code length: 6 to 1 O digits
- 99 pin codes and 300 MIFARE RFID cards/stickers capacity
Mechanical Specifications
- Heavy duty motorized deadbolt lock
- Standard 161 door prep
- For door thickness 1-3/4″
- 5 or 6 pin Schlage C keyway
- 6 or 7 pin Small or Large format IC(SFIC/LFIC) with or without core High security optional
- 1-1/8″ x 2-3/4″ strike
- 1″ throw deadbolt, anti-saw pins, drive-in deadbolt available
- 2-3/8″ and 2-3/4″ backset adjustable
- Dummy trim available for inactive leaf of paired door

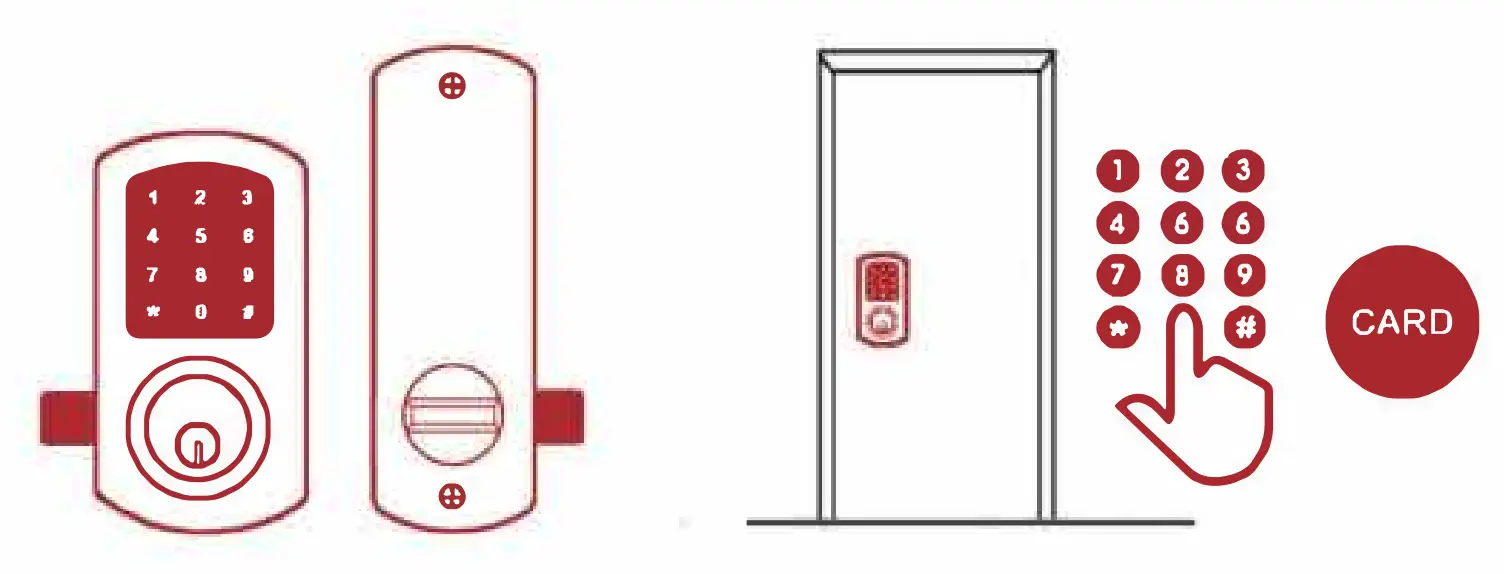

Programming Features
- RFID 13.56 MHz
- 300 MIFARE RFID cards/stickers capacity
- Custom logo imprinting available
Warranty
- 1-year limited for electronic
- 5-year limited for finish
- 10-year limited for mechanical
Features
- Programmable at the lock or through an APP
- For single residential homes or multi-housing facilities
- Illuminated touch keypad, RFID card, and mechanical key override
- Robust and unique motor design provides stronger, faster and more reliable gear drive
- Patent pending hybrid gearing design provides quieter operation
- Certified ANSI/BHMA A156.36, Grade 1 listed
- UL 10C 3 Hour Rated
Electronic Specifications
- Works with gateway via WiFi or BLE
- Powered with 4 AA alkaline batteries, 1 year battery life under normal conditions
- 12-key touch keypad
- Code length: 6 to 10 digits
- 99 pin codes and 300 Ml FARE RFID cards capacity
- Heavy duty motorized deadbolt lock
- Standard 161 door prep
- For door thickness 1-3/4″
- 5 or 6 pin Schlage C keyway
- 6 or 7 pin Small or Large format IC(SFIC/LFIC) with or without core High security optional
- 1″ x 2-1 /4″ faceplate, plated finish
- 1-1/8″ x 2-3/4″ strike
- 1″ throw deadbolt, anti-saw pins, drive-in deadbolt available
- 2-3/8″ and 2-3/4″ backset adjustable Dummy trim available for inactive leaf of paired door
Warranty
- 1-year limited for electronic
- 5-year limited for finish
- 10-year limited for mechanical
| Series | ES2T: e-Smart 2000 TownSteel ES4T: e-Smart 4000 TownSteel ES5BT: e-Smart 5000 BLE(Bluetooth) TownSteel ES5RT: e-Smart 5000 RF(WIFI) TownSteel ESDT: e-Smart Dummy TownSteel | |
| Finish | 622 / US 19 / Flat Black 630 /US32D / Satin Stainless Steel Others finish upon request | |
| Cylinder | D: Dummy SC(KIK): 5 or 6 pin SFIC/LFIC: Small/Large form at IC Core with or without core, 6 or 7 pin HS: High Security |
Profile

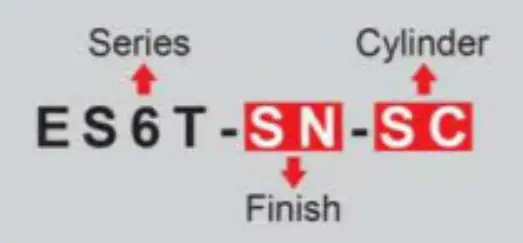

How To Order
| Series | a-Smart e-Smart Dummy (ESDT) |  |
| Finish | SN: US15, Satin Nickel FB: US19, Flat Black SC: US26D. Satin Chrome Or special color upon request | |
| Cylinder | SC(KIK) I SFIC I CLFIC / SLFIC / HS |
