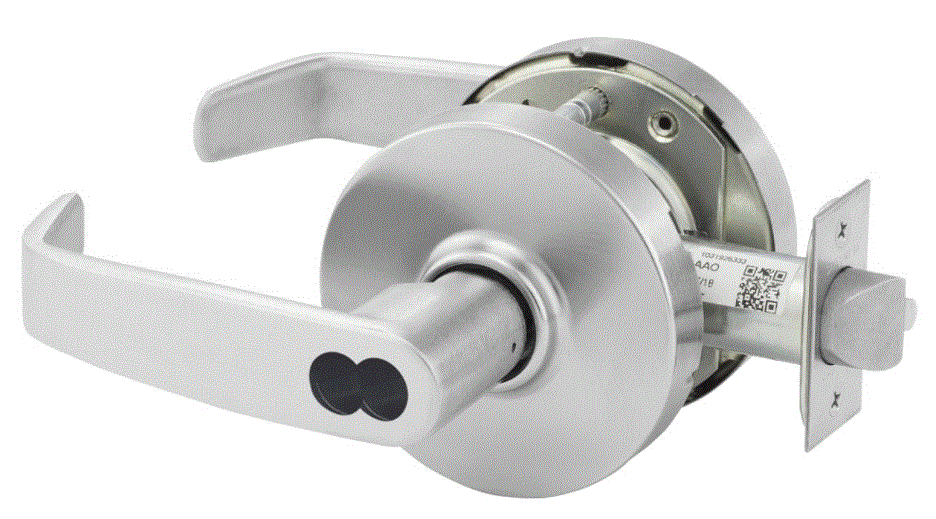

10X Line Cylindrical Lever Lock
The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine SARGENT product.
Copyright © 2021, 2023 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.Copyright © 2021, 2023 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

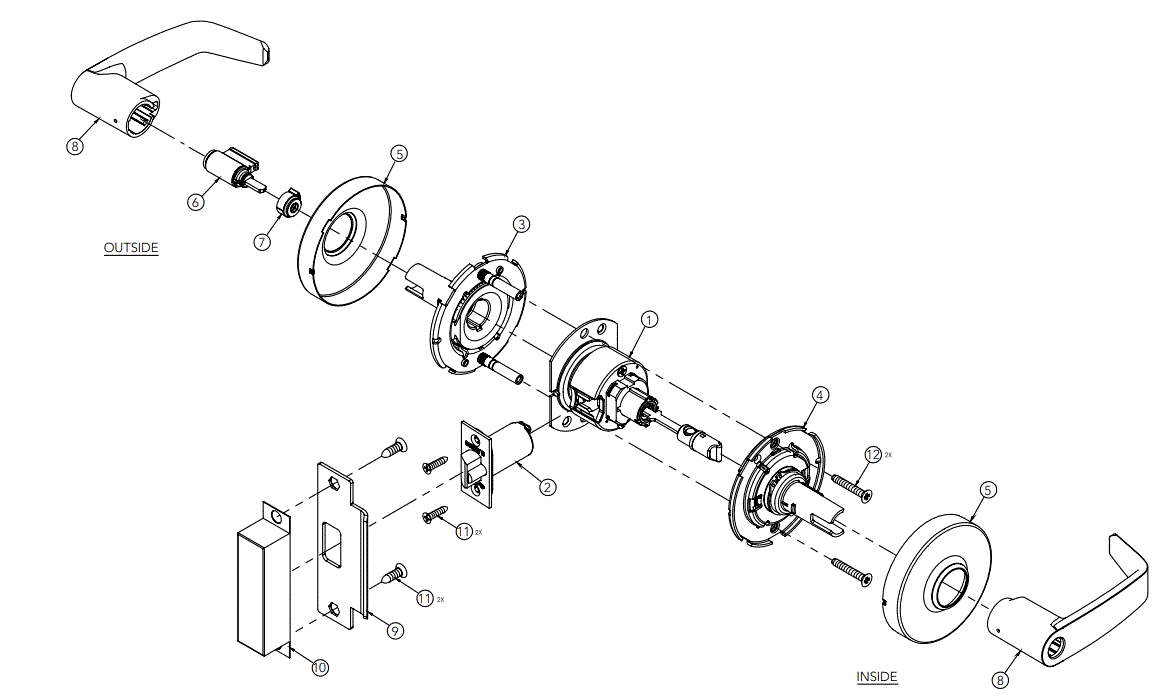

Exploded View
10X Line Cylindrical Lever Locks
| Item | Description | Page # |
| 1 | Lockbody with Mounting Plate | 4 |
| 2 | Latch | 7 |
| 3 | Spring Housing Assembly, Outside | 5 |
| 4 | Spring Housing Assembly, Inside | 5 |
| 5 | Rose | 6 |
| 6 | Cylinder | 9 |
| 7 | Cylinder Spacer | 11 |
| 8 | Lever | 12 |
| 9 | Strike | 8 |
| 10 | Strike Box | 8 |
| 11 | Latch & Strike Screws | 6 |
| 12 | Throughbolt Screws | 6 |
Lock bodies
10X Line Cylindrical Lever Locks

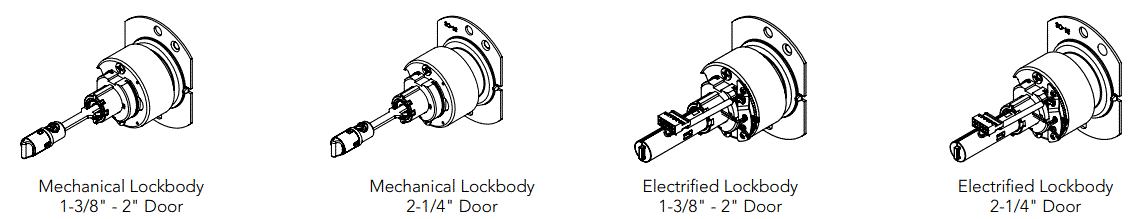

Mechanical Lockbody (Includes Mounting Plate)
| Description | Function | Part Number 1-3/8″ – 2″ Door | Part Number 2-1/4″ Door | ||
| Std/Rigid Lever | Freewheeling | Std/Rigid Lever | Freewheeling | ||
| Storeroom or Closet | 10XG04 | 10-3586 | 10-3587 | 10-3668 | 10-3669 |
| Entrance or Office | 10XG05 | 10-3588* | 10-3589* | 10-3670* | 10-3671* |
| Communicating Storeroom | 10XG07 | 10-3590 | 10-3591 | 10-3672 | 10-3673 |
| Communicating Classroom | 10XG08 | 10-3592 | 10-3593 | 10-3674 | 10-3675 |
| Exit | 10XG13 | 10-3586 | 10-3587 | 10-3668 | 10-3669 |
| Patio or Privacy | 10XG14 | 10-3618* | 10-3619* | 10-3702* | 10-3703* |
| Passage | 10XU15 | 10-3596 | N/A | 10-3678 | N/A |
| Exit or Communicating | 10XG15-3 | 10-3597 | N/A | 10-3679 | N/A |
| Classroom Security, Apartment, Exit, Privacy | 10XG16 | 10-3598 | 10-3599 | 10-3680 | 10-3681 |
| Utility, Asylum or Institutional | 10XG17 | 10-3600 | 10-3601 | 10-3682 | 10-3683 |
| Entrance or Office | 10XG24 | 10-3594* | 10-3595* | 10-3676* | 10-3677* |
| Store or Storeroom | 10XG26 | 10-3602 | 10-3603 | 10-3684 | 10-3685 |
| Communicating | 10XG30 | 10-3604 | 10-3605 | 10-3686 | 10-3687 |
| Classroom | 10XG37 | 10-3710 | 10-3711 | 10-3712 | 10-3713 |
| Classroom Security Intruder | 10XG38 | 10-3606 | 10-3607 | 10-3688 | 10-3689 |
| Service Station | 10XG44 | 10-3608* | 10-3609* | 10-3690* | 10-3691* |
| Hotel, Dormitory or Apartment | 10XG50 | 10-3610* | 10-3611* | 10-3692* | 10-3693* |
| Corridor/Dormitory (modified) | 10XG53 | 10-3612* | 10-3613* | 10-3694* | 10-3695* |
| Corridor/Dormitory | 10XG54 | 10-3614* | 10-3615* | 10-3696* | 10-3697* |
| Barrier Free Storeroom/Public Restroom | 10XG60 | 10-3620 | 10-3621 | 10-3698 | 10-3699 |
| Time Out Lock | 10XG64 | 10-3616* | 10-3617* | 10-3700* | 10-3701* |
| Privacy/Bathroom | 10XU65 | 10-3618* | 10-3619* | 10-3702* | 10-3703* |
| Hospital Privacy | 10XU68 | 10-3618* | 10-3619* | 10-3702* | 10-3703* |
| Storeroom or Closet with Request to Exit | RX-10XG04 | 10-2934 | 10-2935 | 10-2942 | 10-2943 |
| Entrance or Office with Request to Exit | RX-10XG05 | 10-2936* | 10-2937* | 10-2944* | 10-2945* |
| Passage with Request to Exit | RX-10XU15 | 10-2938 | 10-2939 | 10-2946 | 10-2947 |
| Classroom with Request to Exit | RX-10XG37 | 10-2940 | 10-2941 | 10-2948 | 10-2949 |
*Includes finished button. Specify Finish.
Electrified Lockbody (Includes Mounting Plate) and Lock Harness
| Description | Function | Part Number 1-3/8″ – 2″ Door | Part Number 2-1/4″ Door | ||
| Std/Rigid Lever | Freewheeling | Std/Rigid Lever | Freewheeling | ||
| Electromechanical | 10XG70 10XG71 | 10-3722 | 10-3763 | 10-3795 | 10-3797 |
| Electromechanical with Request to Exit | RX-10XG70 RX-10XG71 | 10-3723 | 10-3764 | 10-3796 | 10-3798 |

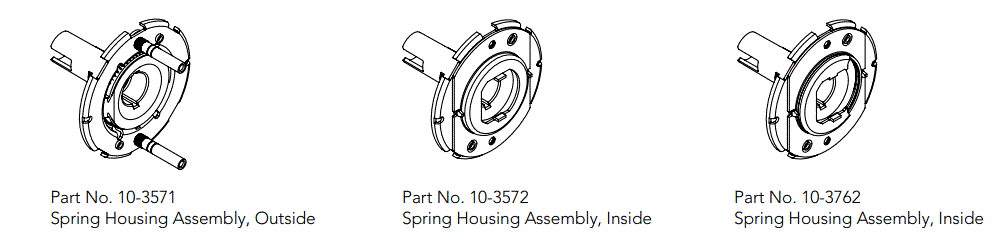

Spring Housing Assemblies
10X Line Cylindrical Lever Locks
Outside Spring Housing Assemblies (1-3/8″ to 2-1/4″ Door)
| Part Number | Description |
| 10-3571 | All Functions except 07, 08, 15-3, 93, 94 |
| 10-3579 | All Functions for Keso Cylinders |
| 10-3584 | All Functions for Yale® LFIC |
Inside Spring Housing Assemblies (1-3/8″ to 2″ Door)
| Part Number | Description |
| 10-3572 | Functions 04, 05, 13, 14,15, 15-3, 24, 37, 44, 50, 53, 54, 60, 64, 65, 68 |
| 10-3622 | Functions 16, 17, 26, 30, 38 |
| 10-3580 | Functions 16, 17, 26, 30, 38 for Keso Cylinders |
| 10-3585 | Functions 16, 17, 26, 30, 38 for Yale® LFIC |
| 10-3762 | Functions 70, 71, RX-04, RX-05, RX-15, RX-37 |
Inside Spring Housing Assemblies (2-1/4″ Door)
| Part Number | Description |
| 10-3704 | Functions 04, 05, 13, 14,15, 15-3, 24, 37, 44, 50, 53, 54, 60, 64, 65, 68 |
| 10-3705 | Functions 16, 17, 26, 30, 38 |
| 10-3706 | Functions 16, 17, 26, 30, 38 for Keso Cylinders |
| 10-3707 | Functions 16, 17, 26, 30, 38 for Yale® LFIC |
| 10-2423 | Functions 70, 71, RX-04, RX-05, RX-15, RX-37 |
Dummy Spring Housing Assemblies
| Part Number | Description |
| 10-3573 | Outside 93, 94, 94-2 |
| 10-3574 | Inside 94, 94-2 |
Roses & Misc.
10X Line Cylindrical Lever Locks

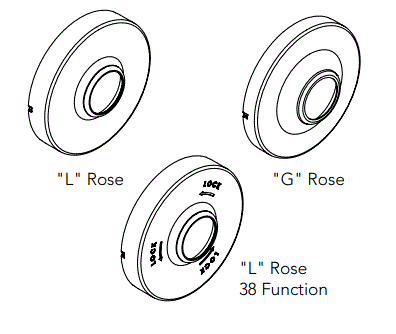

Roses
| Part Number | Description | Function |
| 10-1202* | G Rose/Scalp | All |
| 10-1203* | G Rose/Scalp | Inside 38 |
| 10-1200* | L Rose/Scalp | All |
| 10-1201* | L Rose/Scalp | Inside 38 |
| 10-1260* | Blank Rose/Plate | 07, 08, 15-3 |
Mounting Plates
| Part Number | Description |
| 10-1071 | Outside Support/Mounting Plate 1-3/8″ – 2″ Door |
| 10-1276 | Outside Support/Mounting Plate 2-1/4″ Door |
| 10-3656 | Outside Mounting Plate Assembly Functions 15-3, 07, 08 |

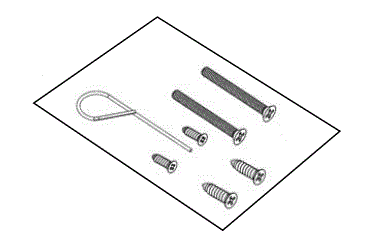

Screw Packs – Complete
| Part No. | Description |
| 10-1224* | Standard (with 808 ANSI 4-7/8″ strike screws) |
| 10-1225* | 93 Function |
| 10-1250* | 29- Option (with 800 T-strike screws) |
| 10-1226* | 36- Option, 6-Lobe Security Head Torx® (with ANSI & T-strike screws) |
| 10-1227* | 37- Option, Spanner Head (with ANSI & T-strike screws) |
| 10-3761* | BHW Trim, 6-Lobe Security Head Torx® (with mounting, latch and strike screws) |
Miscellaneous
| Part No. | Description |
| 10-3188 | 1-3/8″ Door Adapter Plate Pack (1- option) |
| 10-3667* | Dummy/Blank Front Pack (94-2) |
| 10-0043 | Push Pin Tool |
| 14-0057 | Emergency Release Key – Privacy/Bathroom Function (65) |
Latches
10X Line Cylindrical Lever Locks
Plain/Unguarded Latch – 10XU15, 10XU65, 10XU68:
| Part No. | Front | Front Width | Backset | Throw |
| 10-3187 | Square Corner | 1″ (25mm) | 2-3/8″ (60mm) | 1/2″ (13mm) |
| 10-2022 | Square Corner | 1-1/8″ (29mm) | 2-3/4″ (70mm) | 1/2″ (13mm) |
| 10-2054 | Square Corner | 1-1/8″ (29mm) | 3-3/4″ (95mm) | 1/2″ (13mm) |
| 10-2057 | Square Corner | 1-1/8″ (29mm) | 5″ (127mm) | 1/2″ (13mm) |
Deadlocking/Guarded Latch – All Other Mechanical Functions:
| Part No. | Front | Front Width | Backset | Throw |
| 10-3186 | Square Corner | 1″ (25mm) | 2-3/8″ (60mm) | 1/2″ (13mm) |
| 10-3192 | Square Corner | 1-1/8″ (29mm) | 2-3/4″ (70mm) | 1/2″ (13mm) |
| 10-2053 | Square Corner | 1-1/8″ (29mm) | 3-3/4″ (95mm) | 1/2″ (13mm) |
| 10-2058 | Square Corner | 1-1/8″ (29mm) | 5″ (127mm) | 1/2″ (13mm) |
| 10-2634* | Square Corner | 1-1/8″ (29mm) | 2-3/4″ (70mm) | 3/4″ (19mm) |
Deadlocking/Guarded Latch – Electrified Functions:
| Part No. | Front | Front Width | Backset | Throw |
| 10-3433 | Square Corner | 1″ (25mm) | 2-3/8″ (60mm) | 1/2″ (13mm) |
| 10-3430 | Square Corner | 1-1/8″ (29mm) | 2-3/4″ (70mm) | 1/2″ (13mm) |
| 10-3431 | Square Corner | 1-1/8″ (29mm) | 3-3/4″ (95mm) | 1/2″ (13mm) |
| 10-3432 | Square Corner | 1-1/8″ (29mm) | 5″ (127mm) | 1/2″ (13mm) |
Miscellaneous:
| Part No. | Description |
| 10-2059 | 3-3/4″ (95mm) Latch extension with sleeve |
| 10-2060 | 5″ (127mm) Latch extension with sleeve |
| 10-0048 | Latch extension sleeve |
When ordering latches separately, specify Part No. x Finish (e.g., 10-3186 x 32D). Screw pack must be ordered separately, see page 6.
Strikes
10X Line Cylindrical Lever Locks

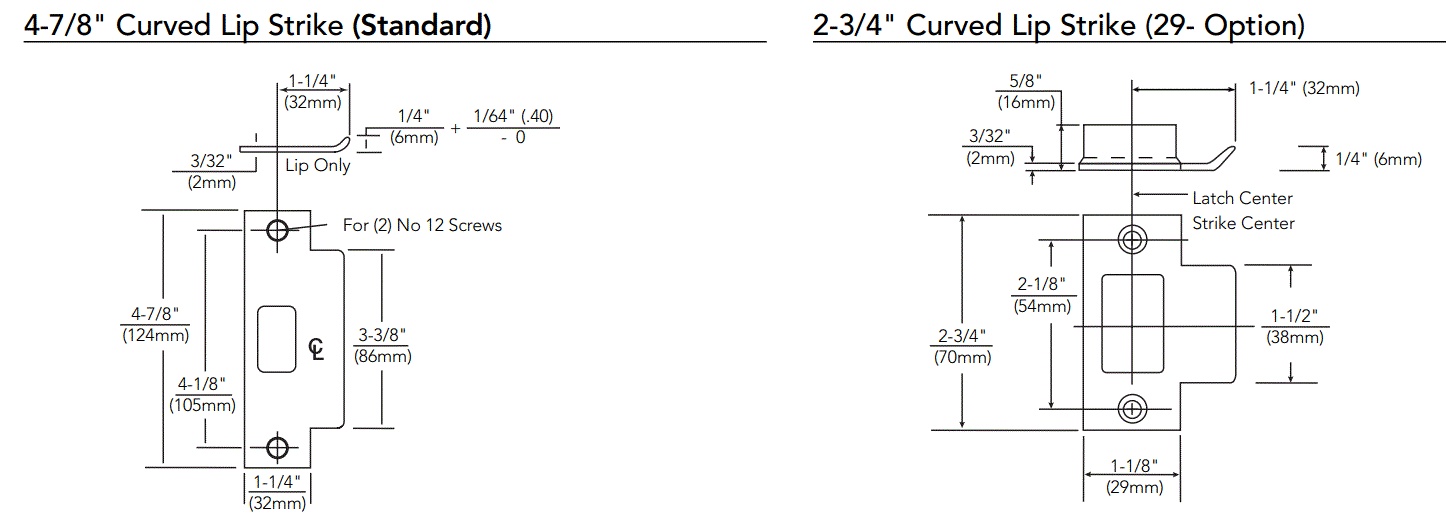

4-7/8″ Curved Lip Strike (Standard)
- Brass, bronze or stainless steel
- Conforms to ANSI standard
- Furnished standard with curved lip 1-1/4″ (32mm) from center of strike screw holes to end of lip
- Lip lengths
- 7/8″ (22mm)
- 1-1/8″ (29mm)
- 1-1/4″ (32mm)
- 1-3/8″ (35mm)
- 1-5/8″ (42mm)
- 1-7/8″ (48mm)
- 2-1/8″ (54mm)
- 2-3/8″ (60mm)
- 2-5/8″ (66mm)
- 2-7/8″ (73mm)
- 3″ (76mm)
- 77-1141 Wrought strike box available separately
- To order strike separately, specify 808 strike x finish x lip length
2-3/4″ Curved Lip Strike (29- Option)
- Brass, bronze or stainless steel
- Furnished standard with 1-1/4″ (32mm) curved lip from center of strike screw holes to end of lip
- Lip lengths
- 1″ (25mm)
- 1- 1/4″ (32mm) standard
- 1-1/2″ (38mm)
- 1-3/4″ (44mm)
- 2″ (51mm)
- 3″ (76mm)
- Plastic strike box AM-0044 included when 29- ordered with lockset
- To order strike separately, specify 800 strike x finish x lip length
Screw pack must be ordered separately, see page 6.

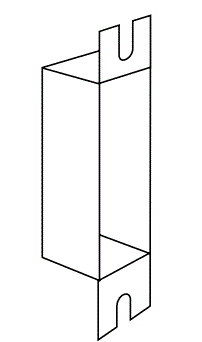

ANSI Wrought Strike Box
- Used with ANSI 4-7/8″ (124mm) strike (#808)
- To order with lock, specify option WBS
- To order separately, specify 77-1141
| Part No. | Description |
| 77-1141 | 4-7/8″ ANSI strike box |
Cylinders and Tailpiece Packs
10X Line Cylindrical Lever Locks
- Brass,
- 6-pin
- 2 nickel silver keys Finishes: 04, 15, BSP

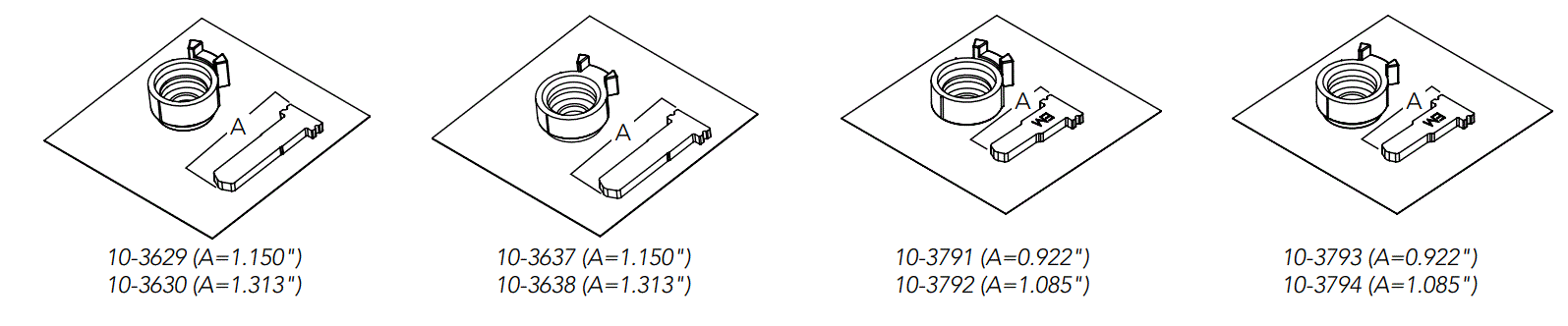

Fixed Core Cylinders for Mechanical Functions
| Description | Cylinder | Door Thickness | Tailpiece Pack | |
| Conventional, | C10X-1 (Std.) DG2-C10X-1 | 1-3/8″ – 2″ | 10-3629 | |
| Signature, XC | 10-C10X-1 DG3-C10X-1 | |||
| Degree® and | 11-C10X-1 SC-C10X-1 | |||
| competitor | DG1-C10X-1 SE-C10X-1 | |||
| keyway | ||||
| 31-C10X-1 DG2-31-C10X-1 | 2-1/4″ | 10-3630 | ||
| 10-31-C10X-1 DG3-31-C10X-1 | ||||
| 11-31-C10X-1 SC-31-C10X-1 | ||||
| DG1-31-C10X-1 SE-31-C10X-1 | ||||
| Keso | F1-82-C10X-1 | 1-3/8″ – 2″ | 10-3637 | |
| F1-82-31-C10X-1 | 2-1/4″ | 10-3638 | ||
| Hotel function | C10X-2 | 1-3/8″ – 2-1/4″ | N/A |
Fixed Core Cylinders for Electrified Functions
| Description | Cylinder | Door Thickness | Tailpiece Pack | |
| Conventional, | C10X-1E (Std.) DG2-C10X-1E | 1-3/8″ – 2″ | 10-3791 | |
| Signature, XC | 10-C10X-1E DG3-C10X-1E | |||
| Degree® and | 11-C10X-1E SC-C10X-1E | |||
| competitor | DG1-C10X-1E SE-C10X-1E | |||
| keyway | ||||
| 31-C10X-1E DG2-31-C10X-1E | 2-1/4″ | 10-3792 | ||
| 10-31-C10X-1E DG3-31-C10X-1E | ||||
| 11-31-C10X-1E SC-31-C10X-1E | ||||
| DG1-31-C10X-1E SE-31-C10X-1E | ||||
| Keso | F1-82-C10X-1E | 1-3/8″ – 2″ | 10-3793 | |
| F1-82-31-C10X-1E | 2-1/4″ | 10-3794 |
Large Format Interchangeable Core (LFIC) Mechanical and Electrified Functions
| Description | Core Model Number | Door Thickness | Tailpiece Pack for Use with Mechanical Functions | Tailpiece Pack for Use with Electrified Functions | |
| LFIC conventional | 6300 | 1-3/8″ – 2″ | 10-3631 | 10-3773 | |
| and Signature | 10-6300 | ||||
| 2-1/4″ | 10-3632 | 10-3774 | |||
| DG1-6300 | |||||
| LFIC XC | 11-6300 | 1-3/8″ – 2″ | 10-3635 | 10-3777 | |
| 2-1/4″ | 10-3636 | 10-3778 |
- Brass,
- 6-pin
- 2 nickel silver keys Finishes: 04, 15, BSP
Cylinders and Tailpiece Packs
10X Line Cylindrical Lever Lock
Small Format Interchangeable Core (SFIC) for Mechanical and Electrified Functions
| Description | Core Model Number | Door Thickness | Tailpiece Pack for Use with Mechanical Functions | Tailpiece Pack for Use with Electrified Functions |
| 6- Pin SFIC 7- Pin SFIC | 7300B 7P-7300B | 1-3/8″ – 2″ | 10-3633 | 10-3775 |
| 2-1/4″ | 10-3634 | 10-3776 | ||
| XC | 11-7P-7300B | 1-3/8″ – 2″ | 10-3641 | 10-3779 |
| 2-1/4″ | 10-3642 | 10-3780 |

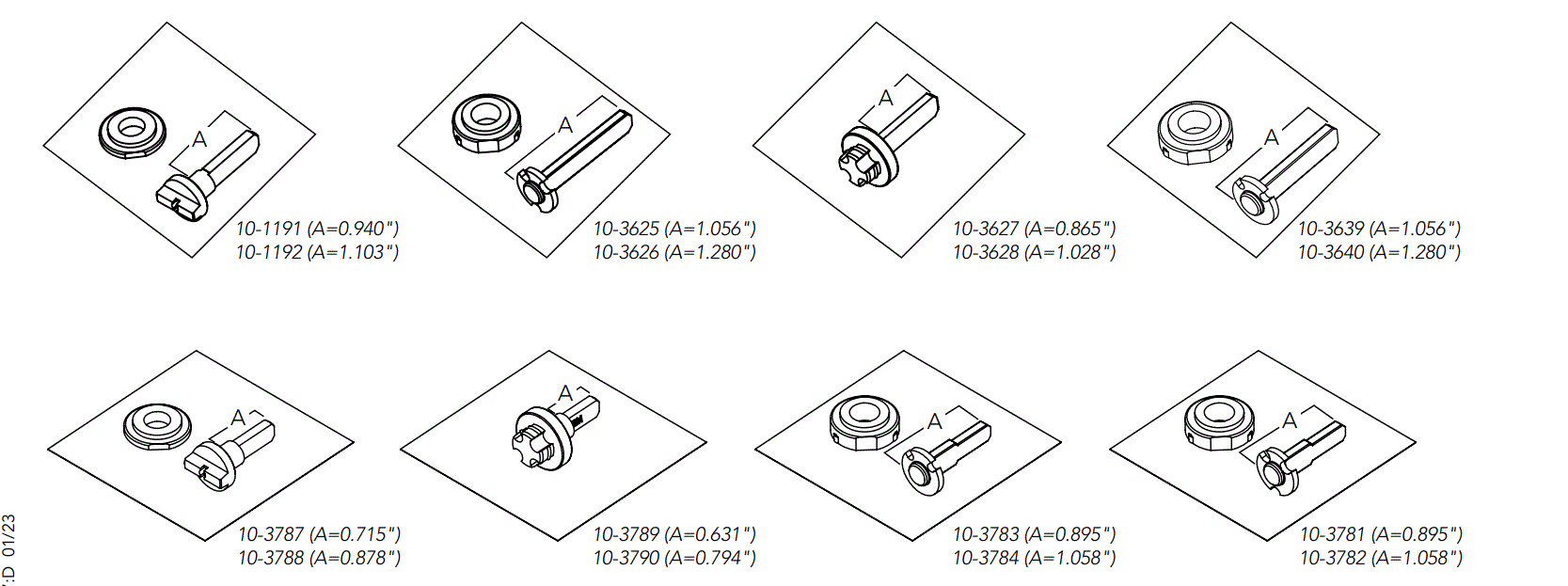

Compatibility with Competitive Cylinders/Cores*
| Manufacturer | Cylinder Type | Door Thickness | Tailpiece Packs | Option Code with Lock | Description | |
| Mechanical Functions | Electrified Functions | |||||
| Fixed Core | ||||||
| Schlage® | Fixed Core 6 Pin | 1-3/8″ – 2″ | 10-3625 | 10-3781 | 30- | For Schlage® 6 pin conventional cylinders (21-002, 23-001 or 23-013) or Schlage Primus cylinders (20-548, 20-550, 20-748 or 20-750). Option code with lock includes tailpiece. |
| 2-1/4″ | 10-3626 | 10-3782 | ||||
| Yale® | Fixed Core 6- or 7- Pin | 1-3/8″ – 2″ | 10-3639 | 10-3783 | YC- (6-Pin) YC-7P- (7Pin) | For Yale® 6 pin conventional cylinders (1803-46L/1803-46LL). Or 7 pin conventional cylinders (1803A-46L/1803A-46LL). Option code with lock includes tailpiece. |
| 2-1/4″ | 10-3640 | 10-3784 | ||||
| Interchangeable Core | ||||||
| All | SFIC 6 or 7 Pin | 1-3/8″ – 2″ | 10-3633 | 10-3775 | 70-, 72-, 73- | For all SFIC 6 and 7 pin cores. Option code with lock includes special lever and tailpiece. |
| 2-1/4″ | 10-3634 | 10-3776 | ||||
| Schlage® | LFIC 6 Pin | 1-3/8″ – 2″ | 10-3627 | 10-3789 | SF- | For Schlage® 6 pin large format interchangeable cores. Option code with lock includes special lever and tailpiece. |
| 2-1/4″ | 10-3628 | 10-3790 | ||||
| Yale® | LFIC 6 Pin | 1-3/8″ – 2″ | 10-1191 | 10-3787 | YRC- | For Yale® 6 pin large format interchangeable cores. Option code with lock includes special lever and tailpiece. |
| 2-1/4″ | 10-1192 | 10-3788 | ||||
* Cylinder/core not included unless defined by option code.

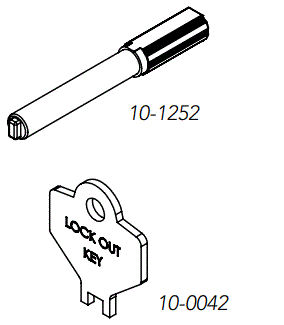

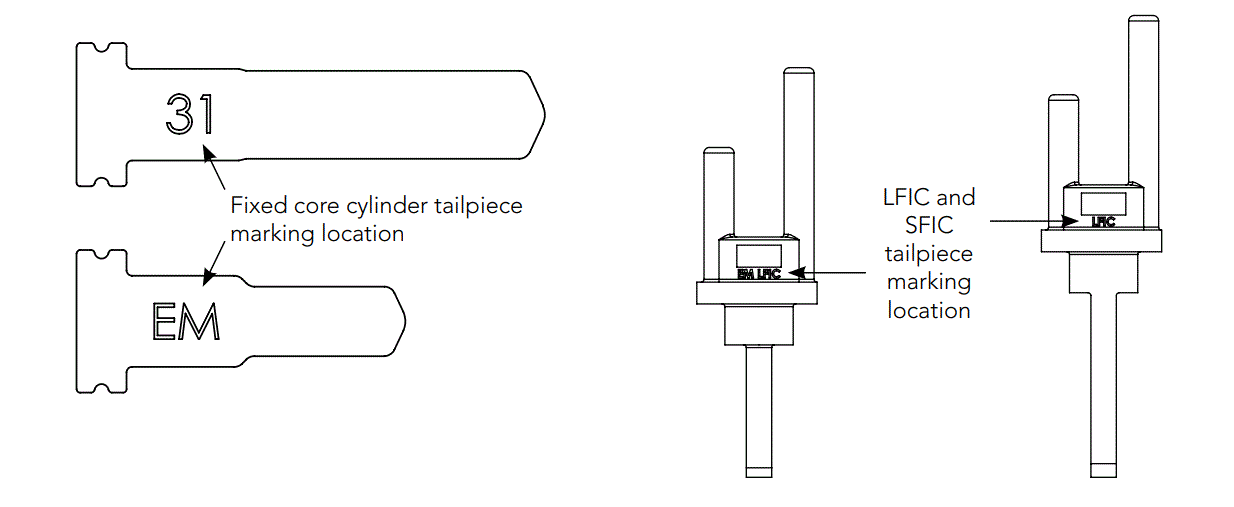

Miscellaneous Cylinder Parts
10X Line Cylindrical Lever Locks
| Part # | Description |
| 10-1111 | Spacer Only – Fixed Core Cylinder |
| 10-1112 | Spacer Only – Keso |
| 10-1115 | Spacer Only – LFIC/SFIC |
| 10-1252 | Hotel Adjustment Tool |
| 10-0042 | Lockout Key (50 Function) |
| C10X-3 | Emergency Release Cylinder – Privacy/ Bathroom Function (65), 1-3/8″ – 2″ Doors |
| 31-C10X-3 | Emergency Release Cylinder – Privacy/Bathroom Function (65), 2-1/4″ Doors |
Identifying Tailpieces
10X Line cylinder tailpieces include stampings to help identify them.
Standard Levers and Components
10X Line Cylindrical Lever Locks

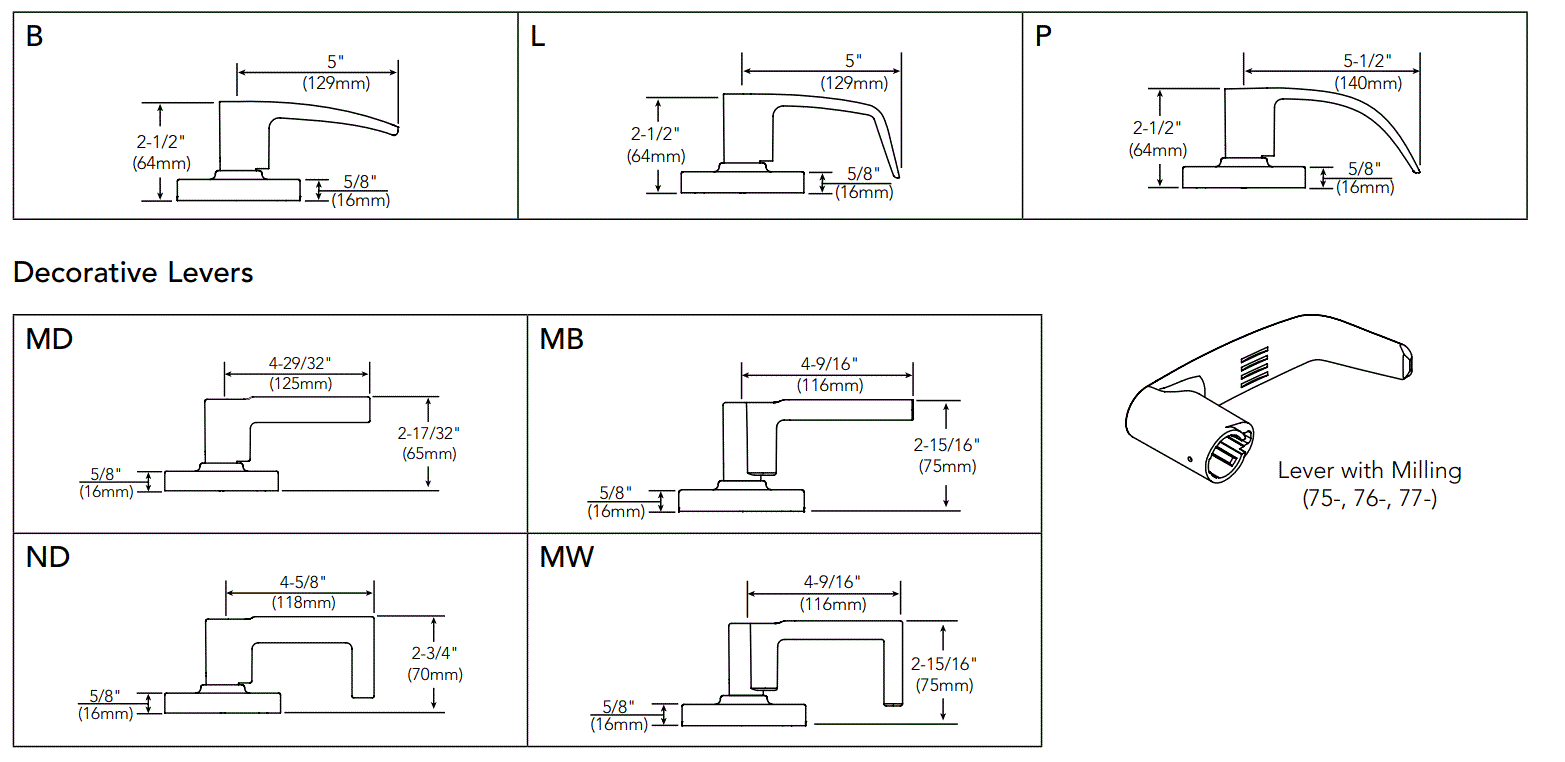

Levers – Solid Cast Zinc
Levers for Doors 1-3/8″ to 2-1/4″ (Specify finish)
| Application | B | L | P | MB | MD | MW | ND |
| Passage/plain | 10-1121 | 10-1128 | 10-1137 | 10-1263 | 10-1240 | 10-1268 | 10-1245 |
| Push/turn button, emergency release (65), fixed core cylinder (SARGENT® 6-pin) | 10-1120 | 10-1127 | 10-1136 | 10-1264 | 10-1241 | 10-1269 | 10-1246 |
| Thumbturn cylinder (68) includes cylinder | 10-2424 | 10-2425 | 10-2427 | 10-2428 | 10-2429 | 10-2431 | 10-2432 |
| Fixed core cylinder (Corbin Russwin 6/7-pin, Schlage® 6-pin, Yale® 6/7-pin) | 10-1122 | 10-1129 | 10-1138 | 10-1265 | 10-1242 | 10-1270 | 10-1247 |
| LFIC (SARGENT® 60-, 63-, 64-) | 10-1123 | 10-1130 | 10-1139 | 10-1266 | 10-1243 | 10-1271 | 10-1248 |
| LFIC (Schlage® 6-pin SF-) | 10-1125 | 10-1132 | 10-1141 | N/A | N/A | N/A | N/A |
| LFIC (Yale® 6-pin YRC-) | N/A | 10-1134 | 10-1143 | N/A | N/A | N/A | N/A |
| SFIC 6/7-pin (70-, 72-, 73-) | 10-1124 | 10-1131 | 10-1140 | 10-1267 | 10-1244 | 10-1272 | 10-1249 |
| KESO cylinder (SARGENT® 82-) | 10-1126 | 10-1133 | 10-1142 | N/A | N/A | N/A | N/A |
Levers with Milling for Doors 1-3/8″ to 2-1/4″ (Specify finish)
| Application | B | L | P | MB | MD | MW | ND |
| Passage/plain | 10-1146 | 10-1153 | 10-1162 | N/A | N/A | N/A | N/A |
| Push/turn button, emergency release (65), fixed core cylinder (SARGENT® 6-pin) | 10-1145 | 10-1152 | 10-1161 | N/A | N/A | N/A | N/A |
| Thumbturn cylinder (68) includes cylinder | 10-2434 | 10-2435 | 10-2437 | N/A | N/A | N/A | N/A |
| Fixed core cylinder (Corbin Russwin 6/7-pin, Schlage® 6-pin, Yale® 6/7-pin) | 10-1147 | 10-1154 | 10-1163 | N/A | N/A | N/A | N/A |
| LFIC (SARGENT® 60-, 63-, 64-) | 10-1148 | 10-1155 | 10-1164 | N/A | N/A | N/A | N/A |
| LFIC (Schlage® 6-pin SF-) | 10-1150 | 10-1157 | 10-1166 | N/A | N/A | N/A | N/A |
| LFIC (Yale® 6-pin YRC-) | N/A | 10-1159 | 10-1168 | N/A | N/A | N/A | N/A |
| SFIC 6/7-pin (70-, 72-, 73-) | 10-1149 | 10-1156 | 10-1165 | N/A | N/A | N/A | N/A |
| KESO cylinder (SARGENT® 82-) | 10-1151 | 10-1158 | 10-1167 | N/A | N/A | N/A | N/A |
How to Order Parts/Finishes 10X Line Cylindrical Lever Locks
How to Order Parts
- In order to simplify the ordering procedure and maintain regulatory compliance, parts are only available as listed
- To order parts, provide the appropriate quantity, part number, finish, hand (when required) and description as directed and illustrated below. For example, use the following configuration to order:
- ten lockbodies in satin chrome
- one passage/plain L lever in bright brass
| Quantity | Part Number | Finish | Hand | Description | |
| A | 10 | 10-3588 | 26D | — | Entrance Function Lockbody |
| B | 1 | 10-1128 | 03 | — | Passage/Plain L Lever |
For assistance, contact your authorized SARGENT distributor, sales agency or visit our website at www.sargentlock.com
Finishes
| SARGENT # | Descriptions | ANSI/BHMA |
| 03 | Polished brass, clear coated | 605 |
| 04 | Satin brass, clear coated | 606 |
| 09 | Polished bronze, clear coated | 611 |
| 10 | Satin bronze, clear coated | 612 |
| 10B | Oxidized bronze, oil rubbed | 613 |
| 10BE | Dark Oxidized Satin Bronze – equivalent | 613E |
| 10BL | Oxidized satin, bronze, clear coated | 613L |
| 14 | Polished nickel, clear coated | 618 |
| 15 | Satin nickel, clear coated | 619 |
| 20D | Statuary dark bronze, clear coated | 624 |
| 26 | Polished chrome | 625 |
| 26D | Satin chrome | 626 |
| 32D | Satin stainless steel (BHW only) | 630 |
| BSP | Black suede powder coat | BSP |
| WSP | White suede powder coat | WSP |
| Lock Finish | Cylinder/Core* |
| 03, 04, 09, 10, 10B, 10BE, 10BL, 20D | 04 |
| 14, 15, 26, 26D, 32D, WSP | 15 |
| BSP | BSP |
*Finish when cylinder provided with lock
The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world.
ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, frames, door and window hardware, mechanical and smart locks, access control and service.
SARGENT Manufacturing Company
100 Sargent Drive
New Haven, CT 06511 USA
800-727-5477
www.sargentlock.com
Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices, electro-mechanical products and access control systems for new construction, renovation, and replacement applications. The company’s customer base includes commercial construction, institutional, and industrial markets.
Copyright © 2021, 2023, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents
Patents | ASSA ABLOY DSS
Home | Commercial Door Hardware | SARGENT
