KS-8890 Hand Lamp

Flashlight for use in hazardous locations
Read these instructions before use and maintain the flashlight for reference
Product:
KS-8890 Industrial Flashlight for use in hazardous locations.
Battery types:
Use only battery types below:
Alkaline Type
Energizer E91
Duracell MN1500
Rayovac AL-AA
Varta 4906

Features:

Intrinsically safe for use in hazardous locations
Multiple functions: High / Low
Cree LED
IP54
Tough and durable casing
Non-Slip Handle
Safety Lock
Built-in gas release vent

Certifications:

	Class I Div 1&2 Grp ABCD Class II Div 1&2 Grp EFG Class III Temperature Code: T4 IP54 File number: 261379
	Gas: Ex ia IIC T4 Ga Mine: Ex ia I Ma IECEx SIR 15.0062X
	Gas: II 1G Ex ia IIC T4 Ga Mine: I M1 Ex ia I Ma Sira 15ATEX2166X
	2813 DAY SUN TECHNOLOGY LTD Address: 1stFL, No.1, Alley 2, Lane 110, Sec.4, Hsimen Rd. North District, Tainan, 704 Taiwan

Standards:

UL 913 7th Edition, 2011-09.23
CSA C22.2 No. 157-92, Reaffirmed 2012
EN 60079-0 : 2009 Edition
EN 60079-11 : 2007 Edition
EN 60079-26 : 2007 Edition
IEC 60079-0, 5th Edition
IEC 60079-11, 5th Edition
IEC 60079-26, 2nd Edition

Installation:

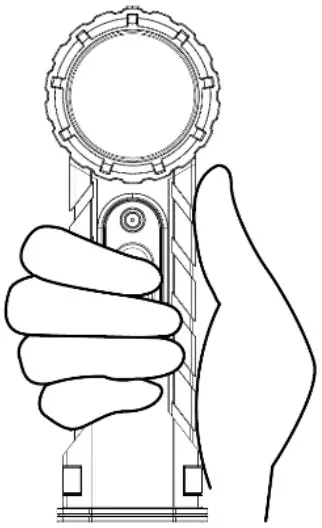

Operation:

Lighting by pushing the switch of KS-8890, by turning it on for two multiple functions of Full Lighting / Half Lighting and turn it off as well.

Safety Warnings:

The screw shall be secured tightly after opening and closing of the enclosure.
Substitution of components may impair intrinsic safety.
Clean the flashlight only with damp cloth to avoid static electricity.
Do not flash the light beam directly into human’s eyes.
Always use this flashlight by following regular and legal rules governed by industrial control and management authority from every country.

Change of batteries:

Warning – Replace batteries only in non-hazardous areas.
Please loosen the two screws of the rear cover and pull it off carefully.
Remove the battery tray and fill it according to the polarity markings. Insert the filled battery slide with the springs first into the luminaire housing.
Please make sure that the plastic nose at the end of the slide is facing the side of the lamp switch. Replace the back cover and secure it with the two screws.
Always use the correct batteries, please do not mix different battery brands. Always replace all batteries at the same time.
Observe the following rules when doing so:

Use only battery type of Energizer E91 or Duracell MN1500 or Rayovac AL-AA or Varta 4906.
To reduce the risk of explosion do not mix used batteries with new batteries, or mix batteries from different manufacturers or from different types.
Remove the batteries when unused for a period of time to prevent battery leakage in the device.

Warning: The screw should be secured tightly after replacing the batteries.

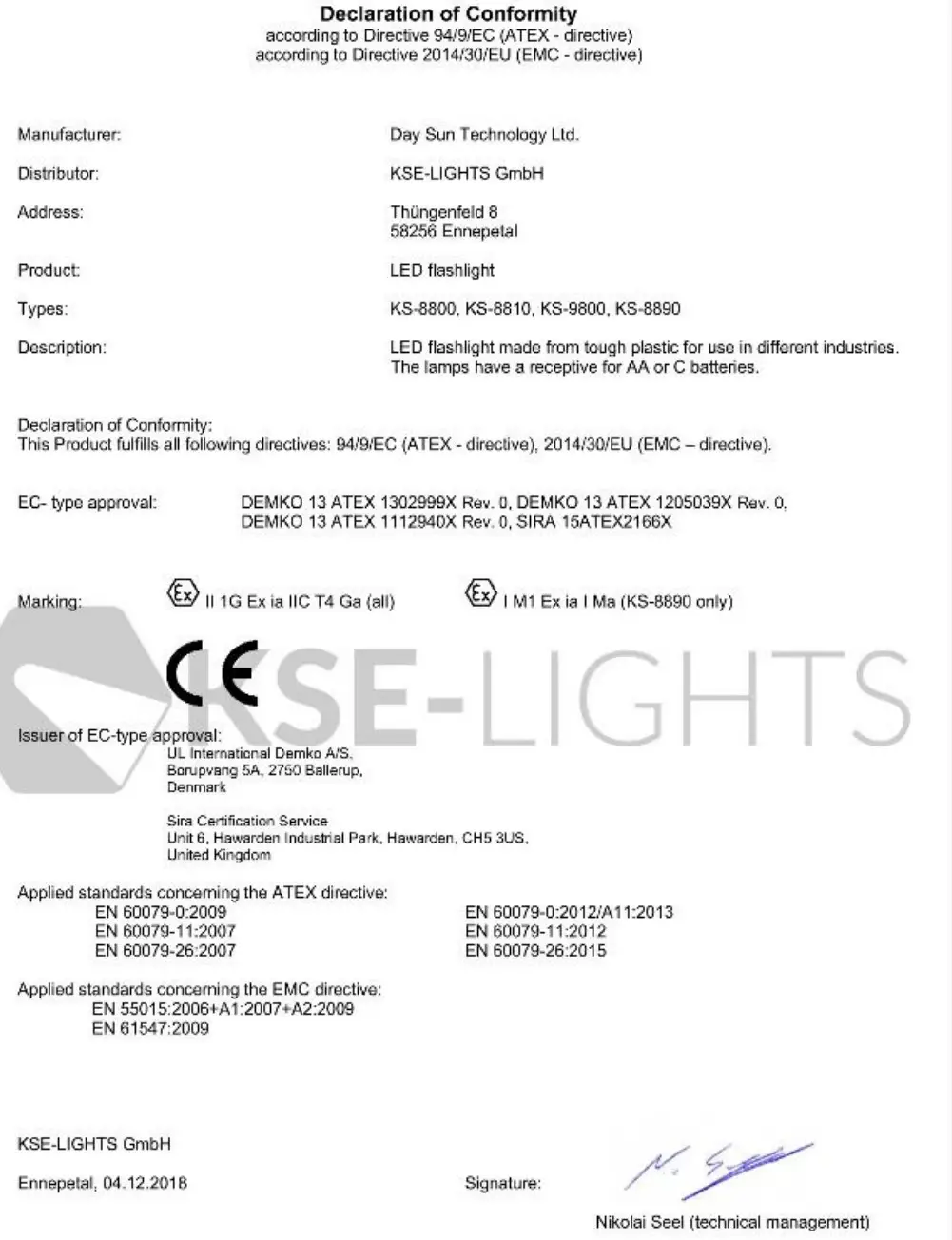

Declaration of Conformity

This declaration certifies compliance with the indicated directives but implies no assurance of properties.
The safety of the product information should be observed.
Ths statement tums off automatically whenever changes are made to the product that have not been matched with the company KSE-LIGHTS GmbH.

KSE-LIGHTS GmbH
