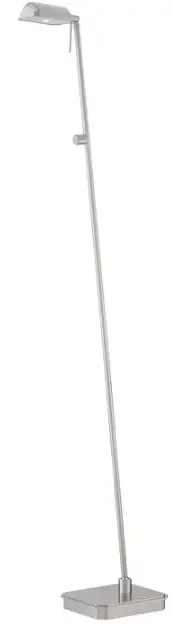

George Kovacs P4344-084 Floor Lamp
Model: P4344-084/ 647
WARNING
- Risk of shock, do not plug in the unit before assembly is complete.
- Do not exceed the maximum wattage rating. (NE PAS DEPASSER LA PUISSANCE NOMINALE MAXIMALE!)
- Before turning on, please follow the instruction manual step by step.
INSTALLATION
- Place all parts on a smooth flat surface to protect the finish until ready to install.

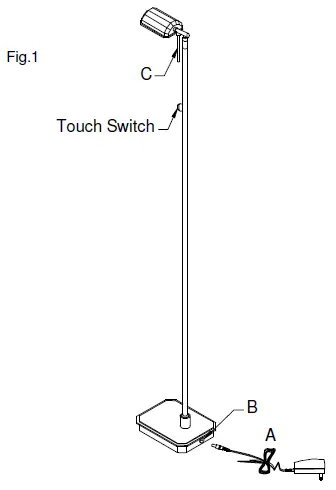

- Connect the power adapter (A) into connector (B).
IMPORTANT SAFETY INSTRUCTIONS
- This lamp uses a touch switch. Press and release to turn on and/or off. When in the on position, press and hold the touch switch to cycle from dim to bright. Release the switch once desired brightness is reached.

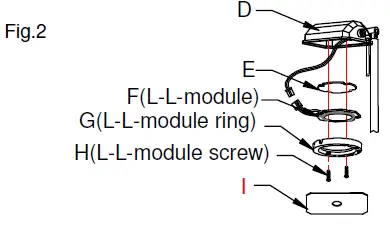

- The LED module can be replaced by a qualified electrician without cutting of wire and without damage to any decorative element to which the fixture is attached. See installation steps for more details (Fig 2.)
- Shut off the power and remove cover (I) from lamp head (D).
- Use a screw driver to loosen screws (H) and remove the module from white plastic ring (G).
- Un-plug the wire quick connector with LED module (F) for relamping.
- (Note: The LED module should be provided by specified supplier).
- For better heat dissipation the LED module (F) should be installed with the heat transfer material (E) when re-lamping.
IMPORTANT: FIXTURE SHOULD BE INSTALLED BY A QUALIFIED ELECTRICIAN TO ENSURE PROPER WIRING AND INSTALLATION.
LA-2484E (Date: Mar. 25, 2015)
MADE IN CHINA
