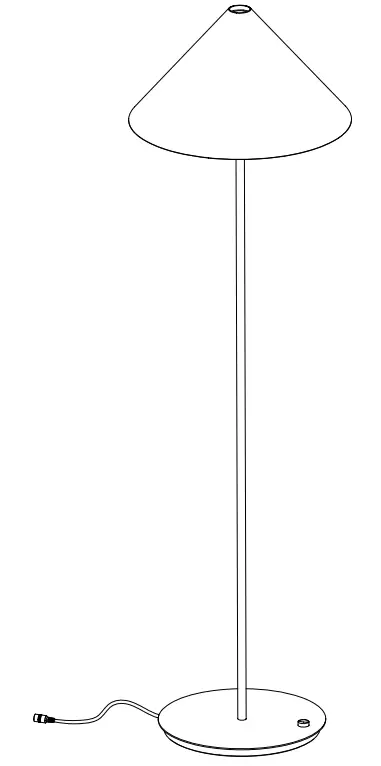

louis poulsen Keglen 400 Floor Lamp

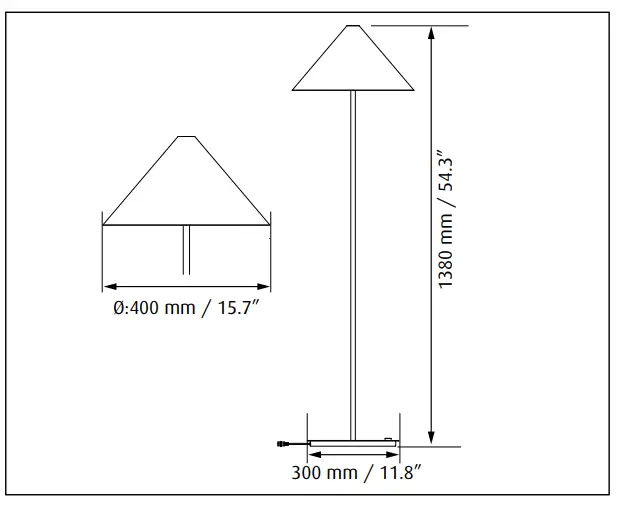

DIMENSION

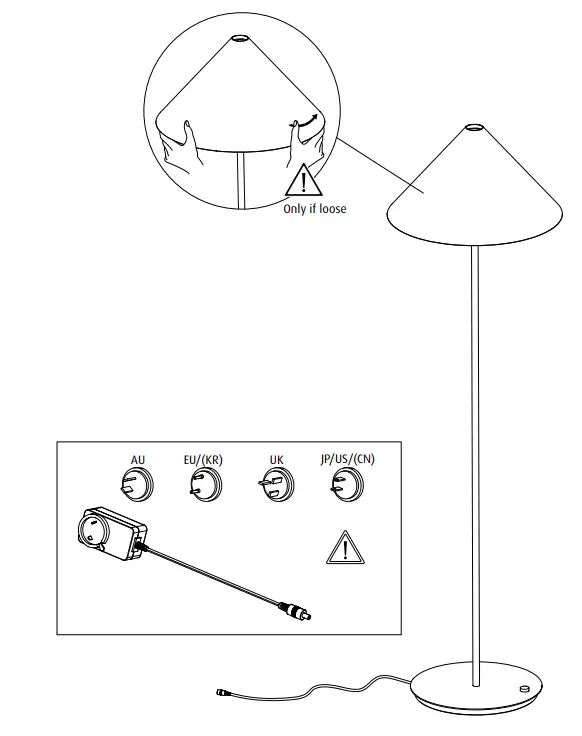

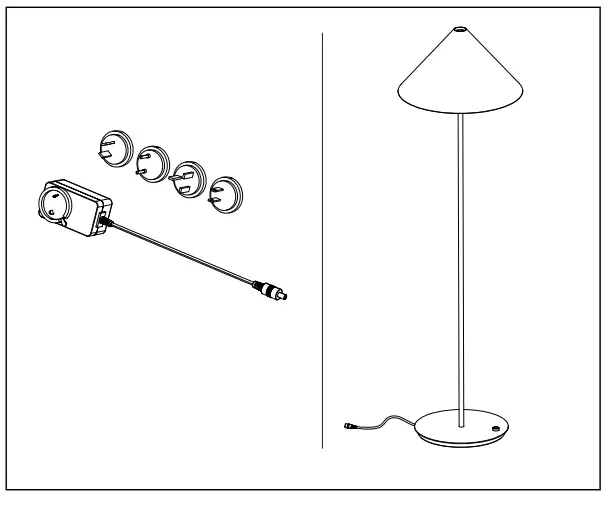

CONNECTION
SPECIFICATION
- Light source/Voltage/frequencyWeight/Protection Class/Ingress protection
- LED/AC100-240V, 50/60HZ /7,85kg / 12.31 Lbs/Cl. II/IP20
- LED/DC 12V SELV /7,85kg / 12.31 Lbs/Cl. III/IP20
Wipe off dust with a dry, soft cloth. Remove greasy spots etc. with a soft cloth dampened in lukewarm water (<50° C) with a mild detergent. Never use detergents containing abrasives and solvents.
- Replaceability & Energy Efficiency Class
This product contains a light source of energy efficiency class E.
The light source contained in this luminaire shall only be replaced by the manufacturer or a qualified electrician. If the external flexible cable or cord of this luminaire is damaged, it must only be replaced by the manufacturer or his service agent or a similar qualified person in order to avoid hazardous situations. Reinforced insulation between LV supply and control.
SETTING
Keglen Floor – Electronic Functions
Mounting Instruction Version 2

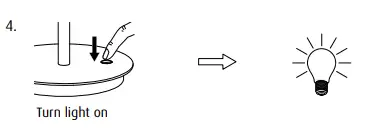

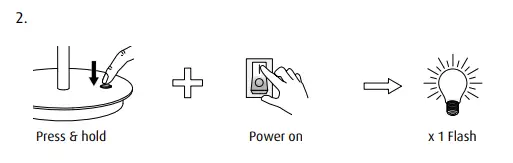

Light on/off:

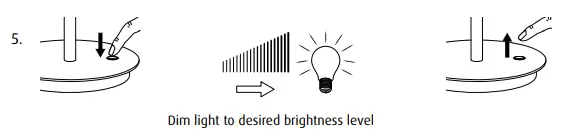

Dimming Function

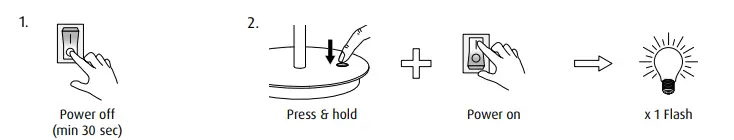

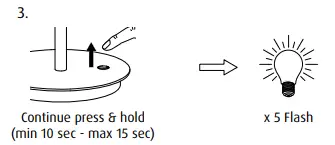

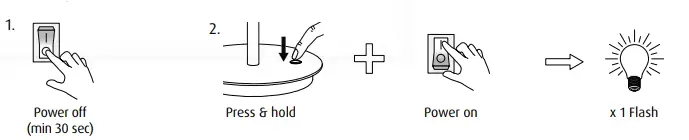

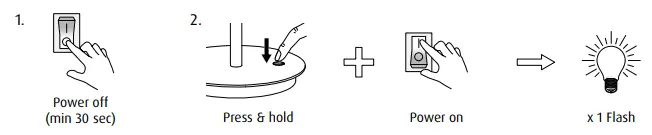

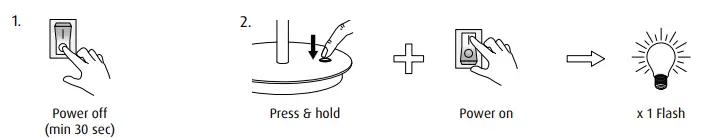

Additional User Settings
Lock on/off Button Function
- Lock on/off Button Deactivated
- Button is locked and cannot be used to turn on/off the light
- Lock on/off Button Activated
- Button is unlocked and can be used to turn on/off the light

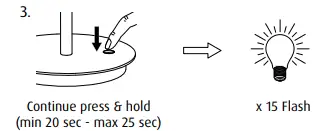

Set default brightness level (User Function)
Factory reset to deactivate brightness level when set

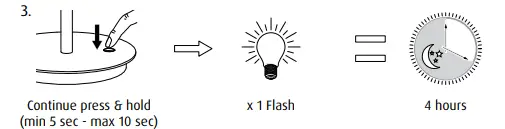

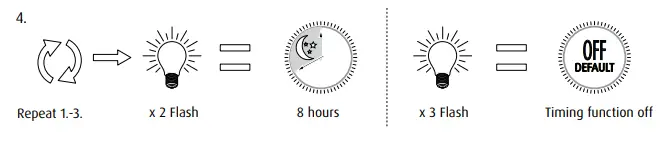

Timing Function (User Function)
Set timer to automatically turn off after period of time
Dimming Function: Deactivate (User Function)
Factory reset to activate dimming function

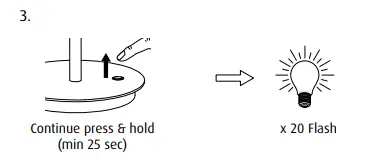

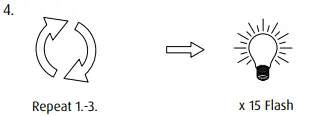

Restore factory default settings
- This is the standard setting for this product.
- With this setting the on/off button and dimming function is active.
