KSE LIGHTSLOGO User manual for model KS-8810
Flashlight for use in hazardous locations

Contents hide

7 Change of batteries:

8 Declaration of Conformity

9 Documents / Resources

9.1 References

Important:

Read these instructions before use and maintain the flashlight for reference
Product:
KS-8810 Industrial Flashlight for use in hazardous locations.
Battery types:
Use only battery types below:

Alkaline Type	NiMH Type
Energizer E91	Energizer NH15-2300
Duracell MN1500
Rayovac 815
Ansmann 5015548
Ansmann 1502-0002

Features:

Intrinsically safe for use in hazardous locations
Multiple functions: High / Low / Flash
Cree LED
IP67
Double O-ring
Tough and durable casing
High Impact LENS
Non-Slip Handle
High-Visibility yellow colour body
Safety Lock

Certifications:

	UL USA : UL FILE NO.: OERX.E324236 Class I Div 1&2 Grp ABCD Class II Div 1&2 Grp EFG Class III Temperature Code: T4
	IECEx Worldwide : IECEx CERTIFICATE NO.: IECEx UL13.0060X Ex ia IIC T4 Ga
	Ex Europe : ATEX CERTIFICATE NO.: DEMKO 13 ATEX 1205039X II 1G Ex ia IIC T4
	2813 DAY SUN TECHNOLOGY LTD Address: 1stFL, No.1, Alley 2, Lane 110, Sec.4, Hsimen Rd. North District, Tainan, 704 Taiwan

Standards:

UL 913 7th Edition, 2011-09.23
CSA C22.2 No. 157-92, Reaffirmed 2013
60079-0 : 2009 Edition
EN 60079-11 : 2007 Edition
EN 60079-26 : 007 Edition
IEC 60079-0, 5th Edition
IEC 60079-11, 5th Edition
IEC 60079-26, 2nd Edition

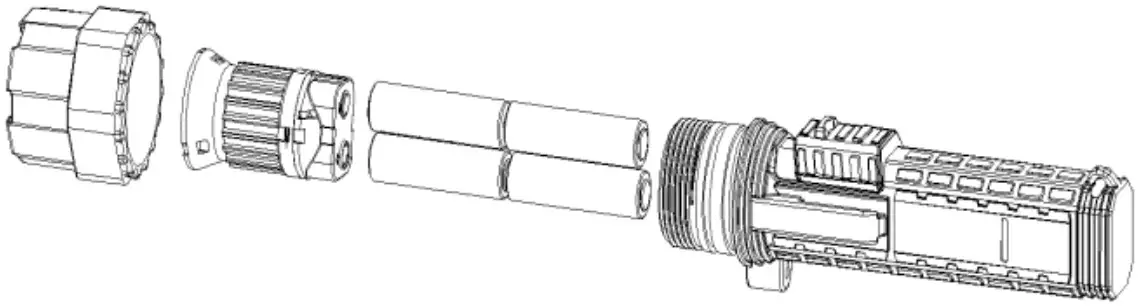

Installation:

KSE LIGHTS KS 8810 Explosion Proof Hand Lamp - Installation

Operation:

Lighting by pushing the switch of KS-8810, by turning it on for three multiple functions of Full Lighting / Half Lighting / Flashing and turn it off as well. This switch is operated by magnetism.

KSE LIGHTS KS 8810 Explosion Proof Hand Lamp - Operation

Safety Warnings:

The screw shall be secured tightly after opening and closing of the enclosure.
Substitution of components may impair intrinsic safety.
Clean the flashlight only with damp cloth to avoid static electricity.
Do not flash the light beam directly into human’s eyes.
Always use this flashlight by following regular and legal rules governed by industrial control and management authority from every country.

Change of batteries:

Warning – Replace batteries only in non-hazardous areas.
Please unscrew the front cap, please do not directly touch inside heat sink set, it might be a bit hot after long time using, remove the cap, remove the reflector with LED inserted, avoiding touching inside surface of reflector, it might affect the performance of lighting. Always use proper batteries to go with KS-8810, do not use mixed brands. Always replace all batteries at the same time, filling new batteries in corresponding to (+) positive and (-) negative mark sticker inside of battery case by following rules to batteries:

Use only battery type of Energizer E91 or Duracell MN1500 or Rayovac 815 or Ansmann 5015548 or Ansmann 1502-0002 or Energizer NH-15-2300.
To reduce the risk of explosion do not mix used batteries with new batteries, or mix batteries from different manufacturers or from different types.
Do not charge NiMH batteries in the flashlight. Charge the NiMH batteries according to the manufacturer‘s specification.
Remove the batteries when unused for a period of time to prevent battery leakage in the device.

Warning: The screw should be secured tightly after replacing the batteries. Install the batteries in the correct assembly. When re-insert reflector set, with smart design, please gently insert it, it could slowly slide into groove and fit it well, please do not over-force on it. Closing the flashlight by screwing the cap right to end of the screw thread.

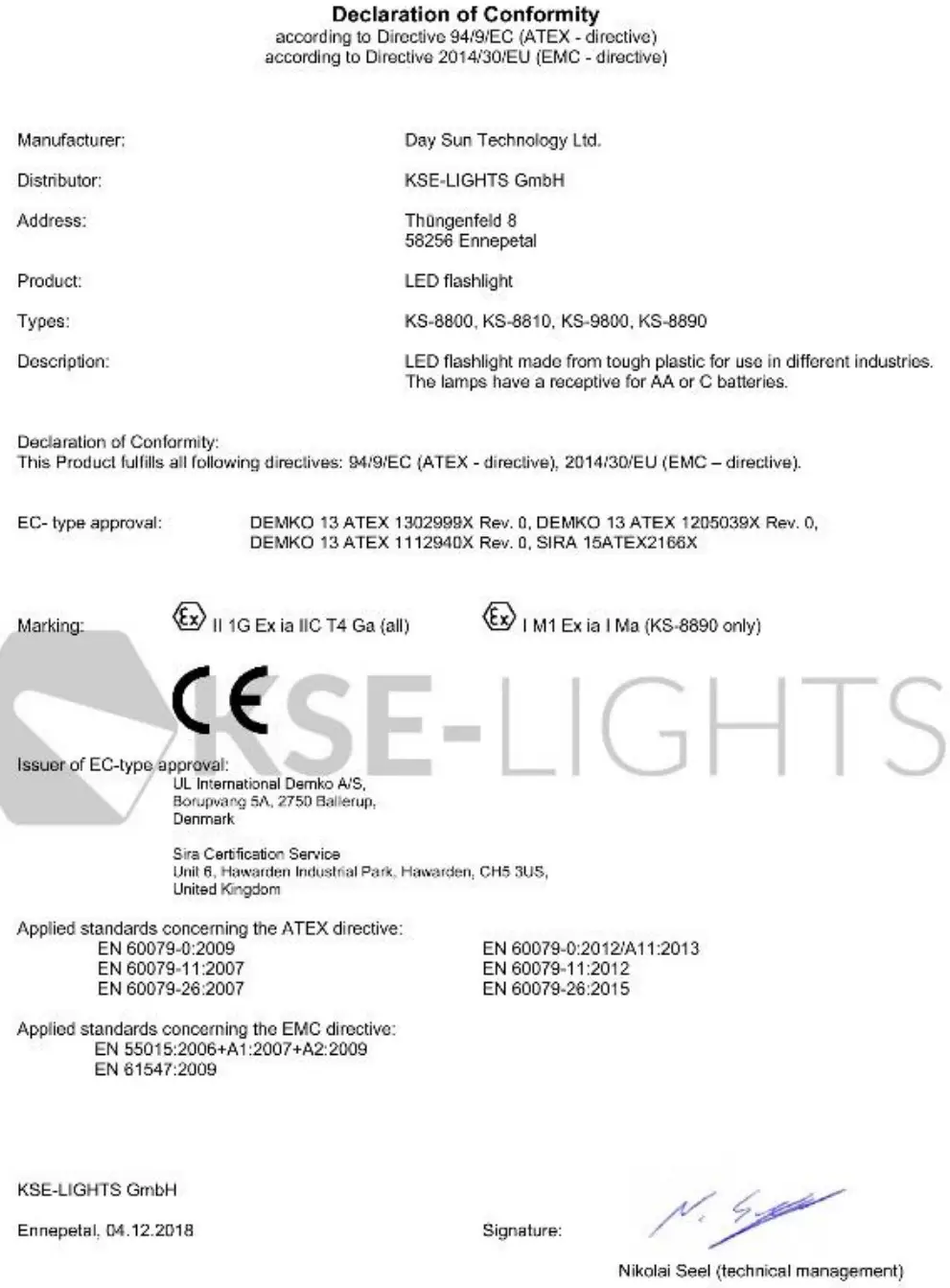

Declaration of Conformity

KSE LIGHTS KS 8810 Explosion Proof Hand Lamp - Declaration of Conformity

This declaration certifiies compliince with the indicaled directives but implies on assurance of properlies.
The safety of the product nformabon should be observed.
The startment turns off aulomaticaly whenever chanyus are made in the product thal lieve nol boon rmadched with the cumpany KSE LIGHTS GmbH.
