TS 65A-3 Smart Meter TS 5KA-3 Bidirectional Power Meter
User Guide
WARNING! Incorrect operation and incorrectly performed work can cause serious personal injury or material damage. The Fronius Smart meters may only be installed and commissioned by trained personnel and only within the scope of the technical regulations. Before working with the device, read and understand all enclosed, printed, and online documents! This document does not describe all of the possible system configurations.

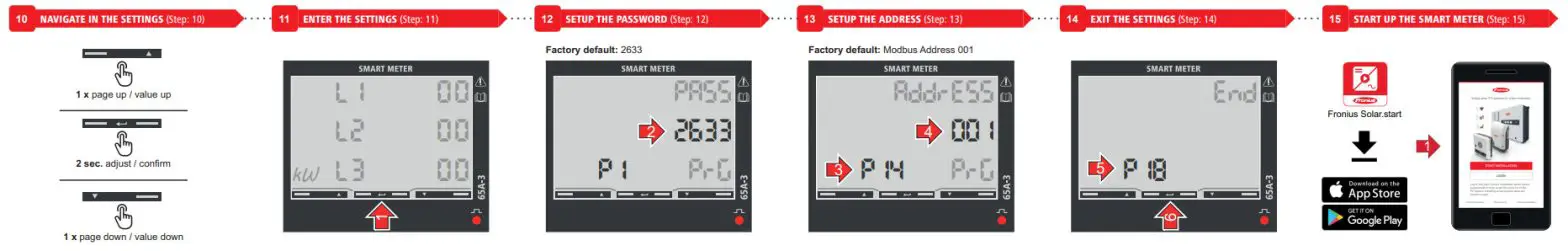

| SOFTWARE REQUIREMENTS | |
| Fronius Datamanager 2.0 | ≥ 3.16.1 version |
| Fronius Symo Hybrid | ≥ 1.16.1 version |
| MEASURING INPUT | |
| Nominal voltage (4-conductor) range | 208 – 400 V (±20%) |
| Power consumption in the voltage path (max. voltage) | ≤ 10 VA |
| Nominal frequency Tolerance | 50 – 60 Hz 45 – 65 Hz |
| Nominal current, lb | 5 A |
| Maximum current, Imax | 65 A |
| Starting current | 20 mA |
| Short-time overload (EN IEC 62053-21, EN IEC 62053-23) | 30 lmax / 0.001 s |
| Self-consumption – current path (max. current) | ≤ 1 W |
| Power factor Operating range (EN IEC 62053-21, EN IEC 62053-23) | active cosφ 0.5 ind – 0.8 cap, reactive sinφ 0.5 ind – 0.5 cap |
| Current distortion factor | in acc. with EN 50470 |
| OUTPUT RS485 communication (Electrically isolated from measuring input) | |
| Standard | RS485 – 3 conductors |
| Protocol | Compatible with Modbus RTU |
| Addresses | 1 – 255 |
| Baud rate | 300, 2400, 9600 bit/s |
| Response time | ≤ 200 ms |
| INSULATION (EN IEC 62052-11, EN IEC 62053-21) | |
| Installation category | III |
| Degree of pollution | 2 |
| Insulation voltage | 4 kVAC RMS (1 min) |
| ELECTROMAGNETIC COMPATIBILITY | |
| Emission test | In acc. with EN IEC 62052-11, EN 50470-3 |
| Immunity test | In acc. with EN IEC 62052-11, EN 50470-3 |
| OPERATING CONDITIONS | |
| Reference temperature | 25 °C (± 5 °C) |
| Operating range | -25 to +55 °C |
| Temperature limit for storage and transport | -30 to +80 °C |
| Mechanical environment Electromechanical environment | M2 E2 |
| HOUSING | |
| Housing | 3 modules according to DIN 43880 |
| Sealable housing/terminal cover | |
| Connection | Screw connection |
| Mounting | Can be snapped onto 35 mm DIN rail |
| Housing material | Noryl, self-extinguishing |
| Degree of protection (EN 60529) | IP51 housing, IP20 connections |
| Weight | 240 grams |
| TERMINALS – MEASURING INPUT | |
| Wire | min. 1 mm² / max. 16 mm² |
| Recommended torque | max. 2.8 Nm |
| TERMINALS – DATA OUTPUT (N-CONNECTOR) | |
| Wire | min 0.05 mm² |
| Recommended torque | max. 0.4 Nm |
Detailed, country-specific warranty terms are available on: www.fronius.com/solar/warranty
FIND MORE INFORMATION
manuals.fronius.com/html/4204260349
https://manuals.fronius.com/html/4204260349/en.html
42,0410,2496 006-22042021
