Motepro Mk700 Red Remote Instruction Manual

Motepro MK700 Red Remote

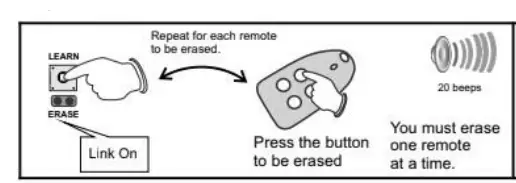

Erasing Individual remotes

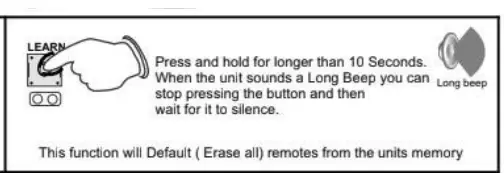

Defaulting

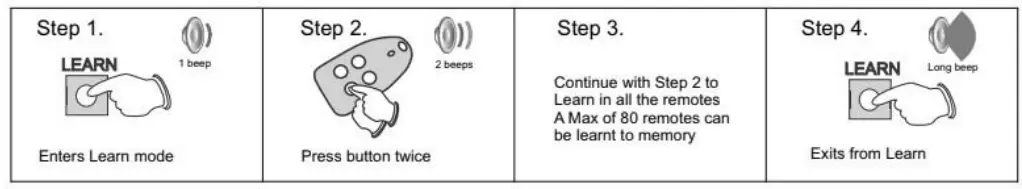

Programming

Please follow the steps below to Learn in remotes to the receiver. The unit can store up to 80 remotes. When memory has reached its limit the unit will automatically exit out of program mode and sound a long beep. The unit auto exits after 10 seconds

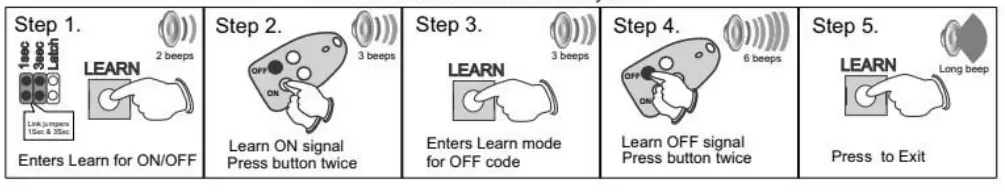

Programming On/Off Function
This function enables the receiver to be programmed with a buton to turn the relay ON and a different button to turn the relay OFE

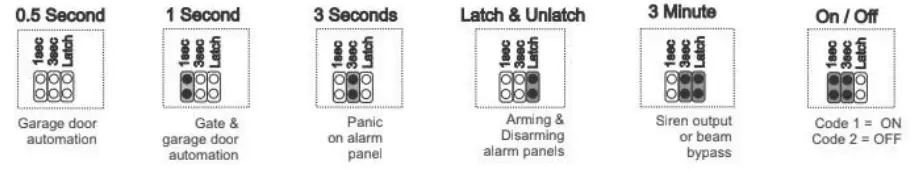

Relay time settings

www.remotepro.com.au

WARNING
To prevent possible SERIOUS INJURY or DEATH:

• The battery is hazardous: NEVER allow children near batteries.
• If the battery is swallowed, immediately notify the doctor.
• To reduce the risk of fire, explosion or chemical burn: Replace ONLY with the same size and type of battery
• DO NOT recharge, disassemble, heat above 100° C, or incinerate
  The battery will cause SEVERE or FATAL injuries in 2 hours or less if swallowed or placed inside any part of the body.
