Remote Control User Manual
YK216-9C

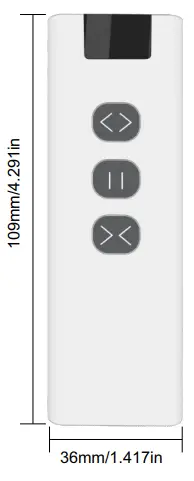

Product Description
YK2169-9C is a remote control for transmitting RF signals with a frequency of 433.92MHz and modulation mode of OOK. This product has a display window of an 8-segment digital tube, which can display a total of 9 channels from 0 to 8.
Different channels can be freely switched by pressing the button, and different actions can be performed when the receiver receives different code values.

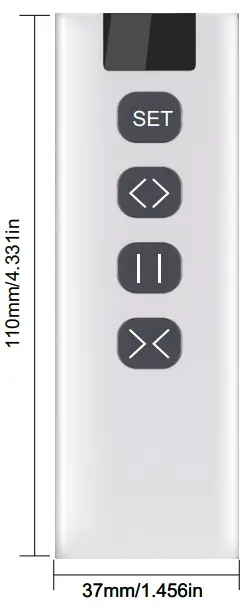

| Digital channel display window | |
 | Channel setting |
| Channel+/Code key | |
| Code key | |
| Channel-/Code key | |
This remote control can be used to control RF433 devices with encoding 1527. Before using it, you need to simply pair the remote with the buttons on your curtain switch. Correspond the three buttons on the remote control (open, pause, close) to the corresponding functions of the required device.No other codes available for this curtain control system, highly recommend using this special remote for controlling our MoesGo curtain switch or switch module. Do not use this remote to control other irrelevant devices.
| Digital channel display window | |
 | Kanal + / Codetaste |
| Codeschlüssel | |
| Kanal- / Codetaste | |
Function Description
- Channel setting
a.Press
digital tube flashes for setup mode.
b.Press
”in setup mode, channel value increases. When the channel value
increases to 8, press the key again to start increasing from 0.
c.Press
”in setup mode, channel value decreases. When the channel value
decreases to 0, press the key again to start decreasing from 8.
d.Press
” in setup mode, the digital tube stops flashing for exiting setup mode.
digital tube flashes for setup mode.
”in setup mode, channel value increases. When the channel value
”in setup mode, channel value decreases. When the channel value
” in setup mode, the digital tube stops flashing for exiting setup mode.2. Transmit code
Press any key among
in non-setup mode, then the remote starts to transmit the signal, the red indicator in the lower right corner flashes fast to indicate it is transmitting. Release the key to stop transmitting and the digital tube stops lighting.
Product parameter
| Working voltage : | DC12V |
| Working temperature : | -20°C – +60°C |
| Encoding mode : | Imitation learning code |
| Working frequency : | 433.92MHz |
| Working current : | ≤16mA |
| Number of channels | 9 |
Product parameter
| Working voltage : | 12V |
| Working frequency : | 433MHz |
| Encoding mode : | Imitation learning code |
| Working current : | ≤18mA |
