Lorex H32a Series H32a2tu-w 2k Wire-free Security System User Guide (+ PDF)

Read this guide carefully and keep it for future reference.
Follow all instructions for safe use and handling of the product.
Operate the camera within the specified temperature, humidity, and voltage and use manufacturer-approved accessories.
Do not disassemble the camera.
Do not point the camera directly at the sun or a source of intense light.
Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

Battery Safety Precautions
Refer to the Battery Safety Insert.

Disclaimers

This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal and indicates that the camera filter is working.
Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.

Attention
A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with this bundle (included).
The use of a non-regulated, non-conforming power supply can damage this product and void the warranty.

Thank you for your purchase!
How to get started with your 2K Wire-Free Security System

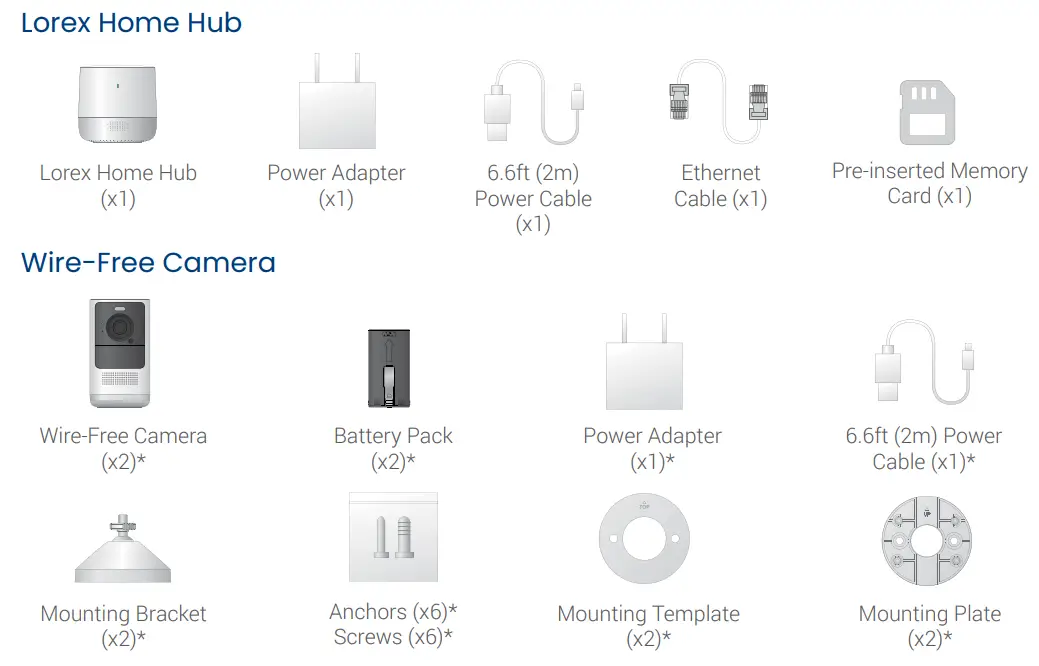

Package Contents

Before You Start

The camera batteries come partially charged (due to safety regulations). Please fully charge the battery prior to use, and before you begin your setup. This will take 4-6 hours.

To charge the battery pack:

Use the power adapters and cables to charge the batteries.
When fully charged, the battery status indicator will turn green.

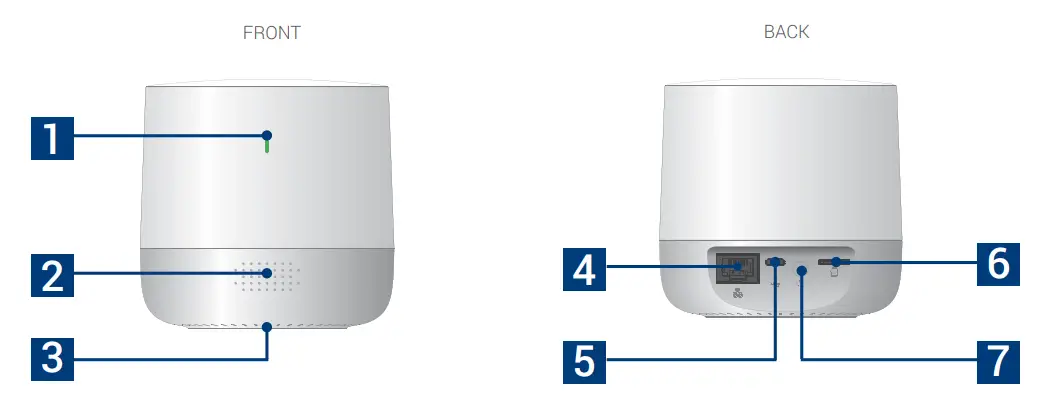

Home Hub Overview

Status indicator
Speaker
QR Code
Ethernet port
Power port
MicroSD card slot (included)
Pairing/reset button

Home Hub Status Indicator

Status	Description
(solid)	Operating correctly
(flashing)	Ready to connect to the network
(flashing)	In pairing mode
(solid)	Factory reset
(flashing)	Disconnected from network
(alternating)	Firmware update in progress
(flashing)	Notification: Camera Detected Motion

Home Hub Setup

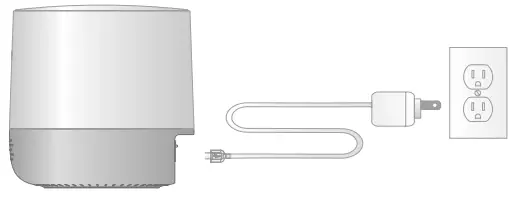

Connect power to the hub with the power adapter and
cable. When you hear the chime and the status indicator is
flashing green, the device is ready for setup.
Download the Lorex Home app by scanning the QR code.

https://app.lorex.com/home/download
Open the Lorex Home app, and sign in or create an account.

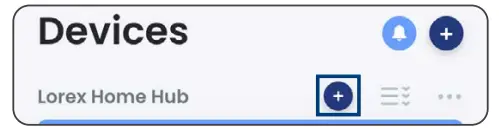

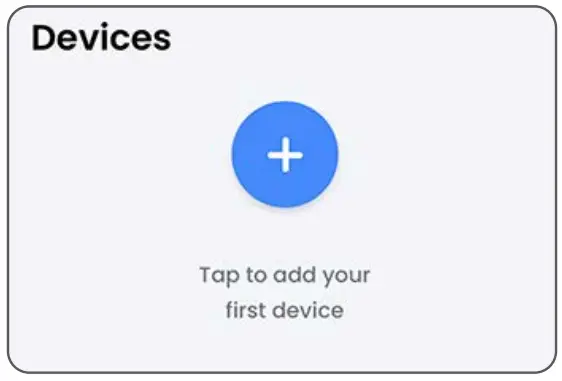

Tap in the app to add the device, then follow the in-app instructions to complete the setup.

Recommended: Select Wired Connection and use the provided Ethernet cable to connect the hub to your router.

Ensure you upgrade to the latest app and Hub firmware version.

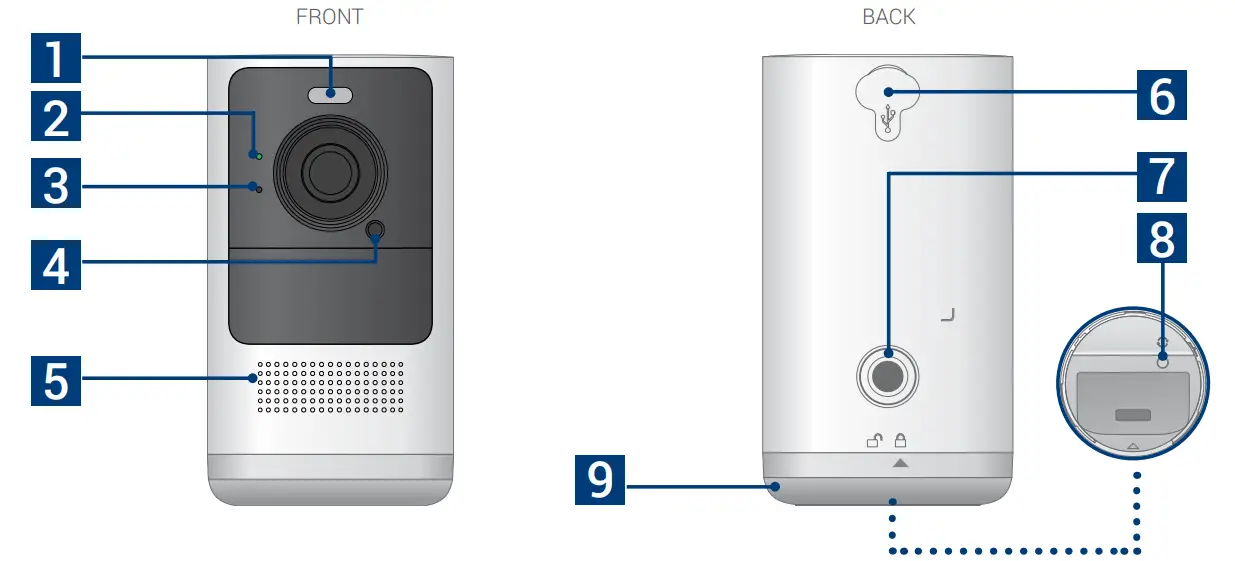

Camera Overview

Warning light
Status indicator
Microphone
Light sensor
Speaker
Power port
Threaded insert (for mounting)
Pairing/reset button
Bottom cover

Camera Status Indicator

Status	Description
Off	Privacy mode or battery needs recharging
(solid)	Operating correctly.
(flashing)	Ready for pairing or motion detected
(flashing)	Testing Wi-Fi signal strength
(solid)	Factory reset
(flashing)	Disconnected from network
(alternating)	Firmware update in progress

Camera Pairing to the Hub

Open the Lorex Home app.
Tap beside the Hub device and follow the in-app instructions.
Note: Make sure you only pair 1 camera at a time.

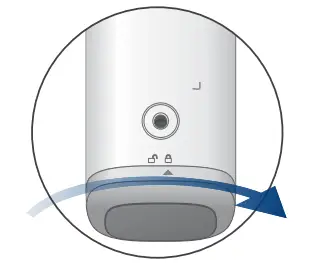

Once the camera is set up, re-install the bottom cover by carefully aligning the arrow and the unlock symbols.
Push and twist the bottom cover clockwise to lock.
Place or mount the camera in the desired location. See sections 11 and 12.
To pair additional cameras, repeat steps 2-4.
From the Home screen or Live View, swipe left to see the additional cameras.

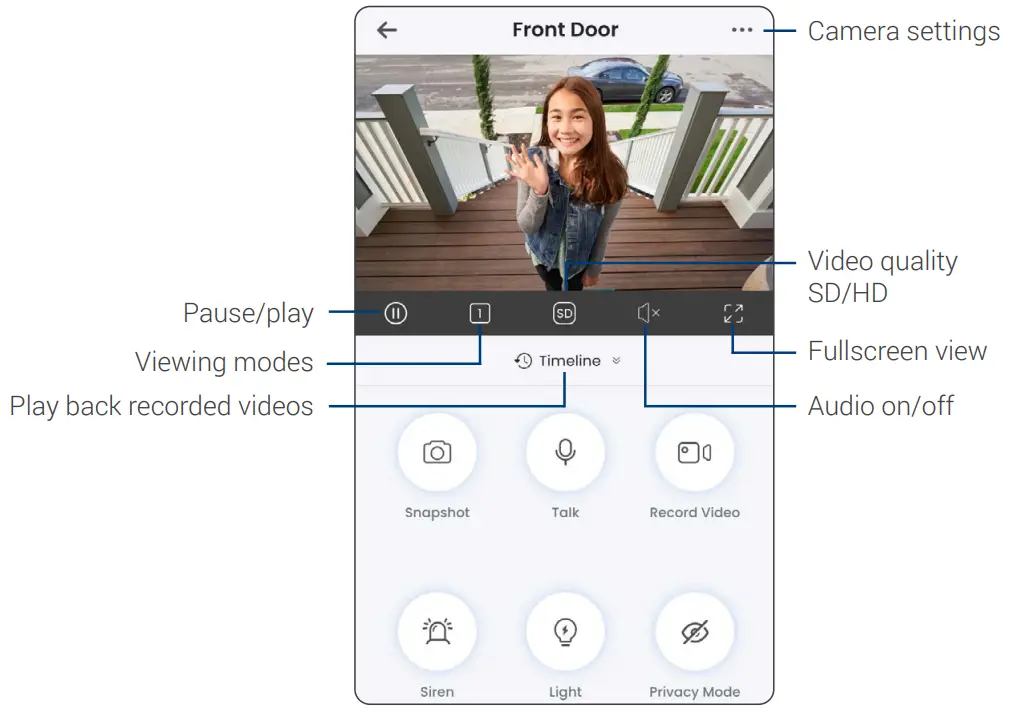

App Live View

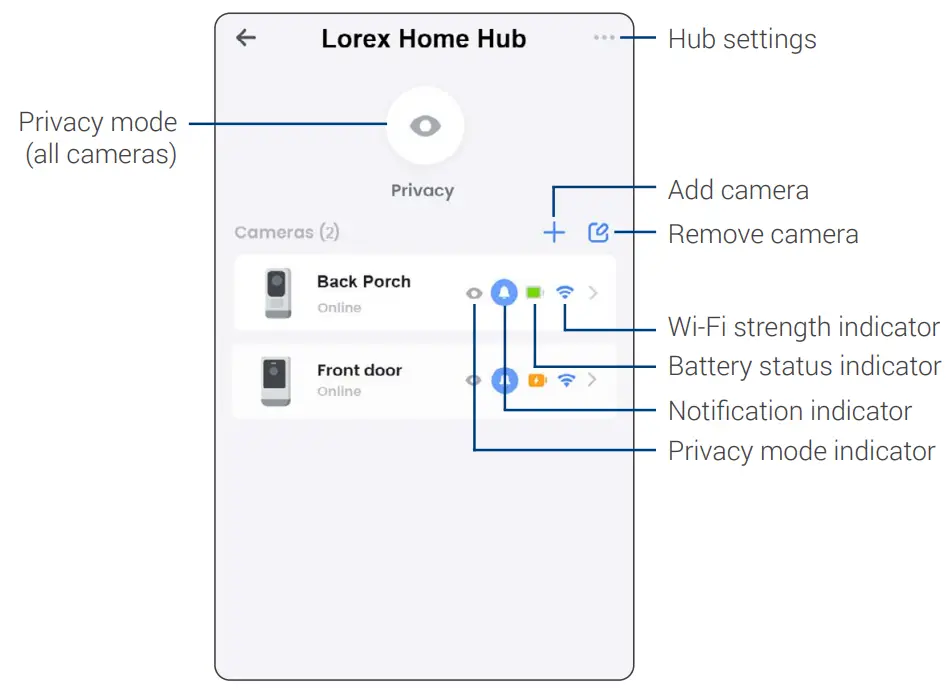

App Device Management

Camera Placement

Place the camera on any flat surface or mount it to a wall.
Do not place the camera near air conditioners and other air outlets.
Install the camera at the recommended angle and height per the guidelines below.

To optimize motion detection accuracy when:

Mounted on a wall

Distance	Optimal accuracy for objects within 6.5ft to 32ft (2~10m).
Angle	Angle the camera around 15°-30° down from the level position.
Height	Install the camera between 7-10ft (2~3m) off of the ground.

Placed on a shelf

Distance	Optimal accuracy for objects within 0.5-32ft (2~10m).

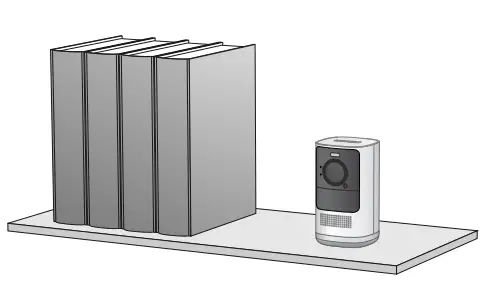

Angle	Place the camera on a flat surface. Make sure the flat surface/shelf is not obstructing the camera’s field of view.
Height	Place the camera between 4.5ft to 6.5ft (1.5~2m) off of the ground.

Note: Accuracy of person detection will be influenced by multiple factors, such as the person’s distance from the camera, the height of the person, and the height and angle of the camera. Night vision will also impact the accuracy and distance of detection.

Camera Mounting

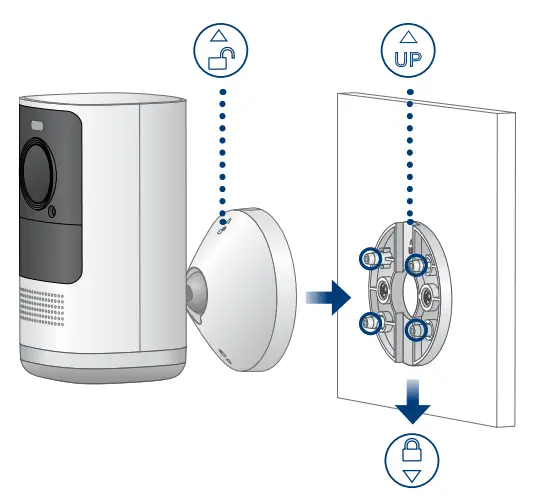

To install the camera:

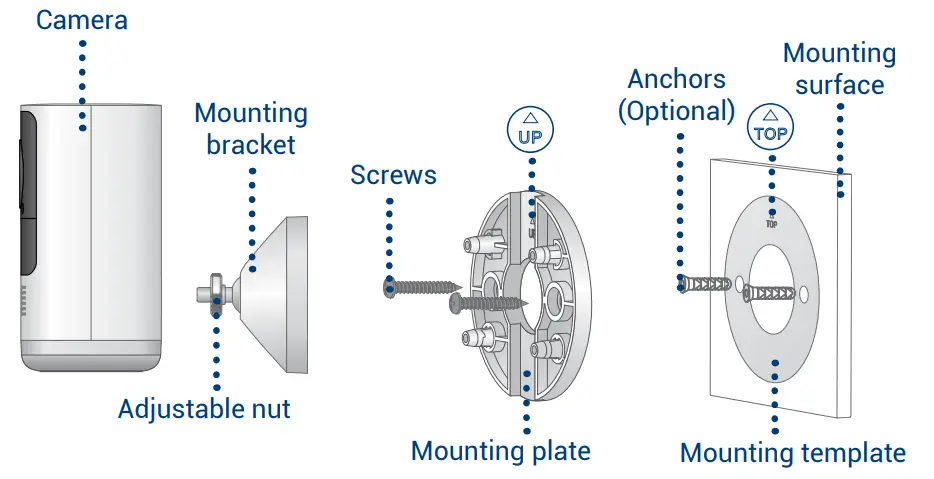

Place the mounting template to the desired location.
Optional: Drill 7/32” (5.5mm) holes for the anchors.
Align the arrows of the mounting plate and template. Using a Philips screwdriver and the provided screws, secure the mounting plate to the surface.
Align the arrows between the mounting bracket and plate. Push the bracket in to install, then slide down to lock in place. You will hear a ‘click’ when the bracket is installed.
Attach the camera to the mounting bracket using the thread insert at the rear of the camera. Rotate the camera clockwise until attached, then tighten/fasten into place with
the adjustable nut.
Adjust the camera to the desired angle.

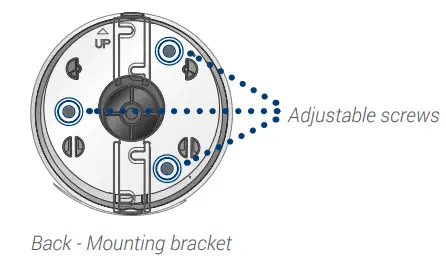

Note: If the camera is not holding in place or difficult to adjust, slide the bracket up to detach from the mounting plate. Tighten or loosen the 3 screws at the back of the mounting bracket to adjust accordingly. Repeat steps 3-5 to re-install.

Need help?

Visit help.lorex.com for up-to-date information and resources:

Download product guides
Watch how-to-videos
Find related troubleshooting tips & FAQs

Register your product
Please see our full Terms of Service and Limited Hardware Warranty Policy visit, lorex.com/warranty.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Copyright © 2021 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications, and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

H32A-Series_QSG_TRILINGUAL_R1
