VEICHI IOT-BWS1.0-FLink FLink IOT Expansion Module

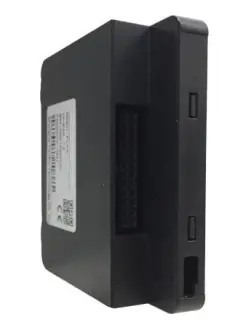

VEICHI FLink IOT Expansion Module IOT-BWS1.0-FLink
- 350+ Industrial protocol access, support most of the industrial equipment connection
- Complete data parsing locally and push data to the cloud server
- Support VEICHI remote management tool, support remote configuration, diagnosis
- Supports local caching of historical data
Product Specification
| Hardware Parameter | Network Access | Ethernet/WiFi |
| Network Band | IEEE 802.11b/g/n compatible WLAN IEEE 802.11e QoS Enhancement (WMM) | |
|
Environm ental requireme nt | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Environmental Humidity | 10~90%RH（Non-condensing） | |
| Seismic Resistance | 10~25Hz（X、Y、Z Direction2G/30 minutes） | |
| Cooling Method | Natural air cooling | |
| Mechanic al indicator | Size | 67.9mm×74.2mm×19.5mm（Antenna not included） |
| Weight | About 50g | |
| Material | ABS Engineering Plastics | |
|
Software Parameter | VPN Pass-through | Support (only for the 6000 series with its own network port) |
| Data Monitoring | 300 points, support timed upload or change upload | |
| Alarm Push | 100 points, support client push, SMS push (20 free messages per day), WeChat public number push | |
| Historical Data | 30 points, support offline renewal, offline each point can store 5w bars, cloud retention 90 days | |
| Edge Computing | Support for script programming | |
| Network Protocols | Supports over a hundred industrial device protocols | |
| Management and | Support remote firmware upgrade, support configuration file import |
| Maintenance | and export |

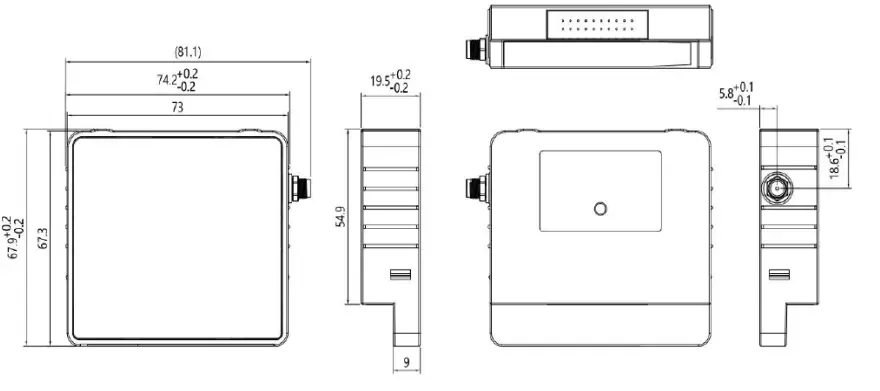

Size

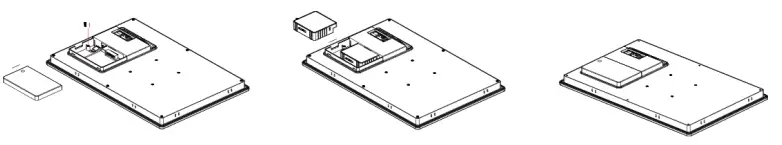

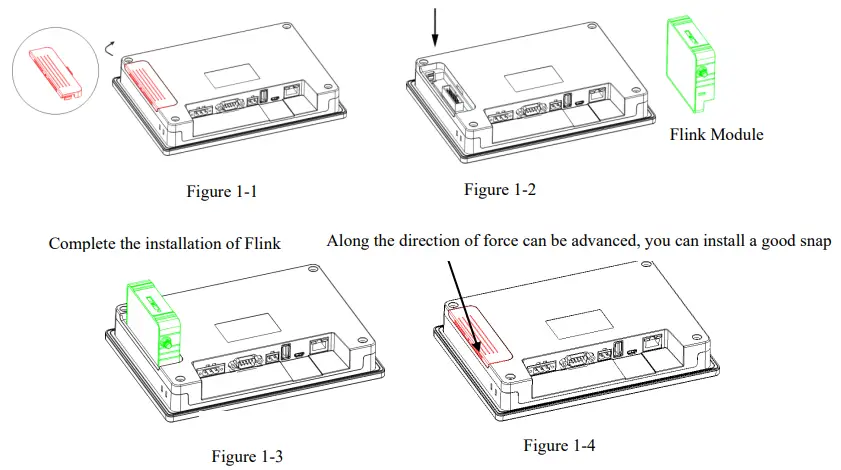

Installation method
- Aluminum structure HMI back open the cover in the direction shown
- Complete the FLink installation as shown in the diagram
- Install the cover to reset and lock th e screws
