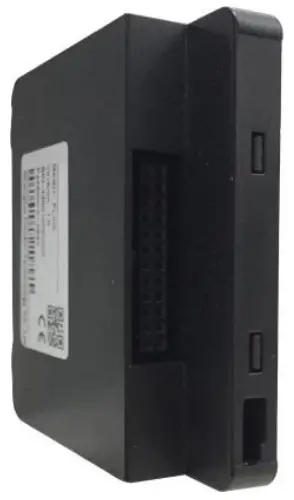

VEICHI IOT-BS4.0-FLink IOT Expansion Module
Introduction
- 350+ Industrial protocol access, support most of the industrial equipment connection
- Complete data parsing locally and push data to the cloud server
- Support VEICHI remote management tool, support remote configuration, diagnosis
- Supports local caching of historical data
Product Specification
| Hardware Parameter | Network Access | Ethernet Mobile2G/Unicom2G/Telecom2G Mobile3G/Unicom3G/Telecom3G Mobile4G/Unicom4G/Telecom4G |
| Network Band | LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz | |
|
Environ entail require me nit | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Environmental Humidity | 10~90%RH（Non-condensing） | |
| Seismic Resistance | 10~25Hz（X、Y、Z Direction2G/30 minutes） | |
| Cooling Method | Natural air cooling | |
| Mechanic al indicator | Size | 67.9mm×74.2mm×19.5mm（Antenna not included） |
| Weight | About 55g | |
| Material | ABS Engineering Plastics | |
|
Software Parameter | VPN Pass-through | Support (only for the 6000 series with its own network port) |
| Data Monitoring | 300 points, support timed upload or change upload | |
| Alarm Push | 100 points, support client push, SMS push (20 free messages per day), WeChat public number push | |
| Historical Data | 30 points, support offline renewal, offline each point can store 5w bars, cloud retention 90 days | |
| Edge Computing | Support for script programming | |
| Network Protocols | Supports over a hundred industrial device protocols | |
| Management and Maintenance | Support remote firmware upgrade, support configuration file import and export |

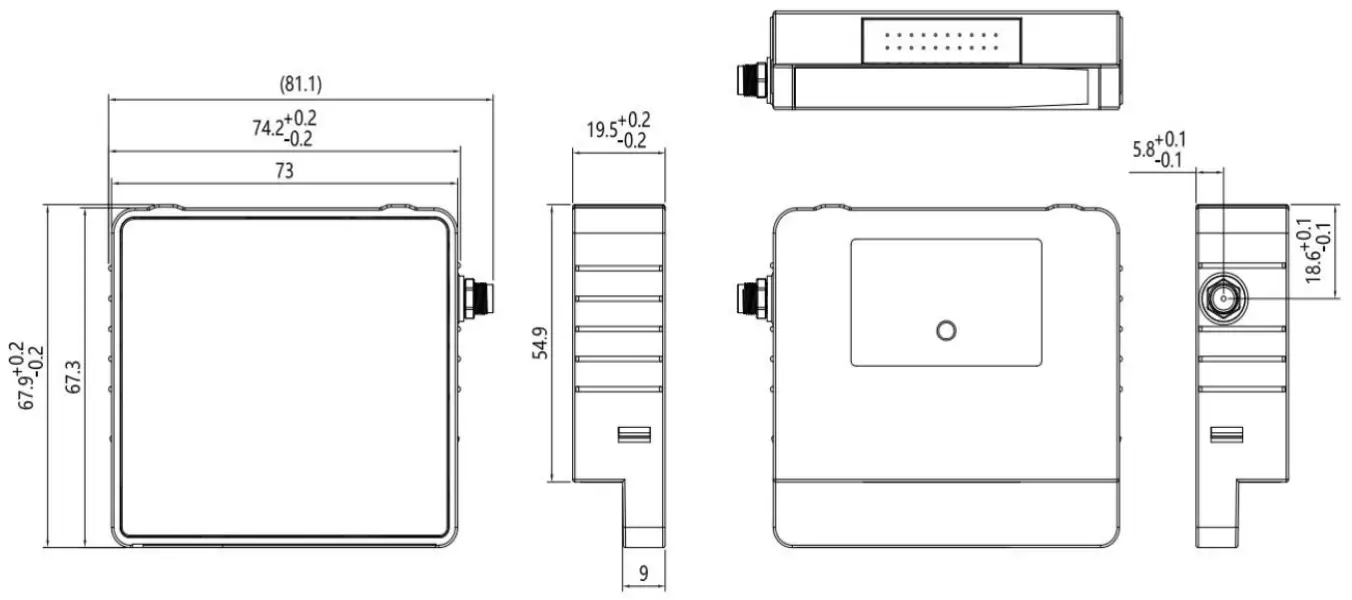

Size
Installation method

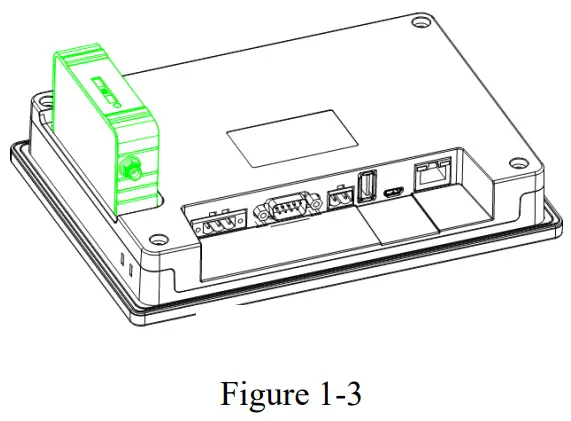

Complete the installation of Flank
Along the direction of force can be advanced, you can install a good snap

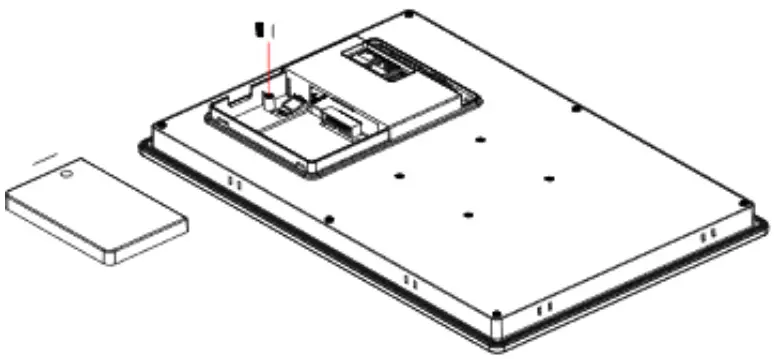

Aluminum structure HMI back open the cover in the direction shown

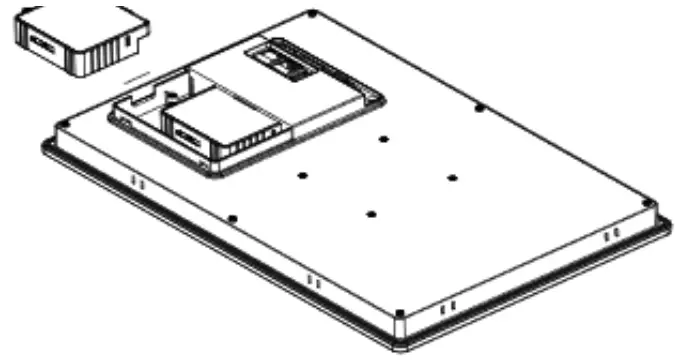

Complete the Flinch installation as shown in the diagram

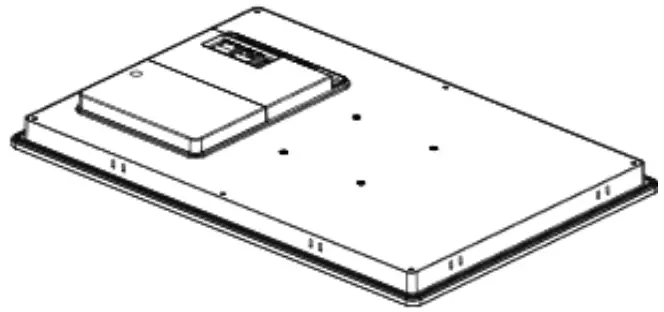

Install the cover to reset and lock the screws
