Aperta APMON Colour Video Door Entry Monitor User Manual
System Cabling
All system cabling (excluding mains 240vAC supply) has been tested with Cat5E UTP PVC cable.
Part Number – A8NFORCE5EUTP
Find this product online:
elandcables.com | Cables & Accessories | LAN Cable | Cat 5E UTP PVC Cable
Monitor Functions

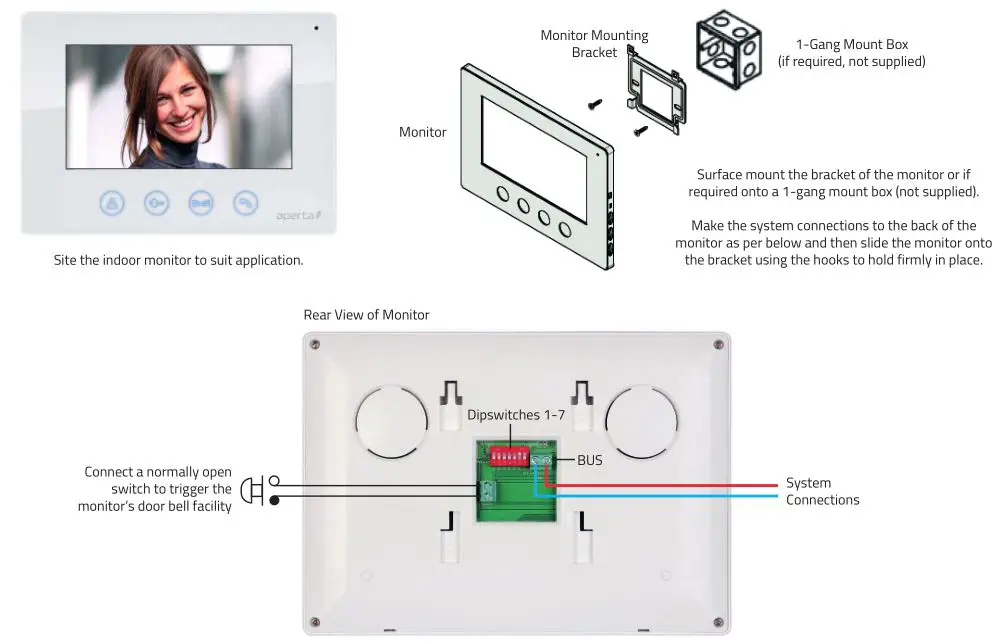

Installation

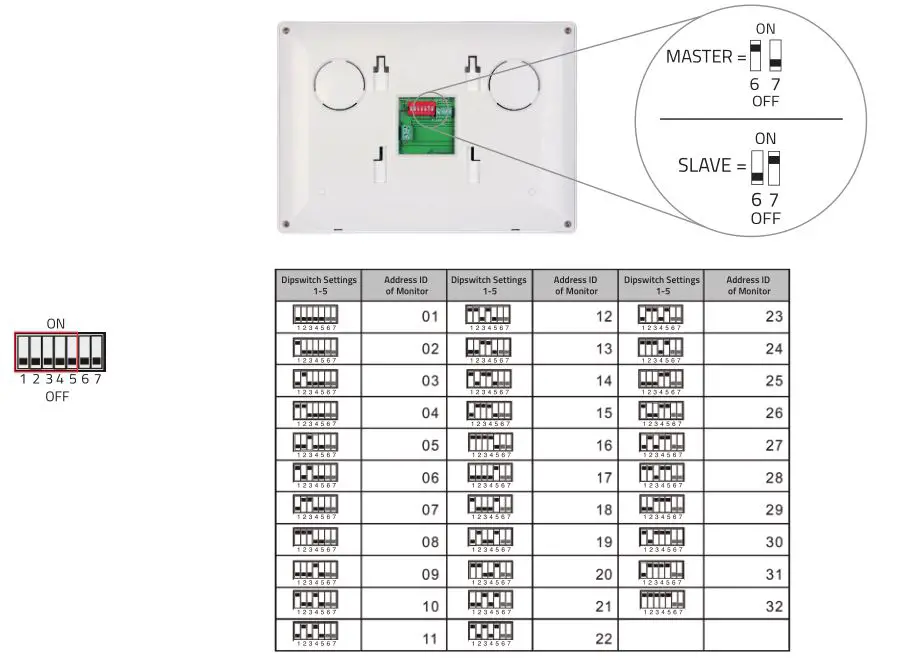

Dipswitch Settings
Rear View of Monitor
Master /Slave Setup
Switch Setup
For villa system: Only 1 monitor is set as a MASTER.
All other monitors are set to SLAVE
For apartment system:
Each Address ID has 1 MASTER.
All other monitors on the same
Address ID are set to SLAVE.
Address ID Switch Setup
(only required for apartment systems)

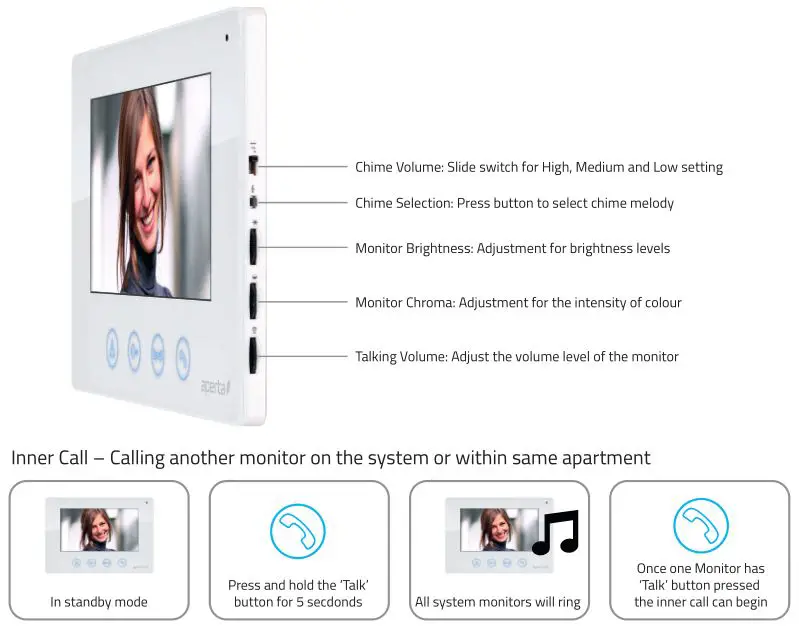

Monitor Operations
