Godrej Seethru Re7 Video Door Phone User Manual

See THruRE7 VIDEO DOOR PHONE

User Manual

WARNING AND CAUTION
Please make sure to follow the instructions to prevent any danger or property losses.

	Warning: Death or serious injury is expected.
	Do not disassemble, install, or repair this product on your own accord.
	Do not place the product near a hot or humid place.
	Do not forcibly bend the cord or put a heavy object on the product.
	Do not use water, thinner or a detergent used to wash oil products when you wash the exterior.
	Do not connect to other products while in use.
	Make sure to clean it by using a dry cloth to prevent any breakdown or electric shock.
	If the product emits a peculiar noise, odor or smoke, immediately cut off the power, and then contact the service center.
	Caution: An Injury or property losses are expected
	Do not put the plug in the socket with a wet hand.
	Make sure that dust or foreign substances are not gathered on the product.
	Make sure to prevent foreign substances from entering the product.
	Avoid direct rays of the sun or heating devices at the time of installation.
	Install the product in a flat and stable place.
	Pull the plug if the product is not used for a long time.
	Do not unplug the micro SD card when recording, this generally will cause loss of data.

FEATURES AND FUNCTIONS

Indoor Unit

•  7° color indoor monitor
• Handsfree
• Support one outdoor unit
• Two-way talk
• Support DC 12V/1Amp power input.
• Adjustable ring volume, brightness, contrast, and color.
• The adjustable door unlocks time.
• OSD menu support
•  Door lock release

Outdoor Unit

• High-resolution pinhole camera
• IR LED for night vision.
• Surface mounted

SPECIFICATIONS OF INDOOR UNIT

SPECIFICATIONS OF OUTDOOR UNIT

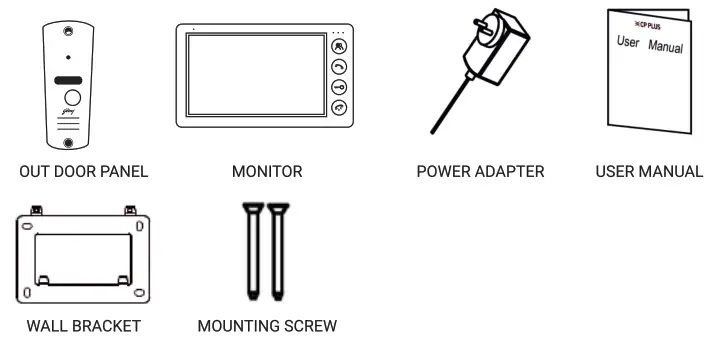

PACKAGE CONTENTS

HARDWARE DESCRIPTION (INDOOR UNIT)

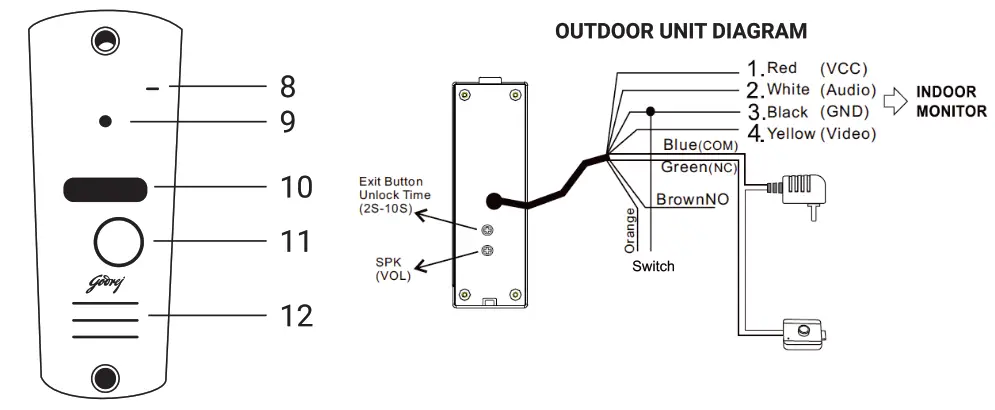

HARDWARE DESCRIPTION (OUTDOOR UNIT)

OPERATION OF THE VIDEO DOOR PHONE

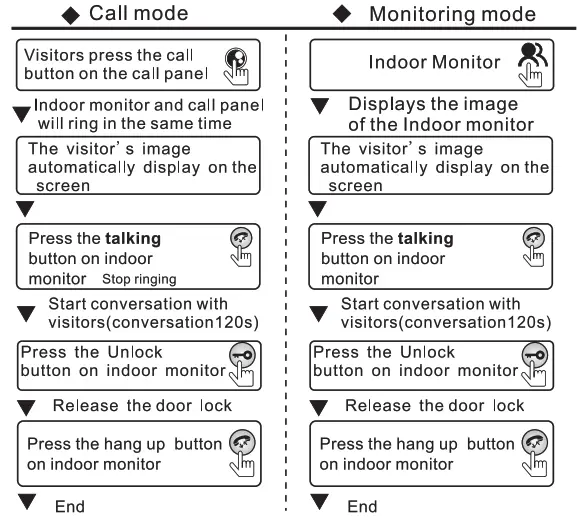

OPERATION INTRODUCTION

INSTALLATION

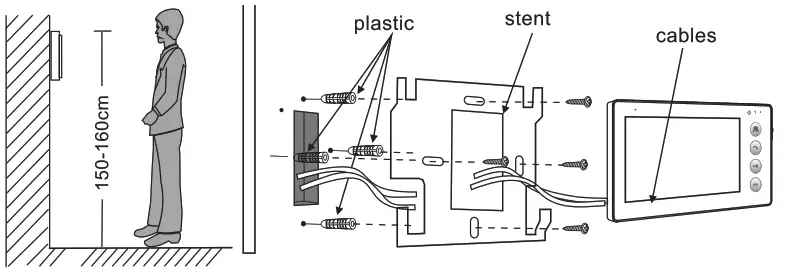

INDOOR UNIT

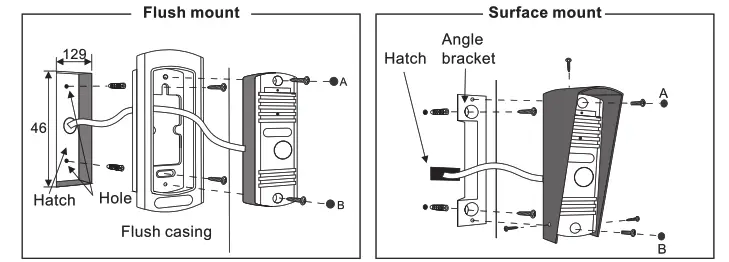

OUTDOOR UNIT

CABLING REQUIREMENT

The video door phone system uses 4 core cables. The cable should be used according to different distance requirements from the outdoor panels to the indoor monitors. In the areas with a high possibility of interference, it is recommended to use a 75ahm coaxial for connection for a better video signal.

 PRECAUTIONS

– Do not place the monitor to the TV set or in an environment with high temperatures and damp places. – Do not take apart the outdoor units or any parts of the video system. – Protect the lens of the outdoor camera unit from direct sunlight to avoid pale pictures on the monitor. – Do not use the equipment when in a vibrations environment. Protect the equipment from falls.
ATTENTION: The outdoor unit is suitable ONLY for Installed inside the building, else, there Is a risk of damage to the product.

INFORMATION ON E-WASTE HANDLING AND MANAGEMENT

Dear Customer,

The Ministry of Environment and Forests have published The E-waste (Management and Handling) Rules 2010 which comes in elect from 1st May 2012.
E-waste is defined as any electrical or electronic component of products in whole or in part, or rejects from their manufacturing or repair process which are intended to be discarded. These rules apply to every producer; consumer or bulk consumer involved in the manufacture, sale, purchase and processing of electrical and electronic equipment or components as specified in Schedule 1 (please refer to our website www.godrej.com under the ‘Green Think’ sec of Godrej Security Solutions Division Page for more details). Under these rules, specific roles and responsibilities are defined for producers, consumers and recycling handling and managing e-waste. E-waste is to be managed in an environmentally sound manner which means, taking steps to ensure that health and the environment are protected from adverse ellects of hazardous substances contained in such wastes. Rule 6 of the E-waste (Management and Handling) Rules 2010 states that bulk consumers of electrical and electronic equipment shall be responsible for the recycling of the e-waste generated by them. Bulk consumer means bulk users of electronic and electrical equipment such as Central Government or State Government Departments, public sector undertakings, banks, educational institutions, multinational organizations, and international agencies, private companies that are registered under the Factories Act, 1948 and Companies Act, 1956. The bulk consumers have to ensure that the e-waste generated by them is channelized to authorized collection centres or is taken back by the producers. They shall maintain records of e-waste generated by them in Form 2 and make such records available for scrutiny by the State Pollution Control or the Pollution Control Committee concerned. All consumers of electrical and electronic equipment irrespective of their status as bulk consumers or not, shall ensure that e-waste generated by them is channelized to authorized collection centres (s) or registered dismantler(s), or recycler(s) or is returned to the pick-up/take back services provided by the producers. (Please refer to our website www.godrej.com under the “Green Think’ sec of Godrej Security Solutions Division Page for more details).
All our products intended to be recycled under the category of e-waste (as defined above) carry a label or stamp of the WEEE symbol (A wheelie bin with a cross), which states that it falls under the hazardous waste category and is not to be disposed of along with normal garbage.
We seek your support in ensuring environmentally sound management of e-waste and aid us in sustaining our earth’s natural resources and maintaining the earth’s green cover intact for the benefit of our future generations.

RECORD OF PURCHASE

Please fill your details below for future reference.
Date of purchase:……………..
Product model:……………………
Name & address of Distributor/Dealer;………………………
Distributor phone number: — ………………..
FOR SAFETY, PLEASE READ THIS MANUAL PRIOR TO USE.

Godrej & Boyce Mfg. Co. Ltd., Godrej Security Solutions
Regd. Office: Plant No. 17, Pirojshanagar,
Vikhroli, Mumbai – 400079
Toll-Free: 1800 209 9955 (Sales & Service)
Whatsapp Support: +91 9321665511 (Service)
Visit: www.godrejsecure.com
Email: [email protected] (Sales), [email protected]
Follow us: (Service) www.facebook.com/GodrejSecure
  www.twitter.com/godrejsecure
An ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 Products Marketed and Serviced by Godrej and Boyce Mfg. Co. Ltd.
GSS/IMC/SEETHRU RE7 USER MANUAUSEPT.2021 /V1
