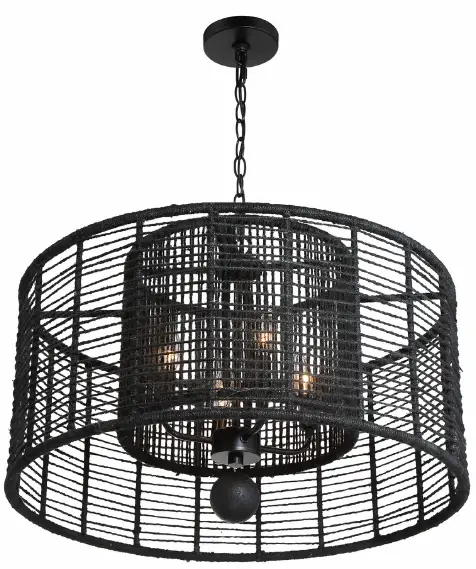

CRYSTORAMA JAY-A5004-MK Jayna Four Light Chandelier
ASSEMBLY INSTRUCTION
WARNING
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 4 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
How to Install
- Place the candle sleeve onto the socket, and insert recommended bulb (not included).

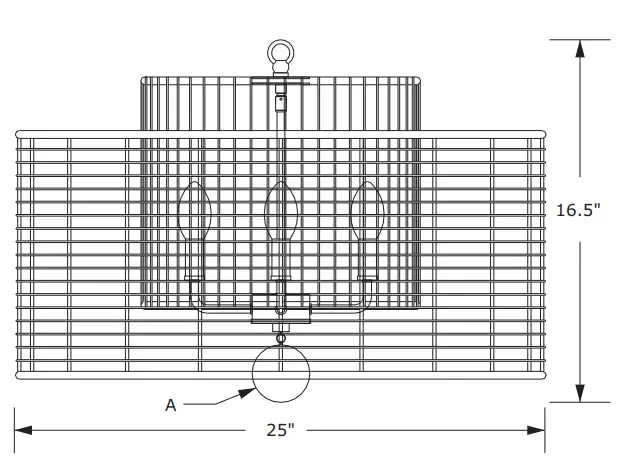

- Hang the wood ball “A” onto the bttom of fixture.
Hangings
- A.1 Set. 70mm
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

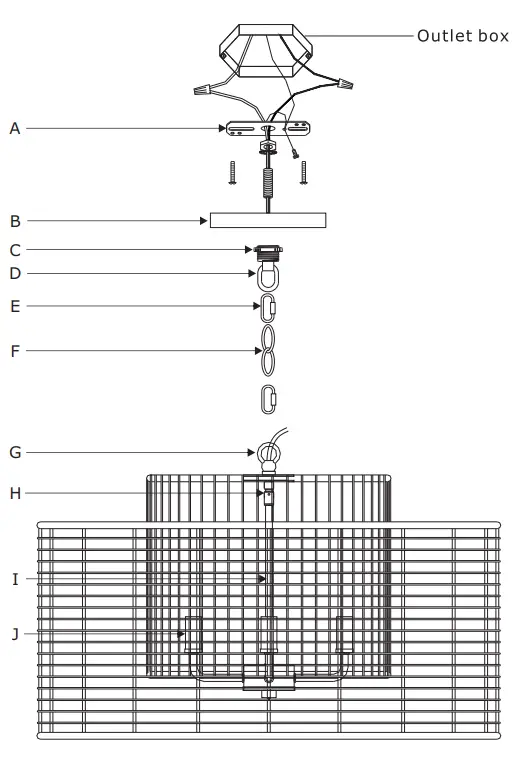

Part Number
- A. (1) – Mounting Hardware
- B. (1) – Canopy (W4.7″,H0.76″) #XRE5004MKCAN4.7IN
- C. (1) – Collar Ring
- D. (1) – Collar Loop
- E. (2) – Quick Link
- F. (1) – Hanging Chain(72″ 4mm) #XRE5004MKCHA4MM
- G. (1) – Fixture Loop
- H. (1) – Swivel
- I. (1) – Center Stem (8.7″ 9.7mm) #XRE5004MKSTEM8.71N
- J. (4) – Candle Sleeve(W0.87″, H1.97″) #XRE5004MKCDL1.97IN
Crystorama Lighting
