ZUC-A9034-EB-GA Four Light Chandelier
Instruction ManualLIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION MODEL# ZUC-A9034-EB-GA

ZUC-A9034-EB-GA Four Light Chandelier

All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.

You will need 4–Candelabra 40 Watts Recommended 60 Watts Max USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DRY RATED

How to Install:

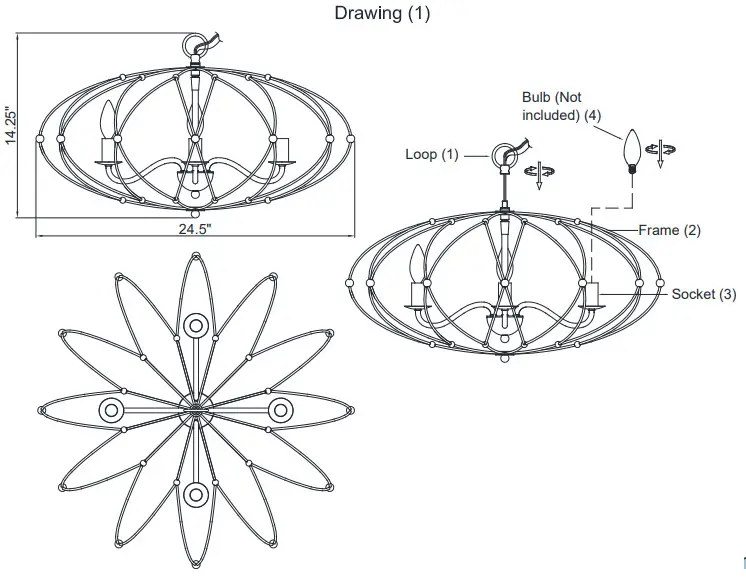

1. Screw the Loop (1) onto the Frame (2).

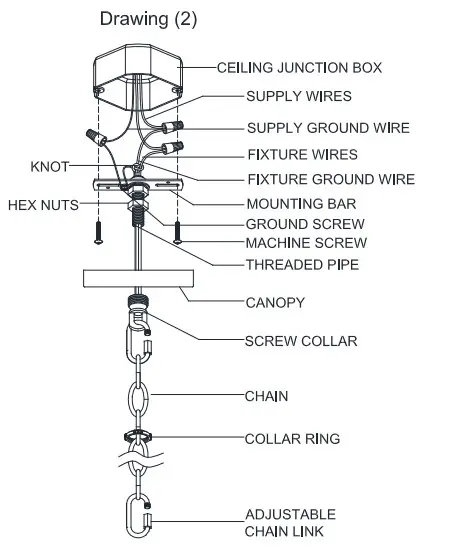

2. The canopy of the fixture can now be mounted to the ceiling by following instruction Drawing 2.
3. Install the Bulb (4) into the Socket (3).
   Bulb replacement:
   Install the Bulb (4) into the Socket (3).

Part Number

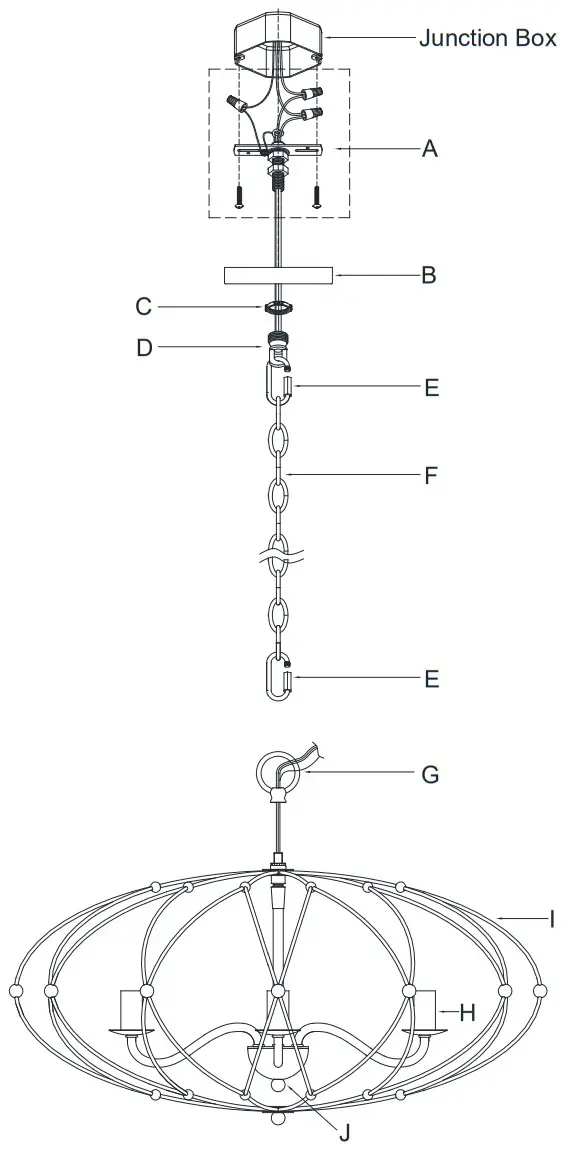

Part Numbers
A. (1) Mounting Hardware
B. (1) Canopy; w5″x h0.75″(XFW9034EBGACAN5IN)
C. (1) Collar Ring
D. (1) Collar Loop
E. (2) Link
F. (1) Chain ; w4.2mm (XFW9030EBGACHA4.2MM)
G. (1) Loop
H. (4) Socket (H2 “)
I. (1) Frame
J. (1) Finial (XFW9030EBGAFIN)

WARNING: This product can expose you to lead,
which is known to the state of califomia to cause
cancer and / or birth defects or reproductive harm.
For more information go to www.P65warnings.ca.gov
