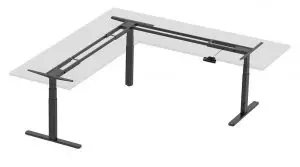

 WORKSTREAM 34827 Monoprice Triple Motor Height Adjustable Sit-Stand Corner Desk Installation Guide

SCREWS/FASTENERS (BAG)

A	M5x16 screws (2pcs extra)	30pcs
B	M6x12 screws (2pcs extra)	48pcs
C	Foot pads	5pcs
D	M6x35 screws	6pcs
E	Connection plate	1pc
F	S=4mm	1pc

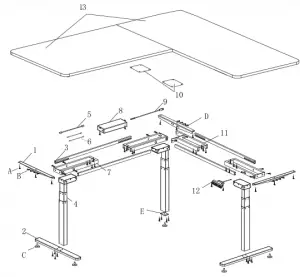

PARTS INCLUDED

1	Side plates	3pcs
2	Feet	2pcs
3	Connecting Roads	4pcs
4	Table legs	3pcs
5	Connecting Line (long)	1pc
6	Connecting Line (Short)	2pcs
7	Frames 1	3pcs
8	Controller Box	1pc

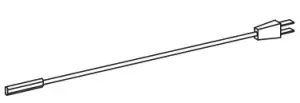

9	Power Cord	1pc
10	Table Board Connection board	2pcs
11	Frames 2	1pc
12	Control Panel	1pc
13	Desktop (not included)	2pcs

INSTALLATION

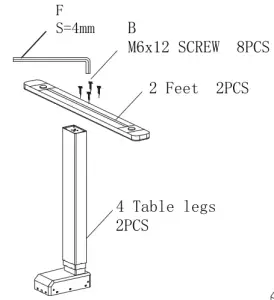

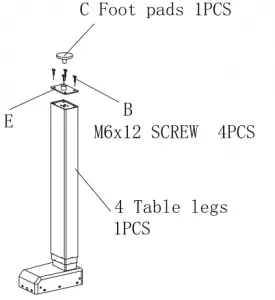

1. Attach the adjusting foot(C) to the feet (2) , connect the table leg (4) to the feet (2), and fasten the screw (B) with the wrench (F). Screw the adjustment foot(C) onto the Connection plate(E) . Place the Connection plate(E) on the table leg 2 and tighten it with the screw (B).

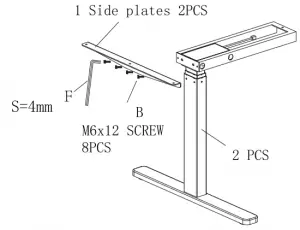

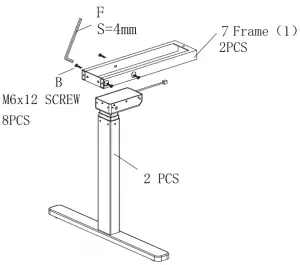

2. Mount the frame 1 (7) and use the wrench (F) to lock the screw (B), fix the side panel (1) to the frame (7) with the screw (B).

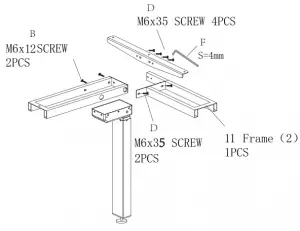

3. Fix the frame 1 (7) with screws (B) Fix the frame 2 (11) with screws ( D ) Secure the side plate (1) with screws (D)

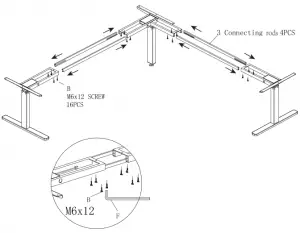

4. 0 Insert the connecting rod (3) into the frame Adjust the distance according to the size of the table, and then tighten the screw (B) with the wrench (F).

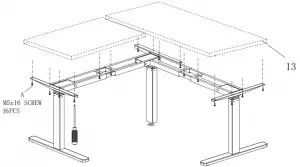

5. Mount the desktop (not included) with screws (A) on the two sides plates.

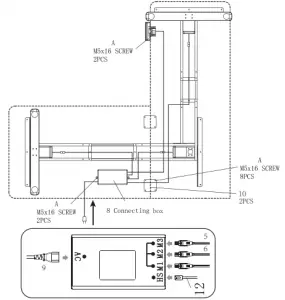

6. 0 Mount the control box (8) under desktop(13) with screws (A). Use the screws (A) to install the controller panel(12) under the desktop. If using two separate table boards, connect and support them with the table connection hardware (10).

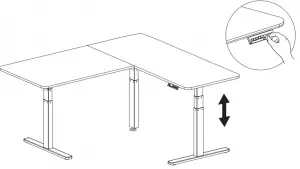

7.

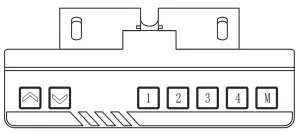

OPERATION

	Press and display real height
	Press and display real height
	Press until 1 appears, release the button, it runs to corresponding height and displays current positions
	Press until 2 appears, release the button, it runs to corresponding height and displays current positions
	Press  until 3 appears, release the button, it runs to corresponding height and displays current positions
	Press until 4 appears, release the button, it runs to corresponding height and displays current positions
	Save button, used to entire the save height function
Memory Position	Set to desired height. Press to set memory position. Indicator flashes, press the preset number [1-4] to save.
Reset	If an error occurs, press for 5 seconds until “RES” is displayed and the desk goes down to the lowest setting.

protection Mode ( Auto lock Mode)
Over-heating protection	Hot: if the desk continuously works for over 2 minutes. Clears automatically after an18 minute cool down period.
Sensorless alarm	El: motor setting not detected, reset or unplug to dear error.
Overload protection	E2: Check for obstructions or overloading, error clears automatically after 3 seconds
Rebound protection	E3 : it alarms in reversed compression when running down, check that there are no obstructions. press any button to dear or reset.
Overvoltage alarm	E3: it alarms when voltage is higher than limit value, dear automatically after voltage reduced to set value.
Undervoltage alarm	E3: it alarms when voltage is lower than limit value: dear automatically after voltage is higher than set value
Step out alarm	E6: it alarms when height difference between left and right leg exceeds the set value; dear it after re-power on.
Breaking protection	Desk enters protection state when motor or control wires are disconnected. Reconnect to restore operation.
Metric and English unit conversion	Press for 3 seconds and it will display- release press until 0 appears, release the button and it display current height,(cm)
	Press for 3 seconds and it will display- release press until 1 appears, release the button and it display current height,(in)
