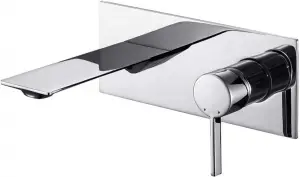

UNTERPUTZ-WANDARMATUR NT7120
MONTAGEANLEITUNG – I / 2018
ASSEMBLY INSTRUCTIONS

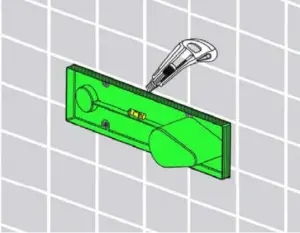

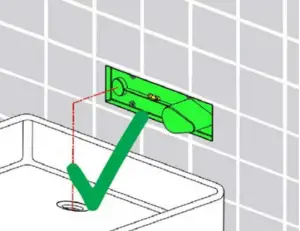

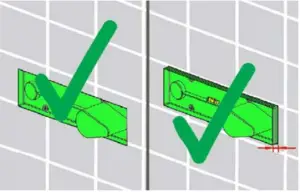

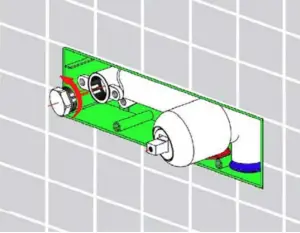

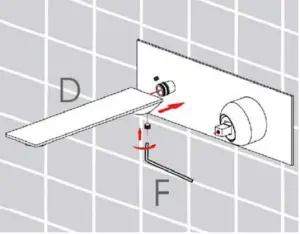

Note: Clean out impurities in the water pipe. The connection for hot water must be installed on the left and cold on the right. Pay attention to horizontal installation. Make sure the spout is on the centerline of basin after installation.

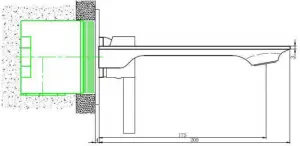

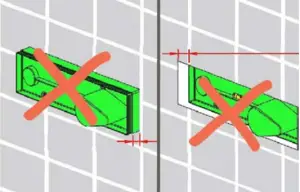

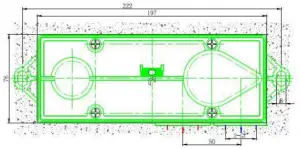

The variable installation depth allows a projection between 0 – 15 mm from the finished wall, which must not be dropped below or exceeded.
2
3
STATEMENT
This instructions should only be considered as a standard manual. Modifications applied to updated version of the product might not be mentioned inside this document. In this case, please just use the manual as a reference. The company reserves modification rights.
4
