Epomaker Eclair 75% Hot-swap Wired/wireless Mechanical Keyboard Kit User Guide

EPOMAKER ECLAIR 75% Hot-Swap Wired/Wireless Mechanical Keyboard Kit

SHORTCUTS

BACKLIGHT SETTINGS

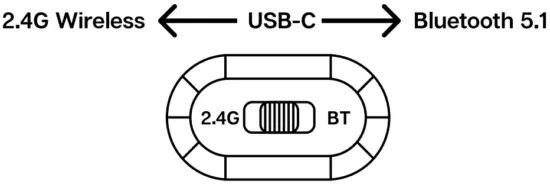

CONNECTION SETTINGS

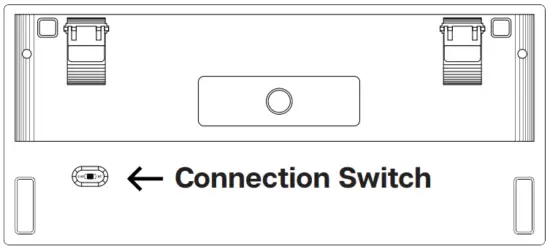

You can find the switch to change the connection switch mode on the back of the keyboard. Move the switch to the left, right or center depending on the mode that you wish to use.

CHANGE RGB EFFECTS

Pressing Fn+ at the same time allows you to switch the RGB effect of your Eclair 75% keyboard kit.

PAIRING BLUETOOTH

Long press the FN+1/2/3 for 3 seconds, the keyboard will start pairing, the light will flash and stays on 10s. If there’s no connection, the keyboard will enter into sleep mode.

PAIRING WIRELESS 2.4GHz

Firstly, turn on the keyboard, press FN+4 to enter 2.4G mode, then press FN+4 key combination 3S to enter pairing mode, plug the receiver into your device, and you will see the light flashes, then exit pairing after successful recognized, the mode LED is always on for 2S, after the 30s, exit pairing mode, the light goes off, and the keyboard goes to sleep.

RECONNECTION INSTRUCTION

When the keyboard is turned on or wakes from sleep mode, only the current device will be reconnected; if the reconnection is unsuccessful, it will go to sleep, and will continue to reconnect after the key is woken up.

The indicator light flashes slowly when reconnecting with Bluetooth, and is always on for 10S after connection. If you press the button during reconnection, the reconnection time will become longer. Counting within 10S after releasing the button, if the pairing is successful, the keyboard will enter pairing mode. If the reconnection fails, the light will go off and the keyboard will enter sleep mode, but the data of last successful pairing will be retained.

PRODUCT SPECIFICATIONS

REPLACING KEYCAPS AND SWITCHES
For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:
https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

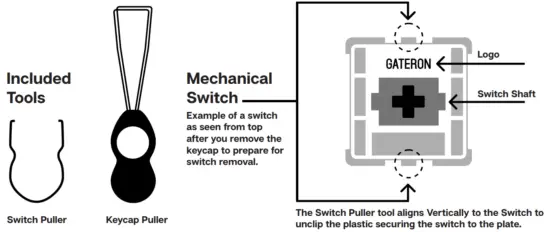

Remove Switches

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switch metallic pins are perfectly straight and clean.
2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
4. Inspect the switch to ensure it’s properly attached to your keyboard, and test it.

  Note: If the key doesn’t work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.
Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email to [email protected] with your purchase order number and a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.

COMMUNITY FORUMS

Join our community and learn together with other keyboard enthusiasts.

https://discord.gg/2q3Z7C2
https://www.reddit.com/user/epomaker/

WARRANTY

EPOMAKER’s Warranty covers any factory defects that might affect the proper functionality of your purchase. It doesn’t cover any damage that may occur from normal wear and tear. If your product is defective we will send you a replacement unit. Replacement units might require you to send the defective unit back to Epomaker

We provide a 1 year warranty for our products when bought from our website (EPOMAKER.com). Your item will not be covered by your 1 year warranty if the inspection shows any sign of modification or changes unsupported by the original product, these include: Changing internal components, Assembling and reassembling the product, Replacing Batteries, etc.

We will ONLY cover the item if it is bought from our official stores. You do not have a warranty with us if you bought the item from another reseller or likewise. Please contact the store that you bought your product from to resolve issues.
