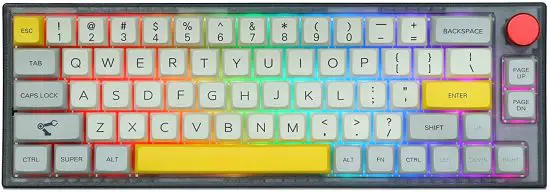

Epomaker Th66 65% Hot-swap Wired/wireless Mechanical Keyboard User Guide

EPOMAKER TH66 65% Hot-Swap Wired/Wireless Mechanical Keyboard User Guide

65% Hot-Swap Wired/Wireless Mechanical Keyboard
This Quick Guide is an introduction to the use and functionality of the EPOMAKER TH66. For in-depth guide of functionality of the customization software please refer to the manual that you can find in the official epomaker website at https://epomaker.com/pages/software-downloads
Should you require more assistance please email us at [email protected]

MODEL: EPOMAKER TH66
SIZE: 323 x 113 x 25mm
NKRO: Yes SYSTEM: Windows / Mac
CONNECTION: USB-C, 2.4GHz Bluetooth 3.0, Bluetooth 5.0.
WEIGHT: 780g ± 50g
HOTSWAP: YES KEYCAPS: PBT
LAYOUT: 66 Keys

CHANGE RGB EFFECTS

Pressing Fn + \| at the same time allows you to switch the RGB effect of your TH66 Keyboard.

PAIRING BLUETOOTH

FN + Q/W/E Long Press for 3 seconds to pair Bluetooth device
FN + Q/W/E Short Press to switch to last paired device
Long press the FN+Q/W/E for 3 seconds, the keyboard will start pairing and the light will flash. If there’s no connection, the keyboard will enter into sleep mode.

PAIRING WIRELESS 2.4 GHz

FN+ R Switch to Wireless Mode

Firstly, turn on the keyboard via the switch on the keyboard’s bottom. Then plug the receiver into your device. After being recognized by your device, press FN+R, you will see the R key’s backlit flashes. When the LED stays on the green, the pairing is successfully done.

BLUETOOTH a WIRELESS 2.4 GHZ SPECIFICATIONS

Operating system should be windows 8 or above to support the Bluetooth function. The device should support Bluetooth 5.0 or a higher version to use Bluetooth 5.0.

KEYBOARD SHORTCUTS

If you switch devices and/or systems, please make sure to press FN+A/S to switch the keyboard layout according to the system you used, or some shortcuts/multimedia keys may not work properly.

KEYBOARD WAKE UP

If your keyboard is sleeping press any key to wake it up, it will remember the last device connected.

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:
https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches.

Push Straight Down

Please be gentle. Be sure the pins are aligned with the slots.
Before installing switches, be sure the pins are clean and straight.

Included Tools

Switch Putter

Keycap Putter

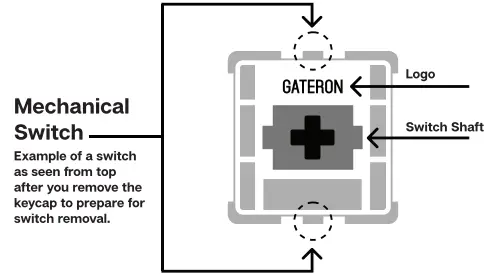

Mechanical Switch

The Switch Putter tool aligns Vertically to the Switch to unclip the plastic securing the switch to the plate.

Remove Switches

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switch metallic pins are perfectly straight and clean.
2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
4. Inspect the switch to ensure it’s properly attached to your keyboard, and test it.

Note: If the key doesn’t work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process. Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email to supponeepomaker.com with your purchase order number and a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for an additional help.

COMMUNITY FORUMS

Join our community and learn together with other keyboard enthusiasts.

https://discord.gg/2q3Z7C2
https://www.reddit.com/user/epomaker/

WARRANTY

EPOMAKER’s Warranty covers any factory defects that might affect the proper functionality of your purchase. It doesn’t cover any damage that may occur from normal wear and tear.

If your product is defective we will send you a replacement unit. Replacement units might require you to send the defective unit back to Epomaker.

We provide a 1 year warranty for our products when bought from our website (EPOMAKER.com). Your item will not be covered by your 1 year warranty if the inspection shows any sign of modification or changes unsupported by the original product, these include: Changing internal components, Assembling and reassembling the product, Replacing Batteries, etc.

We will ONLY cover the item if it is bought from our official stores. You do not have a warranty with us if you bought the item from another reseller or likewise. Please contact the store that you bought your product from to resolve issues.
