Everglide SK87 75% Hot-Swap Wired Wireless Mechanical Keyboard Kit
User Guide

Everglide SK87 75% Hot-Swap Wired Wireless Mechanical Keyboard Kit

This Quick Guide is an introduction to the use and functionality of the EPOMAKER EVERGLADE SK87.
For an in-depth guide on the functionality of the customization software please refer to the manual that you can find on the official epomaker website at https://epomaker.com/pages/software-downloads
Should you require more assistance please email us at [email protected]

Made in China
Manufacturer: Shenzhen Changyun Technology Co., Ltd.
Address: Seventh Floor, Kai Daer Building, No.168 Tongsha Road,
Xili Street, Nanshan District, Shenzhen, Guangdong, CN
Email: [email protected]
Web: www.epomaker.com

https://epomaker.com/pages/software-downloads

APEX CE SPECIALISTS LIMITED
Address: UNIT 3D NORTH POINT HOUSE, NORTH POINT BUSINESS
PARK, NEW MALLOW ROAD CORK, T23 AT2P, IRELAND
Contact: Wells
Tel: +353212066339
Email: [email protected]

CHANGE RGB EFFECTS
Pressing FN+1 at the same time allows you to switch the RGB effect of your Everglide SK87 keyboard kit.

PAIRING BLUETOOTH

1. Long-press Fn + F2 for 5 seconds to enter Bluetooth mode.
2. After entering Bluetooth mode, long-press Fn + Enter for 5 seconds to begin pairing. The enter key backlight will change colors when pairing has started.
3. On your computer’s Bluetooth device discovery menu, select SK87. Enter the pairing password that appears on your computer using the keyboard.
4. Note: If you have changed your Bluetooth profile, each time you pair the keyboard you will have to long-press Fn+Enter
5. Long-pressing Fn + F2, Fn + F3, and Fn + F4 will allow you to switch between three Bluetooth profiles. In order to enter wired/USB mode, long-press FN + F1 (for 5 seconds)
6. For Windows 7 and earlier Operating Systems: After Bluetooth pairing is completed, a computer restart is required.
7. (IMPORTANT) For desktops, USB Bluetooth Adaptors should not be connected through a USB hub, but instead directly to the computer.
8. If you are using wireless cards that come with Bluetooth functionality (such as Intel Ax200), please connect the WiFi antenna for Bluetooth functionality to work.

DISABLING SLEEP MODE FOR BLUETOOTH ADAPTORS

1. Most Bluetooth Adaptors will be in sleep mode upon power on before you log into Windows, hence Bluetooth functionality will not work
2. How to disable Sleep Mode for your Bluetooth Adaptor
   a. Open “Device Manager” and search for your Bluetooth Adaptor (NOTE: Select your Bluetooth Adaptor, NOT the Bluetooth Keyboard. The adaptor in the picture is a Generic USB adaptor, Intel adaptors, etc. will be named differently) Right-click the device and click “Properties”
   b. Go to the “Power Management” tab and untick “Allow the computer to turn off this device to save power”. Click “Apply” to save your changes.

PRODUCT SPECIFICATIONS

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:

https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

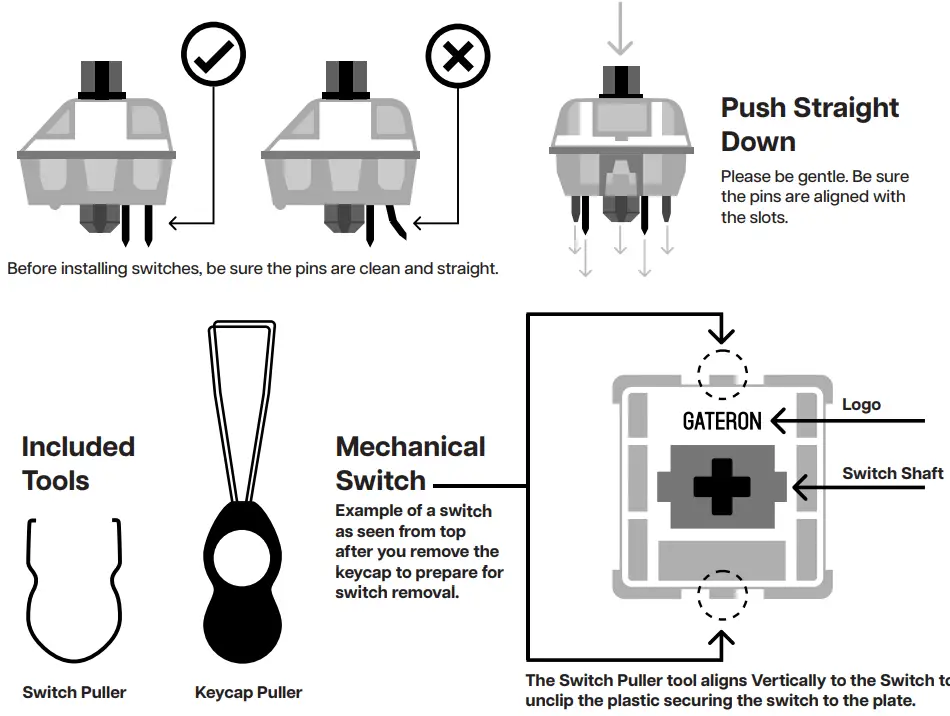

Remove Switches

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switch metallic pins are perfectly straight and clean.
2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
4. Inspect the switch to ensure it’s properly attached to your keyboard, and test it.

Note: If the key doesn’t work it’s possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.
Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email [email protected] with your purchase order number and a detailed description of your issue.
We normally respond to inquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.

COMMUNITY FORUMS
Join our community and learn together with other keyboard enthusiasts.
https://discord.gg/2q3Z7C2
https://www.reddit.com/user/epomaker/

WARRANTY

EPOMAKER’s Warranty covers any factory defects that might affect the proper functionality of your purchase. It doesn’t cover any damage that may occur from normal wear and tear. If your product is defective we will send you a replacement unit. Replacement units might require you to send the defective unit back to Epomaker.
We provide a 1-year warranty for our products when bought from our website (EPOMAKER.com). Your item will not be covered by your 1-year warranty if the inspection shows any sign of modification or changes unsupported by the original product, these include: Changing internal components, Assembling and reassembling the product, Replacing Batteries, etc.
We will ONLY cover the item if it is bought from our official stores. You do not have a warranty with us if you bought the item from another reseller or likewise. Please contact the store that you bought your product from to resolve issues.
