EPOMAKER
Everglide SK98 DIY Kit
1800 Compact 98 Keys Hot Swappable Wired/Wireless Mechanical Gaming Keyboard DIY Kit
Should you require more assistance please email us at [email protected]

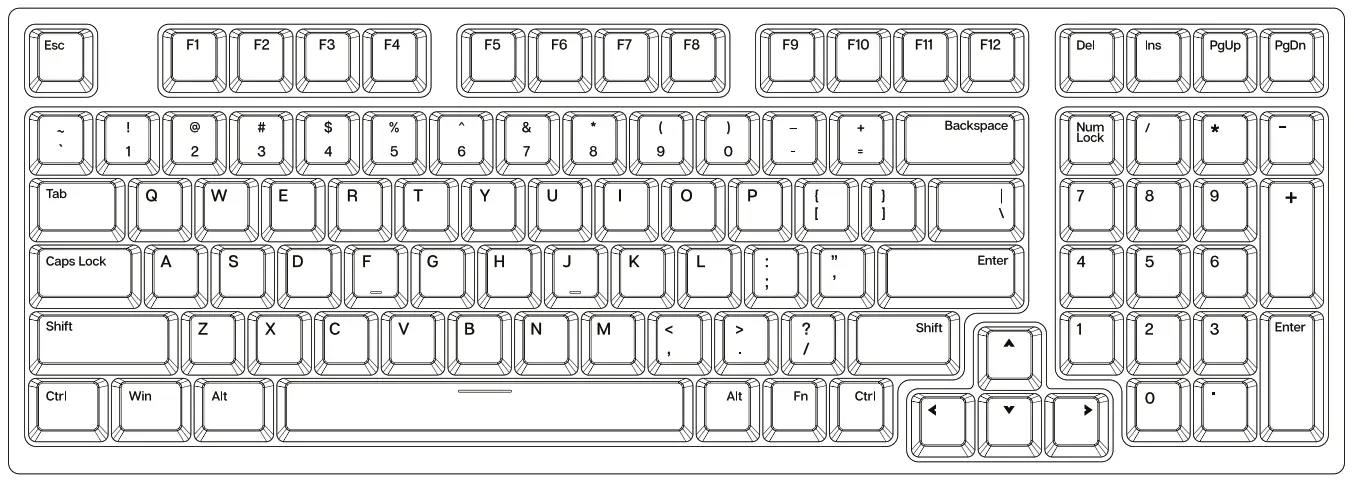

SHORTCUT KEY FUNCTION
| Spacebar (Double click) | Wake the keyboard | Fn+Enter (Numpad) | Mute |
| Fn+Fl (Hold for 5s) | Wired Mode | Fn+Enter (mainboard) | Bluetooth Pairing |
| Fn+F2 (Hold for 5s) | Bluetooth A | (Numpad, Fn+O hold for 5s) | The backlight is on/off Under the Wireless Mode |
| Fn+F3 (Hold for 55) | Bluetooth B | Fn+.Del | Sleep Mode |
| Fn+F4 (Hold for 55) | Bluetooth C | Fn+Tab | Toggle Underglow Lights |
| Fn+F5 (Hold for 55) | Switching Wireless Mc | Fn+ — | Toggle Backlight Effects |
| Fn+F9 (Hold for 55) | Layer 1 | Fn+ T | Backlight Brightness + |
| Fn+F10 (Hold for 55) | Layer 2 | Fn+ 1, | Backlight Brightness – |
| Fn+F11 (Hold for 5s) | Standard Layer | Fn+e | Previous Track |
| Fn+Fl 2 (Hold for 5s) | Mac Mode | Fn+-* | Next Track |
| Fn+Backspace | Calculator | Fn+Win-L | Win lock |
| Fn+ – (Numpad) | Volume – | Fn+Esc (Hold for 5s) | Reset the keyboard |
| Fn+ + (Numpad) | Volume + | ||
CHANGE RGB EFFECTS
Pressing Fn+ ~ to switch the RGB effect of your Everglide SK98 keyboard kit.
PAIRING BLUETOOTH
Hold Fn+F2 / Fn+F3 / Fn+F4 for 5 seconds to choose one Bluetooth device.
Hold Fn+Enter (Mainboard) for 5 seconds to start the pairing mode. Turn on the Bluetooth setting and search for ‘SK98’, then pair.
After the hold Fn+F2/F3/F4 to toggle between the Bluetooth devices A/B/C.
WIRED MODE
Holding Fn+F1 for 5 seconds to switch to the wired mode.
DRIVING OPERATING ENVIRONMENT
Windows 7 or later, Windows 10 is recommended.
SPECIFICATION PARAMETER
| KEYS AMOUNT: | 98 Keys |
| STRUCTURE: | Gasket-mounted |
| STABILIZER TYPE: | Screw-in |
| PCB TYPE: | Hotswap PCB |
| PLATE MATERIAL: | PC/Carbon |
| BATTERY CAPACITY: | 10000mAh |
| CONNECTIVITY: | Type-C Wired & Bluetooth Wireless |
| ANTI-GHOST KEY: | NKRO in all modes |
| COMPATIBILITY: | WINDOWS/MAC |
| DIMENSION: | 387 x 143 x 33 mm |
| WEIGHT: | Around 1.65kg |
REPLY A CING KEY CAPS AND S WITH C H E S
For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:

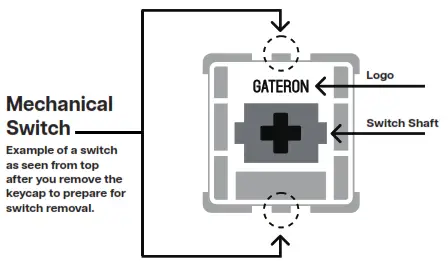

Remove Switches
- Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
- Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
- Using firm but gentle force pull the switch away from the keyboard using a vertical motion.
| Push Straight Down Please be gentle. Be sure the pins are aligned with the slots.  |  |
The Switch Puller tool aligns Vertically to the Switch to unclip the plastic securing the switch to the plate.
Install Switches

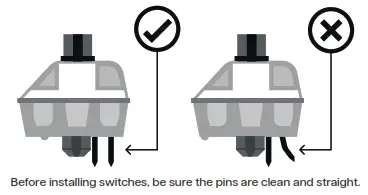

- Check that all the switch metallic pins are perfectly straight and clean.
- Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
- Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
- Inspect the switch to ensure it’s properly attached to your keyboard, and test it.
Note: If the key doesn’t work it’s possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.
Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.
TECHNICAL ASSISTANCE
For technical assistance, please email [email protected] with your purchase order number and a detailed description of your issue. We normally respond to inquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.
COMMUN FORUMS
Join our community and learn together with other keyboard enthusiasts.
https://discord.gg/2q3Z7C2
https://www.reddit.com/r/Epomaker/
WARRANTY
EPOMAKER’s Warranty covers any factory defects that might affect the proper functionality of your purchase. It doesn’t cover any damage that may occur from normal wear and tear. If your product is defective we will send you a replacement unit. Replacement units might require you to send the defective unit back to Epomaker.
We provide a 1-year warranty for our products when bought from our website (EPOMAKER.com). Your item will not be covered by your 1-year warranty if the inspection shows any sign of modification or changes unsupported by the original product, these include: Changing internal components, Assembling and reassembling the product, Replacing Batteries, etc.
We will ONLY cover the item if it is bought from our official stores. You do not have a warranty with us if you bought the item from another reseller or likewise. Please contact the store that you bought your product from to resolve issues.
https://epomaker.com/pages/software-downloads
Made in China
Manufacturer: Shenzhen Changyun Technology Co., Ltd.
Address: Seventh Floor, Kai Daer Building, No.168 Tongsha Road,
Xili Street, Nanshan District, Shenzhen, Guangdong, CN
Email: [email protected]
Web: www.epomaker.com
APEX CE SPECIALISTS LIMITED
Address: UNIT 3D NORTH POINT HOUSE, NORTH POINT BUSINESS
PARK, NEW MALLOW ROAD CORK, T23 AT2P, IRELAND
Contact: Wells
Tel: +353212066339
Email: [email protected]
ce.com
