OMNIA S 3.2
POMPE DI CALORE REVERSIBILI ARIA-ACQUA PER INSTALLAZIONE SPLITTATA
ABBINABILE AD UN BOLLITORE SANITARIO ESTERNO
AIR-WATER REVERSIBLE HEAT PUMPS FOR SPLIT INSTALLATION
COMBINED WITH AN EXTERNAL SANITARY BOILER
TECHNICAL BULLETIN

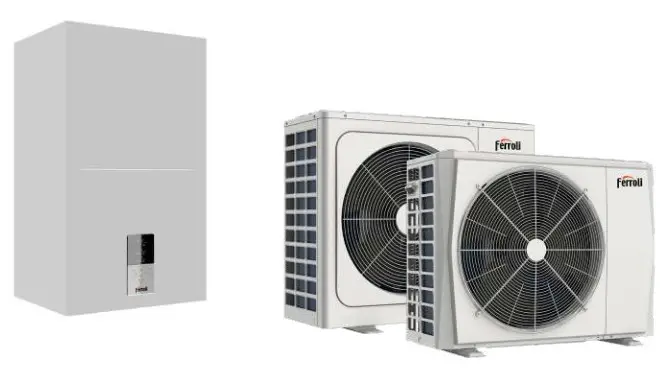

Omnia S 3.2 Air Water Reversible Heat Pumps for Split
Dati ERP
| Dati ERP / ERP data | |||||||||||
| Models | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 12T | 14T | 16T | UM |
| Seasonal space low temperature (water outlet at 35°C) | 191 | 195 | 205 | 204 | 189 | 185 A+++ | 182 | 189 | 185 | 182 | ηs (%) class |
| A++ | class | ||||||||||||
| SCOP | low temperature (water outlet at 35°C) medium temperature (water at 55°C) | 4,85 3,31 | 4,95 3,52 | 5,21 3,36 | 5,19 3,49 | 4,81 3,45 | 4,72 3,47 | 4,62 3,41 | 4,81 3,45 | 4,72 3,47 | 4,62 3,41 | W/W W/W | |
| water at 7°C | 4,99 | 5,34 | 5,83 | 5,98 | 4,89 | 4,86 | 4,69 | 4,86 | 4,83 | 4,67 | W/W | ||
| water at 18°C | 7,77 | 8,21 | 8,95 | 8,78 | 7,10 | 6,90 | 6,75 | 7,04 | 6,85 | 6,71 | W/W |
The manufacturer declines all responsibility for any inaccuracies in this manual due to printing or typing errors.
The manufacturer reserves the right to modify the products contents in this catalogue without previous notice.
ERP DATA FOR SPACE HEATING
For low – temperature application (35°C) | ||||||||||||
|
Mod | Average | Colder | Warmer | |||||||||
| Energy efficiency class | Indoor unit sound power | Outdoor unit sound power | Prated | Seasonal energy efficiency | Annual energy consumption | Prated | Seasonal energy efficiency | Annual energy consumption | Prated | Seasonal energy efficiency | Annual energy consumption | |
| OMNIA S 3.2 HI3 4 | A+++ | 39 | 55 | 5 | 191 | 2351 | 5 | 160 | 2769 | 5 | 255 | 1146 |
| OMNIA S 3.2 HI3 6 | A+++ | 39 | 58 | 7 | 195 | 2845 | 6 | 165 | 3300 | 6 | 260 | 1244 |
| OMNIA S 3.2 HI3 8 | A+++ | 39 | 59 | 8 | 205 | 3218 | 7 | 170 | 3976 | 8 | 277 | 1551 |
| OMNIA S 3.2 HI3 10 | A+++ | 39 | 60 | 9 | 204 | 3644 | 8 | 170 | 4423 | 9 | 281 | 1617 |
| OMNIA S 3.2 HI3 12 | A+++ | 40 | 65 | 12 | 189 | 5152 | 11 | 160 | 6870 | 11 | 256 | 2292 |
| OMNIA S 3.2 HI3 14 | A+++ | 40 | 65 | 14 | 185 | 6012 | 13 | 160 | 7667 | 12 | 260 | 2457 |
| OMNIA S 3.2 HI3 16 | A+++ | 40 | 68 | 15 | 182 | 6804 | 14 | 158 | 8431 | 13 | 249 | 2781 |
| OMNIA S 3.2 HI6 12T | A+++ | 40 | 65 | 12 | 189 | 5153 | 11 | 160 | 6871 | 11 | 256 | 2296 |
| OMNIA S 3.2 HI6 14T | A+++ | 40 | 65 | 14 | 185 | 6013 | 13 | 160 | 7667 | 12 | 260 | 2462 |
| OMNIA S 3.2 HI6 16T | A+++ | 40 | 68 | 15 | 182 | 6805 | 14 | 158 | 8431 | 13 | 248 | 2786 |
| For medium – temperature application (55°C) | ||||||||||||
|
Mod | Average | Colder | Warmer | |||||||||
| Energy efficiency class | Indoor unit sound power | Outdoor unit sound power | Prated | Seasonal energy efficiency | Annual energy consumption | Prated | Seasonal energy efficiency | Annual energy consumption | Prated | Seasonal energy efficiency | Annual energy consumption | |
| OMNIA S 3.2 HI3 4 | A++ | 39 | 55 | 4 | 129 | 2744 | 3 | 102 | 3158 | 5 | 163 | 1614 |
| OMNIA S 3.2 HI3 6 | A++ | 39 | 58 | 6 | 138 | 3345 | 4 | 111 | 3680 | 5 | 165 | 1634 |
| OMNIA S 3.2 HI3 8 | A++ | 39 | 59 | 7 | 131 | 4056 | 6 | 112 | 4948 | 8 | 177 | 2242 |
| OMNIA S 3.2 HI3 10 | A++ | 39 | 60 | 8 | 136 | 4539 | 7 | 116 | 5539 | 9 | 182 | 2496 |
| OMNIA S 3.2 HI3 12 | A++ | 40 | 65 | 12 | 135 | 6927 | 10 | 118 | 8419 | 12 | 174 | 3776 |
| OMNIA S 3.2 HI3 14 | A++ | 40 | 65 | 12 | 135 | 7202 | 11 | 119 | 8866 | 14 | 177 | 4088 |
| OMNIA S 3.2 HI3 16 | A++ | 40 | 68 | 13 | 133 | 7895 | 12 | 122 | 9309 | 14 | 176 | 4112 |
| OMNIA S 3.2 HI6 12T | A++ | 40 | 65 | 12 | 135 | 6928 | 10 | 118 | 8420 | 12 | 174 | 3780 |
| OMNIA S 3.2 HI6 14T | A++ | 40 | 65 | 12 | 135 | 7203 | 11 | 119 | 8867 | 14 | 176 | 4092 |
| OMNIA S 3.2 HI6 16T | A++ | 40 | 68 | 13 | 133 | 7896 | 12 | 122 | 9310 | 14 | 176 | 4116 |
Product fiche 1
| Heat pump space heater | Model OMNIA S 3.2 | 4 | 6 | 8 | 10 | 12 | |
| Unit sound pow er (*) | Average clim ate low temperature application (indoor / outdoor) | [dB(A)] | 39 / 56 | 39 / 58 | 39 / 59 | 39 / 60 | 40 / 64 |
| Average climate medium temperature application (indoor / outdoor) | [dB(A)] | 39 / 55 | 39 / 57 | 39 / 59 | 39 / 60 | 40 / 64 | |
| Capicity of the back-up heater integrated in the unit | Psup back-up heater (optional) | [kW] | 0/3 | 0/3 | 0/3/9 | 0/3/9 | 0/3/9 |
| Space heating | Energy efficiency class 35°C (Low temp. app.) | – | A+++ | A+++ | A+++ | A+++ | A+++ |
| Space heating | Energy efficiency class 55°C (Medium temp. app.) | – | A++ | A++ | A++ | A++ | A++ |
| Average climate (Design temperature = –10°C) | |||||||
|
Space heating 35°C | Prated (declared heating capacity) @ –10°C | [kW] | 5.5 | 6.8 | 8.1 | 9.2 | 12.0 |
| Seasonal space heating efficiency (η s) | [%] | 191 | 195 | 205 | 204 | 189 | |
| Annual energy consumption | [kWh] | 2,351 | 2,845 | 3,218 | 3644 | 5,152 | |
|
Space heating 55°C | Prated (declared heating capacity) @ –10°C | [kW] | 4.4 | 5.7 | 6.6 | 7.7 | 11.6 |
| Seasonal space heating efficiency (η s) | [%] | 129 | 138 | 131 | 136 | 135 | |
| Annual energy consumption | [kWh] | 2,744 | 3,345 | 4,056 | 4,539 | 6,927 | |
| Part load conditions space heating average climate low temperature application | |||||||
| (A) condition (-7°C) | Pdh (declared heating capacity) | [kW] | 4.88 | 6.03 | 7.18 | 8.10 | 10.61 |
| COPd (declared COP) | – | 3.19 | 3.09 | 3.35 | 3.23 | 2.88 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 3.05 | 3.88 | 4.65 | 5.18 | 6.69 |
| COPd (declared COP) | – | 4.78 | 4.85 | 5.09 | 5.01 | 4.65 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 1.93 | 2.39 | 2.90 | 3.32 | 4.44 |
| COPd (declared COP) | – | 6.13 | 6.63 | 6.82 | 7.08 | 6.62 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 1.48 | 1.39 | 1.63 | 1.65 | 3.74 |
| COPd (declared COP) | – | 8.05 | 7.93 | 8.35 | 8.58 | 8.47 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| Heat pump space heater | Model OMNIA S 3.2 | 14 | 16 | 12T | 14T | 16T | |
| Unit sound pow er (*) | Average clim ate low temperature application (indoor / outdoor) | [dB(A)] | 40 / 65 | 40 / 68 | 40 / 64 | 40 / 65 | 40 / 68 |
| Average climate medium temperature application (indoor / outdoor) | [dB(A)] | 40 / 65 | 40 / 67 | 40 / 64 | 40 / 65 | 40 / 67 | |
| Capicity of the back-up heater integrated in the unit | Psup back-up heater (optional) | [kW] | 0/3/9 | 0/3/9 | 0/3/9 | 0/3/9 | 0/3/9 |
| Space heating | Energy efficiency class 35°C (Low temp. app.) | – | A+++ | A+++ | A+++ | A+++ | A+++ |
| Space heating | Energy efficiency class 55°C (Medium temp. app.) | – | A++ | A++ | A++ | A++ | A++ |
| Average climate (Design temperature = –10°C) | |||||||
|
Space heating 35°C | Prated (declared heating capacity) @ –10°C | [kW] | 13.7 | 15.2 | 12.0 | 13.7 | 15.2 |
| Seasonal space heating efficiency (η s) | [%] | 185 | 182 | 189 | 185 | 182 | |
| Annual energy consumption | [kWh] | 6,012 | 6,804 | 5,153 | 6,013 | 6,805 | |
|
Space heating 55°C | Prated (declared heating capacity) @ –10°C | [kW] | 12.1 | 13.0 | 11.6 | 12.1 | 13.0 |
| Seasonal space heating efficiency (η s) | [%] | 135 | 133 | 135 | 135 | 133 | |
| Annual energy consumption | [kWh] | 7,202 | 7,895 | 6,928 | 7,203 | 7,896 | |
| Part load conditions space heating average climate low temperature application | |||||||
| (A) condition (-7°C) | Pdh (declared heating capacity) | [kW] | 12.14 | 13.45 | 10.61 | 12.14 | 13.45 |
| COPd (declared COP) | – | 2.79 | 2.72 | 2.88 | 2.79 | 2.72 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 7.94 | 8.56 | 6.69 | 7.94 | 8.56 |
| COPd (declared COP) | – | 4.52 | 4.41 | 4.65 | 4.52 | 4.41 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 5.20 | 5.70 | 4.44 | 5.20 | 5.70 |
| COPd (declared COP) | – | 6.68 | 6.56 | 6.62 | 6.68 | 6.56 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 3.75 | 3.78 | 3.74 | 3.75 | 3.78 |
| COPd (declared COP) | – | 8.52 | 8.51 | 8.47 | 8.52 | 8.51 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
Product fiche 2
| Heat pump space heater | Model OMNIA S 3.2 | 4 | 6 | 8 | 10 | 12 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | -10.00 | -10.00 | -10.00 | -10.00 | -10.00 |
| Pdh (declared heating capacity) | [kW] | 4.41 | 5.36 | 6.44 | 7.40 | 10.74 | |
| COPd (declared COP) | – | 2.86 | 2.76 | 3.04 | 2.96 | 2.77 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 60.00 | 60.00 | 60.00 | 60.00 | 60.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | -7.00 | -7.00 | -7.00 | -7.00 | -7.00 |
| Pdh (declared heating capacity) | [kW] | 4.88 | 6.03 | 7.18 | 8.10 | 10.61 | |
| COPd (declared COP) | – | 3.19 | 3.09 | 3.35 | 3.23 | 2.88 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: –10°C) | [kW] | 1.11 | 1.45 | 1.68 | 1.76 | 1.26 |
| Part load conditions space heating average climate medium temperature application | |||||||
| (A) condition (-7°C) | Pdh (declared heating capacity) | [kW] | 3.89 | 5.04 | 5.84 | 6.78 | 10.24 |
| COPd (declared COP) | – | 2.17 | 2.17 | 2.16 | 2.24 | 2.01 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 2.38 | 3.12 | 3.76 | 4.28 | 6.52 |
| COPd (declared COP) | – | 3.30 | 3.51 | 3.30 | 3.42 | 3.44 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 2.94 | 2.08 | 2.43 | 2.77 | 4.36 |
| COPd (declared COP) | – | 4.41 | 4.54 | 4.34 | 4.52 | 4.59 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 1.32 | 1.28 | 1.39 | 1.58 | 3.29 |
| COPd (declared COP) | – | 5.66 | 5.59 | 5.33 | 5.68 | 6.05 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | -10.00 | -10.00 | -10.00 | -10.00 | -10.00 |
| Pdh (declared heating capacity) | [kW] | 3.42 | 4.52 | 4.91 | 5.38 | 9.10 | |
| COPd (declared COP) | – | 1.91 | 1.91 | 1.84 | 1.83 | 1.79 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 60.00 | 60.00 | 60.00 | 60.00 | 60.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | -7.00 | -7.00 | -7.00 | -7.00 | -7.00 |
| Pdh (declared heating capacity) | [kW] | 3.89 | 5.04 | 5.84 | 6.78 | 10.27 | |
| COPd (declared COP) | – | 2.17 | 2.17 | 2.16 | 2.24 | 2.01 | |
ERP PRODUCT FICHE FOR SPACE HEATING
| Heat pump space heater | Model OMNIA S 3.2 | 14 | 16 | 12T | 14T | 16T | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | -10.00 | -10.00 | -10.00 | -10.00 | -10.00 |
| Pdh (declared heating capacity) | [kW] | 11.47 | 12.52 | 10.74 | 11.47 | 12.52 | |
| COPd (declared COP) | – | 2.59 | 2.48 | 2.77 | 2.59 | 2.48 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 60.00 | 60.00 | 60.00 | 60.00 | 60.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | -7.00 | -7.00 | -7.00 | -7.00 | -7.00 |
| Pdh (declared heating capacity) | [kW] | 12.14 | 13.45 | 10.61 | 12.14 | 13.45 | |
| COPd (declared COP) | – | 2.79 | 2.72 | 2.88 | 2.79 | 2.72 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: –10°C) | [kW] | 2.23 | 2.68 | 1.26 | 2.23 | 2.68 |
| Part load conditions space heating average climate medium temperature application | |||||||
| (A) condition (-7°C) | Pdh (declared heating capacity) | [kW] | 10.68 | 11.52 | 10.24 | 10.68 | 11.52 |
| COPd (declared COP) | – | 2.01 | 1.99 | 2.01 | 2.01 | 1.99 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 6.86 | 7.18 | 6.52 | 6.86 | 7.18 |
| COPd (declared COP) | – | 3.43 | 3.34 | 3.44 | 3.43 | 3.34 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 4.63 | 4.67 | 4.36 | 4.63 | 4.67 |
| COPd (declared COP) | – | 4.66 | 4.61 | 4.59 | 4.66 | 4.61 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 3.31 | 3.32 | 3.29 | 3.31 | 3.32 |
| COPd (declared COP) | – | 6.13 | 6.07 | 6.05 | 6.13 | 6.07 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | -10.00 | -10.00 | -10.00 | -10.00 | -10.00 |
| Pdh (declared heating capacity) | [kW] | 9.19 | 10.33 | 9.10 | 9.19 | 10.33 | |
| COPd (declared COP) | – | 1.76 | 1.80 | 1.79 | 1.76 | 1.80 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 60.00 | 60.00 | 60.00 | 60.00 | 60.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | -7.00 | -7.00 | -7.00 | -7.00 | -7.00 |
| Pdh (declared heating capacity) | [kW] | 10.68 | 11.52 | 10.27 | 10.68 | 11.52 | |
| COPd (declared COP) | – | 2.01 | 1.99 | 2.01 | 2.01 | 1.99 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: –10°C) | [kW] | 2.91 | 2.67 | 2.50 | 2.91 | 2.67 |
| Heat pump space heater | Model OMNIA S 3.2 | 4 | 6 | 8 | 10 | 12 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: –10°C) | [kW] | 0.98 | 1.18 | 1.69 | 2.28 | 2.50 |
| Colder climate (Design temperature = –22°C) | |||||||
|
Space heating 35°C | Prated (declared heating capacity) @ –22°C | [kW] | 4.6 | 5.6 | 7.0 | 7.7 | 11.4 |
| Seasonal space heating efficiency (η s) | [%] | 160 | 165 | 170 | 170 | 160 | |
| Annual energy consumption | [kWh] | 2,769 | 3,300 | 3,976 | 4,423 | 6,870 | |
|
Space heating 55°C | Prated (declared heating capacity) @ –22°C | [kW] | 3.4 | 4.3 | 5.8 | 6.7 | 10.3 |
| Seasonal space heating efficiency (η s ) | [%] | 102 | 111 | 112 | 116 | 118 | |
| Annual energy consumption | [kWh] | 3,158 | 3,680 | 4,948 | 5,539 | 8,419 | |
| Part load conditions space heating colder climate low temperature application | |||||||
| (A) condition (-7°C) | Pdh (declared heating capacity) | [kW] | 2.75 | 3.42 | 4.46 | 4.83 | 7.05 |
| COPd (declared COP) | – | 3.49 | 3.59 | 3.66 | 3.60 | 3.48 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 1.77 | 2.06 | 2.69 | 2.94 | 4.67 |
| COPd (declared COP) | – | 4.95 | 5.21 | 5.20 | 5.26 | 4.96 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 1.17 | 1.46 | 1.65 | 1.92 | 3.14 |
| COPd (declared COP) | – | 5.53 | 6.24 | 6.53 | 7.08 | 6.10 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 1.43 | 1.44 | 1.65 | 1.65 | 3.57 |
| COPd (declared COP) | – | 7.67 | 7.66 | 7.96 | 7.96 | 7.87 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | -22.00 | -22.00 | -22.00 | -22.00 | -22.00 |
| Pdh (declared heating capacity) | [kW] | 2.80 | 3.48 | 4.06 | 4.62 | 7.01 | |
| COPd (declared COP) | – | 1.97 | 1.96 | 1.95 | 1.97 | 1.98 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 51.00 | 51.00 | 51.00 | 51.00 | 51.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | -15.00 | -15.00 | -15.00 | -15.00 | -15.00 |
| Pdh (declared heating capacity) | [kW] | 3.72 | 4.59 | 5.69 | 6.32 | 9.28 | |
| COPd (declared COP) | – | 2.57 | 2.53 | 2.83 | 2.64 | 2.59 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: –22°C) | [kW] | 1.76 | 2.15 | 2.91 | 3.08 | 4.40 |
| Heat pump space heater | Model OMNIA S 3.2 | 14 | 16 | 12T | 14T | 16T | |
| Colder climate (Design temperature = –22°C) | |||||||
|
Space heating 35°C | Prated (declared heating capacity) @ –22°C | [kW] | 12.6 | 13.7 | 11.4 | 12.6 | 13.7 |
| Seasonal space heating efficiency (η s) | [%] | 160 | 158 | 160 | 160 | 158 | |
| Annual energy consumption | [kWh] | 7,667 | 8,431 | 6,871 | 7,667 | 8,431 | |
|
Space heating 55°C | Prated (declared heating capacity) @ –22°C | [kW] | 11.0 | 11.8 | 10.3 | 11.0 | 11.8 |
| Seasonal space heating efficiency (η s) | [%] | 119 | 122 | 118 | 119 | 122 | |
| Annual energy consumption | [kWh] | 8,866 | 9,309 | 8,420 | 8,867 | 9,310 | |
| Part load conditions space heating colder climate low temperature application | |||||||
| (A) condition (-7°C) | Pdh (declared heating capacity) | [kW] | 7.96 | 8.31 | 7.05 | 7.96 | 8.31 |
| COPd (declared COP) | – | 3.44 | 3.37 | 3.48 | 3.44 | 3.37 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 5.05 | 5.26 | 4.67 | 5.05 | 5.26 |
| COPd (declared COP) | – | 4.92 | 4.86 | 4.96 | 4.92 | 4.86 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 3.15 | 3.62 | 3.14 | 3.15 | 3.62 |
| COPd (declared COP) | – | 6.11 | 6.49 | 6.10 | 6.11 | 6.49 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 3.57 | 3.34 | 3.57 | 3.57 | 3.34 |
| COPd (declared COP) | – | 7.82 | 7.40 | 7.87 | 7.82 | 7.40 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | -22.00 | -22.00 | -22.00 | -22.00 | -22.00 |
| Pdh (declared heating capacity) | [kW] | 7.57 | 8.88 | 7.01 | 7.57 | 8.88 | |
| COPd (declared COP) | – | 1.92 | 1.97 | 1.98 | 1.92 | 1.97 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 51.00 | 51.00 | 51.00 | 51.00 | 51.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | -15.00 | -15.00 | -15.00 | -15.00 | -15.00 |
| Pdh (declared heating capacity) | [kW] | 10.31 | 11.22 | 9.28 | 10.31 | 11.22 | |
| COPd (declared COP) | – | 2.53 | 2.43 | 2.59 | 2.53 | 2.43 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: –22°C) | [kW] | 5.03 | 4.82 | 4.40 | 5.03 | 4.82 |
| Heat pump space heater | Model OMNIA S 3.2 | 4 | 6 | 8 | 10 | 12 | |
| Part load conditions space heating colder climate medium temperature application | |||||||
| (A) condition (-7°C) | Pdh (declared heating capacity) | [kW] | 2.13 | 2.69 | 3.86 | 4.27 | 6.63 |
| COPd (declared COP) | – | 2.32 | 2.46 | 2.48 | 2.54 | 2.63 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 1.28 | 1.60 | 2.21 | 2.57 | 4.06 |
| COPd (declared COP) | – | 2.99 | 3.36 | 3.35 | 3.51 | 3.60 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 1.01 | 1.02 | 1.44 | 1.65 | 2.78 |
| COPd (declared COP) | – | 3.86 | 3.94 | 4.11 | 4.37 | 4.54 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 1.36 | 1.37 | 1.47 | 1.48 | 3.33 |
| COPd (declared COP) | – | 6.28 | 6.35 | 5.92 | 5.96 | 6.25 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | -22.00 | -22.00 | -22.00 | -22.00 | -22.00 |
| Pdh (declared heating capacity) | [kW] | 1.64 | 2.09 | 2.80 | 2.80 | 4.19 | |
| COPd (declared COP) | – | 1.02 | 1.13 | 1.22 | 1.22 | 1.13 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 51.00 | 51.00 | 51.00 | 51.00 | 51.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | -15.00 | -15.00 | -15.00 | -15.00 | -15.00 |
| Pdh (declared heating capacity) | [kW] | 2.74 | 3.47 | 4.71 | 5.47 | 8.41 | |
| COPd (declared COP) | – | 1.74 | 1.86 | 1.90 | 2.00 | 1.84 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: –22°C) | [kW] | 1.72 | 2.17 | 2.97 | 3.91 | 6.12 |
| Warmer climate (Design temperature = 2°C) | |||||||
|
Space heating 35°C | Prated (declared heating capacity) @ 2°C | [kW] | 5.5 | 6.1 | 8.1 | 8.6 | 11.1 |
| Seasonal space heating efficiency (ηs) | [%] | 255 | 260 | 277 | 281 | 256 | |
| Annual energy consumption | [kWh] | 1,146 | 1,244 | 1,551 | 1,617 | 2,292 | |
|
Space heating 55°C | Prated (declared heating capacity) @ 2°C | [kW] | 5.0 | 5.1 | 7.6 | 8.6 | 12.5 |
| Seasonal space heating efficiency (ηs) | [%] | 163 | 165 | 177 | 182 | 174 | |
| Annual energy consumption | [kWh] | 1,614 | 1,634 | 2,242 | 2,496 | 3,776 | |
| Heat pump space heater | Model OMNIA S 3.2 | 14 | 16 | 12T | 14T | 16T | |
| Part load conditions space heating colder climate medium temperature application | |||||||
| (A) condition (-7°C) | Pdh (declared heating capacity) | [kW] | 6.89 | 7.64 | 6.63 | 6.89 | 7.64 |
| COPd (declared COP) | – | 2.66 | 2.65 | 2.63 | 2.66 | 2.65 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 4.32 | 4.42 | 4.06 | 4.32 | 4.42 |
| COPd (declared COP) | – | 3.66 | 3.79 | 3.60 | 3.66 | 3.79 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 3.06 | 2.97 | 2.78 | 3.06 | 2.97 |
| COPd (declared COP) | – | 4.72 | 4.81 | 4.54 | 4.72 | 4.81 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 3.33 | 3.43 | 3.33 | 3.33 | 3.43 |
| COPd (declared COP) | – | 6.25 | 6.29 | 6.25 | 6.25 | 6.29 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | -22.00 | -22.00 | -22.00 | -22.00 | -22.00 |
| Pdh (declared heating capacity) | [kW] | 4.20 | 5.21 | 4.19 | 4.20 | 5.21 | |
| COPd (declared COP) | – | 1.13 | 1.23 | 1.13 | 1.13 | 1.23 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 51.00 | 51.00 | 51.00 | 51.00 | 51.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | -15.00 | -15.00 | -15.00 | -15.00 | -15.00 |
| Pdh (declared heating capacity) | [kW] | 8.94 | 9.61 | 8.41 | 8.94 | 9.61 | |
| COPd (declared COP) | – | 1.79 | 1.86 | 1.84 | 1.79 | 1.86 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: –22°C) | [kW] | 6.76 | 6.59 | 6.12 | 6.76 | 6.59 |
| Warmer climate (Design temperature = 2°C) | |||||||
|
Space heating 35°C | Prated (declared heating capacity) @ 2°C | [kW] | 12.1 | 13.1 | 11.1 | 12.1 | 13.1 |
| Seasonal space heating efficiency (η s) | [%] | 260 | 249 | 256 | 260 | 248 | |
| Annual energy consumption | [kWh] | 2,457 | 2,781 | 2,296 | 2,462 | 2,786 | |
|
Space heating 55°C | Prated (declared heating capacity) @ 2°C | [kW] | 13.7 | 13.8 | 12.5 | 13.7 | 13.8 |
| Seasonal space heating efficiency (η s) | [%] | 177 | 176 | 174 | 176 | 176 | |
| Annual energy consumption | [kWh] | 4,088 | 4,112 | 3,780 | 4,092 | 4,116 | |
| Heat pump space heater | Model OMNIA S 3.2 | 4 | 6 | 8 | 10 | 12 | |
| Part load conditions space heating w armer climate low temperature application | |||||||
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 5.34 | 5.93 | 7.56 | 8.44 | 11.26 |
| COPd (declared COP) | – | 3.94 | 3.91 | 3.98 | 3.84 | 3.59 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 3.56 | 3.93 | 5.22 | 5.52 | 7.14 |
| COPd (declared COP) | – | 5.92 | 5.89 | 6.26 | 6.18 | 5.87 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 1.63 | 1.79 | 2.62 | 2.62 | 3.55 |
| COPd (declared COP) | – | 7.91 | 8.20 | 9.23 | 9.04 | 7.94 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| Pdh (declared heating capacity) | [kW] | 5.34 | 5.93 | 7.56 | 8.44 | 11.26 | |
| COPd (declared COP) | – | 3.94 | 3.91 | 3.98 | 3.84 | 3.59 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 62.00 | 62.00 | 62.00 | 62.00 | 62.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 |
| Pdh (declared heating capacity) | [kW] | 3.56 | 3.93 | 5.22 | 5.52 | 7.14 | |
| COPd (declared COP) | – | 5.92 | 5.89 | 6.26 | 6.18 | 5.87 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: 2°C) | [kW] | 0.18 | 0.18 | 0.55 | 0.14 | 0.00 |
| Part load conditions space heating w armer climate medium temperature application | |||||||
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 4.83 | 5.02 | 7.55 | 8.06 | 12.07 |
| COPd (declared COP) | – | 2.51 | 2.48 | 2.59 | 2.59 | 2.31 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 3.22 | 3.31 | 4.86 | 5.54 | 8.04 |
| COPd (declared COP) | – | 3.68 | 3.67 | 3.92 | 4.10 | 3.86 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 1.47 | 1.59 | 2.32 | 2.53 | 3.75 |
| COPd (declared COP) | – | 5.15 | 5.29 | 5.55 | 5.82 | 5.70 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| Heat pump space heater | Model OMNIA S 3.2 | 14 | 16 | 12T | 14T | 16T | |
| Part load conditions space heating w armer climate low temperature application | |||||||
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 12.04 | 13.10 | 11.26 | 12.04 | 13.10 |
| COPd (declared COP) | – | 3.44 | 3.35 | 3.59 | 3.44 | 3.35 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 7.78 | 8.41 | 7.14 | 7.78 | 8.41 |
| COPd (declared COP) | – | 5.84 | 5.36 | 5.87 | 5.84 | 5.36 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 3.75 | 3.87 | 3.55 | 3.75 | 3.87 |
| COPd (declared COP) | – | 8.25 | 8.11 | 7.94 | 8.25 | 8.11 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| Pdh (declared heating capacity) | [kW] | 12.04 | 13.10 | 11.26 | 12.04 | 13.10 | |
| COPd (declared COP) | – | 3.44 | 3.35 | 3.59 | 3.44 | 3.35 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 62.00 | 62.00 | 62.00 | 62.00 | 62.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 |
| Pdh (declared heating capacity) | [kW] | 7.78 | 8.41 | 7.14 | 7.78 | 8.41 | |
| COPd (declared COP) | – | 5.84 | 5.36 | 5.87 | 5.84 | 5.36 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: 2°C) | [kW] | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| Part load conditions space heating w armer climate medium temperature application | |||||||
| (B) condition (2°C) | Pdh (declared heating capacity) | [kW] | 13.04 | 13.38 | 12.07 | 13.04 | 13.38 |
| COPd (declared COP) | – | 2.20 | 2.29 | 2.31 | 2.20 | 2.29 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (C) condition (7°C) | Pdh (declared heating capacity) | [kW] | 8.83 | 8.86 | 8.04 | 8.83 | 8.86 |
| COPd (declared COP) | – | 3.91 | 3.84 | 3.86 | 3.91 | 3.84 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| (D) condition (12°C) | Pdh (declared heating capacity) | [kW] | 4.08 | 4.06 | 3.75 | 4.08 | 4.06 |
| COPd (declared COP) | – | 5.90 | 5.86 | 5.70 | 5.90 | 5.86 | |
| Cdh(degradation coefficient) | – | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | |
| Heat pump space heater | Model OMNIA S 3.2 | 4 | 6 | 8 | 10 | 12 | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| Pdh (declared heating capacity) | [kW] | 4.83 | 5.02 | 7.83 | 8.15 | 12.07 | |
| COPd (declared COP) | – | 2.51 | 2.48 | 2.66 | 2.61 | 2.31 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 62.00 | 62.00 | 62.00 | 62.00 | 62.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 |
| Pdh (declared heating capacity) | [kW] | 3.22 | 3.31 | 4.86 | 5.54 | 8.04 | |
| COPd (declared COP) | – | 3.68 | 3.67 | 3.92 | 4.10 | 3.86 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: 2°C) | [kW] | 0.18 | 0.12 | 0.00 | 0.48 | 0.43 |
| 0 | |||||||
|
Product description | Air-to-w ater heat pump | Y/N | Yes | Yes | Yes | Yes | Yes |
| Water-to-w ater heat pump | Y/N | No | No | No | No | No | |
| Brine-to-w ater heat pump | Y/N | No | No | No | No | No | |
| Low -temperature heat pump | Y/N | No | No | No | No | No | |
| Equipped w ith a supplementary heater | Y/N | Yes | Yes | Yes | Yes | Yes | |
| Heat pump combination heater | Y/N | No | No | No | No | No | |
| Air to w ater unit | Rated airflow | [m3/h] | 2770 | 2770 | 4030 | 4030 | 4060 |
| Brine/w ater to w ater unit | Rated w ater/brine flow (outdoor H/E) | / | / | / | / | / | |
|
Other | Capacity control | – | Inverter | Inverter | Inverter | Inverter | Inverter |
| Poff (Pow er consumption Off mode) | [kW] | 0.014 | 0.014 | 0.014 | 0.014 | 0.014 | |
| Pto (Pow er consumption Thermostat off mode) | [kW] | 0.024 | 0.024 | 0.024 | 0.024 | 0.024 | |
| Psb (Pow er consumption Standby mode) | [kW] | 0.014 | 0.014 | 0.014 | 0.014 | 0.014 | |
| PCK (Pow er crankcase heater model) | [kW] | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | |
| Qelec (Daily electricity consum ption) | [kWh] | / | / | / | / | / | |
| Qfuel (Daily fuel consumption) | [kWh] | / | / | / | / | / | |
| Heat pump space heater | Model OMNIA S 3.2 | 14 | 16 | 12T | 14T | 16T | |
|
(E) Tol (temperature operating lim it) | Tol (temperature operating lim it) | [°C] | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| Pdh (declared heating capacity) | [kW] | 13.04 | 13.38 | 12.07 | 13.04 | 13.38 | |
| COPd (declared COP) | – | 2.20 | 2.29 | 2.31 | 2.20 | 2.29 | |
| WTOL (Heating w ater Operation Lim it) | [°C] | 62.00 | 62.00 | 62.00 | 62.00 | 62.00 | |
| (F) Tbivalent temperature | Tblv | [°C] | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 |
| Pdh (declared heating capacity) | [kW] | 8.83 | 8.86 | 8.04 | 8.83 | 8.86 | |
| COPd (declared COP) | – | 3.91 | 3.84 | 3.86 | 3.91 | 3.84 | |
| Supplementary capacity at P_design | Psup (@Tdesignh: 2°C) | [kW] | 0.66 | 0.42 | 0.43 | 0.66 | 0.42 |
| 0 | |||||||
|
Product description | Air-to-w ater heat pump | Y/N | Yes | Yes | Yes | Yes | Yes |
| Water-to-w ater heat pump | Y/N | No | No | No | No | No | |
| Brine-to-w ater heat pump | Y/N | No | No | No | No | No | |
| Low -temperature heat pump | Y/N | No | No | No | No | No | |
| Equipped w ith a supplementary heater | Y/N | Yes | Yes | Yes | Yes | Yes | |
| Heat pump combination heater | Y/N | No | No | No | No | No | |
| Air to w ater unit | Rated airflow | [m3/h] | 4060 | 4650 | 4060 | 4060 | 4650 |
| Brine/w ater to w ater unit | Rated w ater/brine flow (outdoor H/E) | / | / | / | / | / | |
|
Other | Capacity control | – | Inverter | Inverter | Inverter | Inverter | Inverter |
| Pof f (Power consumption Off mode) | [kW] | 0.014 | 0.014 | 0.02 | 0.02 | 0.02 | |
| Pto (Power consumption Thermostat off mode) | [kW] | 0.024 | 0.024 | 0.030 | 0.030 | 0.030 | |
| Psb (Power consumption Standby mode) | [kW] | 0.014 | 0.014 | 0.02 | 0.02 | 0.02 | |
| PCK (Power crankcase heater model) | [kW] | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | |
| Qelec (Daily electricity consumption) | [kWh] | / | / | / | / | / | |
| Qf uel (Daily fuel consumption) | [kWh] | / | / | / | / | / | |
Details and precautions on installation, maintenance and assembly can be found in the installation and or operation manuals.
Product fiche data according to energy label directive 2010/30/EC regulation (EU) 811/2013.
ERP TECHNICAL DATA SHEET FOR SPACE HEATING
OMNIA S 3.2 HI3 4Medium temperature (55°C)
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 4 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 4.4 | kW | Seasonal space heating energy efficiency | ηs | 129 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 3.89 | kW | Tj = -7℃ | COPd | 2.17 | – | |
| Tj = 2℃ | Pdh | 2.38 | kW | Tj = 2℃ | COPd | 3.30 | – | |
| Tj = 7℃ | Pdh | 2.94 | kW | Tj = 7℃ | COPd | 4.41 | – | |
| Tj = 12℃ | Pdh | 1.32 | kW | Tj = 12℃ | COPd | 5.66 | – | |
| Tj = bivalent temperature | Pdh | 3.89 | kW | Tj = bivalent temperature | COPd | 2.17 | – | |
| Tj = operating limit | Pdh | 3.42 | kW | Tj = operating limit | COPd | 1.91 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0.98 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 2770 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 39 / 56 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 2744 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 4 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | COLDER | |||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 3.4 | kW | Seasonal space heating energy efficiency | ηs | 102 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 2.13 | kW | Tj = -7℃ | COPd | 2.32 | – | |
| Tj = 2℃ | Pdh | 1.28 | kW | Tj = 2℃ | COPd | 2.99 | – | |
| Tj = 7℃ | Pdh | 1.01 | kW | Tj = 7℃ | COPd | 3.86 | – | |
| Tj = 12℃ | Pdh | 1.36 | kW | Tj = 12℃ | COPd | 6.28 | – | |
| Tj = bivalent temperature | Pdh | 2.74 | kW | Tj = bivalent temperature | COPd | 1.74 | – | |
| Tj = operating limit | Pdh | 1.64 | kW | Tj = operating limit | COPd | 1.02 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 1.72 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 2770 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 3159 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 4 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 5.0 | kW | Seasonal space heating energy efficiency | ηs | 162 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 4.83 | kW | Tj = 2℃ | COPd | 2.51 | – | |
| Tj = 7℃ | Pdh | 3.22 | kW | Tj = 7℃ | COPd | 3.68 | – | |
| Tj = 12℃ | Pdh | 1.47 | kW | Tj = 12℃ | COPd | 5.15 | – | |
| Tj = bivalent temperature | Pdh | 3.22 | kW | Tj = bivalent temperature | COPd | 3.68 | – | |
| Tj = operating limit | Pdh | 4.83 | kW | Tj = operating limit | COPd | 2.51 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0.18 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 2770 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 1621 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fu5.1el consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | |||||||||
| Model(s): | OMNIA S 3.2 HI3 6 | ||||||||
| Air-to-water heat pump: | YES | ||||||||
| Water-to-water heat pump: | NO | ||||||||
| Brine-to-water heat pump: | NO | ||||||||
| Low-temperature heat pump: | NO | ||||||||
| Equipped with a supplementary heater: | NO | ||||||||
| Heat pump combination heater: | NO | ||||||||
| Declared climate condition: | AVERAGE | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | |||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | ||
| Rated heat output (*) | Prated | 5.7 | kW | Seasonal space heating energy efficiency | ηs | 138 | % | ||
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | ||||||||
| Tj = -7℃ | Pdh | 5.04 | kW | Tj = -7℃ | COPd | 2.17 | – | ||
| Tj = 2℃ | Pdh | 3.12 | kW | Tj = 2℃ | COPd | 3.51 | – | ||
| Tj = 7℃ | Pdh | 2.08 | kW | Tj = 7℃ | COPd | 4.54 | – | ||
| Tj = 12℃ | Pdh | 1.28 | kW | Tj = 12℃ | COPd | 5.59 | – | ||
| Tj = bivalent temperature | Pdh | 5.04 | kW | Tj = bivalent temperature | COPd | 2.17 | – | ||
| Tj = operating limit | Pdh | 4.52 | kW | Tj = operating limit | COPd | 1.91 | – | ||
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | ||
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | ||
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | ||
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | ||
| Power consumption in modes other than active mode | Supplementary heater | ||||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 1.18 | kW | ||
| Standby mode | Psb | 0.014 | kW | ||||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | ||||
| Crankcase heater mode | Pck | 0.000 | kW | ||||||
| Other items | |||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 2770 | m3/h | ||||
| Sound power level, indoors/outdoors | LWA | 39 / 58 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | ||
| Annual energy consumption | QHE | 3345 | kWh | ||||||
| For heat pump combination heater: | |||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | ||||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | ||
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | ||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | ||||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | |||||||||
| Technical parameters | |||||||||
| Model(s): | OMNIA S 3.2 HI3 6 | ||||||||
| Air-to-water heat pump: | YES | ||||||||
| Water-to-water heat pump: | NO | ||||||||
| Brine-to-water heat pump: | NO | ||||||||
| Low-temperature heat pump: | NO | ||||||||
| Equipped with a supplementary heater: | NO | ||||||||
| Heat pump combination heater: | NO | ||||||||
| Declared climate condition: | COLDER | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | |||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | ||
| Rated heat output (*) | Prated | 4.3 | kW | Seasonal space heating energy efficiency | ηs | 111 | % | ||
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | ||||||||
| Tj = -7℃ | Pdh | 2.70 | kW | Tj = -7℃ | COPd | 2.46 | – | ||
| Tj = 2℃ | Pdh | 1.60 | kW | Tj = 2℃ | COPd | 3.36 | – | ||
| Tj = 7℃ | Pdh | 1.02 | kW | Tj = 7℃ | COPd | 3.94 | – | ||
| Tj = 12℃ | Pdh | 1.37 | kW | Tj = 12℃ | COPd | 6.35 | – | ||
| Tj = bivalent temperature | Pdh | 3.47 | kW | Tj = bivalent temperature | COPd | 1.86 | – | ||
| Tj = operating limit | Pdh | 2.09 | kW | Tj = operating limit | COPd | 1.13 | – | ||
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | ||
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | ||
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | ||
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | ||
| Power consumption in modes other than active mode | Supplementary heater | ||||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 5.10 | kW | ||
| Standby mode | Psb | 0.014 | kW | ||||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | ||||
| Crankcase heater mode | Pck | 0.000 | kW | ||||||
| Other items | |||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 2770 | m3/h | ||||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | ||
| Annual energy consumption | QHE | 3681 | kWh | ||||||
| For heat pump combination heater: | |||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | ||||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | ||
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | ||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | ||||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | |||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 6 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 5.1 | kW | Seasonal space heating energy efficiency | ηs | 165 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 5.02 | kW | Tj = 2℃ | COPd | 2.48 | – | |
| Tj = 7℃ | Pdh | 3.31 | kW | Tj = 7℃ | COPd | 3.67 | – | |
| Tj = 12℃ | Pdh | 1.60 | kW | Tj = 12℃ | COPd | 5.29 | – | |
| Tj = bivalent temperature | Pdh | 3.31 | kW | Tj = bivalent temperature | COPd | 3.67 | – | |
| Tj = operating limit | Pdh | 5.02 | kW | Tj = operating limit | COPd | 2.48 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 2770 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 1640 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 8 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 6.6 | kW | Seasonal space heating energy efficiency | ηs | 131 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 5.84 | kW | Tj = -7℃ | COPd | 2.16 | – | |
| Tj = 2℃ | Pdh | 3.75 | kW | Tj = 2℃ | COPd | 3.30 | – | |
| Tj = 7℃ | Pdh | 2.42 | kW | Tj = 7℃ | COPd | 4.34 | – | |
| Tj = 12℃ | Pdh | 1.39 | kW | Tj = 12℃ | COPd | 5.33 | – | |
| Tj = bivalent temperature | Pdh | 5.84 | kW | Tj = bivalent temperature | COPd | 2.16 | – | |
| Tj = operating limit | Pdh | 4.90 | kW | Tj = operating limit | COPd | 1.84 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 1.69 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4030 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 39 / 59 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 4056 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | |||||||||
| Model(s): | OMNIA S 3.2 HI3 8 | ||||||||
| Air-to-water heat pump: | YES | ||||||||
| Water-to-water heat pump: | NO | ||||||||
| Brine-to-water heat pump: | NO | ||||||||
| Low-temperature heat pump: | NO | ||||||||
| Equipped with a supplementary heater: | NO | ||||||||
| Heat pump combination heater: | NO | ||||||||
| Declared climate condition: | COLDER | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | |||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | ||
| Rated heat output (*) | Prated | 5.8 | kW | Seasonal space heating energy efficiency | ηs | 112 | % | ||
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | ||||||||
| Tj = -7℃ | Pdh | 3.86 | kW | Tj = -7℃ | COPd | 2.48 | – | ||
| Tj = 2℃ | Pdh | 2.21 | kW | Tj = 2℃ | COPd | 3.35 | – | ||
| Tj = 7℃ | Pdh | 1.44 | kW | Tj = 7℃ | COPd | 4.11 | – | ||
| Tj = 12℃ | Pdh | 1.46 | kW | Tj = 12℃ | COPd | 5.92 | – | ||
| Tj = bivalent temperature | Pdh | 4.71 | kW | Tj = bivalent temperature | COPd | 1.90 | – | ||
| Tj = operating limit | Pdh | 2.80 | kW | Tj = operating limit | COPd | 1.22 | – | ||
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | ||
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | ||
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | ||
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | ||
| Power consumption in modes other than active mode | Supplementary heater | ||||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 2.97 | kW | ||
| Standby mode | Psb | 0.014 | kW | ||||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | ||||
| Crankcase heater mode | Pck | 0.000 | kW | ||||||
| Other items | |||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4030 | m3/h | ||||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | ||
| Annual energy consumption | QHE | 4950 | kWh | ||||||
| For heat pump combination heater: | |||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | ||||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | ||
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | ||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | ||||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | |||||||||
| Technical parameters | |||||||||
| Model(s): | OMNIA S 3.2 HI3 8 | ||||||||
| Air-to-water heat pump: | YES | ||||||||
| Water-to-water heat pump: | NO | ||||||||
| Brine-to-water heat pump: | NO | ||||||||
| Low-temperature heat pump: | NO | ||||||||
| Equipped with a supplementary heater: | NO | ||||||||
| Heat pump combination heater: | NO | ||||||||
| Declared climate condition: | WARMER | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | |||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | ||
| Rated heat output (*) | Prated | 7.6 | kW | Seasonal space heating energy efficiency | ηs | 176 | % | ||
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | ||||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | ||
| Tj = 2℃ | Pdh | 7.55 | kW | Tj = 2℃ | COPd | 2.59 | – | ||
| Tj = 7℃ | Pdh | 4.86 | kW | Tj = 7℃ | COPd | 3.92 | – | ||
| Tj = 12℃ | Pdh | 2.31 | kW | Tj = 12℃ | COPd | 5.55 | – | ||
| Tj = bivalent temperature | Pdh | 4.86 | kW | Tj = bivalent temperature | COPd | 3.92 | – | ||
| Tj = operating limit | Pdh | 7.55 | kW | Tj = operating limit | COPd | 2.59 | – | ||
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | ||
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | ||
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | ||
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | ||
| Power consumption in modes other than active mode | Supplementary heater | ||||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0 | kW | ||
| Standby mode | Psb | 0.014 | kW | ||||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | ||||
| Crankcase heater mode | Pck | 0.000 | kW | ||||||
| Other items | |||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4030 | m3/h | ||||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | ||
| Annual energy consumption | QHE | 2259 | kWh | ||||||
| For heat pump combination heater: | |||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | ||||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | ||
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | ||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | ||||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | |||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 10 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 7.7 | kW | Seasonal space heating energy efficiency | ηs | 136 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 6.78 | kW | Tj = -7℃ | COPd | 2.24 | – | |
| Tj = 2℃ | Pdh | 4.28 | kW | Tj = 2℃ | COPd | 3.42 | – | |
| Tj = 7℃ | Pdh | 2.77 | kW | Tj = 7℃ | COPd | 4.52 | – | |
| Tj = 12℃ | Pdh | 1.58 | kW | Tj = 12℃ | COPd | 5.68 | – | |
| Tj = bivalent temperature | Pdh | 6.78 | kW | Tj = bivalent temperature | COPd | 2.24 | – | |
| Tj = operating limit | Pdh | 5.38 | kW | Tj = operating limit | COPd | 1.83 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 2.29 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4030 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 39 / 60 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 4539 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 10 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | COLDER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 6.7 | kW | Seasonal space heating energy efficiency | ηs | 116 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 4.27 | kW | Tj = -7℃ | COPd | 2.54 | – | |
| Tj = 2℃ | Pdh | 2.57 | kW | Tj = 2℃ | COPd | 3.51 | – | |
| Tj = 7℃ | Pdh | 1.65 | kW | Tj = 7℃ | COPd | 4.37 | – | |
| Tj = 12℃ | Pdh | 1.47 | kW | Tj = 12℃ | COPd | 5.96 | – | |
| Tj = bivalent temperature | Pdh | 5.47 | kW | Tj = bivalent temperature | COPd | 2.00 | – | |
| Tj = operating limit | Pdh | 2.80 | kW | Tj = operating limit | COPd | 1.22 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 3.91 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4030 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 5540 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 10 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 8.6 | kW | Seasonal space heating energy efficiency | ηs | 180 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 8.06 | kW | Tj = 2℃ | COPd | 2.59 | – | |
| Tj = 7℃ | Pdh | 5.54 | kW | Tj = 7℃ | COPd | 4.10 | – | |
| Tj = 12℃ | Pdh | 2.53 | kW | Tj = 12℃ | COPd | 5.82 | – | |
| Tj = bivalent temperature | Pdh | 5.54 | kW | Tj = bivalent temperature | COPd | 4.10 | – | |
| Tj = operating limit | Pdh | 8.15 | kW | Tj = operating limit | COPd | 2.61 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0.48 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4030 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 2516 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 12 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 11.6 | kW | Seasonal space heating energy efficiency | ηs | 135 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 10.24 | kW | Tj = -7℃ | COPd | 2.01 | – | |
| Tj = 2℃ | Pdh | 6.52 | kW | Tj = 2℃ | COPd | 3.44 | – | |
| Tj = 7℃ | Pdh | 4.36 | kW | Tj = 7℃ | COPd | 4.59 | – | |
| Tj = 12℃ | Pdh | 3.29 | kW | Tj = 12℃ | COPd | 6.05 | – | |
| Tj = bivalent temperature | Pdh | 10.24 | kW | Tj = bivalent temperature | COPd | 2.01 | – | |
| Tj = operating limit | Pdh | 9.10 | kW | Tj = operating limit | COPd | 1.79 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 1.23 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 40 / 64 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 6927 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 12 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | COLDER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 10.3 | kW | Seasonal space heating energy efficiency | ηs | 118 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 6.63 | kW | Tj = -7℃ | COPd | 2.63 | – | |
| Tj = 2℃ | Pdh | 4.06 | kW | Tj = 2℃ | COPd | 3.60 | – | |
| Tj = 7℃ | Pdh | 2.78 | kW | Tj = 7℃ | COPd | 4.54 | – | |
| Tj = 12℃ | Pdh | 3.33 | kW | Tj = 12℃ | COPd | 6.25 | – | |
| Tj = bivalent temperature | Pdh | 8.41 | kW | Tj = bivalent temperature | COPd | 1.84 | – | |
| Tj = operating limit | Pdh | 4.19 | kW | Tj = operating limit | COPd | 1.13 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 6.11 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 8419 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 12 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 12.5 | kW | Seasonal space heating energy efficiency | ηs | 174 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 12.07 | kW | Tj = 2℃ | COPd | 2.31 | – | |
| Tj = 7℃ | Pdh | 8.04 | kW | Tj = 7℃ | COPd | 3.86 | – | |
| Tj = 12℃ | Pdh | 3.75 | kW | Tj = 12℃ | COPd | 5.70 | – | |
| Tj = bivalent temperature | Pdh | 8.04 | kW | Tj = bivalent temperature | COPd | 3.86 | – | |
| Tj = operating limit | Pdh | 12.07 | kW | Tj = operating limit | COPd | 2.31 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0.43 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 3776 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 14 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 12.08 | kW | Seasonal space heating energy efficiency | ηs | 135 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 10.68 | kW | Tj = -7℃ | COPd | 2.01 | – | |
| Tj = 2℃ | Pdh | 6.86 | kW | Tj = 2℃ | COPd | 3.43 | – | |
| Tj = 7℃ | Pdh | 4.63 | kW | Tj = 7℃ | COPd | 4.66 | – | |
| Tj = 12℃ | Pdh | 3.31 | kW | Tj = 12℃ | COPd | 6.13 | – | |
| Tj = bivalent temperature | Pdh | 10.68 | kW | Tj = bivalent temperature | COPd | 2.01 | – | |
| Tj = operating limit | Pdh | 9.19 | kW | Tj = operating limit | COPd | 1.76 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 1.40 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 40 / 65 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 7202 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 14 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | COLDER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 11.0 | kW | Seasonal space heating energy efficiency | ηs | 119 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 6.89 | kW | Tj = -7℃ | COPd | 2.66 | – | |
| Tj = 2℃ | Pdh | 4.32 | kW | Tj = 2℃ | COPd | 3.66 | – | |
| Tj = 7℃ | Pdh | 3.06 | kW | Tj = 7℃ | COPd | 4.72 | – | |
| Tj = 12℃ | Pdh | 3.33 | kW | Tj = 12℃ | COPd | 6.25 | – | |
| Tj = bivalent temperature | Pdh | 8.94 | kW | Tj = bivalent temperature | COPd | 1.79 | – | |
| Tj = operating limit | Pdh | 4.20 | kW | Tj = operating limit | COPd | 1.13 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 6.80 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 8866 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 14 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 13.7 | kW | Seasonal space heating energy efficiency | ηs | 177 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 13.04 | kW | Tj = 2℃ | COPd | 2.20 | – | |
| Tj = 7℃ | Pdh | 8.83 | kW | Tj = 7℃ | COPd | 3.91 | – | |
| Tj = 12℃ | Pdh | 4.08 | kW | Tj = 12℃ | COPd | 5.90 | – | |
| Tj = bivalent temperature | Pdh | 8.83 | kW | Tj = bivalent temperature | COPd | 3.91 | – | |
| Tj = operating limit | Pdh | 13.04 | kW | Tj = operating limit | COPd | 2.20 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0.66 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 4088 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 16 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 13.0 | kW | Seasonal space heating energy efficiency | ηs | 133 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 11.52 | kW | Tj = -7℃ | COPd | 1.99 | – | |
| Tj = 2℃ | Pdh | 7.18 | kW | Tj = 2℃ | COPd | 3.34 | – | |
| Tj = 7℃ | Pdh | 4.67 | kW | Tj = 7℃ | COPd | 4.61 | – | |
| Tj = 12℃ | Pdh | 3.31 | kW | Tj = 12℃ | COPd | 6.07 | – | |
| Tj = bivalent temperature | Pdh | 11.52 | kW | Tj = bivalent temperature | COPd | 1.99 | – | |
| Tj = operating limit | Pdh | 10.33 | kW | Tj = operating limit | COPd | 1.80 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 2.68 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4650 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 40 / 68 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 7895 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 16 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | COLDER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 11.8 | kW | Seasonal space heating energy efficiency | ηs | 122 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 7.64 | kW | Tj = -7℃ | COPd | 2.65 | – | |
| Tj = 2℃ | Pdh | 4.42 | kW | Tj = 2℃ | COPd | 3.79 | – | |
| Tj = 7℃ | Pdh | 2.97 | kW | Tj = 7℃ | COPd | 4.81 | – | |
| Tj = 12℃ | Pdh | 3.43 | kW | Tj = 12℃ | COPd | 6.29 | – | |
| Tj = bivalent temperature | Pdh | 9.61 | kW | Tj = bivalent temperature | COPd | 1.86 | – | |
| Tj = operating limit | Pdh | 5.21 | kW | Tj = operating limit | COPd | 1.23 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 6.59 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4650 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 9309 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI3 16 | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 13.8 | kW | Seasonal space heating energy efficiency | ηs | 176 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 13.38 | kW | Tj = 2℃ | COPd | 2.29 | – | |
| Tj = 7℃ | Pdh | 8.86 | kW | Tj = 7℃ | COPd | 3.84 | – | |
| Tj = 12℃ | Pdh | 4.06 | kW | Tj = 12℃ | COPd | 5.86 | – | |
| Tj = bivalent temperature | Pdh | 8.86 | kW | Tj = bivalent temperature | COPd | 3.84 | – | |
| Tj = operating limit | Pdh | 13.38 | kW | Tj = operating limit | COPd | 2.29 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0.42 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.024 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4650 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 4112 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 12T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 11.6 | kW | Seasonal space heating energy efficiency | ηs | 135 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 10.24 | kW | Tj = -7℃ | COPd | 2.01 | – | |
| Tj = 2℃ | Pdh | 6.52 | kW | Tj = 2℃ | COPd | 3.44 | – | |
| Tj = 7℃ | Pdh | 4.36 | kW | Tj = 7℃ | COPd | 4.59 | – | |
| Tj = 12℃ | Pdh | 3.29 | kW | Tj = 12℃ | COPd | 6.05 | – | |
| Tj = bivalent temperature | Pdh | 10.24 | kW | Tj = bivalent temperature | COPd | 2.01 | – | |
| Tj = operating limit | Pdh | 9.10 | kW | Tj = operating limit | COPd | 1.79 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.020 | kW | Rated heat output (**) | Psup | 1.23 | kW | |
| Standby mode | Psb | 0.020 | kW | |||||
| Thermostat-off mode | Pto | 0.030 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 40 / 64 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 6928 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 12T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | COLDER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 10.3 | kW | Seasonal space heating energy efficiency | ηs | 118 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 6.63 | kW | Tj = -7℃ | COPd | 2.63 | – | |
| Tj = 2℃ | Pdh | 4.06 | kW | Tj = 2℃ | COPd | 3.60 | – | |
| Tj = 7℃ | Pdh | 2.78 | kW | Tj = 7℃ | COPd | 4.54 | – | |
| Tj = 12℃ | Pdh | 3.33 | kW | Tj = 12℃ | COPd | 6.25 | – | |
| Tj = bivalent temperature | Pdh | 8.41 | kW | Tj = bivalent temperature | COPd | 1.84 | – | |
| Tj = operating limit | Pdh | 4.19 | kW | Tj = operating limit | COPd | 1.13 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.020 | kW | Rated heat output (**) | Psup | 6.11 | kW | |
| Standby mode | Psb | 0.020 | kW | |||||
| Thermostat-off mode | Pto | 0.030 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 8420 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 12T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 12.5 | kW | Seasonal space heating energy efficiency | ηs | 174 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 12.07 | kW | Tj = 2℃ | COPd | 2.31 | – | |
| Tj = 7℃ | Pdh | 8.04 | kW | Tj = 7℃ | COPd | 3.86 | – | |
| Tj = 12℃ | Pdh | 3.75 | kW | Tj = 12℃ | COPd | 5.70 | – | |
| Tj = bivalent temperature | Pdh | 8.04 | kW | Tj = bivalent temperature | COPd | 3.86 | – | |
| Tj = operating limit | Pdh | 12.07 | kW | Tj = operating limit | COPd | 2.31 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.020 | kW | Rated heat output (**) | Psup | 0.43 | kW | |
| Standby mode | Psb | 0.020 | kW | |||||
| Thermostat-off mode | Pto | 0.030 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 3780 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 14T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 12.08 | kW | Seasonal space heating energy efficiency | ηs | 135 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 10.68 | kW | Tj = -7℃ | COPd | 2.01 | – | |
| Tj = 2℃ | Pdh | 6.86 | kW | Tj = 2℃ | COPd | 3.43 | – | |
| Tj = 7℃ | Pdh | 4.63 | kW | Tj = 7℃ | COPd | 4.66 | – | |
| Tj = 12℃ | Pdh | 3.31 | kW | Tj = 12℃ | COPd | 6.13 | – | |
| Tj = bivalent temperature | Pdh | 10.68 | kW | Tj = bivalent temperature | COPd | 2.01 | – | |
| Tj = operating limit | Pdh | 9.19 | kW | Tj = operating limit | COPd | 1.76 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.020 | kW | Rated heat output (**) | Psup | 1.40 | kW | |
| Standby mode | Psb | 0.020 | kW | |||||
| Thermostat-off mode | Pto | 0.030 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 40 / 65 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 7203 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 14T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | COLDER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 11.0 | kW | Seasonal space heating energy efficiency | ηs | 119 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 6.89 | kW | Tj = -7℃ | COPd | 2.66 | – | |
| Tj = 2℃ | Pdh | 4.32 | kW | Tj = 2℃ | COPd | 3.66 | – | |
| Tj = 7℃ | Pdh | 3.06 | kW | Tj = 7℃ | COPd | 4.72 | – | |
| Tj = 12℃ | Pdh | 3.33 | kW | Tj = 12℃ | COPd | 6.25 | – | |
| Tj = bivalent temperature | Pdh | 8.94 | kW | Tj = bivalent temperature | COPd | 1.79 | – | |
| Tj = operating limit | Pdh | 4.20 | kW | Tj = operating limit | COPd | 1.13 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.020 | kW | Rated heat output (**) | Psup | 6.80 | kW | |
| Standby mode | Psb | 0.020 | kW | |||||
| Thermostat-off mode | Pto | 0.030 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 8867 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 14T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 13.7 | kW | Seasonal space heating energy efficiency | ηs | 176 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 13.04 | kW | Tj = 2℃ | COPd | 2.20 | – | |
| Tj = 7℃ | Pdh | 8.83 | kW | Tj = 7℃ | COPd | 3.91 | – | |
| Tj = 12℃ | Pdh | 4.08 | kW | Tj = 12℃ | COPd | 5.90 | – | |
| Tj = bivalent temperature | Pdh | 8.83 | kW | Tj = bivalent temperature | COPd | 3.91 | – | |
| Tj = operating limit | Pdh | 13.04 | kW | Tj = operating limit | COPd | 2.20 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.020 | kW | Rated heat output (**) | Psup | 0.66 | kW | |
| Standby mode | Psb | 0.020 | kW | |||||
| Thermostat-off mode | Pto | 0.030 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4060 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 4092 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 16T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | AVERAGE | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 13.0 | kW | Seasonal space heating energy efficiency | ηs | 133 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 11.52 | kW | Tj = -7℃ | COPd | 1.99 | – | |
| Tj = 2℃ | Pdh | 7.18 | kW | Tj = 2℃ | COPd | 3.34 | – | |
| Tj = 7℃ | Pdh | 4.67 | kW | Tj = 7℃ | COPd | 4.61 | – | |
| Tj = 12℃ | Pdh | 3.31 | kW | Tj = 12℃ | COPd | 6.07 | – | |
| Tj = bivalent temperature | Pdh | 11.52 | kW | Tj = bivalent temperature | COPd | 1.99 | – | |
| Tj = operating limit | Pdh | 10.33 | kW | Tj = operating limit | COPd | 1.80 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -10 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 60 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.020 | kW | Rated heat output (**) | Psup | 2.67 | kW | |
| Standby mode | Psb | 0.020 | kW | |||||
| Thermostat-off mode | Pto | 0.030 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4650 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | 40 / 68 | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 7896 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 16T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | COLDER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 11.8 | kW | Seasonal space heating energy efficiency | ηs | 122 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | 7.64 | kW | Tj = -7℃ | COPd | 2.65 | – | |
| Tj = 2℃ | Pdh | 4.42 | kW | Tj = 2℃ | COPd | 3.79 | – | |
| Tj = 7℃ | Pdh | 2.97 | kW | Tj = 7℃ | COPd | 4.81 | – | |
| Tj = 12℃ | Pdh | 3.43 | kW | Tj = 12℃ | COPd | 6.29 | – | |
| Tj = bivalent temperature | Pdh | 9.61 | kW | Tj = bivalent temperature | COPd | 1.86 | – | |
| Tj = operating limit | Pdh | 5.21 | kW | Tj = operating limit | COPd | 1.23 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | -15 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | -22 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 51 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.020 | kW | Rated heat output (**) | Psup | 6.59 | kW | |
| Standby mode | Psb | 0.020 | kW | |||||
| Thermostat-off mode | Pto | 0.030 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4650 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 9310 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Technical parameters | ||||||||
| Model(s): | OMNIA S 3.2 HI6 16T | |||||||
| Air-to-water heat pump: | YES | |||||||
| Water-to-water heat pump: | NO | |||||||
| Brine-to-water heat pump: | NO | |||||||
| Low-temperature heat pump: | NO | |||||||
| Equipped with a supplementary heater: | NO | |||||||
| Heat pump combination heater: | NO | |||||||
| Declared climate condition: | WARMER | |||||||
| Parameters are declared for medium-temperature application. | ||||||||
| Parameters are declared for medium-temperature (55°C) application. | ||||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated heat output (*) | Prated | 13.8 | kW | Seasonal space heating energy efficiency | ηs | 176 | % | |
| Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj | Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj | |||||||
| Tj = -7℃ | Pdh | – | kW | Tj = -7℃ | COPd | – | – | |
| Tj = 2℃ | Pdh | 13.38 | kW | Tj = 2℃ | COPd | 2.29 | – | |
| Tj = 7℃ | Pdh | 8.86 | kW | Tj = 7℃ | COPd | 3.84 | – | |
| Tj = 12℃ | Pdh | 4.06 | kW | Tj = 12℃ | COPd | 5.86 | – | |
| Tj = bivalent temperature | Pdh | 8.86 | kW | Tj = bivalent temperature | COPd | 3.84 | – | |
| Tj = operating limit | Pdh | 13.38 | kW | Tj = operating limit | COPd | 2.29 | – | |
| For air-to-water heat pumps: Tj = -15℃ | Pdh | – | kW | For air-to-water heat pumps: Tj = -15℃ | COPd | – | – | |
| Bivalent temperature | Tbiv | 7 | °C | For air-to-water heat pumps: Operation limit temperature | TOL | 2 | °C | |
| Cycling interval capacity for heating | Pcych | – | kW | Cycling interval efficiency | COPcyc | – | – | |
| Degradation co-efficient (**) | Cdh | 0.9 | — | Heating water operating limit temperature | WTOL | 62 | °C | |
| Power consumption in modes other than active mode | Supplementary heater | |||||||
| Off mode | Poff | 0.014 | kW | Rated heat output (**) | Psup | 0.42 | kW | |
| Standby mode | Psb | 0.014 | kW | |||||
| Thermostat-off mode | Pto | 0.029 | kW | Type of energy input | Electrical | |||
| Crankcase heater mode | Pck | 0.000 | kW | |||||
| Other items | ||||||||
| Capacity control | variable | For air-to-water heat pumps: Rated air flow rate, outdoors | – | 4650 | m3/h | |||
| Sound power level, indoors/outdoors | LWA | – | dB | For water-or brine-to-water heat pumps: Rated brine or water flow rate, outdoor heat exchanger | – | – | m3/h | |
| Annual energy consumption | QHE | 4116 | kWh | |||||
| For heat pump combination heater: | ||||||||
| Declared load profile | – | Water heating energy efficiency | ηwh | – | % | |||
| Daily electricity consumption | Qclec | – | kWh | Daily fuel consumption | Qfuel | – | kWh | |
| Annual electricity consumption | AEC | – | kWh | Annual fuel consumption | AFC | – | GJ | |
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supplementary heater Psup is equal to the supplementary capacity for heating sup(Tj). (**) If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0,9. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 4 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 4.7 | kW | Seasonal space cooling energy efficiency | ηs,c | 197 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 4.66 | kW | Tj=+35℃ | EERd | 3.52 | – | |
| Tj=+30℃ | Pdc | 3.66 | kW | Tj=+30℃ | EERd | 4.76 | – | |
| Tj=+25℃ | Pdc | 2.21 | kW | Tj=+25℃ | EERd | 5.72 | – | |
| Tj=+20℃ | Pdc | 0.94 | kW | Tj=+20℃ | EERd | 5.72 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
2770 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 39 / 56 | dB | |||||
| Emissions of nitroge oxides (if applicable) | n NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 4 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 4.5 | kW | Seasonal space cooling energy efficiency | ηs,c | 308 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 4.51 | kW | Tj=+35℃ | EERd | 5.54 | – | |
| Tj=+30℃ | Pdc | 3.44 | kW | Tj=+30℃ | EERd | 7.23 | – | |
| Tj=+25℃ | Pdc | 2.19 | kW | Tj=+25℃ | EERd | 8.94 | – | |
| Tj=+20℃ | Pdc | 1.13 | kW | Tj=+20℃ | EERd | 10.48 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
2770 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 39 / 56 | dB | |||||
| Emissions of nitrogen oxides (if | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| applicable) GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 6 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 6.3 | kW | Seasonal space cooling energy efficiency | ηs,c | 211 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 6.35 | kW | Tj=+35℃ | EERd | 2.93 | – | |
| Tj=+30℃ | Pdc | 4.76 | kW | Tj=+30℃ | EERd | 4.53 | – | |
| Tj=+25℃ | Pdc | 3.02 | kW | Tj=+25℃ | EERd | 6.32 | – | |
| Tj=+20℃ | Pdc | 1.39 | kW | Tj=+20℃ | EERd | 7.20 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
2770 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 39 / 58 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 6 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 6.5 | kW | Seasonal space cooling energy efficiency | ηs,c | 325 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 6.55 | kW | Tj=+35℃ | EERd | 4.69 | – | |
| Tj=+30℃ | Pdc | 4.84 | kW | Tj=+30℃ | EERd | 7.16 | – | |
| Tj=+25℃ | Pdc | 3.26 | kW | Tj=+25℃ | EERd | 9.64 | – | |
| Tj=+20℃ | Pdc | 1.41 | kW | Tj=+20℃ | EERd | 11.48 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
2770 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 39 / 58 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 8 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 7.4 | kW | Seasonal space cooling energy efficiency | ηs,c | 230 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 7.38 | kW | Tj=+35℃ | EERd | 3.39 | – | |
| Tj=+30℃ | Pdc | 5.72 | kW | Tj=+30℃ | EERd | 4.71 | – | |
| Tj=+25℃ | Pdc | 3.62 | kW | Tj=+25℃ | EERd | 6.65 | – | |
| Tj=+20℃ | Pdc | 1.64 | kW | Tj=+20℃ | EERd | 8.55 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4030 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 39 / 59 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 8 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 8.4 | kW | Seasonal space cooling energy efficiency | ηs,c | 355 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 8.37 | kW | Tj=+35℃ | EERd | 5.09 | – | |
| Tj=+30℃ | Pdc | 6.47 | kW | Tj=+30℃ | EERd | 7.02 | – | |
| Tj=+25℃ | Pdc | 4.31 | kW | Tj=+25℃ | EERd | 10.67 | – | |
| Tj=+20℃ | Pdc | 1.80 | kW | Tj=+20℃ | EERd | 13.61 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4030 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 39 / 59 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 10 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 8.7 | kW | Seasonal space cooling energy efficiency | ηs,c | 236 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 8.73 | kW | Tj=+35℃ | EERd | 3.21 | – | |
| Tj=+30℃ | Pdc | 6.68 | kW | Tj=+30℃ | EERd | 4.47 | – | |
| Tj=+25℃ | Pdc | 4.26 | kW | Tj=+25℃ | EERd | 7.02 | – | |
| Tj=+20℃ | Pdc | 1.94 | kW | Tj=+20℃ | EERd | 9.54 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4030 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 39 / 60 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 10 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 10.0 | kW | Seasonal space cooling energy efficiency | ηs,c | 348 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 10.01 | kW | Tj=+35℃ | EERd | 4.64 | – | |
| Tj=+30℃ | Pdc | 7.71 | kW | Tj=+30℃ | EERd | 6.45 | – | |
| Tj=+25℃ | Pdc | 5.03 | kW | Tj=+25℃ | EERd | 10.36 | – | |
| Tj=+20℃ | Pdc | 2.32 | kW | Tj=+20℃ | EERd | 14.98 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4030 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 39 / 60 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 12 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 11.3 | kW | Seasonal space cooling energy efficiency | ηs,c | 192 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 11.31 | kW | Tj=+35℃ | EERd | 2.61 | – | |
| Tj=+30℃ | Pdc | 8.76 | kW | Tj=+30℃ | EERd | 3.93 | – | |
| Tj=+25℃ | Pdc | 5.81 | kW | Tj=+25℃ | EERd | 5.73 | – | |
| Tj=+20℃ | Pdc | 2.63 | kW | Tj=+20℃ | EERd | 6.75 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4060 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 40 / 64 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 12 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 11.8 | kW | Seasonal space cooling energy efficiency | ηs,c | 281 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 11.77 | kW | Tj=+35℃ | EERd | 3.87 | – | |
| Tj=+30℃ | Pdc | 9.21 | kW | Tj=+30℃ | EERd | 5.50 | – | |
| Tj=+25℃ | Pdc | 5.74 | kW | Tj=+25℃ | EERd | 8.66 | – | |
| Tj=+20℃ | Pdc | 3.33 | kW | Tj=+20℃ | EERd | 10.07 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4060 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 40 / 64 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 14 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 12.2 | kW | Seasonal space cooling energy efficiency | ηs,c | 191 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 12.19 | kW | Tj=+35℃ | EERd | 2.46 | – | |
| Tj=+30℃ | Pdc | 9.41 | kW | Tj=+30℃ | EERd | 3.85 | – | |
| Tj=+25℃ | Pdc | 6.16 | kW | Tj=+25℃ | EERd | 5.80 | – | |
| Tj=+20℃ | Pdc | 2.63 | kW | Tj=+20℃ | EERd | 6.74 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4060 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 40 / 65 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 14 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 13.3 | kW | Seasonal space cooling energy efficiency | ηs,c | 273 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 13.30 | kW | Tj=+35℃ | EERd | 3.47 | – | |
| Tj=+30℃ | Pdc | 10.20 | kW | Tj=+30℃ | EERd | 5.26 | – | |
| Tj=+25℃ | Pdc | 6.57 | kW | Tj=+25℃ | EERd | 8.45 | – | |
| Tj=+20℃ | Pdc | 3.33 | kW | Tj=+20℃ | EERd | 10.07 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4060 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 40 / 65 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 16 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 14.3 | kW | Seasonal space cooling energy efficiency | ηs,c | 184 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 14.31 | kW | Tj=+35℃ | EERd | 2.47 | – | |
| Tj=+30℃ | Pdc | 10.68 | kW | Tj=+30℃ | EERd | 3.63 | – | |
| Tj=+25℃ | Pdc | 6.76 | kW | Tj=+25℃ | EERd | 5.27 | – | |
| Tj=+20℃ | Pdc | 3.41 | kW | Tj=+20℃ | EERd | 7.29 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4650 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 40 / 68 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI3 16 | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 15.4 | kW | Seasonal space cooling energy efficiency | ηs,c | 267 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 15.40 | kW | Tj=+35℃ | EERd | 3.50 | – | |
| Tj=+30℃ | Pdc | 11.42 | kW | Tj=+30℃ | EERd | 5.14 | – | |
| Tj=+25℃ | Pdc | 7.27 | kW | Tj=+25℃ | EERd | 7.83 | – | |
| Tj=+20℃ | Pdc | 3.40 | kW | Tj=+20℃ | EERd | 10.35 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.014 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.014 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4650 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 40 / 68 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI6 12T | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 11.3 | kW | Seasonal space cooling energy efficiency | ηs,c | 191 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 11.31 | kW | Tj=+35℃ | EERd | 2.61 | – | |
| Tj=+30℃ | Pdc | 8.76 | kW | Tj=+30℃ | EERd | 3.93 | – | |
| Tj=+25℃ | Pdc | 5.81 | kW | Tj=+25℃ | EERd | 5.73 | – | |
| Tj=+20℃ | Pdc | 2.63 | kW | Tj=+20℃ | EERd | 6.75 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.020 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.020 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4060 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 40 / 64 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI6 12T | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 11.8 | kW | Seasonal space cooling energy efficiency | ηs,c | 279 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 11.77 | kW | Tj=+35℃ | EERd | 3.87 | – | |
| Tj=+30℃ | Pdc | 9.21 | kW | Tj=+30℃ | EERd | 5.50 | – | |
| Tj=+25℃ | Pdc | 5.74 | kW | Tj=+25℃ | EERd | 8.66 | – | |
| Tj=+20℃ | Pdc | 3.33 | kW | Tj=+20℃ | EERd | 10.07 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.020 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.020 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4060 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | 40 / 64 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | ||||
| Outdoor side heat exchanger of chiller: | ||||
| Indoor side heat exchanger chiller: | ||||
| Type: | ||||
| Driver of compressor: | ||||
| Item | Symbol | Value | ||
| Rated cooling capacity | Prated,c | 12.2 | ||
| Declared cooling capacity for part load at given outdoor temperature Tj | ||||
| Tj=+35℃ | Pdc | 12.19 | ||
| Tj=+30℃ | Pdc | 9.41 | ||
| Tj=+25℃ | Pdc | 6.16 | ||
| Tj=+20℃ | Pdc | 2.63 | ||
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | ||
| Power consumption in modes other than “active mode” | ||||
| Off mode | POFF | 0.020 | ||
| Thermosat-off mode | PTO | 0.010 | ||
| Other items | ||||
| Capacity control | variable | |||
| Sound power level, indoors / outdoors | LWA | -/65 | ||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | ||
| GWP of the refrigerant | – | 675 | ||
| Standard rating conditions used | Low temperature application | |||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||
| Model(s): | OMNIA S 3.2 HI6 14T | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 13.3 | kW | Seasonal space cooling energy efficiency | ηs,c | 271 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 13.30 | kW | Tj=+35℃ | EERd | 3.47 | – | |
| Tj=+30℃ | Pdc | 10.20 | kW | Tj=+30℃ | EERd | 5.26 | – | |
| Tj=+25℃ | Pdc | 6.57 | kW | Tj=+25℃ | EERd | 8.45 | – | |
| Tj=+20℃ | Pdc | 3.33 | kW | Tj=+20℃ | EERd | 10.07 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.020 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.020 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4060 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | -/64 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine-to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI6 16T | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 14.3 | kW | Seasonal space cooling energy efficiency | ηs,c | 184 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 14.31 | kW | Tj=+35℃ | EERd | 2.47 | – | |
| Tj=+30℃ | Pdc | 10.68 | kW | Tj=+30℃ | EERd | 3.63 | – | |
| Tj=+25℃ | Pdc | 6.76 | kW | Tj=+25℃ | EERd | 5.27 | – | |
| Tj=+20℃ | Pdc | 3.41 | kW | Tj=+20℃ | EERd | 7.29 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.020 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.020 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4650 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | -/69 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine- to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Low temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| Model(s): | OMNIA S 3.2 HI6 16T | |||||||
| Outdoor side heat exchanger of chiller: | Air to water | |||||||
| Indoor side heat exchanger chiller: | Water | |||||||
| Type: | Compressor driven vapour compression | |||||||
| Driver of compressor: | Electric motor | |||||||
| Item | Symbol | Value | Unit | Item | Symbol | Value | Unit | |
| Rated cooling capacity | Prated,c | 15.4 | kW | Seasonal space cooling energy efficiency | ηs,c | 265 | % | |
| Declared cooling capacity for part load at given outdoor temperature Tj | Declared energy efficiency ratio for part load at given outdoor temperature Tj | |||||||
| Tj=+35℃ | Pdc | 15.40 | kW | Tj=+35℃ | EERd | 3.50 | – | |
| Tj=+30℃ | Pdc | 11.42 | kW | Tj=+30℃ | EERd | 5.14 | – | |
| Tj=+25℃ | Pdc | 7.27 | kW | Tj=+25℃ | EERd | 7.83 | – | |
| Tj=+20℃ | Pdc | 3.40 | kW | Tj=+20℃ | EERd | 10.35 | – | |
| Degradation co-efficient for chillers (*) | Cdc | 0.9 | – | |||||
| Power consumption in modes other than “active mode” | ||||||||
| Off mode | POFF | 0.020 | kW | Crankcase heater mode | PCK | 0.000 | kW | |
| Thermosat-off mode | PTO | 0.010 | kW | Standby mode | PSB | 0.020 | kW | |
| Other items | ||||||||
| Capacity control | variable | For air-to-water comfort chillers: air flow rate, outdoor measured |
– |
4650 |
m3/h | |||
| Sound power level, indoors / outdoors | LWA | -/69 | dB | |||||
| Emissions of nitrogen oxides (if applicable) | NOx (**) | – | mg/kWh input GCV | For water / brine- to-water chillers: Rated brine or water flow rate, outdoor side heat exchanger |
– |
– | m3/h | |
| GWP of the refrigerant | – | 675 | kg CO2 eq (100years) | |||||
| Standard rating conditions used | Medium temperature application | |||||||
| Contact details | Ferroli spa ¬ 37047 San Bonifacio (Verona) Italy ¬ Via Ritonda 78/A – tel. +39.045.6139411 ¬ fax +39.045.6100933 ¬ www.ferroli.com | |||||||
| (*) If Cdc is not determined by measurement then the default degradation coefficient of chillers shall be 0,9. (**) From 26 September 2018. | ||||||||
| “Tw_out °C” | “DB/WB °C” | Heating Capacity [W] | COP | ||||||||||
| 130% | 100% | 90% | 70% | 50% | 30% | 130% | 100% | 90% | 70% | 50% | 30% | ||
|
25 | -25 | 2053 | 1899 | 1566 | 1232 | / | / | 1,74 | 1,78 | 1,79 | 1,80 | / | / |
| -20 | 3086 | 2824 | 2276 | 1728 | / | / | 2,36 | 2,45 | 2,48 | 2,50 | / | / | |
| -15 | 3602 | 3260 | 2989 | 2718 | 1682 | / | 3,03 | 3,17 | 3,35 | 3,53 | 3,25 | / | |
| -10 | 4465 | 4001 | 3414 | 2828 | 2241 | 1654 | 3,36 | 3,60 | 3,63 | 3,65 | 3,68 | 3,70 | |
| -7 | 5112 | 4678 | 3798 | 2917 | 2037 | 1156 | 3,67 | 3,85 | 3,89 | 3,93 | 3,97 | 4,01 | |
| -5 | 5180 | 4692 | 3858 | 3024 | 2190 | 1356 | 4,03 | 4,22 | 4,26 | 4,30 | 4,34 | 4,38 | |
| -2 | 5296 | 4841 | 3982 | 3122 | 2263 | 1403 | 4,55 | 4,71 | 4,75 | 4,80 | 4,84 | 4,88 | |
| 0 | 5412 | 4990 | 4105 | 3220 | 2335 | 1450 | 5,06 | 5,19 | 5,24 | 5,28 | 5,33 | 5,37 | |
| 2 | 5629 | 5182 | 4310 | 3439 | 2567 | 1695 | 5,28 | 5,45 | 5,52 | 5,58 | 5,65 | 5,71 | |
| 5 | 5994 | 5479 | 4601 | 3723 | 2844 | 1966 | 5,83 | 6,04 | 6,10 | 6,16 | 6,22 | 6,28 | |
| 7 | 6376 | 4603 | 4215 | 3826 | 2354 | 1955 | 6,67 | 6,98 | 7,41 | 7,84 | 7,28 | 6,96 | |
| 10 | 6370 | 5725 | 4781 | 3837 | 2893 | 1949 | 6,68 | 7,13 | 7,21 | 7,30 | 7,38 | 7,46 | |
| 12 | 6232 | 5625 | 4748 | 3870 | 2992 | 2114 | 6,69 | 7,21 | 7,29 | 7,39 | 7,48 | 7,56 | |
| 15 | 6026 | 5476 | 4698 | 3919 | 3141 | 2362 | 6,71 | 7,32 | 7,42 | 7,52 | 7,62 | 7,72 | |
| 20 | 5864 | 5358 | 4878 | 4398 | 2639 | / | 7,24 | 7,96 | 8,48 | 9,00 | 8,41 | / | |
| 25 | 5701 | 5081 | 4109 | 3136 | / | / | 7,91 | 8,75 | 9,00 | 9,25 | / | / | |
| 30 | 5776 | 5177 | 4249 | 3321 | / | / | 8,41 | 9,37 | 9,64 | 9,90 | / | / | |
| 35 | 5850 | 5290 | 4605 | 3920 | / | / | 8,96 | 10,05 | 10,34 | 10,63 | / | / | |
| 40 | 6298 | 5777 | 5030 | 4282 | / | / | 10,84 | 12,23 | 12,59 | 12,94 | / | / | |
| 43 | 6566 | 6076 | 5304 | 4531 | / | / | 12,20 | 13,87 | 14,28 | 14,68 | / | / | |
|
30 | -25 | 1796 | 1652 | 1384 | 1115 | / | / | 1,48 | 1,52 | 1,54 | 1,55 | / | / |
| -20 | 2829 | 2575 | 2416 | 2257 | 1528 | / | 1,82 | 1,86 | 1,96 | 2,07 | 1,90 | / | |
| -15 | 3407 | 3066 | 2830 | 2595 | 1652 | / | 2,78 | 2,88 | 3,04 | 3,21 | 2,95 | / | |
| -10 | 4290 | 3916 | 3375 | 2834 | 2292 | 1751 | 3,23 | 3,40 | 3,43 | 3,45 | 3,48 | 3,50 | |
| -7 | 5034 | 4607 | 3751 | 2895 | 2038 | 1182 | 3,51 | 3,65 | 3,68 | 3,71 | 3,73 | 3,76 | |
| -5 | 5076 | 4618 | 3803 | 2987 | 2172 | 1356 | 3,72 | 3,86 | 3,89 | 3,92 | 3,95 | 3,98 | |
| -2 | 5173 | 4709 | 3890 | 3071 | 2251 | 1432 | 4,03 | 4,16 | 4,19 | 4,23 | 4,26 | 4,29 | |
| 0 | 5269 | 4800 | 3977 | 3154 | 2330 | 1507 | 4,34 | 4,46 | 4,50 | 4,54 | 4,57 | 4,61 | |
| 2 | 5436 | 4944 | 4141 | 3339 | 2536 | 1733 | 4,51 | 4,70 | 4,74 | 4,79 | 4,83 | 4,87 | |
| 5 | 5746 | 5188 | 4388 | 3588 | 2788 | 1988 | 4,85 | 5,03 | 5,08 | 5,13 | 5,18 | 5,23 | |
| 7 | 6222 | 4355 | 4018 | 3682 | 2339 | 1853 | 5,40 | 5,65 | 6,00 | 6,35 | 5,89 | 5,60 | |
| 10 | 6033 | 5281 | 4403 | 3525 | 2646 | 1768 | 5,16 | 5,41 | 5,48 | 5,54 | 5,61 | 5,67 | |
| 12 | 5907 | 5193 | 4385 | 3577 | 2768 | 1960 | 5,01 | 5,30 | 5,37 | 5,44 | 5,51 | 5,57 | |
| 15 | 5717 | 5062 | 4358 | 3655 | 2951 | 2247 | 4,78 | 5,13 | 5,20 | 5,28 | 5,35 | 5,42 | |
| 20 | 5743 | 5113 | 4736 | 4360 | 2814 | / | 5,75 | 6,22 | 6,63 | 7,04 | 6,58 | / | |
| 25 | 5768 | 5237 | 4320 | 3403 | / | / | 7,21 | 7,85 | 8,08 | 8,30 | / | / | |
| 30 | 5836 | 5327 | 4458 | 3589 | / | / | 7,48 | 8,20 | 8,44 | 8,68 | / | / | |
| 35 | 5903 | 5436 | 4725 | 4014 | / | / | 7,77 | 8,57 | 8,83 | 9,08 | / | / | |
| 40 | 6379 | 5773 | 5024 | 4274 | / | / | 9,51 | 10,57 | 10,88 | 11,19 | / | / | |
| 43 | 6665 | 6085 | 5309 | 4532 | / | / | 10,80 | 12,08 | 12,44 | 12,80 | / | / | |
|
35 | -25 | 1711 | 1560 | 1371 | 1181 | / | / | 1,29 | 1,31 | 1,32 | 1,33 | / | / |
| -20 | 2444 | 2205 | 1812 | 1418 | / | / | 1,43 | 1,48 | 1,50 | 1,51 | / | / | |
| -15 | 3253 | 2901 | 2674 | 2447 | 1548 | / | 2,39 | 2,48 | 2,62 | 2,76 | 2,54 | / | |
| -10 | 4136 | 3824 | 3296 | 2769 | 2241 | 1713 | 2,85 | 2,95 | 2,97 | 3,00 | 3,02 | 3,04 | |
| -7 | 4986 | 4700 | 3837 | 2974 | 2110 | 1247 | 3,11 | 3,10 | 3,16 | 3,22 | 3,28 | 3,34 | |
| -5 | 5018 | 4371 | 3632 | 2893 | 2154 | 1415 | 3,27 | 3,41 | 3,44 | 3,46 | 3,49 | 3,51 | |
| -2 | 5058 | 4387 | 3645 | 2903 | 2161 | 1419 | 3,51 | 3,63 | 3,66 | 3,69 | 3,71 | 3,74 | |
| 0 | 5098 | 4403 | 3658 | 2913 | 2167 | 1422 | 3,74 | 3,85 | 3,88 | 3,92 | 3,95 | 3,98 | |
| 2 | 5280 | 4400 | 3712 | 3024 | 2335 | 1647 | 3,87 | 4,00 | 4,06 | 4,12 | 4,17 | 4,23 | |
| 5 | 5677 | 5080 | 4291 | 3502 | 2713 | 1924 | 4,33 | 4,49 | 4,53 | 4,58 | 4,62 | 4,66 | |
| 7 * | 6255 | 4200 | 3890 | 3579 | 2308 | 1920 | 4,96 | 5,10 | 5,43 | 5,77 | 5,39 | 5,01 | |
| 10 | 6067 | 5355 | 4496 | 3636 | 2777 | 1917 | 4,82 | 4,97 | 5,03 | 5,09 | 5,15 | 5,21 | |
| 12 | 5941 | 5267 | 4463 | 3659 | 2855 | 2050 | 4,73 | 4,92 | 4,98 | 5,05 | 5,11 | 5,17 | |
| 15 | 5753 | 5136 | 4414 | 3693 | 2971 | 2249 | 4,59 | 4,84 | 4,91 | 4,98 | 5,05 | 5,12 | |
| 20 | 5774 | 5094 | 4775 | 4456 | 3007 | / | 5,13 | 5,46 | 5,82 | 6,18 | 5,78 | / | |
| 25 | 5805 | 5121 | 4323 | 3525 | / | / | 5,85 | 6,27 | 6,45 | 6,63 | / | / | |
| 30 | 5781 | 5319 | 4553 | 3786 | / | / | 6,51 | 7,01 | 7,22 | 7,43 | / | / | |
| 35 | 5966 | 5538 | 4726 | 3914 | / | / | 7,27 | 7,89 | 8,13 | 8,36 | / | / | |
| 40 | 6359 | 5731 | 5123 | 4515 | / | / | 8,57 | 9,37 | 9,65 | 9,93 | / | / | |
| 43 | 6594 | 5996 | 5372 | 4748 | / | / | 9,50 | 10,46 | 10,77 | 11,08 | / | / | |
|
40 | -25 | 1531 | 1418 | 1253 | 1087 | / | / | 1,18 | 1,19 | 1,20 | 1,20 | / | / |
| -20 | 2166 | 1984 | 1685 | 1386 | / | / | 1,24 | 1,26 | 1,28 | 1,29 | / | / | |
| -15 | 2934 | 2658 | 2151 | 1643 | / | / | 1,97 | 2,02 | 2,05 | 2,07 | / | / | |
| -10 | 4017 | 3599 | 3364 | 3128 | 2089 | / | 2,43 | 2,49 | 2,63 | 2,78 | 2,56 | / | |
| -7 | 4667 | 4265 | 3873 | 3480 | 2063 | / | 2,70 | 2,81 | 2,98 | 3,16 | 2,93 | / | |
| -5 | 4738 | 4214 | 3831 | 3449 | 2056 | / | 2,82 | 2,96 | 3,14 | 3,32 | 3,07 | / | |
| -2 | 4827 | 4373 | 3963 | 3554 | 2088 | / | 3,00 | 3,09 | 3,28 | 3,47 | 3,21 | / | |
| 0 | 4916 | 4533 | 4096 | 3659 | 2119 | / | 3,18 | 3,23 | 3,42 | 3,61 | 3,34 | / | |
| 2 | 5183 | 4772 | 4339 | 3906 | 2329 | / | 3,35 | 3,44 | 3,66 | 3,87 | 3,60 | / | |
| 5 | 5588 | 5107 | 4666 | 4226 | 2576 | / | 3,77 | 3,86 | 4,09 | 4,33 | 4,01 | / | |
| 7 | 6259 | 4381 | 3665 | 2948 | / | / | 4,41 | 4,64 | 4,71 | 4,78 | / | / | |
| 10 | 5912 | 5241 | 4843 | 4445 | 2841 | / | 4,63 | 4,83 | 5,13 | 5,44 | 5,06 | / | |
| 12 | 5948 | 5258 | 4870 | 4481 | 2890 | / | 4,79 | 5,05 | 5,37 | 5,70 | 5,31 | / | |
| 15 | 6002 | 5284 | 4910 | 4536 | 2964 | / | 5,04 | 5,38 | 5,73 | 6,08 | 5,68 | / | |
| 20 | 6076 | 5593 | 4736 | 3878 | / | / | 5,48 | 5,89 | 6,06 | 6,23 | / | / | |
| 25 | 5910 | 5473 | 4894 | 4314 | / | / | 6,06 | 6,55 | 6,75 | 6,94 | / | / | |
| 30 | 5886 | 5480 | 4756 | 4032 | / | / | 6,39 | 6,97 | 7,17 | 7,37 | / | / | |
| 35 | 5861 | 5504 | 4774 | 4044 | / | / | 6,77 | 7,43 | 7,65 | 7,87 | / | / | |
| 40 | 6334 | 5777 | 5169 | 4560 | / | / | 7,88 | 8,70 | 8,96 | 9,22 | / | / | |
| 43 | 6617 | 6088 | 5459 | 4830 | / | / | 8,63 | 9,60 | 9,89 | 10,17 | / | / | |
|
45 | -25 | 1371 | 1285 | 1075 | 864 | / | / | 1,10 | 1,09 | 1,10 | 1,10 | / | / |
| -20 | 1976 | 1832 | 1529 | 1225 | / | / | 1,13 | 1,14 | 1,15 | 1,15 | / | / | |
| -15 | 2505 | 2222 | 1913 | 1603 | / | / | 1,56 | 1,59 | 1,60 | 1,61 | / | / | |
| -10 | 3588 | 3254 | 2714 | 2174 | / | / | 2,02 | 2,05 | 2,07 | 2,09 | / | / | |
| -7 | 4538 | 4300 | 3905 | 3510 | 2081 | / | 2,29 | 2,35 | 2,49 | 2,62 | 2,42 | / | |
| -5 | 4627 | 4195 | 3844 | 3494 | 2157 | / | 2,45 | 2,54 | 2,68 | 2,83 | 2,60 | / | |
| -2 | 4833 | 4327 | 3956 | 3584 | 2190 | / | 2,67 | 2,77 | 2,93 | 3,08 | 2,83 | / | |
| 0 | 5039 | 4460 | 4068 | 3675 | 2222 | / | 2,89 | 3,00 | 3,17 | 3,34 | 3,07 | / | |
| 2 | 5251 | 5100 | 4609 | 4118 | 2387 | / | 2,97 | 3,00 | 3,21 | 3,43 | 3,23 | / | |
| 5 | 5601 | 4824 | 4451 | 4078 | 2591 | / | 3,27 | 3,42 | 3,62 | 3,82 | 3,52 | / | |
| 7 | 5962 | 4300 | 3760 | 3219 | 2800 | / | 3,67 | 3,80 | 3,86 | 3,91 | 4,00 | / | |
| 10 | 6051 | 5477 | 5145 | 4813 | 3274 | / | 3,90 | 4,05 | 4,30 | 4,54 | 4,21 | / | |
| 12 | 6110 | 5555 | 4909 | 4261 | / | / | 4,02 | 4,18 | 4,37 | 4,56 | / | / | |
| 15 | 6199 | 5673 | 4554 | 3434 | / | / | 4,21 | 4,37 | 4,48 | 4,58 | / | / | |
| 20 | 6122 | 5633 | 4715 | 3796 | / | / | 4,66 | 4,88 | 5,00 | 5,12 | / | / | |
| 25 | 6045 | 5668 | 5010 | 4352 | / | / | 5,25 | 5,53 | 5,67 | 5,81 | / | / | |
| 30 | 6020 | 5674 | 5049 | 4424 | / | / | 5,62 | 5,97 | 6,12 | 6,27 | / | / | |
| 35 | 5994 | 5698 | 5067 | 4436 | / | / | 6,05 | 6,47 | 6,64 | 6,80 | / | / | |
| 40 | 6377 | 5890 | 5368 | 4846 | / | / | 6,86 | 7,38 | 7,57 | 7,76 | / | / | |
| 43 | 6606 | 6154 | 5654 | 5153 | / | / | 7,39 | 8,01 | 8,22 | 8,42 | / | / | |
| “Tw_out °C” | “DB/WB °C” | Heating Capacity [W] | COP | ||||||||||
| 130% | 100% | 90% | 70% | 50% | 30% | 130% | 100% | 90% | 70% | 50% | 30% | ||
|
50 | -25 | / | / | / | / | / | / | / | / | / | / | / | / |
| -20 | 1853 | 1725 | 1502 | 1279 | / | / | 1,06 | 1,07 | 1,08 | 1,08 | / | / | |
| -15 | 2197 | 1957 | 1737 | 1516 | / | / | 1,31 | 1,34 | 1,35 | 1,36 | / | / | |
| -10 | 3280 | 2988 | 2608 | 2227 | / | / | 1,81 | 1,84 | 1,86 | 1,88 | / | / | |
| -7 | 4410 | 4125 | 3761 | 3397 | 2051 | / | 2,08 | 2,14 | 2,26 | 2,38 | 2,18 | / | |
| -5 | 4565 | 4137 | 3781 | 3424 | 2089 | / | 2,26 | 2,32 | 2,45 | 2,58 | 2,37 | / | |
| -2 | 4793 | 4274 | 3907 | 3540 | 2163 | / | 2,37 | 2,42 | 2,57 | 2,72 | 2,52 | / | |
| 0 | 5021 | 4410 | 4033 | 3655 | 2236 | / | 2,48 | 2,52 | 2,69 | 2,86 | 2,68 | / | |
| 2 | 5191 | 5027 | 4553 | 4079 | 2389 | / | 2,52 | 2,56 | 2,74 | 2,92 | 2,75 | / | |
| 5 | 5498 | 4533 | 4223 | 3913 | 2581 | / | 2,78 | 2,86 | 3,03 | 3,19 | 2,94 | / | |
| 7 | 5694 | 4538 | 3879 | 3220 | / | / | 3,11 | 3,32 | 3,36 | 3,40 | / | / | |
| 10 | 5797 | 5195 | 4195 | 3194 | / | / | 3,40 | 3,45 | 3,50 | 3,54 | / | / | |
| 12 | 5746 | 5161 | 4214 | 3266 | / | / | 3,50 | 3,60 | 3,67 | 3,73 | / | / | |
| 15 | 5669 | 5109 | 4242 | 3374 | / | / | 3,65 | 3,83 | 3,92 | 4,01 | / | / | |
| 20 | 5721 | 5267 | 4457 | 3646 | / | / | 3,99 | 4,23 | 4,34 | 4,44 | / | / | |
| 25 | 5683 | 5300 | 4806 | 4312 | / | / | 4,39 | 4,68 | 4,80 | 4,92 | / | / | |
| 30 | 5668 | 5450 | 4921 | 4392 | / | / | 4,63 | 4,97 | 5,10 | 5,22 | / | / | |
| 35 | 5586 | 5416 | 4943 | 4469 | / | / | 4,90 | 5,30 | 5,44 | 5,57 | / | / | |
| 40 | 6001 | 5657 | 4861 | / | / | / | 5,20 | 5,67 | 5,96 | / | / | / | |
| 43 | 6250 | 5941 | 5188 | / | / | / | 5,38 | 5,90 | 6,20 | / | / | / | |
|
55 | -25 | / | / | / | / | / | / | / | / | / | / | / | / |
| -20 | 1560 | 1501 | 1320 | 1139 | / | / | 0,98 | 0,99 | 1,00 | 1,00 | / | / | |
| -15 | 1835 | 1692 | 1470 | 1248 | / | / | 1,18 | 1,20 | 1,23 | 1,25 | / | / | |
| -10 | 2629 | 2398 | 2109 | 1819 | / | / | 1,56 | 1,58 | 1,59 | 1,60 | / | / | |
| -7 | 4279 | 4000 | 3618 | 3235 | 1882 | / | 1,83 | 1,95 | 2,04 | 2,12 | 1,91 | / | |
| -5 | 4412 | 4036 | 3676 | 3316 | 1993 | / | 1,95 | 2,00 | 2,11 | 2,22 | 2,04 | / | |
| -2 | 4770 | 4231 | 3857 | 3484 | 2103 | / | 2,16 | 2,25 | 2,37 | 2,49 | 2,28 | / | |
| 0 | 5129 | 4425 | 4038 | 3651 | 2213 | / | 2,37 | 2,49 | 2,62 | 2,75 | 2,51 | / | |
| 2 | 5263 | 5100 | 4635 | 4171 | 2483 | / | 2,42 | 2,45 | 2,62 | 2,78 | 2,61 | / | |
| 5 | 5536 | 4562 | 3678 | 2793 | / | / | 2,68 | 2,75 | 2,78 | 2,81 | / | / | |
| 7 | 5742 | 4400 | 4023 | 3646 | / | / | 2,83 | 2,95 | 3,05 | 3,15 | / | / | |
| 10 | 5699 | 4963 | 4280 | 3596 | / | / | 3,16 | 3,23 | 3,29 | 3,35 | / | / | |
| 12 | 5671 | 4961 | 4370 | 3778 | / | / | 3,26 | 3,35 | 3,42 | 3,49 | / | / | |
| 15 | 5628 | 4957 | 4505 | 4052 | / | / | 3,41 | 3,53 | 3,62 | 3,70 | / | / | |
| 20 | 5522 | 4892 | 4296 | 3700 | / | / | 3,68 | 3,84 | 3,94 | 4,04 | / | / | |
| 25 | 5416 | 4893 | 4391 | 3889 | / | / | 4,02 | 4,23 | 4,34 | 4,44 | / | / | |
| 30 | 5513 | 5008 | 4552 | 4096 | / | / | 4,31 | 4,56 | 4,68 | 4,79 | / | / | |
| 35 | 5610 | 5141 | 4376 | / | / | / | 4,62 | 4,92 | 5,18 | / | / | / | |
| 40 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 43 | / | / | / | / | / | / | / | / | / | / | / | / | |
|
60 | -25 | / | / | / | / | / | / | / | / | / | / | / | / |
| -20 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -15 | 1728 | 1608 | 1418 | 1227 | / | / | 1,03 | 1,03 | 1,04 | 1,05 | / | / | |
| -10 | 2811 | 2589 | 2304 | 2018 | / | / | 1,56 | 1,55 | 1,57 | 1,58 | / | / | |
| -7 | 3561 | 3149 | 2686 | 2222 | / | / | 1,84 | 1,87 | 1,89 | 1,91 | / | / | |
| -5 | 3828 | 3422 | 2856 | 2289 | / | / | 1,92 | 1,95 | 1,97 | 1,99 | / | / | |
| -2 | 4113 | 3648 | 3048 | 2448 | / | / | 2,00 | 2,02 | 2,05 | 2,07 | / | / | |
| 0 | 4397 | 3874 | 3241 | 2607 | / | / | 2,09 | 2,09 | 2,12 | 2,14 | / | / | |
| 2 | 4589 | 4036 | 3422 | 2808 | / | / | 2,13 | 2,16 | 2,20 | 2,24 | / | / | |
| 5 | 4902 | 4279 | 3667 | 3054 | / | / | 2,35 | 2,37 | 2,41 | 2,44 | / | / | |
| 7 | 5406 | 4265 | 3911 | 3557 | / | / | 2,61 | 2,65 | 2,70 | 2,75 | / | / | |
| 10 | 5267 | 4841 | 4185 | 3529 | / | / | 2,69 | 2,74 | 2,80 | 2,85 | / | / | |
| 12 | 5175 | 4776 | 4182 | 3588 | / | / | 2,76 | 2,83 | 2,88 | 2,91 | / | / | |
| 15 | 5036 | 4679 | 4178 | 3676 | / | / | 2,87 | 2,97 | 2,99 | 3,00 | / | / | |
| 20 | 4766 | 4452 | 3823 | 3193 | / | / | 3,06 | 3,07 | 3,15 | 3,23 | / | / | |
| 25 | 4495 | 4278 | 3780 | 3281 | / | / | 3,30 | 3,34 | 3,43 | 3,52 | / | / | |
| 30 | 4612 | 4412 | 3947 | 3482 | / | / | 3,51 | 3,57 | 3,67 | 3,76 | / | / | |
| 35 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 40 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 43 | / | / | / | / | / | / | / | / | / | / | / | / | |
|
65 | -25 | / | / | / | / | / | / | / | / | / | / | / | / |
| -20 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -15 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -10 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -7 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -5 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -2 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 0 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 2 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 5 | 4040 | 3305 | 2820 | 2335 | / | / | 1,87 | 1,96 | 2,00 | 2,04 | / | / | |
| 7 | 4267 | 3537 | 3121 | 2705 | / | / | 2,04 | 2,16 | 2,21 | 2,26 | / | / | |
| 10 | 4494 | 3667 | 3267 | 2867 | / | / | 2,22 | 2,35 | 2,40 | 2,44 | / | / | |
| 12 | 4646 | 3810 | 3379 | 2948 | / | / | 2,36 | 2,52 | 2,58 | 2,62 | / | / | |
| 15 | 4873 | 4025 | 3548 | 3070 | / | / | 2,56 | 2,77 | 2,84 | 2,90 | / | / | |
| 20 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 25 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 30 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 35 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 40 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 43 | / | / | / | / | / | / | / | / | / | / | / | / | |
| “Tw_out °C” | “DB/WB °C” | Heating Capacity [W] | COP | ||||||||||
| 130% | 100% | 90% | 70% | 50% | 30% | 130% | 100% | 90% | 70% | 50% | 30% | ||
|
25 | -25 | 2053 | 1899 | 1566 | 1232 | / | / | 1,74 | 1,78 | 1,79 | 1,80 | / | / |
| -20 | 3086 | 2824 | 2276 | 1728 | / | / | 2,36 | 2,45 | 2,48 | 2,50 | / | / | |
| -15 | 3602 | 3260 | 2989 | 2718 | 1682 | / | 3,03 | 3,17 | 3,35 | 3,53 | 3,25 | / | |
| -10 | 4465 | 4001 | 3414 | 2828 | 2241 | 1654 | 3,36 | 3,60 | 3,63 | 3,65 | 3,68 | 3,70 | |
| -7 | 5112 | 4678 | 3798 | 2917 | 2037 | 1156 | 3,67 | 3,85 | 3,89 | 3,93 | 3,97 | 4,01 | |
| -5 | 5180 | 4692 | 3858 | 3024 | 2190 | 1356 | 4,03 | 4,22 | 4,26 | 4,30 | 4,34 | 4,38 | |
| -2 | 5296 | 4841 | 3982 | 3122 | 2263 | 1403 | 4,55 | 4,71 | 4,75 | 4,80 | 4,84 | 4,88 | |
| 0 | 5412 | 4990 | 4105 | 3220 | 2335 | 1450 | 5,06 | 5,19 | 5,24 | 5,28 | 5,33 | 5,37 | |
| 2 | 5629 | 5182 | 4310 | 3439 | 2567 | 1695 | 5,28 | 5,45 | 5,52 | 5,58 | 5,65 | 5,71 | |
| 5 | 5994 | 5479 | 4601 | 3723 | 2844 | 1966 | 5,83 | 6,04 | 6,10 | 6,16 | 6,22 | 6,28 | |
| 7 | 6376 | 4603 | 4215 | 3826 | 2354 | 1955 | 6,67 | 6,98 | 7,41 | 7,84 | 7,28 | 6,96 | |
| 10 | 6370 | 5725 | 4781 | 3837 | 2893 | 1949 | 6,68 | 7,13 | 7,21 | 7,30 | 7,38 | 7,46 | |
| 12 | 6232 | 5625 | 4748 | 3870 | 2992 | 2114 | 6,69 | 7,21 | 7,29 | 7,39 | 7,48 | 7,56 | |
| 15 | 6026 | 5476 | 4698 | 3919 | 3141 | 2362 | 6,71 | 7,32 | 7,42 | 7,52 | 7,62 | 7,72 | |
| 20 | 5864 | 5358 | 4878 | 4398 | 2639 | / | 7,24 | 7,96 | 8,48 | 9,00 | 8,41 | / | |
| 25 | 5701 | 5081 | 4109 | 3136 | / | / | 7,91 | 8,75 | 9,00 | 9,25 | / | / | |
| 30 | 5776 | 5177 | 4249 | 3321 | / | / | 8,41 | 9,37 | 9,64 | 9,90 | / | / | |
| 35 | 5850 | 5290 | 4605 | 3920 | / | / | 8,96 | 10,05 | 10,34 | 10,63 | / | / | |
| 40 | 6298 | 5777 | 5030 | 4282 | / | / | 10,84 | 12,23 | 12,59 | 12,94 | / | / | |
| 43 | 6566 | 6076 | 5304 | 4531 | / | / | 12,20 | 13,87 | 14,28 | 14,68 | / | / | |
|
30 | -25 | 1796 | 1652 | 1384 | 1115 | / | / | 1,48 | 1,52 | 1,54 | 1,55 | / | / |
| -20 | 2829 | 2575 | 2416 | 2257 | 1528 | / | 1,82 | 1,86 | 1,96 | 2,07 | 1,90 | / | |
| -15 | 3407 | 3066 | 2830 | 2595 | 1652 | / | 2,78 | 2,88 | 3,04 | 3,21 | 2,95 | / | |
| -10 | 4290 | 3916 | 3375 | 2834 | 2292 | 1751 | 3,23 | 3,40 | 3,43 | 3,45 | 3,48 | 3,50 | |
| -7 | 5034 | 4607 | 3751 | 2895 | 2038 | 1182 | 3,51 | 3,65 | 3,68 | 3,71 | 3,73 | 3,76 | |
| -5 | 5076 | 4618 | 3803 | 2987 | 2172 | 1356 | 3,72 | 3,86 | 3,89 | 3,92 | 3,95 | 3,98 | |
| -2 | 5173 | 4709 | 3890 | 3071 | 2251 | 1432 | 4,03 | 4,16 | 4,19 | 4,23 | 4,26 | 4,29 | |
| 0 | 5269 | 4800 | 3977 | 3154 | 2330 | 1507 | 4,34 | 4,46 | 4,50 | 4,54 | 4,57 | 4,61 | |
| 2 | 5436 | 4944 | 4141 | 3339 | 2536 | 1733 | 4,51 | 4,70 | 4,74 | 4,79 | 4,83 | 4,87 | |
| 5 | 5746 | 5188 | 4388 | 3588 | 2788 | 1988 | 4,85 | 5,03 | 5,08 | 5,13 | 5,18 | 5,23 | |
| 7 | 6222 | 4355 | 4018 | 3682 | 2339 | 1853 | 5,40 | 5,65 | 6,00 | 6,35 | 5,89 | 5,60 | |
| 10 | 6033 | 5281 | 4403 | 3525 | 2646 | 1768 | 5,16 | 5,41 | 5,48 | 5,54 | 5,61 | 5,67 | |
| 12 | 5907 | 5193 | 4385 | 3577 | 2768 | 1960 | 5,01 | 5,30 | 5,37 | 5,44 | 5,51 | 5,57 | |
| 15 | 5717 | 5062 | 4358 | 3655 | 2951 | 2247 | 4,78 | 5,13 | 5,20 | 5,28 | 5,35 | 5,42 | |
| 20 | 5743 | 5113 | 4736 | 4360 | 2814 | / | 5,75 | 6,22 | 6,63 | 7,04 | 6,58 | / | |
| 25 | 5768 | 5237 | 4320 | 3403 | / | / | 7,21 | 7,85 | 8,08 | 8,30 | / | / | |
| 30 | 5836 | 5327 | 4458 | 3589 | / | / | 7,48 | 8,20 | 8,44 | 8,68 | / | / | |
| 35 | 5903 | 5436 | 4725 | 4014 | / | / | 7,77 | 8,57 | 8,83 | 9,08 | / | / | |
| 40 | 6379 | 5773 | 5024 | 4274 | / | / | 9,51 | 10,57 | 10,88 | 11,19 | / | / | |
| 43 | 6665 | 6085 | 5309 | 4532 | / | / | 10,80 | 12,08 | 12,44 | 12,80 | / | / | |
|
35 | -25 | 1711 | 1560 | 1371 | 1181 | / | / | 1,29 | 1,31 | 1,32 | 1,33 | / | / |
| -20 | 2444 | 2205 | 1812 | 1418 | / | / | 1,43 | 1,48 | 1,50 | 1,51 | / | / | |
| -15 | 3253 | 2901 | 2674 | 2447 | 1548 | / | 2,39 | 2,48 | 2,62 | 2,76 | 2,54 | / | |
| -10 | 4136 | 3824 | 3296 | 2769 | 2241 | 1713 | 2,85 | 2,95 | 2,97 | 3,00 | 3,02 | 3,04 | |
| -7 | 4986 | 4700 | 3837 | 2974 | 2110 | 1247 | 3,11 | 3,10 | 3,16 | 3,22 | 3,28 | 3,34 | |
| -5 | 5018 | 4371 | 3632 | 2893 | 2154 | 1415 | 3,27 | 3,41 | 3,44 | 3,46 | 3,49 | 3,51 | |
| -2 | 5058 | 4387 | 3645 | 2903 | 2161 | 1419 | 3,51 | 3,63 | 3,66 | 3,69 | 3,71 | 3,74 | |
| 0 | 5098 | 4403 | 3658 | 2913 | 2167 | 1422 | 3,74 | 3,85 | 3,88 | 3,92 | 3,95 | 3,98 | |
| 2 | 5280 | 4400 | 3712 | 3024 | 2335 | 1647 | 3,87 | 4,00 | 4,06 | 4,12 | 4,17 | 4,23 | |
| 5 | 5677 | 5080 | 4291 | 3502 | 2713 | 1924 | 4,33 | 4,49 | 4,53 | 4,58 | 4,62 | 4,66 | |
| 7 * | 6255 | 4200 | 3890 | 3579 | 2308 | 1920 | 4,96 | 5,10 | 5,43 | 5,77 | 5,39 | 5,01 | |
| 10 | 6067 | 5355 | 4496 | 3636 | 2777 | 1917 | 4,82 | 4,97 | 5,03 | 5,09 | 5,15 | 5,21 | |
| 12 | 5941 | 5267 | 4463 | 3659 | 2855 | 2050 | 4,73 | 4,92 | 4,98 | 5,05 | 5,11 | 5,17 | |
| 15 | 5753 | 5136 | 4414 | 3693 | 2971 | 2249 | 4,59 | 4,84 | 4,91 | 4,98 | 5,05 | 5,12 | |
| 20 | 5774 | 5094 | 4775 | 4456 | 3007 | / | 5,13 | 5,46 | 5,82 | 6,18 | 5,78 | / | |
| 25 | 5805 | 5121 | 4323 | 3525 | / | / | 5,85 | 6,27 | 6,45 | 6,63 | / | / | |
| 30 | 5781 | 5319 | 4553 | 3786 | / | / | 6,51 | 7,01 | 7,22 | 7,43 | / | / | |
| 35 | 5966 | 5538 | 4726 | 3914 | / | / | 7,27 | 7,89 | 8,13 | 8,36 | / | / | |
| 40 | 6359 | 5731 | 5123 | 4515 | / | / | 8,57 | 9,37 | 9,65 | 9,93 | / | / | |
| 43 | 6594 | 5996 | 5372 | 4748 | / | / | 9,50 | 10,46 | 10,77 | 11,08 | / | / | |
|
40 | -25 | 1531 | 1418 | 1253 | 1087 | / | / | 1,18 | 1,19 | 1,20 | 1,20 | / | / |
| -20 | 2166 | 1984 | 1685 | 1386 | / | / | 1,24 | 1,26 | 1,28 | 1,29 | / | / | |
| -15 | 2934 | 2658 | 2151 | 1643 | / | / | 1,97 | 2,02 | 2,05 | 2,07 | / | / | |
| -10 | 4017 | 3599 | 3364 | 3128 | 2089 | / | 2,43 | 2,49 | 2,63 | 2,78 | 2,56 | / | |
| -7 | 4667 | 4265 | 3873 | 3480 | 2063 | / | 2,70 | 2,81 | 2,98 | 3,16 | 2,93 | / | |
| -5 | 4738 | 4214 | 3831 | 3449 | 2056 | / | 2,82 | 2,96 | 3,14 | 3,32 | 3,07 | / | |
| -2 | 4827 | 4373 | 3963 | 3554 | 2088 | / | 3,00 | 3,09 | 3,28 | 3,47 | 3,21 | / | |
| 0 | 4916 | 4533 | 4096 | 3659 | 2119 | / | 3,18 | 3,23 | 3,42 | 3,61 | 3,34 | / | |
| 2 | 5183 | 4772 | 4339 | 3906 | 2329 | / | 3,35 | 3,44 | 3,66 | 3,87 | 3,60 | / | |
| 5 | 5588 | 5107 | 4666 | 4226 | 2576 | / | 3,77 | 3,86 | 4,09 | 4,33 | 4,01 | / | |
| 7 | 6259 | 4381 | 3665 | 2948 | / | / | 4,41 | 4,64 | 4,71 | 4,78 | / | / | |
| 10 | 5912 | 5241 | 4843 | 4445 | 2841 | / | 4,63 | 4,83 | 5,13 | 5,44 | 5,06 | / | |
| 12 | 5948 | 5258 | 4870 | 4481 | 2890 | / | 4,79 | 5,05 | 5,37 | 5,70 | 5,31 | / | |
| 15 | 6002 | 5284 | 4910 | 4536 | 2964 | / | 5,04 | 5,38 | 5,73 | 6,08 | 5,68 | / | |
| 20 | 6076 | 5593 | 4736 | 3878 | / | / | 5,48 | 5,89 | 6,06 | 6,23 | / | / | |
| 25 | 5910 | 5473 | 4894 | 4314 | / | / | 6,06 | 6,55 | 6,75 | 6,94 | / | / | |
| 30 | 5886 | 5480 | 4756 | 4032 | / | / | 6,39 | 6,97 | 7,17 | 7,37 | / | / | |
| 35 | 5861 | 5504 | 4774 | 4044 | / | / | 6,77 | 7,43 | 7,65 | 7,87 | / | / | |
| 40 | 6334 | 5777 | 5169 | 4560 | / | / | 7,88 | 8,70 | 8,96 | 9,22 | / | / | |
| 43 | 6617 | 6088 | 5459 | 4830 | / | / | 8,63 | 9,60 | 9,89 | 10,17 | / | / | |
|
45 | -25 | 1371 | 1285 | 1075 | 864 | / | / | 1,10 | 1,09 | 1,10 | 1,10 | / | / |
| -20 | 1976 | 1832 | 1529 | 1225 | / | / | 1,13 | 1,14 | 1,15 | 1,15 | / | / | |
| -15 | 2505 | 2222 | 1913 | 1603 | / | / | 1,56 | 1,59 | 1,60 | 1,61 | / | / | |
| -10 | 3588 | 3254 | 2714 | 2174 | / | / | 2,02 | 2,05 | 2,07 | 2,09 | / | / | |
| -7 | 4538 | 4300 | 3905 | 3510 | 2081 | / | 2,29 | 2,35 | 2,49 | 2,62 | 2,42 | / | |
| -5 | 4627 | 4195 | 3844 | 3494 | 2157 | / | 2,45 | 2,54 | 2,68 | 2,83 | 2,60 | / | |
| -2 | 4833 | 4327 | 3956 | 3584 | 2190 | / | 2,67 | 2,77 | 2,93 | 3,08 | 2,83 | / | |
| 0 | 5039 | 4460 | 4068 | 3675 | 2222 | / | 2,89 | 3,00 | 3,17 | 3,34 | 3,07 | / | |
| 2 | 5251 | 5100 | 4609 | 4118 | 2387 | / | 2,97 | 3,00 | 3,21 | 3,43 | 3,23 | / | |
| 5 | 5601 | 4824 | 4451 | 4078 | 2591 | / | 3,27 | 3,42 | 3,62 | 3,82 | 3,52 | / | |
| 7 | 5962 | 4300 | 3760 | 3219 | 2800 | / | 3,67 | 3,80 | 3,86 | 3,91 | 4,00 | / | |
| 10 | 6051 | 5477 | 5145 | 4813 | 3274 | / | 3,90 | 4,05 | 4,30 | 4,54 | 4,21 | / | |
| 12 | 6110 | 5555 | 4909 | 4261 | / | / | 4,02 | 4,18 | 4,37 | 4,56 | / | / | |
| 15 | 6199 | 5673 | 4554 | 3434 | / | / | 4,21 | 4,37 | 4,48 | 4,58 | / | / | |
| 20 | 6122 | 5633 | 4715 | 3796 | / | / | 4,66 | 4,88 | 5,00 | 5,12 | / | / | |
| 25 | 6045 | 5668 | 5010 | 4352 | / | / | 5,25 | 5,53 | 5,67 | 5,81 | / | / | |
| 30 | 6020 | 5674 | 5049 | 4424 | / | / | 5,62 | 5,97 | 6,12 | 6,27 | / | / | |
| 35 | 5994 | 5698 | 5067 | 4436 | / | / | 6,05 | 6,47 | 6,64 | 6,80 | / | / | |
| 40 | 6377 | 5890 | 5368 | 4846 | / | / | 6,86 | 7,38 | 7,57 | 7,76 | / | / | |
| 43 | 6606 | 6154 | 5654 | 5153 | / | / | 7,39 | 8,01 | 8,22 | 8,42 | / | / | |
| “Tw_out °C” | “DB/WB °C” | Heating Capacity [W] | COP | ||||||||||
| 130% | 100% | 90% | 70% | 50% | 30% | 130% | 100% | 90% | 70% | 50% | 30% | ||
|
50 | -25 | / | / | / | / | / | / | / | / | / | / | / | / |
| -20 | 2187 | 2036 | 1773 | 1509 | / | / | 1,07 | 1,08 | 1,09 | 1,09 | / | / | |
| -15 | 2702 | 2407 | 2136 | 1864 | / | / | 1,34 | 1,37 | 1,38 | 1,39 | / | / | |
| -10 | 4127 | 3760 | 3281 | 2802 | / | / | 1,72 | 1,75 | 1,77 | 1,78 | / | / | |
| -7 | 5287 | 5068 | 4635 | 4202 | 2572 | / | 2,01 | 2,07 | 2,18 | 2,30 | 2,11 | / | |
| -5 | 5440 | 5114 | 4676 | 4237 | 2590 | / | 2,23 | 2,27 | 2,41 | 2,54 | 2,35 | / | |
| -2 | 5659 | 5235 | 4824 | 4413 | 2788 | / | 2,36 | 2,40 | 2,54 | 2,68 | 2,47 | / | |
| 0 | 5879 | 5356 | 4972 | 4589 | 2987 | / | 2,48 | 2,53 | 2,67 | 2,82 | 2,59 | / | |
| 2 | 6047 | 5730 | 5316 | 4902 | 3182 | / | 2,54 | 2,63 | 2,79 | 2,95 | 2,73 | / | |
| 5 | 6374 | 5905 | 5519 | 5134 | 3429 | / | 2,81 | 2,89 | 3,06 | 3,23 | 2,98 | / | |
| 7 | 6868 | 6133 | 5196 | 4258 | / | / | 3,17 | 3,29 | 3,35 | 3,41 | / | / | |
| 10 | 7006 | 6474 | 5350 | 4225 | / | / | 3,35 | 3,44 | 3,51 | 3,57 | / | / | |
| 12 | 7098 | 6588 | 5455 | 4321 | / | / | 3,48 | 3,61 | 3,69 | 3,76 | / | / | |
| 15 | 7236 | 6759 | 5612 | 4465 | / | / | 3,67 | 3,86 | 3,96 | 4,05 | / | / | |
| 20 | 7284 | 6840 | 5788 | 4735 | / | / | 4,02 | 4,25 | 4,36 | 4,46 | / | / | |
| 25 | 7332 | 7014 | 6257 | 5499 | / | / | 4,43 | 4,72 | 4,84 | 4,96 | / | / | |
| 30 | 6909 | 6644 | 5999 | 5354 | / | / | 4,92 | 5,28 | 5,42 | 5,55 | / | / | |
| 35 | 6486 | 6289 | 5739 | 5189 | / | / | 5,21 | 5,63 | 5,78 | 5,92 | / | / | |
| 40 | 6928 | 6530 | 5612 | / | / | / | 5,68 | 6,19 | 6,50 | / | / | / | |
| 43 | 7193 | 6838 | 5970 | / | / | / | 5,96 | 6,54 | 6,87 | / | / | / | |
|
55 | -25 | / | / | / | / | / | / | / | / | / | / | / | / |
| -20 | 1841 | 1771 | 1558 | 1344 | / | / | 0,99 | 1,00 | 1,01 | 1,01 | / | / | |
| -15 | 2257 | 2081 | 1808 | 1535 | / | / | 1,20 | 1,22 | 1,23 | 1,24 | / | / | |
| -10 | 3797 | 3463 | 3046 | 2628 | / | / | 1,69 | 1,71 | 1,73 | 1,74 | / | / | |
| -7 | 5217 | 5150 | 4717 | 4284 | 2639 | / | 1,96 | 2,00 | 2,10 | 2,21 | 2,01 | / | |
| -5 | 5305 | 5078 | 4708 | 4338 | 2809 | / | 2,01 | 2,06 | 2,18 | 2,29 | 2,11 | / | |
| -2 | 5363 | 5112 | 4740 | 4369 | 2831 | / | 2,05 | 2,09 | 2,21 | 2,33 | 2,14 | / | |
| 0 | 5421 | 5146 | 4772 | 4399 | 2852 | / | 2,09 | 2,11 | 2,23 | 2,35 | 2,17 | / | |
| 2 | 5691 | 5650 | 5240 | 4829 | 3130 | / | 2,41 | 2,45 | 2,59 | 2,73 | 2,52 | / | |
| 5 | 6110 | 5801 | 5447 | 5092 | 3458 | / | 2,48 | 2,54 | 2,69 | 2,84 | 2,62 | / | |
| 7 | 6899 | 6000 | 5191 | 4381 | / | / | 2,91 | 2,95 | 3,03 | 3,10 | / | / | |
| 10 | 6931 | 6036 | 5205 | 4373 | / | / | 3,04 | 3,11 | 3,17 | 3,23 | / | / | |
| 12 | 6952 | 6082 | 5359 | 4635 | / | 3,14 | 3,23 | 3,30 | 3,37 | / | |||
| 15 | 6984 | 6152 | 5590 | 5028 | / | / | 3,30 | 3,42 | 3,50 | 3,58 | / | / | |
| 20 | 6808 | 6031 | 5296 | 4561 | / | / | 3,60 | 3,76 | 3,86 | 3,95 | / | / | |
| 25 | 6632 | 5991 | 5377 | 4762 | / | / | 4,00 | 4,20 | 4,31 | 4,41 | / | / | |
| 30 | 6603 | 5998 | 5452 | 4906 | / | / | 4,21 | 4,46 | 4,58 | 4,69 | / | / | |
| 35 | 6574 | 6024 | 5128 | / | / | / | 4,45 | 4,75 | 4,99 | / | / | / | |
| 40 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 43 | / | / | / | / | / | / | / | / | / | / | / | / | |
|
60 | -25 | / | / | / | / | / | / | / | / | / | / | / | / |
| -20 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -15 | 2125 | 1978 | 1744 | 1509 | / | / | 1,05 | 1,05 | 1,06 | 1,07 | / | / | |
| -10 | 3320 | 3058 | 2721 | 2384 | / | / | 1,44 | 1,44 | 1,46 | 1,47 | / | / | |
| -7 | 4573 | 4276 | 3478 | 2679 | / | / | 1,75 | 1,79 | 1,81 | 1,82 | / | / | |
| -5 | 4728 | 4345 | 3532 | 2719 | / | / | 1,83 | 1,85 | 1,88 | 1,90 | / | / | |
| -2 | 4896 | 4453 | 3657 | 2861 | / | / | 1,91 | 1,92 | 1,95 | 1,97 | / | / | |
| 0 | 5064 | 4561 | 3782 | 3003 | / | / | 1,99 | 1,99 | 2,02 | 2,04 | / | / | |
| 2 | 5334 | 4991 | 4128 | 3264 | / | / | 2,05 | 2,08 | 2,12 | 2,16 | / | / | |
| 5 | 5744 | 5217 | 4398 | 3579 | / | / | 2,27 | 2,29 | 2,33 | 2,36 | / | / | |
| 7 | 6424 | 5644 | 4936 | 4227 | / | / | 2,55 | 2,60 | 2,65 | 2,69 | / | / | |
| 10 | 6270 | 5763 | 4982 | 4201 | / | / | 2,60 | 2,65 | 2,70 | 2,75 | / | / | |
| 12 | 6167 | 5693 | 4984 | 4276 | / | 2,64 | 2,71 | 2,74 | 2,78 | / | |||
| 15 | 6013 | 5587 | 4988 | 4389 | / | / | 2,70 | 2,79 | 2,81 | 2,82 | / | / | |
| 20 | 5977 | 5584 | 4795 | 4005 | / | / | 3,06 | 3,07 | 3,15 | 3,23 | / | / | |
| 25 | 5941 | 5654 | 4996 | 4337 | / | / | 3,55 | 3,59 | 3,69 | 3,78 | / | / | |
| 30 | 6013 | 5752 | 5146 | 4540 | / | / | 3,83 | 3,91 | 4,01 | 4,11 | / | / | |
| 35 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 40 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 43 | / | / | / | / | / | / | / | / | / | / | / | / | |
|
65 | -25 | / | / | / | / | / | / | / | / | / | / | / | / |
| -20 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -15 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -10 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -7 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -5 | / | / | / | / | / | / | / | / | / | / | / | / | |
| -2 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 0 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 2 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 5 | 4924 | 4228 | 3537 | 2846 | / | / | 1,84 | 1,91 | 1,96 | 2,01 | / | / | |
| 7 | 5245 | 4402 | 3864 | 3325 | / | / | 2,02 | 2,14 | 2,19 | 2,24 | / | / | |
| 10 | 5566 | 4542 | 4047 | 3551 | / | / | 2,21 | 2,34 | 2,39 | 2,43 | / | / | |
| 12 | 6101 | 5039 | 4442 | 3844 | / | / | 2,56 | 2,77 | 2,84 | 2,90 | / | / | |
| 15 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 20 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 25 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 30 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 35 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 40 | / | / | / | / | / | / | / | / | / | / | / | / | |
| 43 | / | / | / | / | / | / | / | / | / | / | / | / | |
FERROLI S.p.A.
Via Ritonda 78/a
37047 San Bonifacio – Verona – ITALY
www.ferroli.com
Made in China
Cod. 3QE47200 – Rev. 00 – 11/2021
FERROLI - Caldaie, condizionatori ed energie alternative
