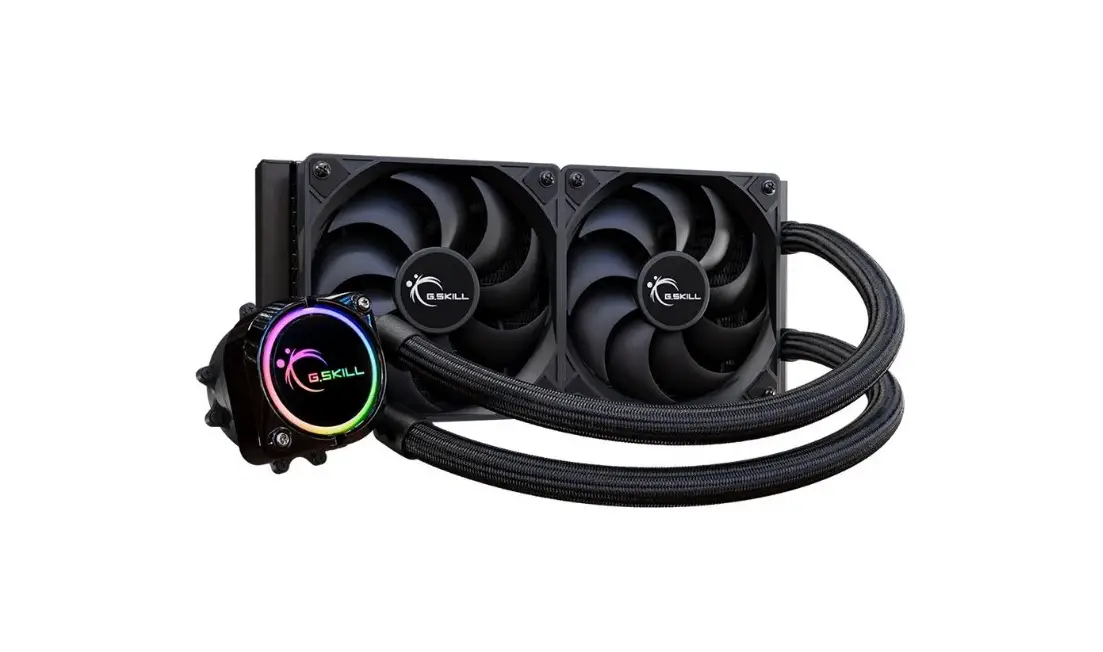

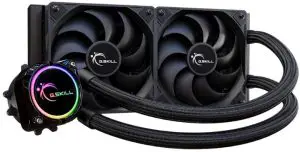

G SKILL ENKI 280 AIO Cooler User Guide
| Product Specifications | |
| Product Name | ENKI 280 |
| Part Number | GW-DTNL9A2P-A280XG1 |
Pump & Water Block | |
| Dimensions (LxWxH) | 5.7 x 5.7 x 3.9cm |
| Material | Copper, Plastic |
| Pump Speed | 5000RPM |
Radiator | |
| Dimensions (LxWxH) | 31.2 x 14.0 x 2.7cm |
| Material | Aluminum |
Tubing | |
| Length | 420mm |
| Material | Ultra-Low Evaporation Rubber w/ Nylon Braided Sleeve |
Fan | |
| Dimensions (LxWxH) | 140 x 140 x 25mm |
| Speed | 2000±10% RPM |
| Airflow | 102.5 CFM (Max.) |
| Air Pressure | 3.5 mmH2O (Max.) |
| Noise | 39.5 dBA (Max.) |
| Power Consumption | DC 12V, 0.64A, 7.6W |
| Rated Lifetime | 6 Years |
| Bearing | Hydro Bearing |
| Connector | 4-Pin PWM |
Socket Compatibility | |
| Intel Socket 1200, 115x, 1366, 2011, 2011-3, 2066 AMD Socket AM4, AM3+, AM3, AM2, FM2+, FM2, FM1 | |
Warranty | |
| 5 Year Limited Warranty | |
Contents hide

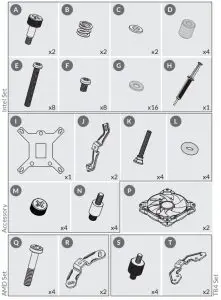

Tools Needed

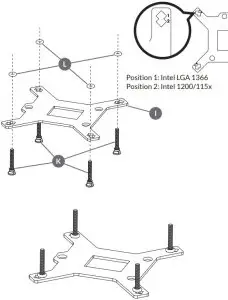

Intel LGA 1200 / 115x / 1366 – Base Assembly

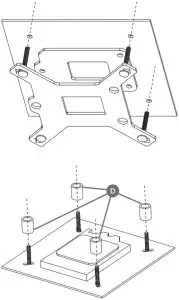

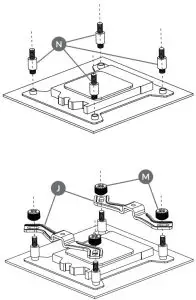

Intel LGA 2066 / 2011 / 2011v3 Socket – Base Assembly
Note: Choose the alignment of the mounting bars depending on the desired cooler orientation.

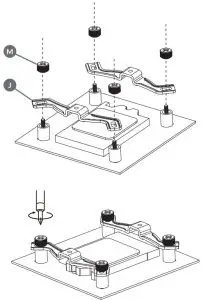

AMD AM4, AM3+, AM3 Socket – Base Assembly
Note: Remove the two AMD top brackets. Keep the stock backplate.

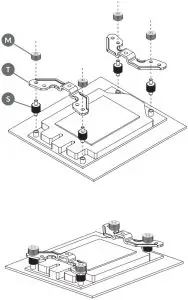

AMD TR4 Socket – Base Assembly

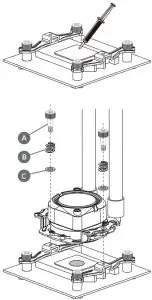

Cooler Assembly

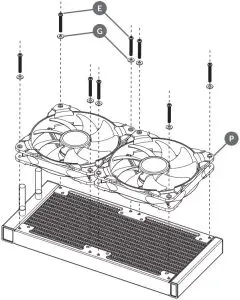

Fan Installation

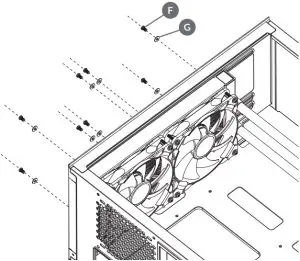

Case Assembly
Technical Support
International: [email protected]
North/South America: [email protected]
Europe: [email protected]
