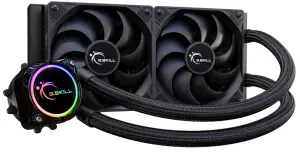

G SKILL GW-DTNL9A1P-A240XG1 Enki 240 AIO Cooler User Guide
Product Specifications | |
| Product Name | ENKI 240 |
| Part Number | GW-DTNL9A1P-A240XG1 |
| Pump & Water Block | |
| Dimensions (LxWxH) | 5.7 x 5.7 x 3.9cm |
| Material | Copper, Plastic |
| Pump Speed | 5000RPM |
| Radiator | |
| Dimensions (LxWxH) | 27.7 x 12.0 x 2.7cm |
| Material | Aluminum |
| Tubing | |
| Length | 420mm |
| Material | Ultra-Low Evaporation Rubber w/ Nylon Braided Sleeve |
| Fan | |
| Dimensions (LxWxH) | 120 x 120 x 25mm |
| Speed | 2100±10% RPM |
| Airflow | 23.6~93.5 CFM |
| Air Pressure | 0.2~1.86 mmH2O |
| Noise | 15.3~29.6 dBA |
| Power Consumption | DC 12V, 0.23A, 2.76W |
| Rated Lifetime | 6 Years |
| Bearing | Hydro Bearing |
| Connector | 4-Pin PWM |
| Socket Compatibility | |
| Intel Socket 1200, 115x, 1366, 2011, 2011-3, 2066 AMD Socket AM4, AM3+, AM3, AM2, FM2+, FM2, FM1 | |
| Warranty | |
| 5 Year Limited Warranty | |
Product Required
Assembly Instructions

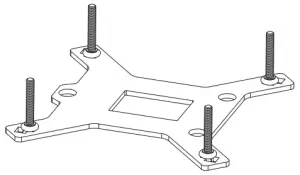

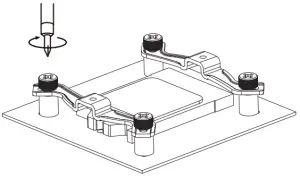

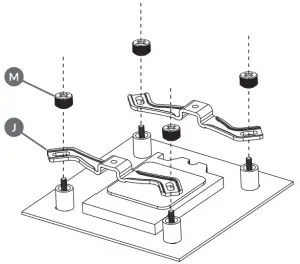

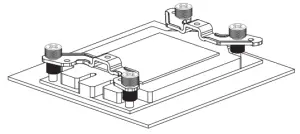

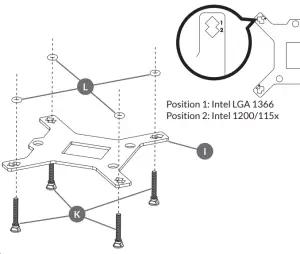

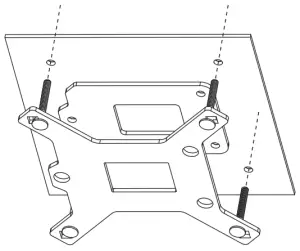

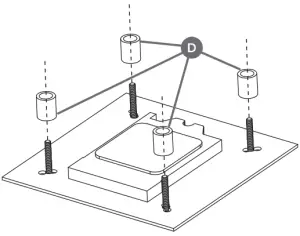

- Intel LGA 1200 / 115x / 1366 – Base Assembly

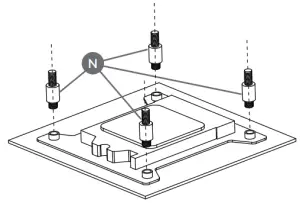

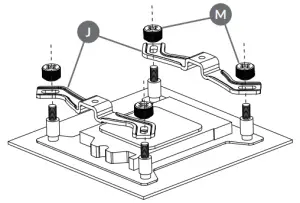

- Intel LGA 2066 / 2011 / 2011v3 Socket – Base Assembly

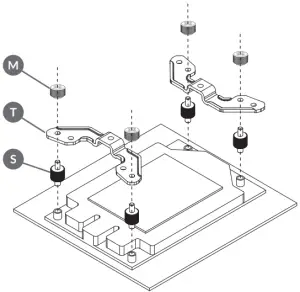

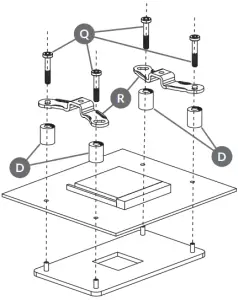

Note: Choose the alignment of the mounting bars depending on the desired cooler orientation. - AMD AM4, AM3+, AM3 Socket – Base Assembly

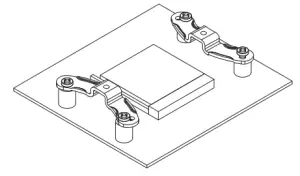

Note: Remove the two AMD top brackets. Keep the stock backplate. - AMD TR4 Socket – Base Assembly

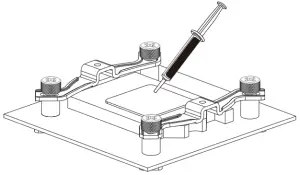

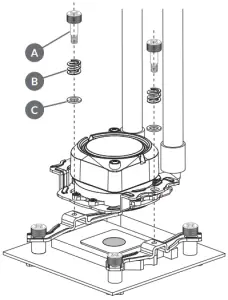

- Cooler Assembly

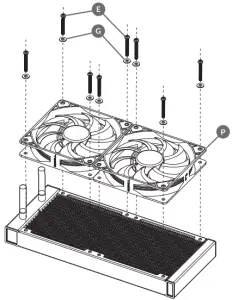

- Fan Installation

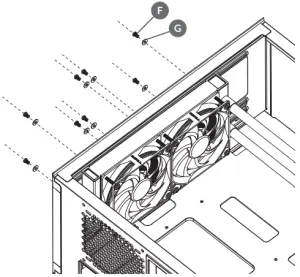

- Case Assembly
Technical Support
International: [email protected]
North/South America: [email protected]
Europe: [email protected]
