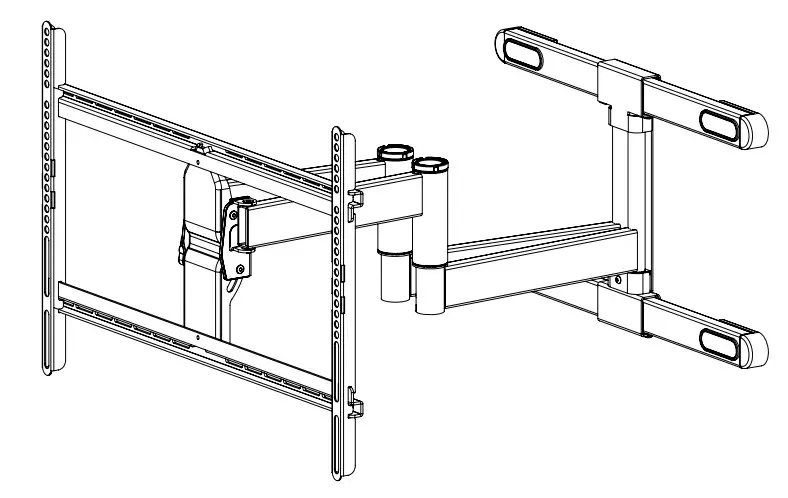

QLF425-B2 Full Motion TV Wall Mount
Instruction Manual
WE’RE HERE TO HELP
Want to watch a video that shows how easy this DIY project will be?
Get it right the first time.

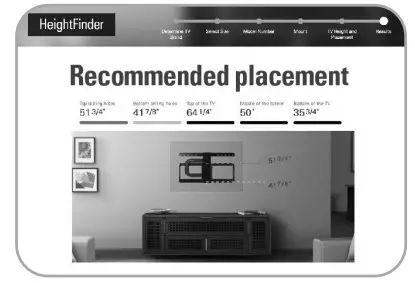

HeightFinder™ shows you where to drill.
Our install experts are standing by to help.
 | Watch it now at: san.us/3020 |
 | Check it out at: san.us/3021 |
 | Call us at: US: +1 (800) 359-5520 EMEA: +31 (0) 495 580 852 UK: +44 (0) 800 056 2853 |
IMPORTANT SAFETY INSTRUCTIONS
Please read through these instructions completely to be sure you’re comfortable with this easy installation process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly, or use of this product, contact Customer Service the US: +1 (800) 359- 5520 EMEA: +31 (0) 495 580 852 UK: +44 (0) 800 056 2853.
CAUTION: Avoid potential personal injuries and property damage!
- This product is designed ONLY to be installed into wood studs, solid concrete, or concrete block.
— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV. - This product is designed for INDOOR USE ONLY.
- The wall must be capable of supporting five times the weight of the TV and mount combined.
- Do not use this product for any purpose not explicitly specified by the manufacturer.
- The manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
TV Weight Limit (including accessories)
DO NOT EXCEED
If your TV (including accessories) exceeds this weight, this mount is NOT compatible.
Visit secure-av.com or call customer service to find a compatible mount.
US: +1 (800) 359-5520 EMEA: +31 (0) 495 580 852
UK: +44 (0) 800 056 2853
Wall Construction
ONLY install on these acceptable wall types.
Unsure?
Call Customer Service
US: +1 (800) 359-5520
EMEA: +31 (0) 495 580 852
UK: +44 (0) 800 056 2853
CAUTION:
DO NOT install in drywall alone
Drywall alone will NOT hold the weight of your TV.

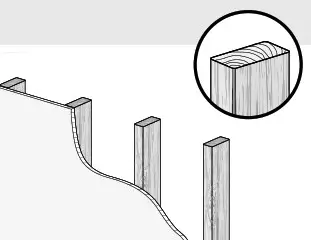

Wood studs
Perfect!

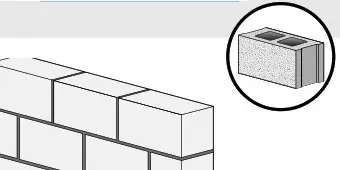

Solid concrete or concrete block
Concrete Anchor Kit #CMK1 is required (not included)
Contact Customer Service to inquire about the CMK1 Concrete Anchor Kit.

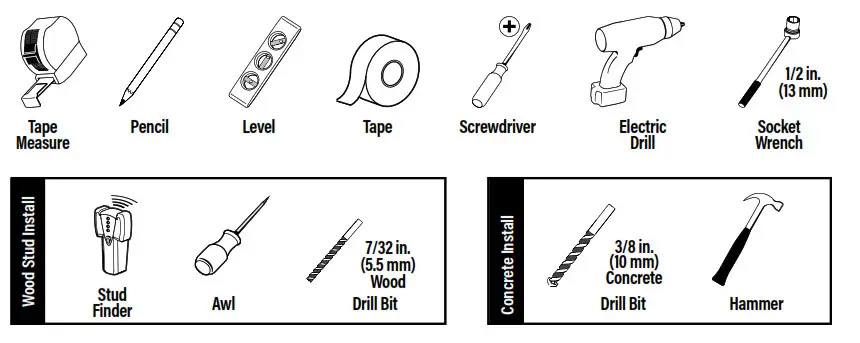

Tools Needed

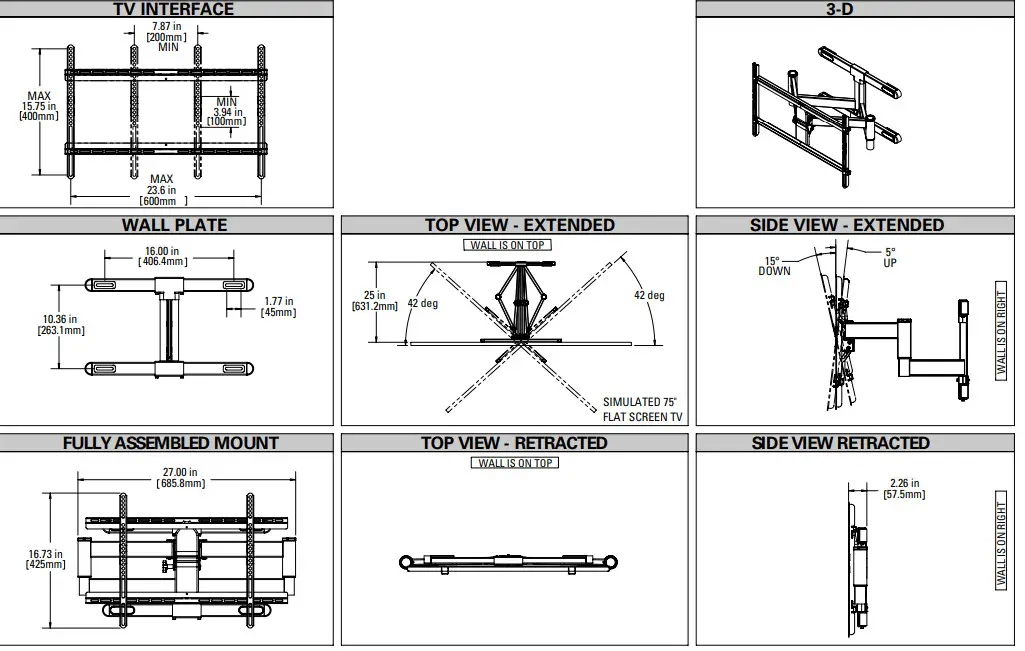

Dimensions
BEFORE YOU BEGIN

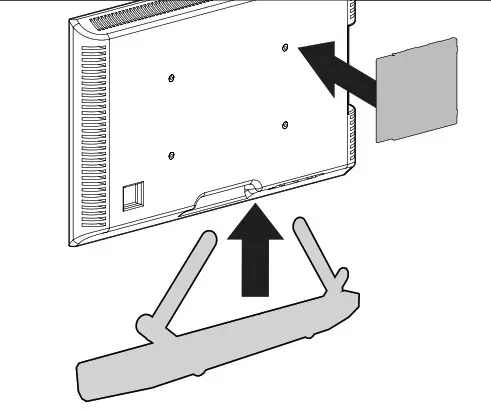

Remove the stand from your TV — if attached.
Install any accessories you may have purchased if they require TV removal prior to assembly. The TV is removable for future accessory purchases.

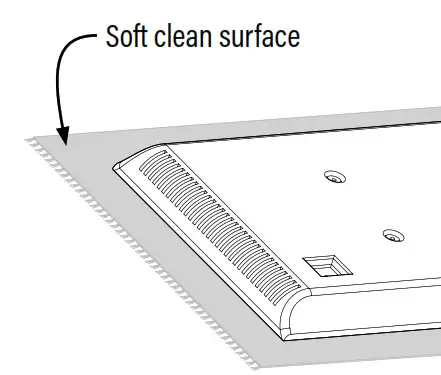

Protect the face of your TV when laying it down for installation.
Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing
or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.

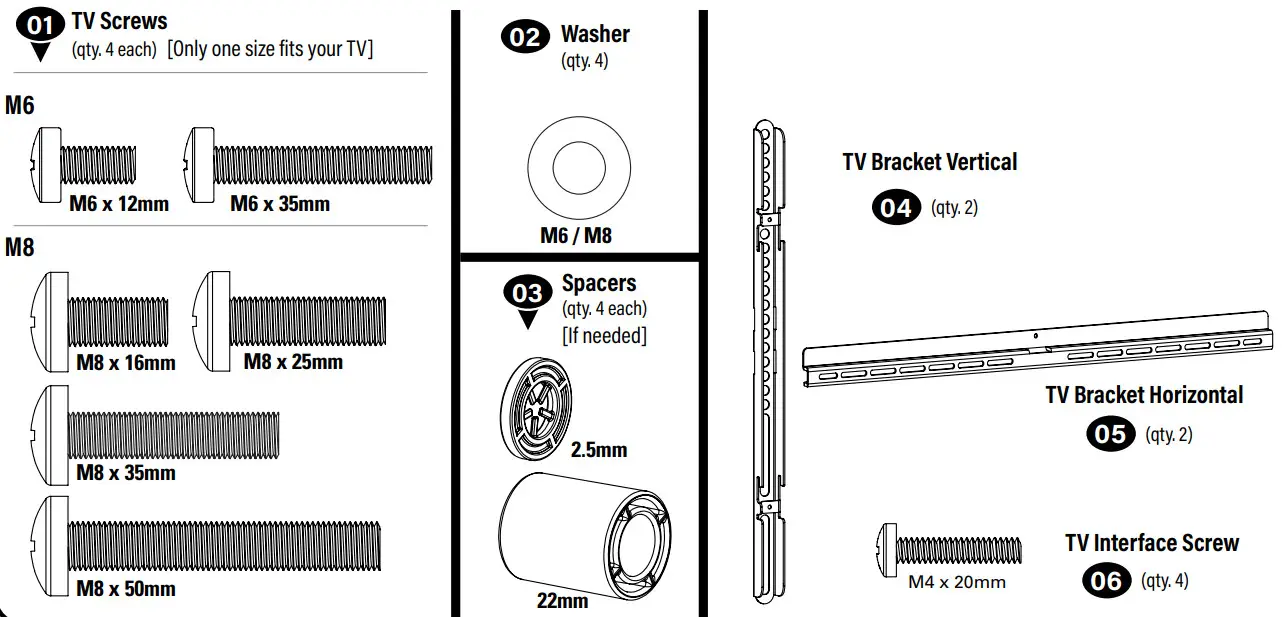

STEP 1 Parts and Hardware

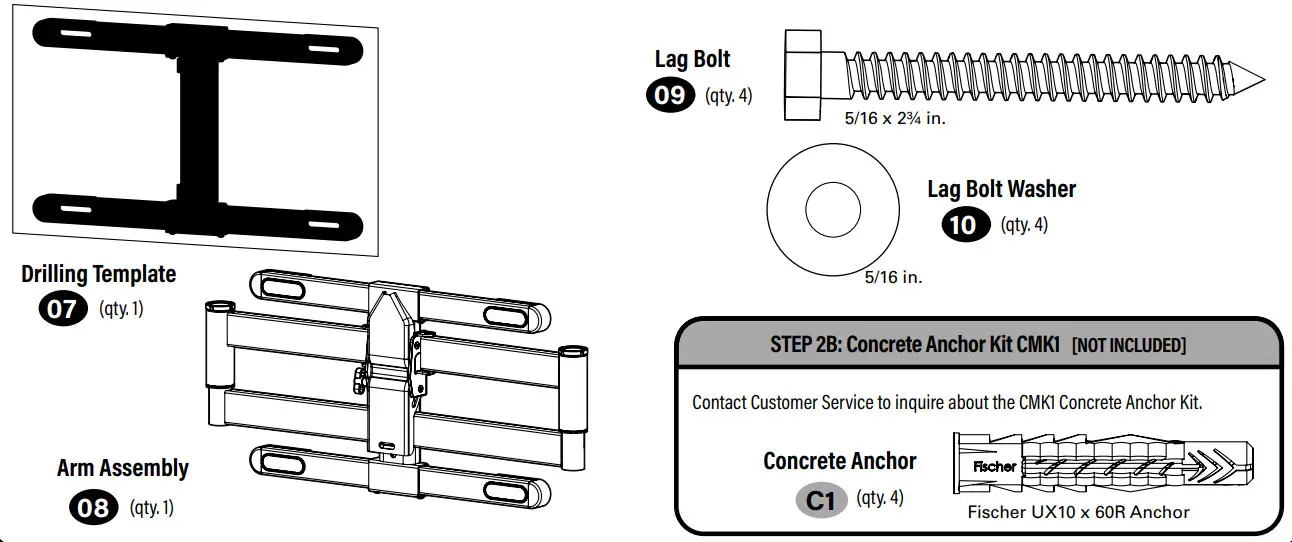

STEP 2 Parts and Hardware
STEP 3 Hardware

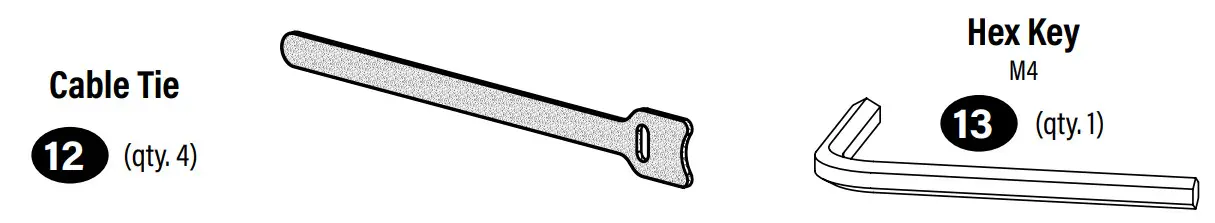

Additional Hardware
STEP 1 Attach TV Bracket to TV

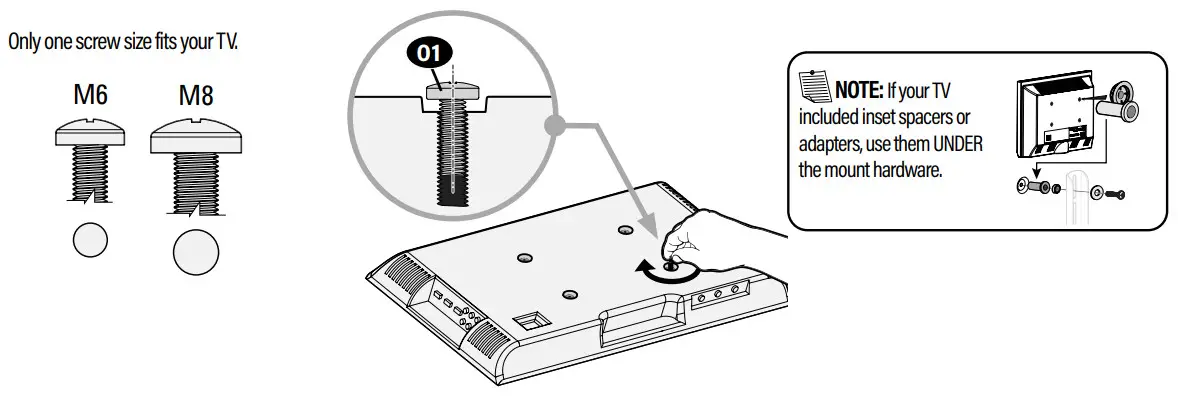

1.1 Select TV Screw Diameter
1.2 Select TV Screw Length and Spacers

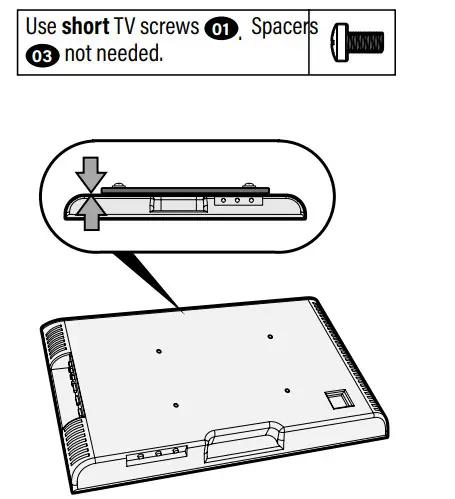

A NO SPACER
- Flat Back TV
[T V bracket s lay flat on your TV]

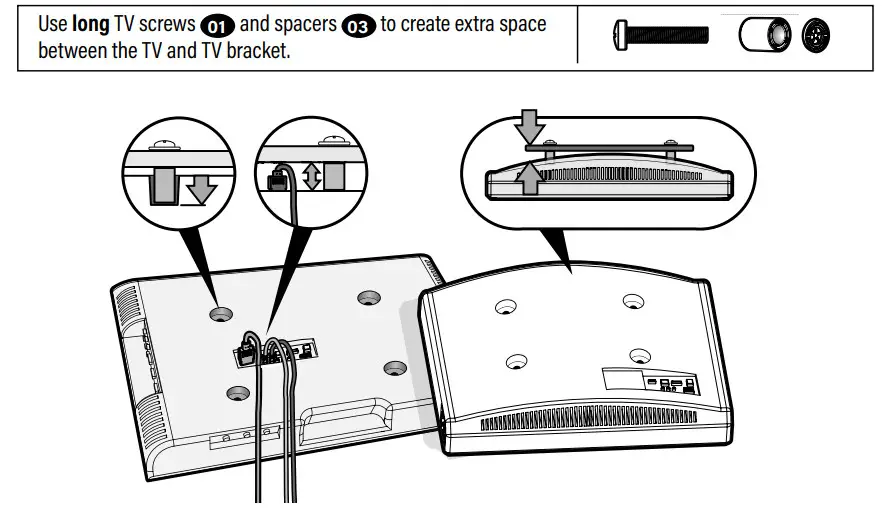

B SPACER NEEDED
- Flat Back TV with extra space needed [for deep inset holes or cable interference]
- Rounded or Irregular Back TV [TV bracket s NOT resting flat on your TV]

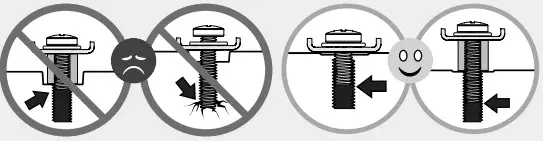

CAUTION: Verify adequate thread engagement with your screw 01, washer 02, spacer 03 combinations, AND TV bracket 04.
— Too short will not hold your TV. — Too long will damage your TV.

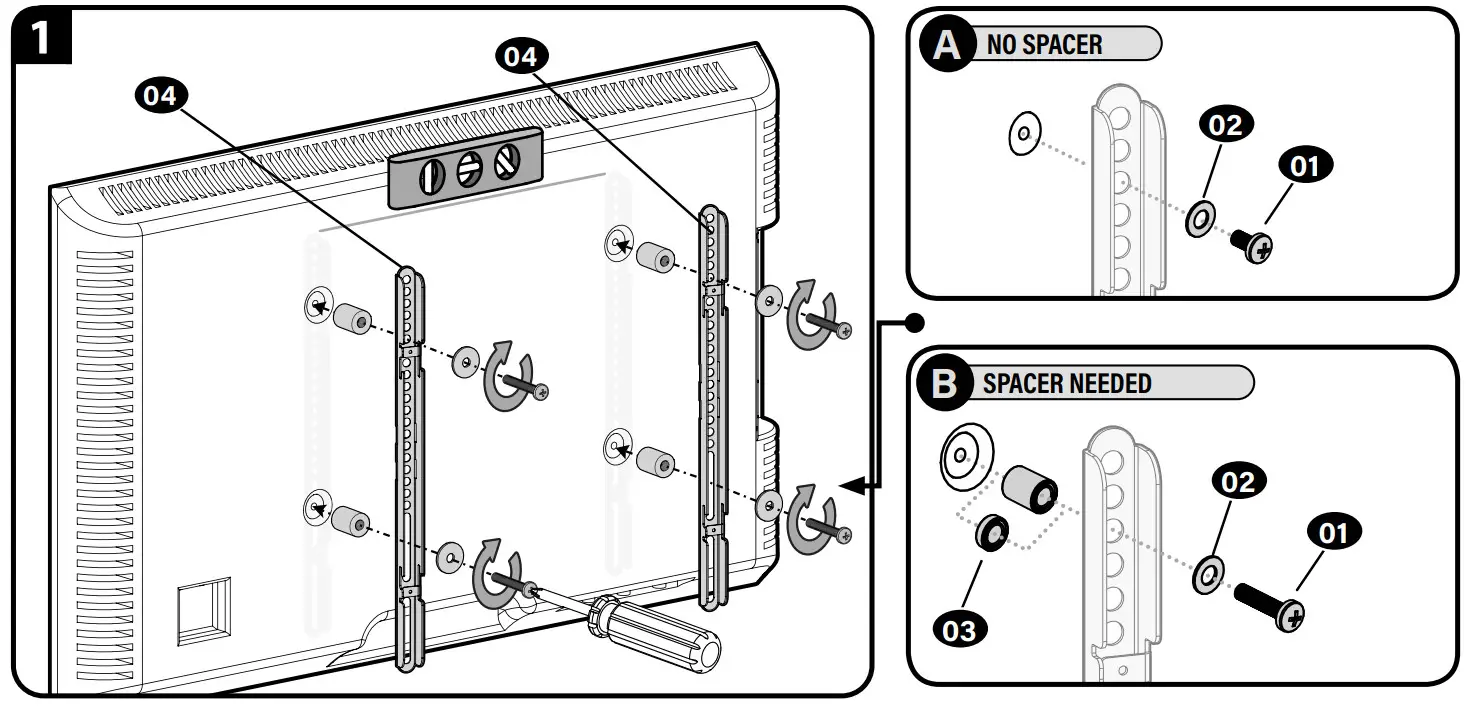

1. 3 Attach Vertical TV Brackets to Your TV
CAUTION: Avoid possible personal injury and property damage.
DO NOT use power tools for this step. Tighten the screws 01 with adequate force to secure the TV brackets 04 . DO NOT over-tighten them.

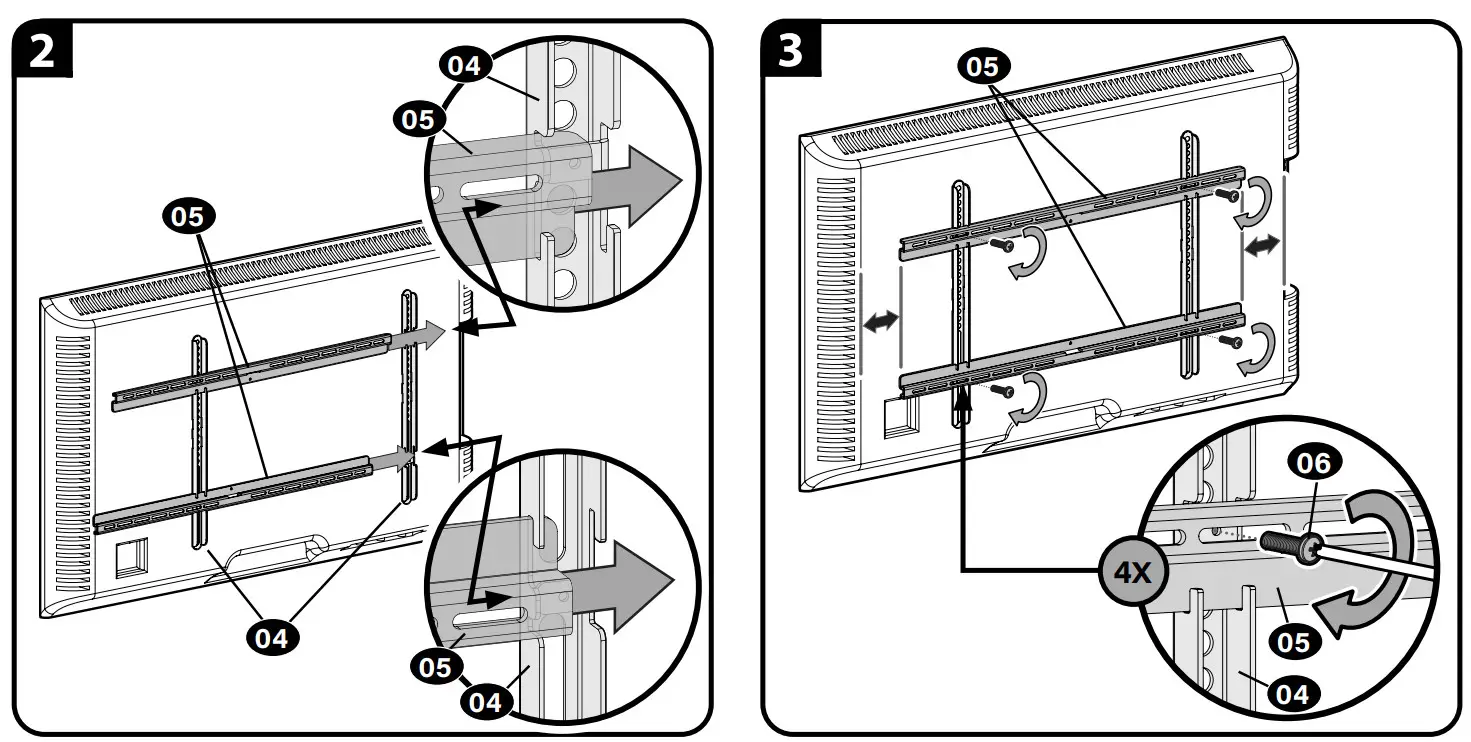

CAUTION: Avoid possible personal injury and property damage.
DO NOT use power tools for this step. Tighten the screws 06 with adequate force to secure the TV brackets 05. DO NOT over-tighten them.
STEP 2A Attach Wall Plate

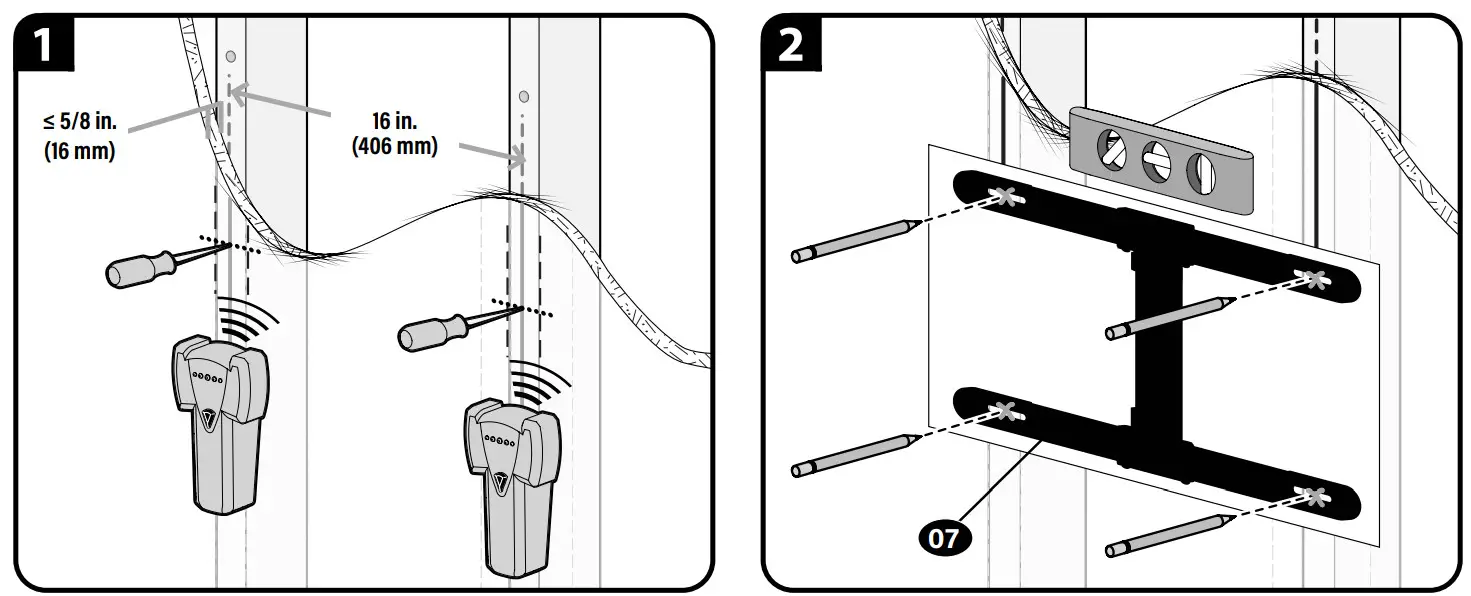

Wood Stud Installation
CAUTION: Avoid potential personal injury or property damage!
- Drywall covering the wall must not exceed 5/8 in. (16 mm)
- Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
- Minimum horizontal space between lag screws: 16 in. (406 mm)
- The stud center must be verified
IMPORTANT: Drill into the center of the stud.
Tighten the lag screws 09 only until the washers 10 are pulled snug against the wall plate 08.CAUTION: Improper use could reduce the holding power of the lag screw.
DO NOT over-tighten the lag screws 09.

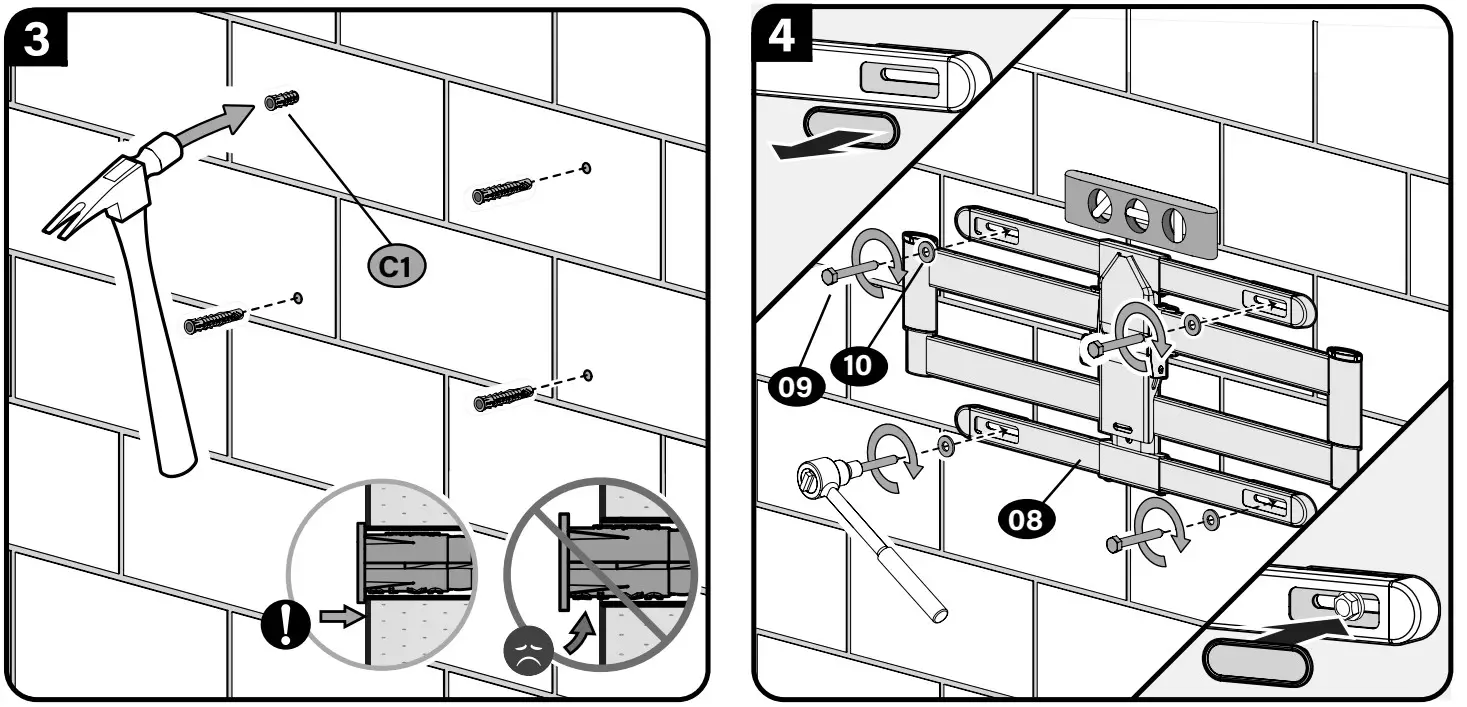

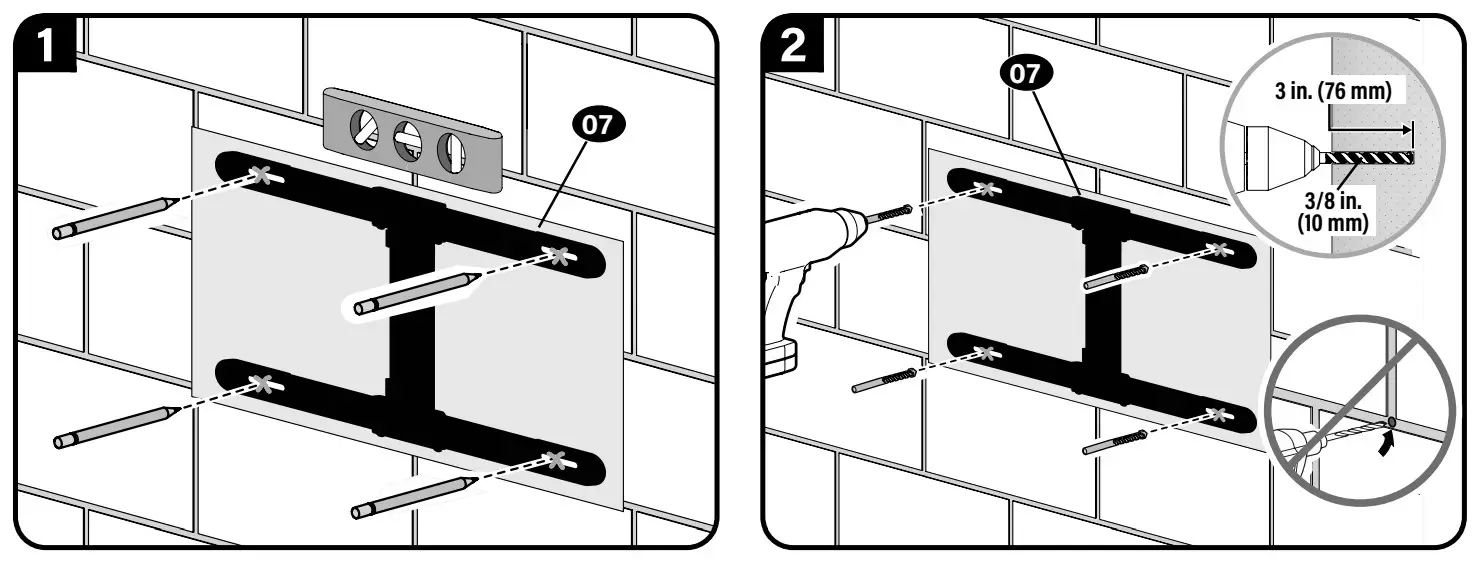

STEP 2B Attach Wall Plate
Solid Concrete or Concrete Block InstallationCAUTION: Avoid potential personal injury or property damage!
- Mount arm assembly 08 directly onto the concrete surface (no wall covering)
- Minimum solid concrete thickness: 8 in. (203 mm)
- Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
CAUTION: Never drill into the mortar between blocks.
* Contact Customer Service to inquire about Concrete Anchor Kit CMK1 and
Tighten the lag screws 09 only until the washers 10 are pulled snug against the wall plate 08.CAUTION: Improper use could reduce the holding power of the lag screw.
DO NOT over-tighten the lag screws 09.

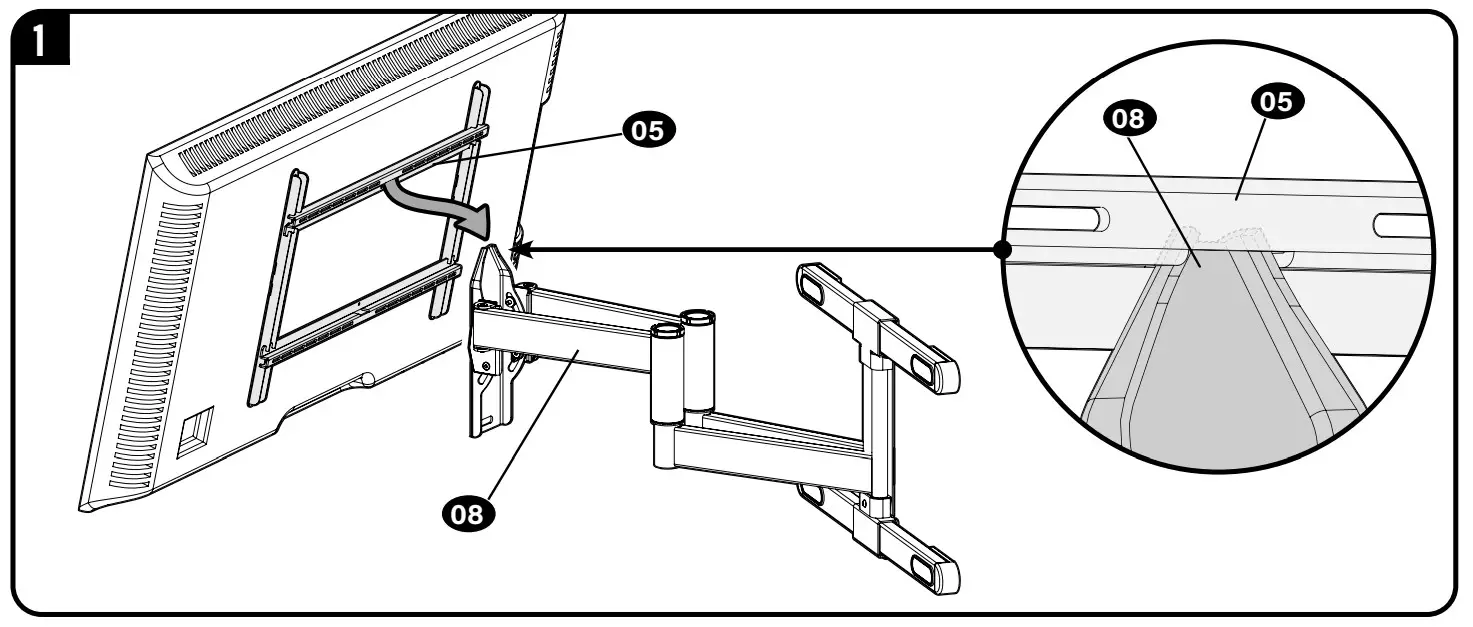

STEP 3 Attach TV to Arm Assembly
HEAVY! You may need assistance with this step.

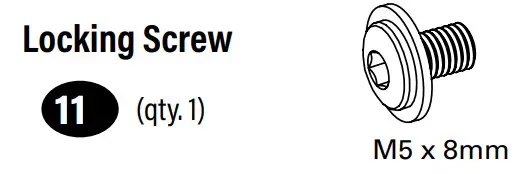

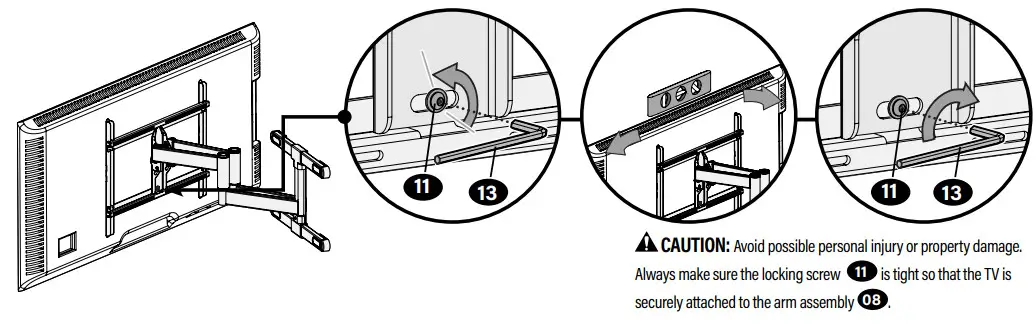

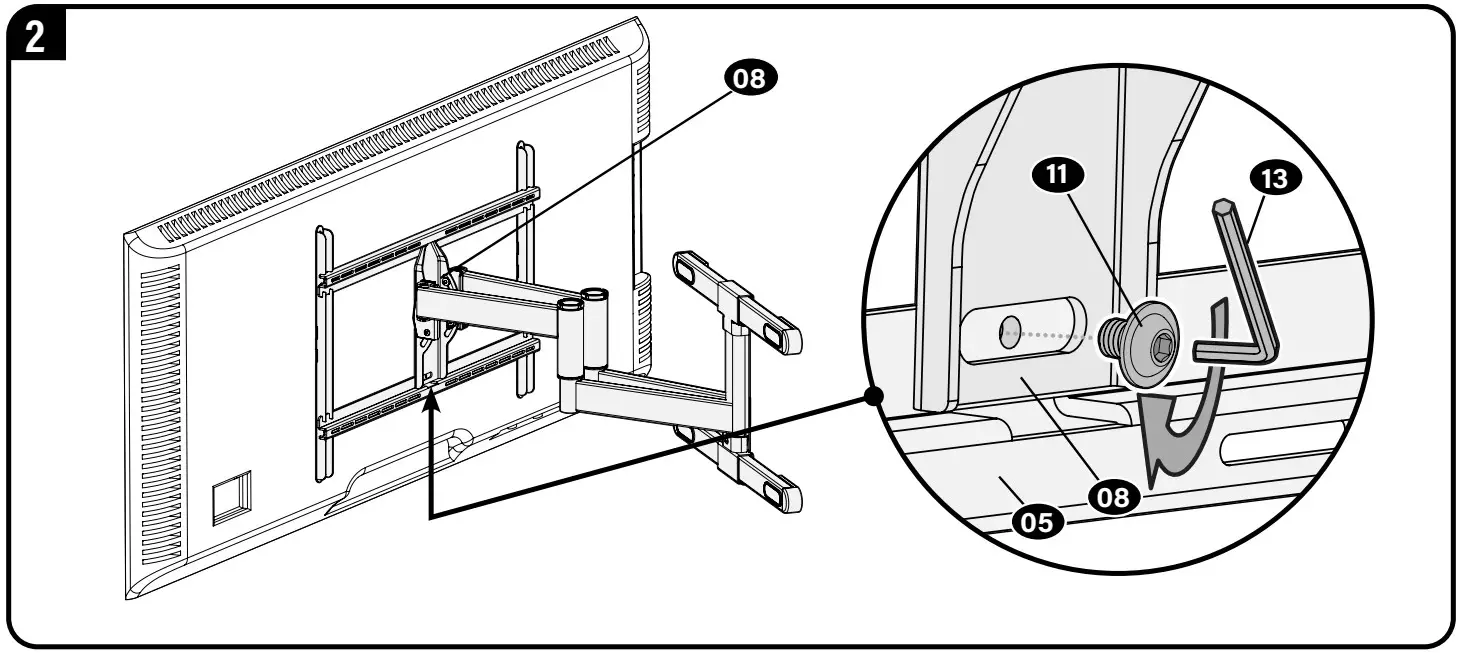

To adjust the leveling of your TV, loosen the locking screw 11 , level your TV, then tighten the locking screw 11CAUTION: Avoid potential personal injury or property damage! Locking screw 11 must be installed to secure the TV to arm assembly 08.

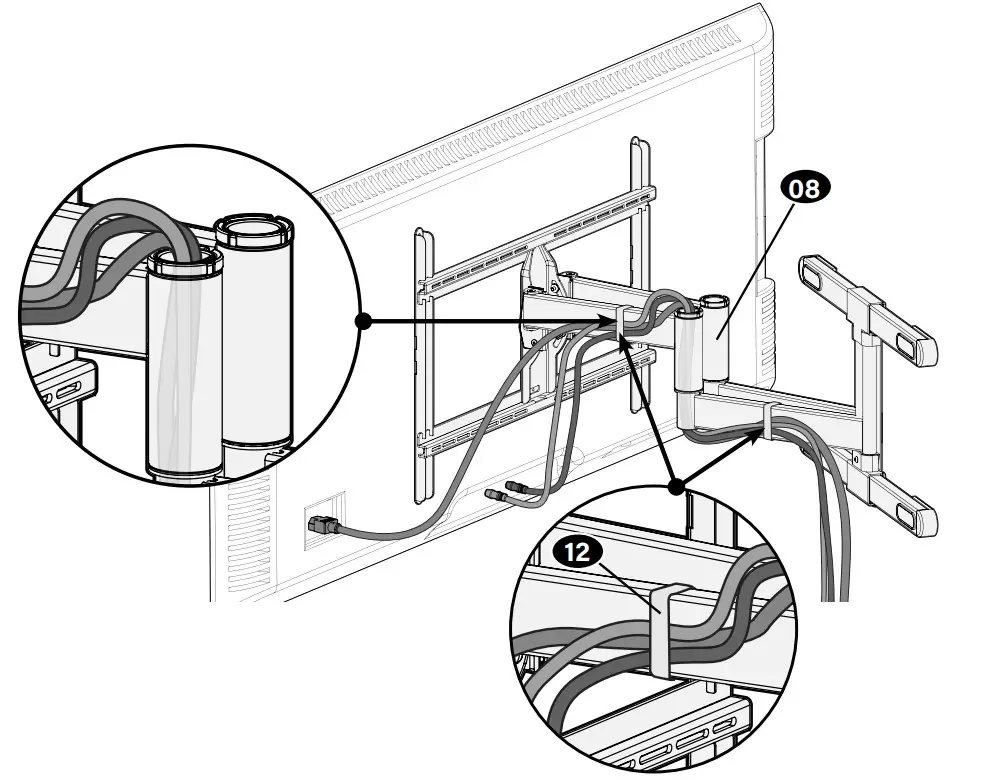

Manage Cables
IMPORTANT: Fully extend the arms 08 before routing cables.
TV Adjustments
TILT ADJUSTMENT
Your TV should adjust easily when moved, then stay in place.
If your TV is too loose or too tight, adjust the side tension knob T by hand.NOTE: Once your TV is in place, tighten the side tension knob T to prevent unwanted movement.NOTE: Additional tension can be applied using the M4 hex key 13.
LEVEL ADJUSTMENT

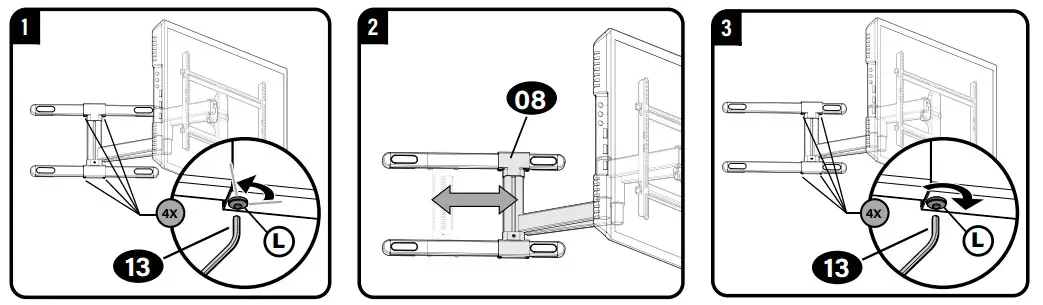

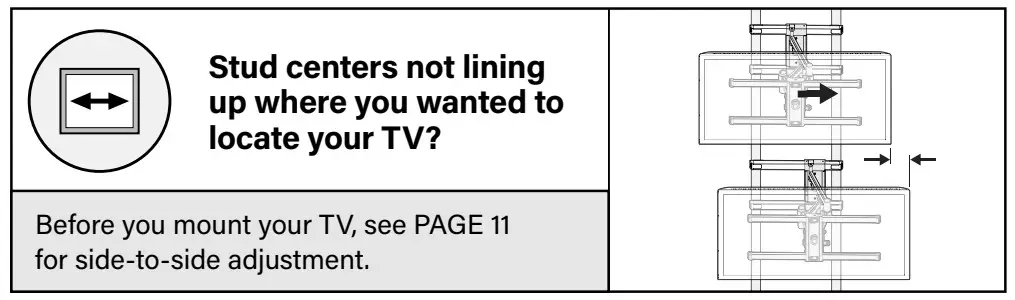

SIDE-TO-SIDE SHIFT
For Wood Stud ONLY
HEAVY! You may need assistance with this step.CAUTION: DO NOT Adjust for concrete installs
IMPORTANT: REMOVE YOUR TV before adjusting.
Only LOOSEN screws L to adjust
— DO NOT REMOVE.
Slide arm 08 to the desired position.
Securely tighten screws
L when finished adjusting arm.CAUTION: Avoid potential personal injury or property damage! Always make sure locking screws L are tightened so the TV is securely fastened to the arm assembly 08.

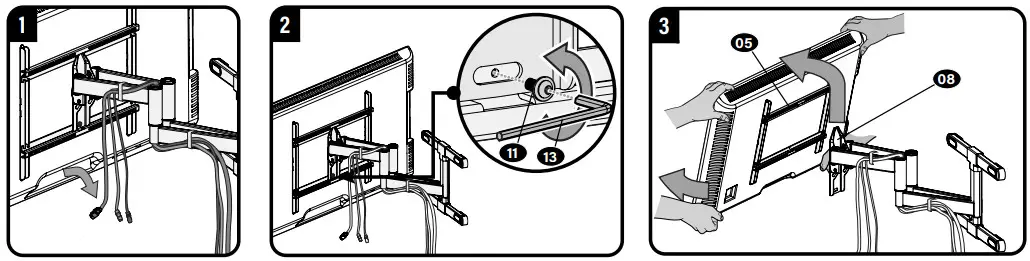

REMOVING THE TVHEAVY! You may need assistance with this step.
